Small metal box with five RJ45 ports on the front, matte black finish, wall-mount slots visible on the sides

Netgear Inc.

Netgear Inc. GS105E-200NAS 5-Port Gigabit network switch

SKU CH-VPVC-MHYQZ MPN GS105E-200NAS

A 5-port Gigabit Ethernet switch with web-managed Layer 2 features including VLAN, QoS and IGMP snooping

  • Switch TypeNon rack mountable
  • Network MediaMedia Type Supported: Twisted Pair Twisted Pair Cable Standa
  • Network Management TypeWeb Managed
  • Primary Ports5 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • PoENo

Class 5-Port Gigabit

Model GS105E

  • Web-managed Layer 2 switch adds VLAN and QoS control beyond basic plug-and-play
  • Five Gigabit RJ45 ports deliver 10/100/1000Mbps wired throughput for desktop or wall-mount use
  • Metal chassis with fanless design runs silently from 0 °C to 50 °C operating range
  • IEEE 802.3ab, 802.1p and 802.3x compliance ensures interoperable flow control and traffic prioritisation
  • Includes wall-mount kit and 12 V 1.0 A power adapter for flexible installation anywhere

Compact Gigabit switch for small networks

The Netgear GS105E-200NAS is a five-port Gigabit Ethernet switch built for desktop or wall-mounted use. It delivers 10/100/1000 Mbps connectivity over twisted-pair cabling up to 100 metres. Web-managed Layer 2 features include VLAN, QoS, IGMP snooping, port mirroring and spanning tree for traffic control beyond basic plug-and-play operation. A 12 V 1.0 A power adapter and mounting kit are included.

Suits offices needing managed features without

This switch fits small businesses adding VoIP phones, IP cameras or wireless access points that require traffic prioritisation and segmentation. It operates silently at 0.55 lb within a 0 to 50 °C range. Buyers needing Power over Ethernet to supply connected devices should look elsewhere, as this model provides no PoE output. Networks requiring more than five wired ports or rack-mount brackets will need a different form factor.

Five RJ45 ports at Gigabit speed

The decisive specification is the five 10/100/1000Base-T RJ45 ports combined with Web-managed Layer 2 software. That port count and management level determine whether the switch matches the scale and control requirements of the intended network segment.

商品特色

  • Web-managed Layer 2 switch adds VLAN and QoS control beyond basic plug-and-play
  • Five Gigabit RJ45 ports deliver 10/100/1000Mbps wired throughput for desktop or wall-mount use
  • Metal chassis with fanless design runs silently from 0 °C to 50 °C operating range
  • IEEE 802.3ab, 802.1p and 802.3x compliance ensures interoperable flow control and traffic prioritisation
  • Includes wall-mount kit and 12 V 1.0 A power adapter for flexible installation anywhere

商品規格

BrandNETGEAR
SeriesProSafe Plus
ModelGS105E
Part NumberGS105E-200NAS
Switch TypeNon rack mountable
Network MediaMedia Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 5
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
Network Management TypeWeb Managed
Primary Ports5 x RJ45
Primary Port Speed10/100/1000Mbps
PoENo
Layer2

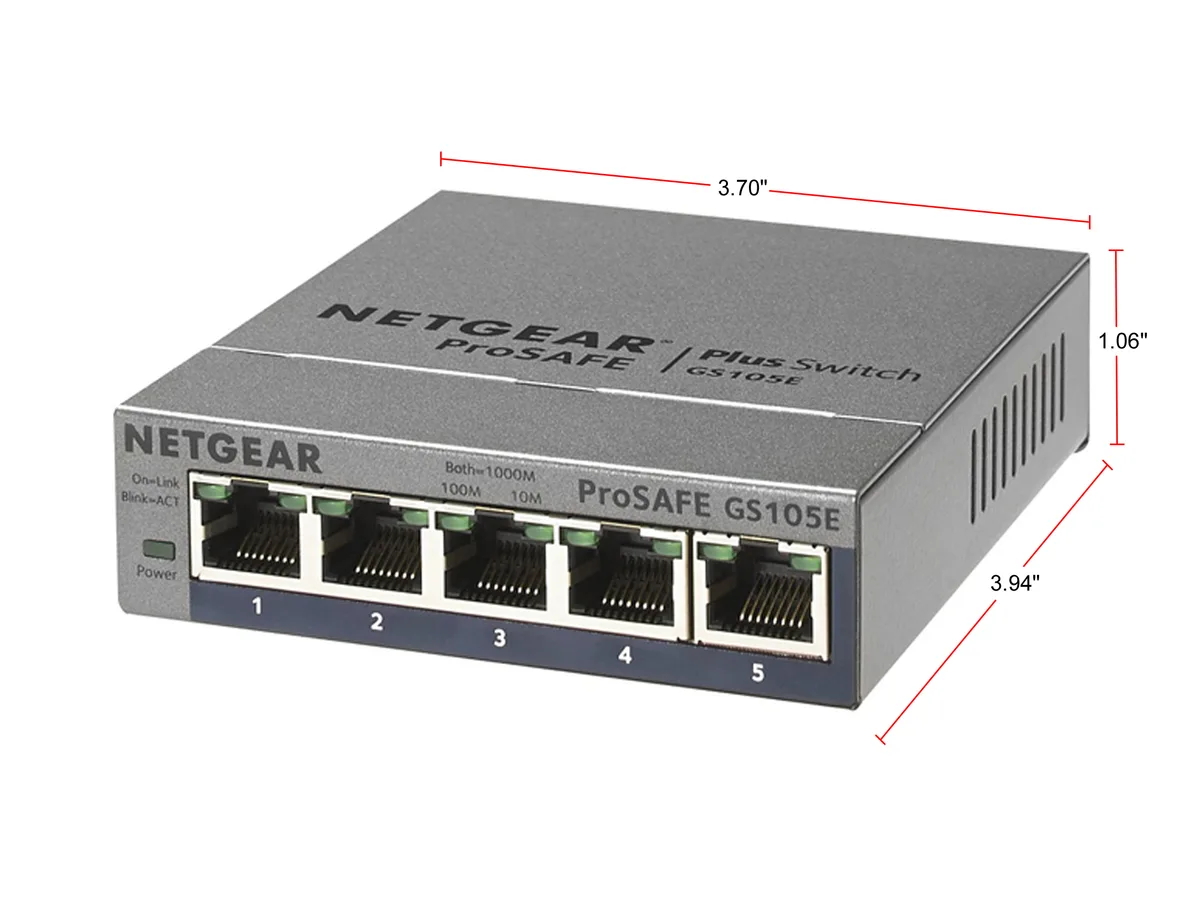

Dimensions3.70" x 3.94" x 1.06"
Weight0.55 lb.
CertificationIEEE Standards:
802.3i
802.3u
802.3ab
802.3x
802.1p
Safety Agency Approvals:
UL listed (UL 1950)/CUL
CB
Electromagnetic Compliance:
CE mark (commercial)
FCC Part 15 Class B
EN 55022 (CISPR 22)Class B
VCCI Class B
C-Tick
TemperatureOperating temperature: 32° to 122°F (0° to 50°C)
Storage temperature: -4° to 158°F (-20° to 70°C)
HumidityOperating Humidity: 90% maximum relative humidity, non-condensing
Storage Humidity: 95% maximum relative humidity, non-condensing
Package ContentsPackage Contents:
ProSafe Plus Switch, 5-Port Gigabit Ethernet
Wall-Mount kit
12V, 1.0A Power Adapter
Quick Installation Guide
Installation CD with Configuration Utility Software
出貨重量0.54 kg
包裝尺寸239 × 155 × 66 mm

其他版本

同系列還有 4 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

What are the physical dimensions and weight of the GS105E-200NAS, and does it include a wall-mount kit?

The switch measures 3.70" x 3.94" x 1.06" and weighs 0.55 lb. A wall-mount kit is included in the package for convenient installation on a wall or flat surface.

How is the GS105E-200NAS powered, and what is a common setup step that is overlooked?

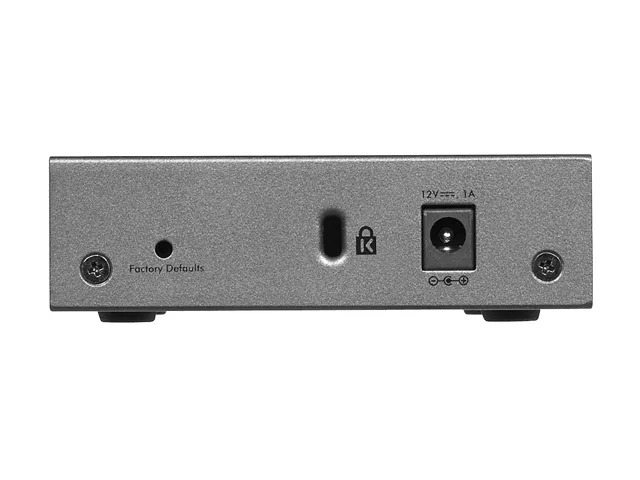

It is powered by an included 12V, 1.0A external power adapter that plugs into the switch's DC jack. A step often missed is connecting the adapter to the switch before plugging it into the mains outlet.

What maintenance does the GS105E-200NAS require over time, and are there any user-replaceable parts?

The unit has no moving parts or internal batteries, so routine maintenance is limited to keeping ventilation slots clear of dust. The only user-replaceable component is the external 12V, 1.0A power adapter if it fails.
