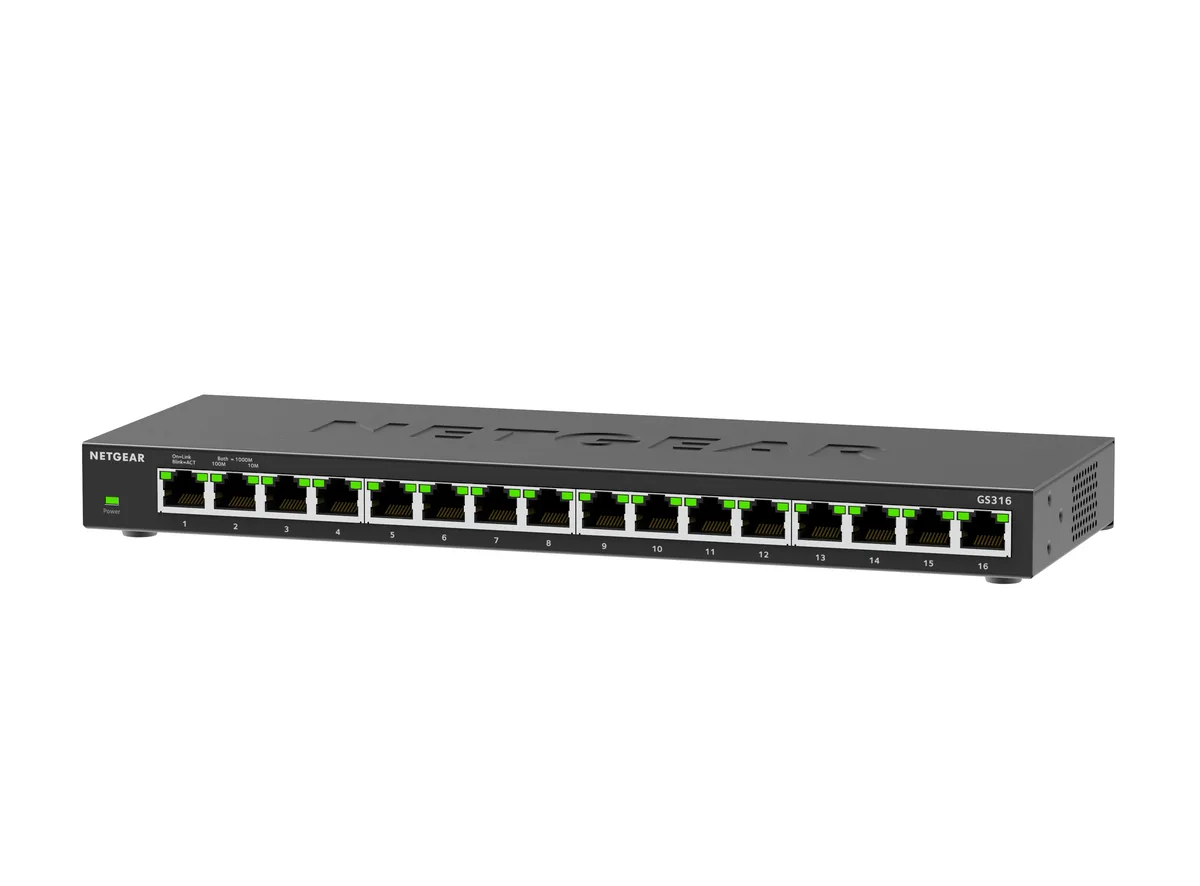

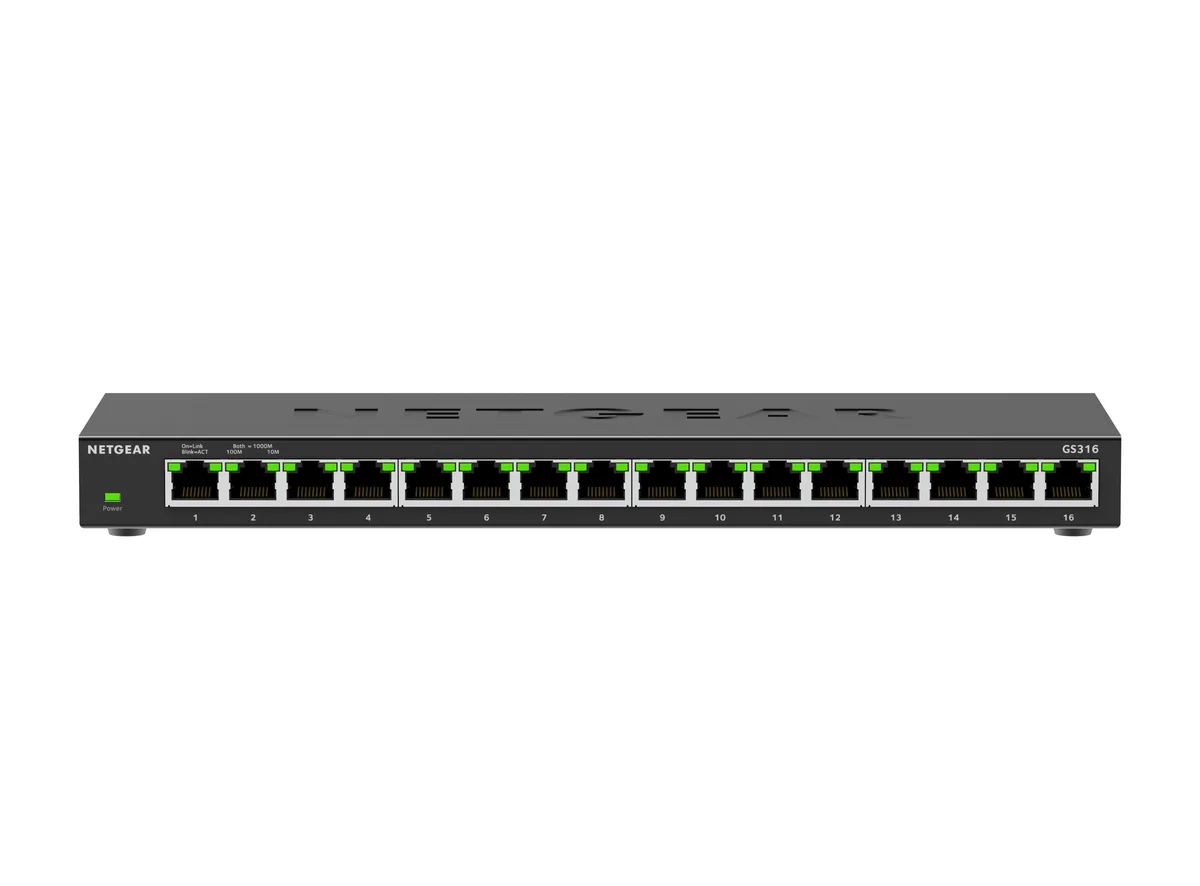

Silver metal desktop switch with 16 RJ45 ports and LED indicators

Netgear Inc.

Netgear Inc. GS316-300NAS 16-port Gigabit network switch

SKU CH-ZYD3-6JE6X MPN GS316-300NAS

A 16-port Gigabit unmanaged switch with plug-and-play setup, silent fanless operation, and desktop or wall-mount flexibility

  • FormatDesktop Wall Mountable Rack-mountable
  • StandardsIEEE 802.1p IEEE 802.3az IEEE 802.3ab IEEE 802.3u IEEE 802.3
  • Network MediaMedia Type Supported: Twisted Pair Ethernet Technology: Giga
  • Network Management TypeUnmanaged
  • Primary Port CountTotal Number of Network Ports: 16 Uplink Port: Yes Network (
  • Primary Ports16 x RJ45

Model GS316

  • 16 Gigabit ports connect many wired devices at once
  • Plug-and-play operation needs no software or configuration
  • Silent fanless design suits noise-sensitive spaces
  • Desktop wall or rack mounting fits any layout
  • Energy Efficient Ethernet IEEE 802.3az lowers power draw

16-Port Gigabit Switch for Simple Wired Networks

The Netgear GS316-300NAS is an unmanaged 16-port Gigabit Ethernet switch designed for small offices and home networks that need extra wired connections. It provides plug-and-play operation with no software installation or configuration required. The metal chassis supports desktop, wall-mount or rack-mount placement using the included hardware.

16 RJ45 Ports with 10/100/1000 Auto-Negotiation

Every port handles 10, 100 and 1000 Mbps speeds and auto-negotiates the highest common rate with the connected device. Auto-MDI/MDIX removes the need for crossover cables. A non-blocking architecture delivers full wire-speed throughput across all ports simultaneously. Jumbo frames up to 9216 bytes are supported for large data transfers.

Fanless Design Runs Silent at 8.10 W Typical Power

The switch operates without a fan, making it suitable for noise-sensitive environments such as open-plan offices or living rooms. Typical power draw is 8.10 W and drops to 2.60 W in standby. Energy Efficient Ethernet (IEEE 802.3az) reduces consumption further during periods of low link utilisation. The unit is powered from an external 12 V DC adapter.

商品特色

  • 16 Gigabit ports connect many wired devices at once
  • Plug-and-play operation needs no software or configuration
  • Silent fanless design suits noise-sensitive spaces
  • Desktop wall or rack mounting fits any layout
  • Energy Efficient Ethernet IEEE 802.3az lowers power draw

商品規格

BrandNETGEAR
Part NumberGS316-300NAS
FormatDesktop
Wall Mountable
Rack-mountable
StandardsIEEE 802.1p
IEEE 802.3az
IEEE 802.3ab
IEEE 802.3u
IEEE 802.3i
IEEE 802.3x
IEEE 802.3
Network MediaMedia Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
Maximum Data Transfer Rate:
128 MB/s
Network Management TypeUnmanaged
Primary Port CountTotal Number of Network Ports:
16
Uplink Port:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
16 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port
Primary Ports16 x RJ45
MAC Address Table8K
Jumbo Frames9216 bytes
Buffer Memory4.1MB
ProtocolsIEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3x Flow Control
IEEE 802.1p Priority QoS (all models)
IEEE 802.1p Priority QoS and DSCP
IEEE 802.3 CSMA/CD
802.3az Energy Efficient Ethernet
PoENo
QoSEnergy Efficient Ethernet (IEEE 802.3az)
Honors DSCP (DiffServ) Tags
Layer2
PowerInput Voltage:
12 V DC
Power Source:
DC
Power Consumption:
8.10 W
Max Power ConsumptionStandby: 2.60W
Dimensions(11.3 x 4.0 x 1.1 in)
Package ContentsBusiness GS316v3 Ethernet Switch
Power Cord
Rack Mount kit
Wall Mount Kit
Rubber Footpads
Installation Guide
出貨重量0.89 kg
包裝尺寸287 × 102 × 28 mm

其他版本

同系列還有 4 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

What does the 128 MB/s maximum data transfer rate mean for actual file copies?

The switch forwards traffic at full Gigabit line rate across all 16 ports simultaneously, so large file transfers between connected devices can sustain up to 128 MB/s in either direction.

Which Ethernet standard caps the port speed and what does it allow?

Each port follows the 10/100/1000Base-T standard, automatically negotiating 10 Mbps, 100 Mbps or 1 Gbps depending on the connected device.

What physical mounting options come in the box?

The metal case includes rubber feet for desktop use, a wall-mount kit and a rack-mount kit, so you can place it on a shelf, screw it to a wall or install it in a standard rack.
