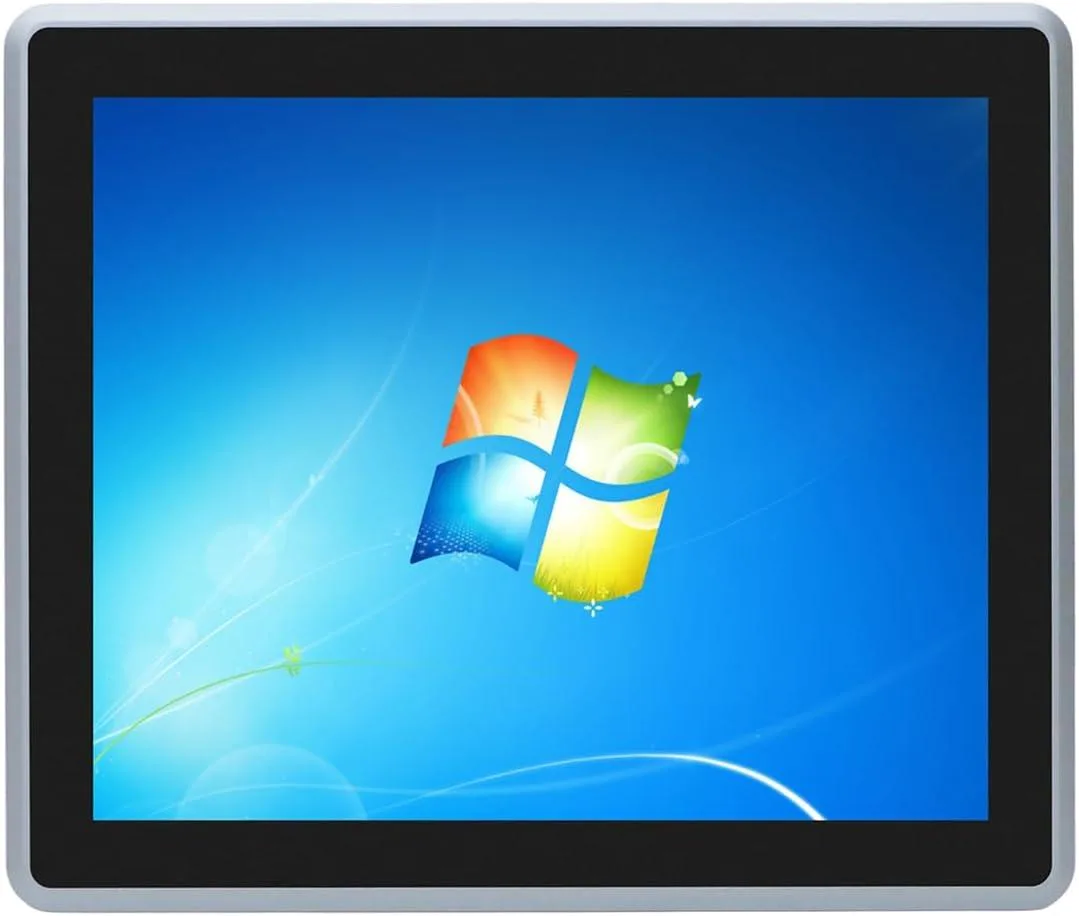

12.1 inch gray aluminium all-in-one panel PC with capacitive touch screen

partaker

partaker A26 12.1 inch AI edge system i5-3317U 8GB 256GB

SKU CH-0ZHE-57FPD

12.1-inch fanless industrial panel PC with capacitive touch screen, Intel Core i5-3317U, 8 GB DDR3 and 256 GB storage

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 3rd Gen
  • CPU NameIntel Core i5-3317U

A26 12.1" Capacitive I5 3317U 8GB RAM / 256GB SSD

  • 1-inch capacitive touch display with 1024x768 resolution for clear industrial visuals
  • Fanless aluminium alloy chassis enables silent operation in high-dust environments
  • IP65-rated front panel protects against water and dust ingress
  • Dual Gigabit LAN plus four USB and two COM ports for extensive factory connectivity
  • Intel Core i5-3317U dual-core processor with 8GB DDR3 and 256GB mSATA for responsive automation performance

Compact Industrial Panel PC

The Partaker A26 is a 12.1 inch all-in-one system built around an Intel Core i5-3317U processor with 8GB DDR3 memory and a 256GB mSATA drive. Its fanless aluminium chassis carries an IP65-rated front panel and a capacitive multi-touch screen running at 1024x768 resolution. Windows 10 Pro comes pre-installed for immediate deployment in automation and visualisation tasks.

Suited for fixed automation.

This unit serves machine builders and integrators who need a sealed, silent front end for HMI, SCADA or edge inference workloads in dusty or wet environments. The fixed 8GB memory ceiling and single mSATA slot rule out buyers who need more RAM, additional local storage or internal expansion cards. The 12.1 inch 4:3 display also limits operators who require wider aspect ratios or larger screen real estate.

Deciding spec: single mSATA slot with 256GB fitted

Storage is provided by one mSATA device already populated at 256GB; no second drive bay, M.2 socket or 2.5 inch bay is present. If the application demands more capacity or a separate OS and data volume, this chassis cannot accommodate it and an alternative platform must be chosen.

商品特色

  • 1-inch capacitive touch display with 1024x768 resolution for clear industrial visuals
  • Fanless aluminium alloy chassis enables silent operation in high-dust environments
  • IP65-rated front panel protects against water and dust ingress
  • Dual Gigabit LAN plus four USB and two COM ports for extensive factory connectivity
  • Intel Core i5-3317U dual-core processor with 8GB DDR3 and 256GB mSATA for responsive automation performance

商品規格

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 3rd Gen
CPU NameIntel Core i5-3317U
Screen Size12.1"
Screen TypeMulti-Touch Screen

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

How is the mSATA SSD replaced if it fails?

The SSD sits in the single mSATA slot inside the aluminium alloy chassis; remove the rear cover, swap the module, then reinstall Windows 10 Pro.

Which component hits its thermal ceiling first during continuous full-load operation?

The Intel Core i5-3317U dual-core processor reaches its 2.60 GHz ceiling before the fanless aluminium shell can dissipate more heat.

How much power does the system draw when running 24/7 with the screen at full brightness?

The 12 V DC supply feeds the 450 cd/m² panel, 82 W speakers and dual Realtek Gigabit ports; total draw stays within the 12 V rail.
