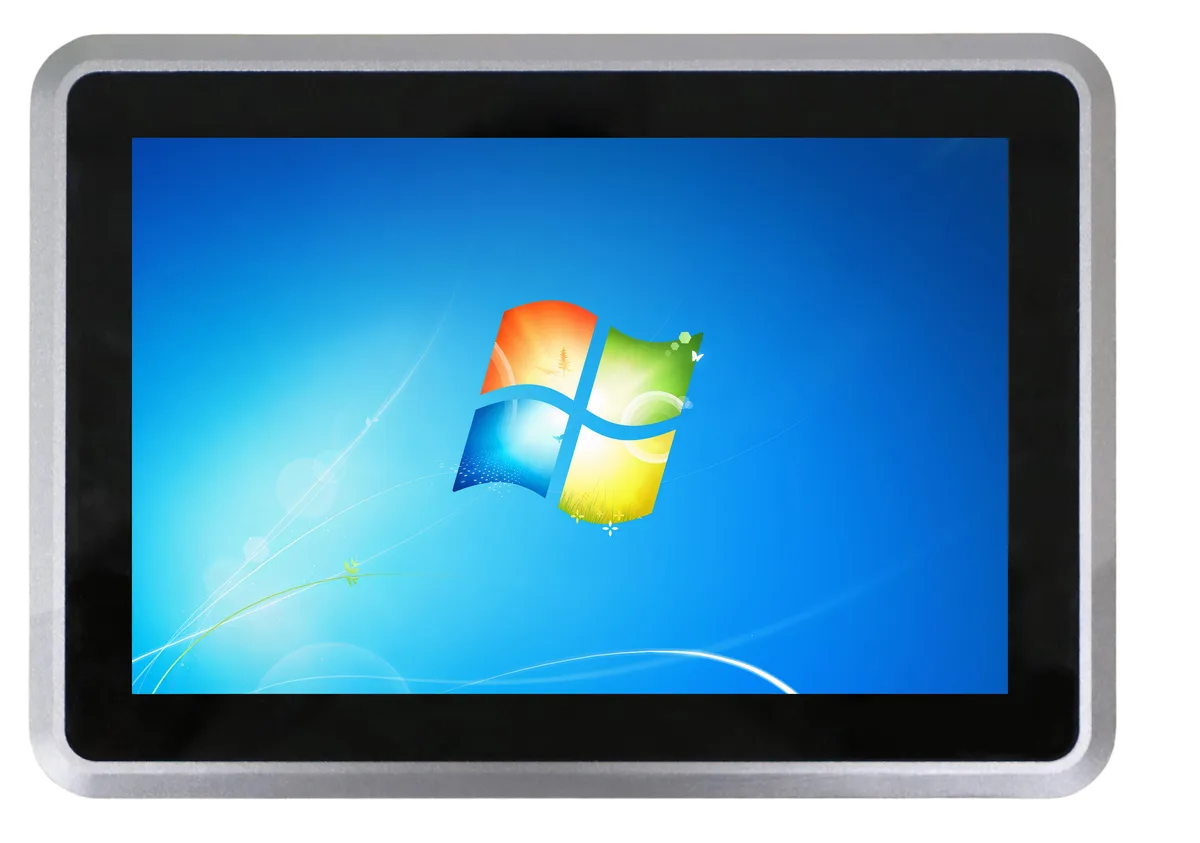

Gray aluminium-alloy 12.1-inch resistive touch panel PC with flat IP65 front

partaker

Partaker A26 12.1" resistive touch AI edge system i3-5005U/5010U 8GB 256GB

SKU CH-B1J8-T5V89

A 12.1-inch fanless industrial panel PC with a resistive touchscreen, IP65 front protection, an Intel Core i3 5th Gen processor, 8 GB DDR3 memory and a 256 GB mSATA drive

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i3 5th Gen
  • CPU NameIntel Core i3-5005U

A26 12.1" Resistive I3 5005U 8GB RAM / 256GB SSD

  • Fanless aluminium chassis runs silently in dusty environments
  • IP65 front panel resists water and dust ingress
  • 1 inch resistive touch screen rated to 50 million touches
  • Dual Gigabit LAN plus two RS232/485 COM ports connect factory gear
  • Intel Core i3 5005U or 5010U with 8GB DDR3 handles automation tasks

12.1-inch resistive touch panel PC

The Partaker A26 is a fanless all-in-one system built around a 12.1-inch resistive TFT-LCD with XGA resolution and IP65 front protection. It runs Windows 10 Pro on an Intel Core i3-5005U or 5010U dual-core processor at 2.00 GHz with 8 GB of DDR3 memory and a 256 GB mSATA drive. The aluminum alloy chassis provides silent, maintenance-free operation in harsh industrial environments.

Suits automation and HMI roles needing sealed

This unit fits embedded cutouts of 298.5 x 237 mm or VESA mounts and offers dual Gigabit LAN, dual RS232/485 COM ports, four USB ports, HDMI and audio for factory equipment integration. It is not for buyers who need a capacitive multi-touch screen, capacitive touch option is offered separately, or who require PCIe expansion slots beyond the two internal Mini PCIe sockets. Builders needing wider operating temperature data than the partial -2 °C figure provided should verify full range before deploying in extreme cold.

Resistive touch screen rated to 50 million touches

The 12.1-inch display delivers 1024 x 768 resolution at 450 cd/m² brightness with a 4:3 aspect ratio and full viewing angles. The resistive panel is rated for up to 50 million actuations, making it the key durability specification for glove-operated or stylus-driven industrial interfaces.

商品特色

  • Fanless aluminium chassis runs silently in dusty environments
  • IP65 front panel resists water and dust ingress
  • 1 inch resistive touch screen rated to 50 million touches
  • Dual Gigabit LAN plus two RS232/485 COM ports connect factory gear
  • Intel Core i3 5005U or 5010U with 8GB DDR3 handles automation tasks

商品規格

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i3 5th Gen
CPU NameIntel Core i3-5005U
Screen Size12.1"
Screen TypeMulti-Touch Screen

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

How much heat and noise does the fanless aluminium chassis produce during continuous 24-hour operation?

The fanless all-aluminium design runs silently and dissipates heat passively, so there is no audible fan noise and the chassis itself acts as the heatsink for all-day workloads.

Which cables and peripherals must I already have to power and connect this panel PC on day one?

You need a 12 V DC power supply for the DC jack, an HDMI cable if you want a second display on the HDMI port, and any USB, COM or Ethernet cables required by your existing factory equipment.

Will the dual Gigabit Ethernet ports and RS232/485 COM ports work with my older PLCs and HMIs without extra adapters?

Yes — the two Realtek Gigabit LAN ports and two configurable RS232/485 COM ports connect directly to legacy industrial networks and serial devices, and the board also supports wake-on-LAN and PXE boot for older infrastructure.
