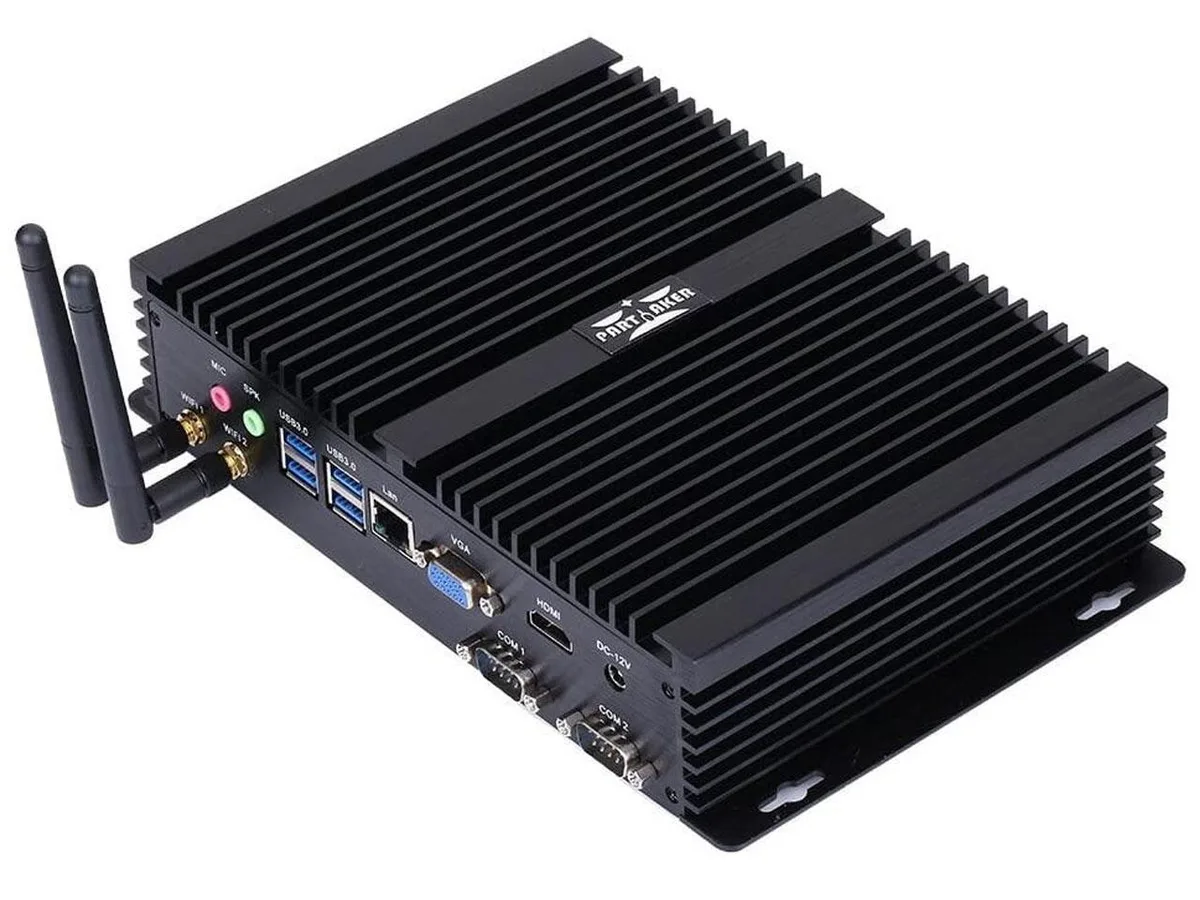

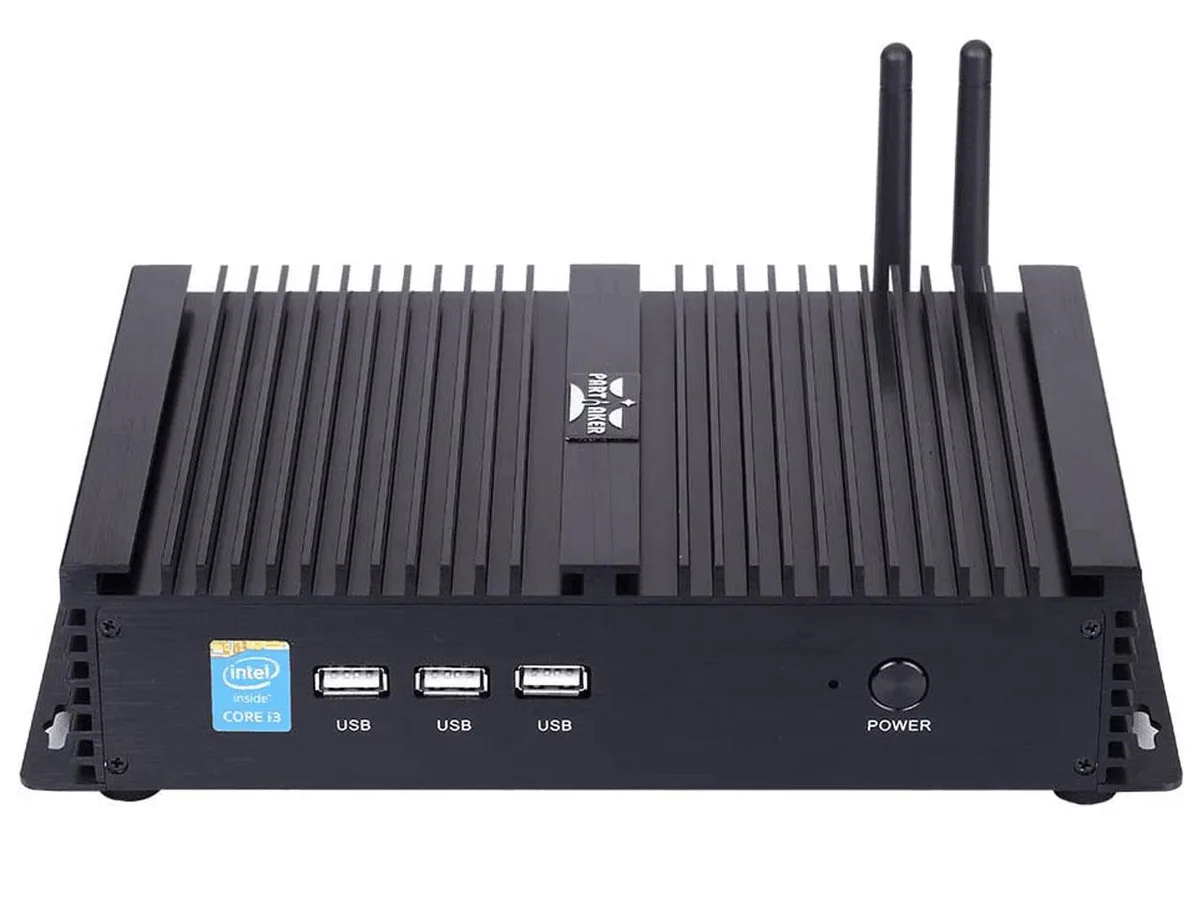

Black aluminium fanless mini PC with mounting ears, compact rectangular shape

partaker

Partaker I3 barebone mini PC i7-1165G7 32G 1TB

SKU CH-E227-5AWQA

Fanless industrial mini PC with a Core i7-1165G7, 32 GB DDR4, 1 TB SSD, dual 4K display support and legacy COM ports for 24/7 operation

  • ColorBlack
  • CPU TypeIntel Core i7 11th Gen

CPU Type Intel Core i7-1165G7

Group 32G RAM / 1T SSD

  • Intel Core i7-1165G7 quad-core CPU handles demanding industrial workloads
  • Fanless aluminium chassis runs silently with 24/7 stability
  • Windows 11 Pro 64-bit pre-installed for immediate deployment
  • Dual 4K display support via HDMI and VGA outputs
  • Compact 234 x 150 x 43 mm design includes mounting ears for flexible installation

Industrial fanless mini PC

The Partaker I3 is a compact barebone system built around an Intel Core i7-1165G7 processor with 32G DDR4-3200 memory and a 1TB NVME SSD. It ships with Windows 11 Pro pre-installed for immediate deployment in industrial and embedded scenarios. Mounting ears and a wide operating temperature range suit fixed installations that demand continuous uptime.

Silent thermal design

A fully fanless aluminium chassis dissipates heat without moving parts, delivering absolute silence during normal operation. Daily power draw sits between 15W and 25W, rising to a 28W maximum under load while the unit remains within its 0°C to 70°C operating envelope. The 12V 7A supply handles 100-240V AC input for global compatibility.

Sustained-load reliability

First-class temperature control is rated for 24/7 operation without shutdown, making the system suitable for always-on workloads such as digital signage or machine automation. Dual-display support via HDMI at 4096x2304@60Hz and VGA enables simultaneous or independent screens during extended runs. Automatic power-on after AC loss and WOL ensure recovery without manual intervention.

商品特色

  • Intel Core i7-1165G7 quad-core CPU handles demanding industrial workloads
  • Fanless aluminium chassis runs silently with 24/7 stability
  • Windows 11 Pro 64-bit pre-installed for immediate deployment
  • Dual 4K display support via HDMI and VGA outputs
  • Compact 234 x 150 x 43 mm design includes mounting ears for flexible installation

商品規格

ColorBlack
CPU TypeIntel Core i7 11th Gen

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

How do I mount the Partaker I3 with its mounting ears and what step is often missed?

Fix the ears to a flat surface using the screw holes on each side, then connect the 12 V 7 A adapter before turning on; the step most people miss is attaching the two Wi-Fi antennas so the 802.11 ac link works at 2.4 GHz and 5 GHz.

Which storage slots may need an upgrade later and what is the maximum memory the board accepts?

The board offers one mSATA, one 2.5 inch SATA and one M.2 2280 NVME slot for future drives, while the two SO-DIMM sockets support up to 64 G of DDR4-3200 memory.

What thermal limit appears first when the fanless chassis runs at full load continuously?

The aluminium case is rated for 0 °C to 70 °C operating temperature; sustained heavy workloads will hit that 70 °C ceiling before any other component reaches its limit.
