partaker I3 i7-1165G7 16G 240G barebone mini PC

Industrial mini PC for 24/7 deployment

The Partaker I3 integrates an Intel Core i7-1165G7 quad-core processor with 16 GB of DDR4-3200 memory and a 240 GB SSD, all inside a fanless aluminium chassis rated for continuous operation from 0 °C to 70 °C. Windows 11 Pro is pre-installed so the unit is ready for immediate use in automation, signage or edge-computing roles. Dual-display output via HDMI and VGA supports independent or mirrored content at up to 4096 x 2304 at 60 Hz.

Upgrade from older fanless or embedded boxes

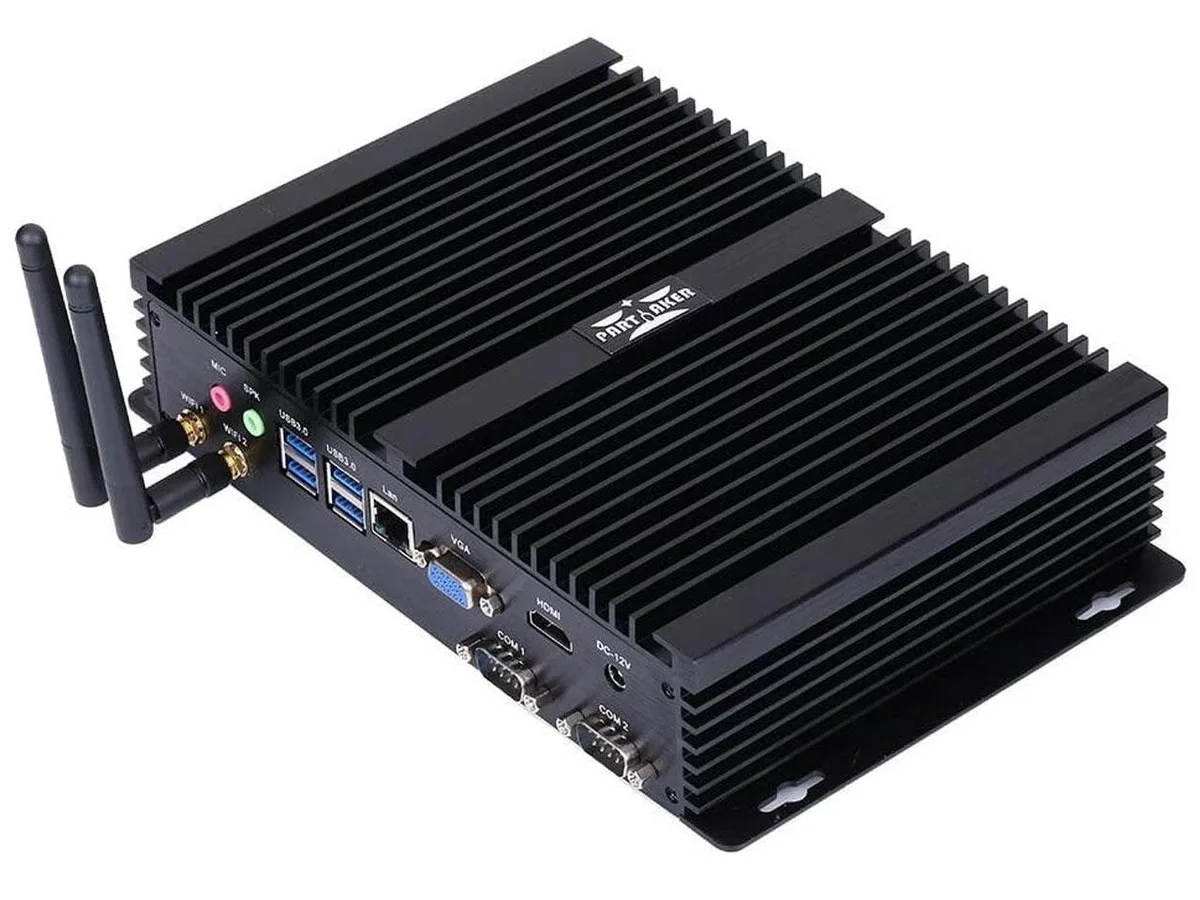

Replacing a legacy system that relies on active cooling or lacks modern I/O, this unit adds four USB 3.0 ports, three USB 2.0 ports, two COM RS232 headers and dual Gigabit LAN powered by an Intel i219 controller. The jump is worth it when silence, wide-temperature tolerance and legacy serial connectivity are required together, and when the 28 W typical draw must fit a constrained power budget.

Sustained load behaviour

The fanless design dissipates heat through the chassis itself, maintaining stable clocks during prolonged workloads without acoustic noise. Power-loss recovery, Wake-on-LAN and PXE boot ensure unattended restart after outages, while the 12 V 7 A supply supports the 15 W to 25 W daily envelope. Storage can be expanded through an mSATA slot, a 2.5-inch SATA bay and an M.2 2280 NVME socket for additional capacity or redundancy.
