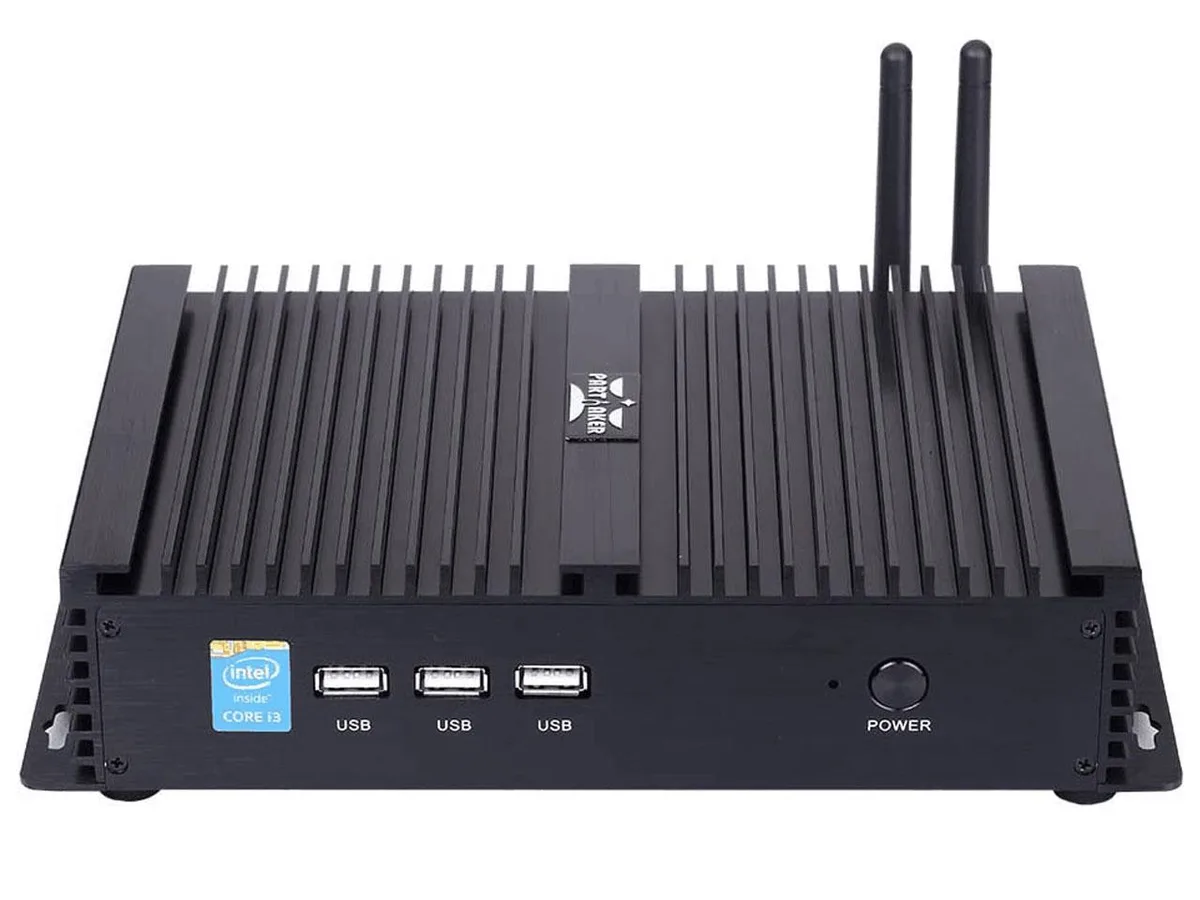

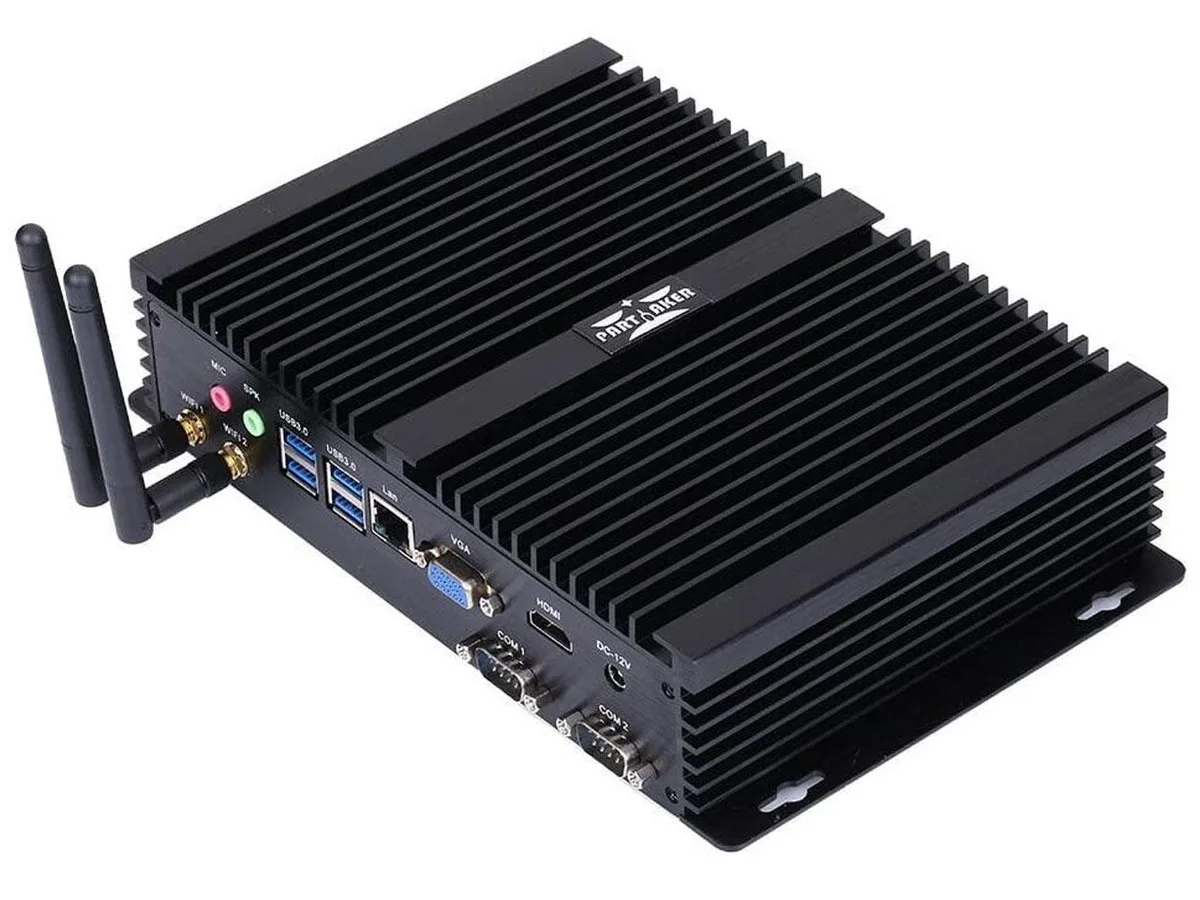

Black fanless aluminium mini PC with mounting ears, compact rectangular shape

partaker

partaker I3 i5-1135G7 16G 240G barebone mini PC

SKU CH-YDXK-0T61C

Fanless industrial mini PC with Intel Core i5-1135G7, 16 GB DDR4, 240 GB SSD, dual video outputs, two COM ports, seven USB ports and Windows 11 Pro pre-installed

  • ColorBlack
  • CPU TypeIntel Core i5 11th Gen

CPU Type Intel Core i5-1135G7

Group 16GB RAM / 256GB SSD

  • Quad-core i5-1135G7 delivers strong performance for industrial workloads
  • Fanless aluminium chassis runs silently and handles 24/7 operation
  • Dual-display support via HDMI and VGA for flexible screen layouts
  • 16 GB DDR4-3200 and 240 GB SSD provide responsive memory and storage
  • Extensive I/O with 7 USB ports and dual COM ports connects legacy and modern gear

Industrial mini PC for embedded deployments

The Partaker I3 is a fanless barebone system built around an Intel Core i5-1135G7 processor with 16 GB of DDR4-3200 memory and a 240 GB SSD. Windows 11 Pro is pre-installed so the unit is ready for immediate configuration. Passive cooling and a wide operating temperature range of 0 °C to 70 °C allow continuous 24/7 operation in noise-sensitive or harsh environments.

Suits automation, signage and edge gateway roles

Integrators who need dual-display output via HDMI and VGA, dual Intel i219 LAN ports, two COM RS232 ports and seven USB ports will find the I/O coverage a direct fit. Buyers who require active cooling, a smaller footprint than 234 x 150 x 43 mm, or internal expansion beyond one mSATA, one 2.5-inch SATA and one M.2 2280 NVME slot should evaluate alternative platforms.

Quad-core i5-1135G7 with 28 W typical consumption

The processor delivers four cores and eight threads with a maximum turbo frequency of 4.20 GHz while the system typically draws 15 W to 25 W in daily use. This power envelope determines whether the unit can run from a constrained DC supply or must be paired with the included 12 V 7 A adapter.

商品特色

  • Quad-core i5-1135G7 delivers strong performance for industrial workloads
  • Fanless aluminium chassis runs silently and handles 24/7 operation
  • Dual-display support via HDMI and VGA for flexible screen layouts
  • 16 GB DDR4-3200 and 240 GB SSD provide responsive memory and storage
  • Extensive I/O with 7 USB ports and dual COM ports connects legacy and modern gear

商品規格

ColorBlack
CPU TypeIntel Core i5 11th Gen

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

How long can the i5-1135G7 sustain its 4.20 GHz boost before the fanless chassis forces it to throttle?

The aluminium case is rated for continuous 24/7 operation at up to 70 °C ambient, so the CPU will throttle only when its internal thermal limit is reached rather than at a fixed time interval.

What is the typical power draw and acoustic profile when the unit runs 24 hours a day?

Daily consumption stays between 15 W and 25 W with a 28 W maximum, and the fanless design means there are no moving parts to generate noise.

Which display cables and peripherals are not included but are required to start using the mini PC?

You must supply your own HDMI or VGA cable, monitor, keyboard and mouse; the box provides only the PC, 12 V 7 A power supply, power cord and Wi-Fi antennas.
