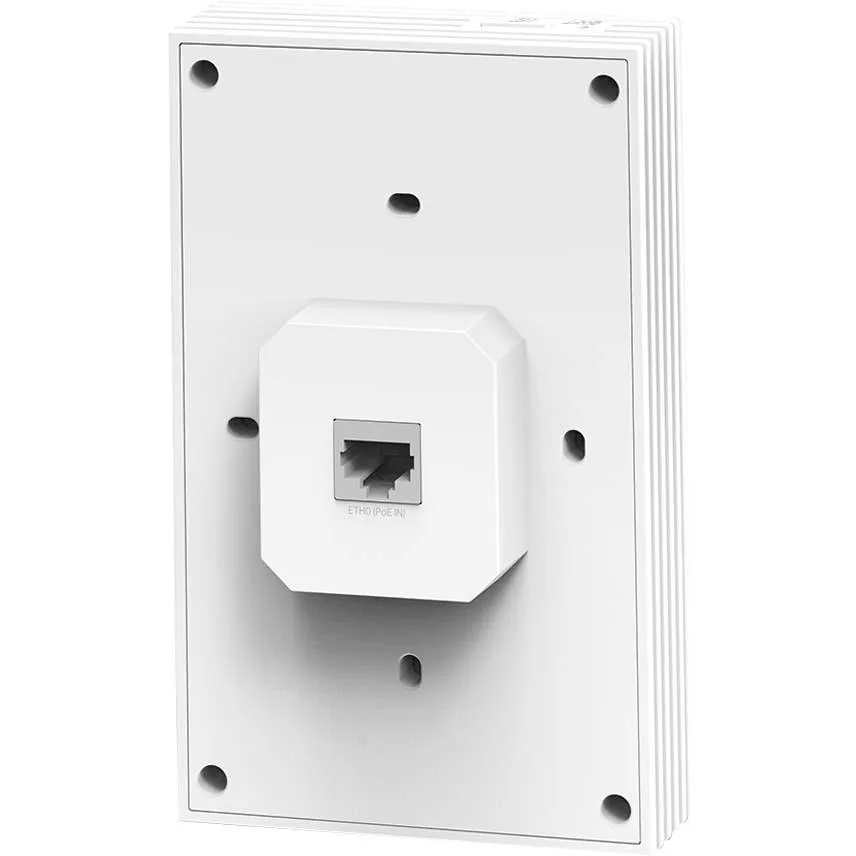

White rectangular wall-plate access point with four gigabit ports

TP-Link

TP-Link EAP655-Wall AX3000 WiFi 6 access point

SKU CH-MZJG-Y7DHB MPN EAP655-Wall

Wall-plate access point delivers AX3000 WiFi 6 speeds with four gigabit ports and PoE pass-through for in-room coverage

  • WiFi GenerationWi-Fi 4
  • Wireless Data Rates3000 megabits_per_second
  • WAN Ports1 x 10/100M
  • Interface4
  • ColorWhite
  • Standards802_11_AX
  • AX3000 dual-band WiFi 6 delivers 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
  • WiFi 6 efficiency handles more devices with less lag
  • Four gigabit LAN ports including one with PoE pass-through for wired clients
  • Centralised Omada SDN cloud management for remote network control
  • 3af/at PoE power and 86 mm junction-box mount simplify installation

Room-Scale WiFi 6 Access Point

The TP-Link EAP655-Wall is an AX3000 wall-plate access point built for hospitality, dormitory and apartment installations. It delivers simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz for a combined 2976 Mbps wireless throughput. Four gigabit Ethernet ports provide wired connectivity for multiple in-room devices. Centralised Omada SDN management allows cloud or local control across the property.

Junction Box and PoE Compatibility Check

Verify that the target location uses an 86 mm, EU or US standard junction box for mounting. The unit requires 802.3af/at PoE input or a 12 volts supply; confirm your switch or injector supports the relevant standard. Ensure the upstream switch port provides gigabit bandwidth to avoid bottlenecking the three downlink ports. Check regional channel limits: 11 channels for US and Canada, 13 for EU, 14 for Japan.

In-Room Wired and Wireless Hub

Three downlink gigabit ports connect desktops, smart TVs and VoIP phones while one port offers PoE pass-through for a downstream device. The wall-plate form factor frees up outlets and keeps cabling inside the junction box. HE160 support on the 5 GHz band doubles single-stream peak rates. WPA3 encryption, captive portal and multiple guest authentication methods secure each private network without a separate controller.

商品特色

  • AX3000 dual-band WiFi 6 delivers 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
  • WiFi 6 efficiency handles more devices with less lag
  • Four gigabit LAN ports including one with PoE pass-through for wired clients
  • Centralised Omada SDN cloud management for remote network control
  • 3af/at PoE power and 86 mm junction-box mount simplify installation

商品規格

WiFi GenerationWi-Fi 4
Wireless Data Rates3000 megabits_per_second
WAN Ports1 x 10/100M
Interface4
ColorWhite
Standards802_11_AX
Channels11 CH (US, Canada), 13 CH (EU), 14 CH (Japan)
Antenna4
LAN Ports4
MIMOMultiple Gigabit Ports
Power Supply12 volts
Max Power ConsumptionInstallation Guide, 12 volts
BrandTP-Link
ModelEAP655-Wall
Part NumberEAP655-Wall
Certifications2AXJ4EAP655WALL, has_fcc_id
Compliance2AXJ4EAP655WALL
Dimensions143.0 in x 86.0 in x 42.6 in
Weight0.29 kilograms
FeaturesMultiple Gigabit Ports
Disclaimerhas_fcc_id, 2AXJ4EAP655WALL
出貨重量0.45 kg
包裝尺寸185 × 117 × 56 mm

商品問答

What comes in the box and do I need a separate PoE injector?

The unit includes the wall-plate access point and an installation guide; it supports 802.3af/at PoE so a compliant switch or injector powers it without a separate 12 volt supply.

Should I choose the 2.4 GHz or 5 GHz band for the 2402 Mbps rate?

The 2402 Mbps figure applies to the 5 GHz radio; the 2.4 GHz radio delivers 574 Mbps, and both operate simultaneously for a combined 2976 Mbps.

What does the 3000 Mbps headline speed mean once the AP is mounted in a room?

It represents the aggregate PHY rate of 574 Mbps on 2.4 GHz plus 2402 Mbps on 5 GHz; real-world throughput will be lower due to overhead, client capabilities and environmental factors.
