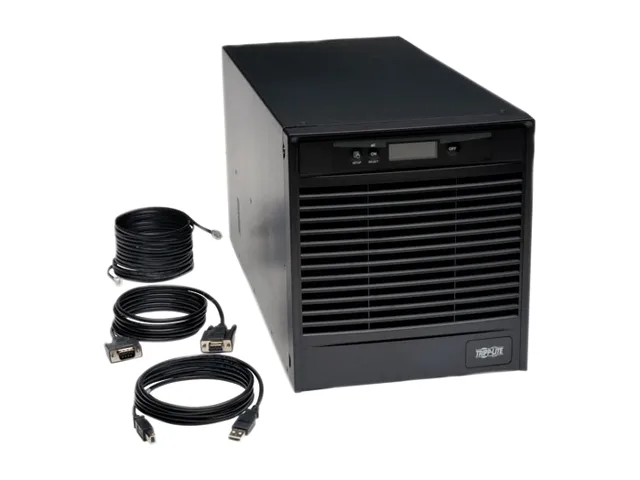

Tall black tower UPS with LCD screen and seven NEMA outlets

Tripp Lite

Tripp Lite SU3000XLCD 3000VA 2700W 120V Double-Conversion UPS

SKU CH-TKZB-3M8ZT MPN SU3000XLCD

Double-conversion UPS delivers 120 V sine-wave output with zero transfer time, 1770 W capacity, seven NEMA outlets and user-replaceable batteries

  • International Version120V

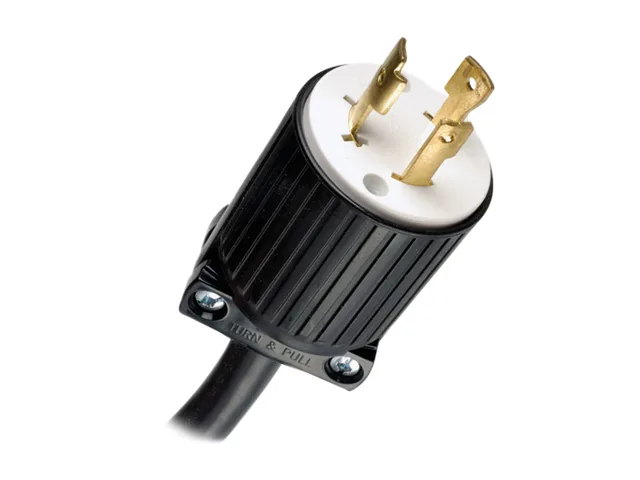

  • Input ConnectionNEMA 5-20P
  • VA Rating1960 VA
  • Watts1770 Watts
  • Output Voltage120V
  • Output Frequency50 / 60 Hz

VA 3000 VA / LCD

  • Double-conversion topology delivers clean sine-wave power with zero transfer time
  • 4 minutes runtime at full 1770 W load protects critical workloads
  • User-replaceable VRLA batteries extend service life without technician visits

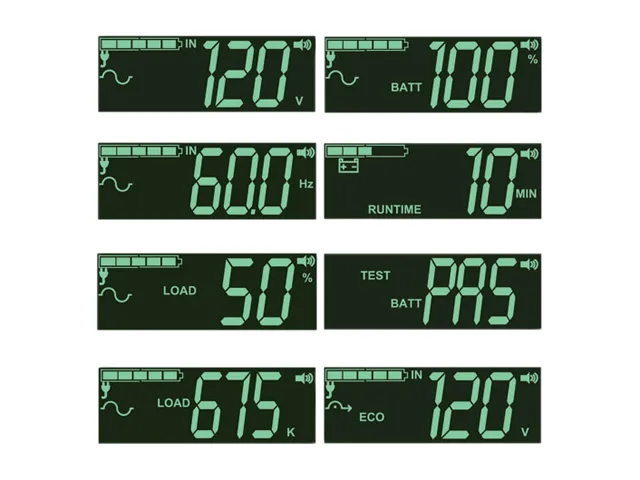

  • LCD interface shows real-time UPS status and site-power data at a glance
  • USB, RS-232, contact closure and optional SNMP card enable automated shutdowns

SmartOnline Double-Conversion UPS

The Tripp Lite SU3000XLCD is a 3000VA double-conversion uninterruptible power supply designed for critical server and network equipment. It continuously converts incoming AC to DC and back to AC, delivering regulated 120V sine-wave output with zero transfer time during outages. This topology protects connected hardware from brownouts, overvoltages and line noise without draining the battery.

Tower Chassis with NEMA Outlets and Management Slots

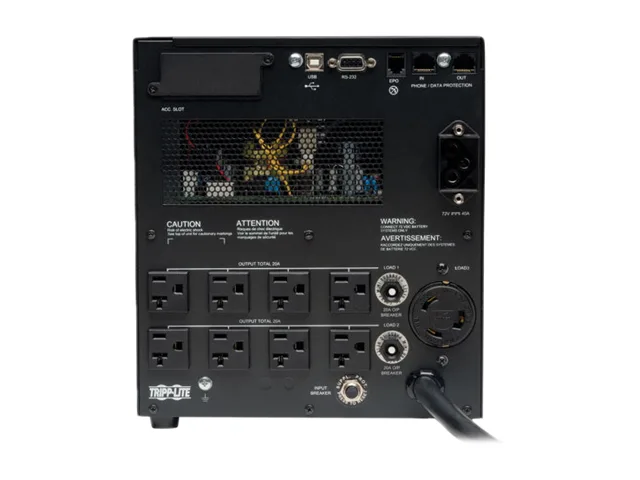

The tower unit measures 13.63" x 8.43" x 16.23" and weighs 73.42 lbs. It provides six NEMA 5-20R receptacles and one NEMA L5-20R receptacle for secure locking connections. A front-panel LCD reports operating mode and detailed power data at a glance. Rear interfaces include USB, RS-232, contact-closure and an open slot for an optional SNMP network management card.

User-Replaceable VRLA Battery with Extended Runtime

Valve-regulated lead-acid batteries deliver 10.4 minutes of runtime at 1770W full load and 26.2 minutes at 885W half load. Batteries are user-replaceable for long-term serviceability. The unit operates from 32°F to 104°F and automatically restarts when utility power returns. It is not suited for environments outside this temperature range or for loads exceeding the 1960VA input rating.

商品特色

  • Double-conversion topology delivers clean sine-wave power with zero transfer time
  • 4 minutes runtime at full 1770 W load protects critical workloads
  • User-replaceable VRLA batteries extend service life without technician visits
  • LCD interface shows real-time UPS status and site-power data at a glance
  • USB, RS-232, contact closure and optional SNMP card enable automated shutdowns

商品規格

BrandTRIPP LITE
SeriesSmartOnline
ModelSU3000XLCD
International Version120V
Input ConnectionNEMA 5-20P
VA Rating1960 VA
Watts1770 Watts
Output Voltage120V
Output Frequency50 / 60 Hz
Outlets7
Outlet Type(6) NEMA 5-20R; (1) NEMA L5-20R
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Run TimeFull Load: 10.4 min. (1770W)
Half Load: 26.2 min. (885W)
Battery ReplaceableUser replaceable batteries
Interface Port(1) Contact closure; (1) RS-232; (1) Slot for SNMP/Web interface; (1) USB
Surge Energy Rating190 Joules
TemperatureOperating Temperature Range: 32° to 104°F (0° to 40°C)
Storage Temperature Range: With battery: 32° to 104°F (0° to 40°C); without battery: -13° to 131°F (-25° to 55°C)
Humidity0-96% non-condensing
Dimensions13.63" x 8.43" x 16.23"
Weight73.42 lbs.
出貨重量34.93 kg
包裝尺寸602 × 368 × 340 mm

其他版本

同系列還有 3 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

What input plug does the SU3000XLCD use and what current can it draw?

The unit uses a NEMA 5-20P input plug rated for 20 A on a 120 V circuit.

What are the exact dimensions and weight for rack or shelf planning?

It measures 13.63" wide x 8.43" deep x 16.23" high and weighs 73.42 lbs.

How do you install the network management card without losing configuration access?

Power down the UPS, insert the optional SNMPWEBCARD into the dedicated slot, then power up and configure via USB or RS-232.
