Eight green DDR5 RDIMM modules in a row

A-Tech

A-Tech 512GB (8x64GB) DDR5 4800 EC8 RDIMM memory upgrade

SKU CH-S94V-7ZKEC

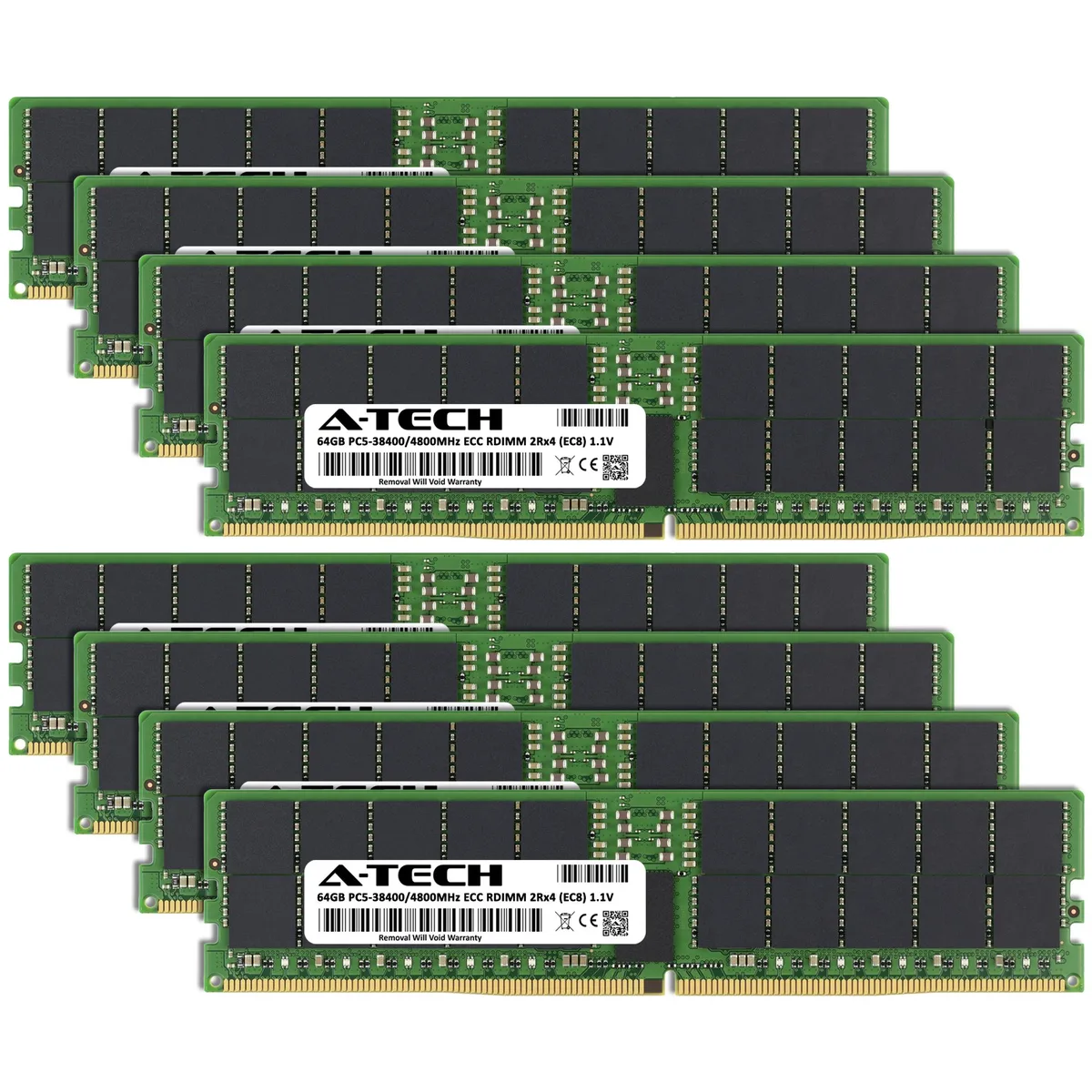

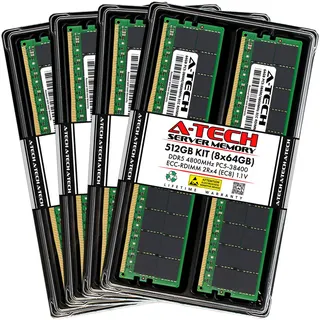

Eight 64 GB DDR5-4800 EC8 RDIMM modules add 512 GB of ECC registered memory to 16th-generation Dell PowerEdge rack and tower servers

  • Capacity512GB (8 x 64GB)
  • Type288-Pin DDR5 SDRAM
  • SpeedDDR5 4800 (PC5 38400)
  • CAS LatencyCL40
  • Voltage1.10V
  • ECCYes

Capacity 512GB (8 x 64GB)

Struck-through versions exist but are not stocked here.

  • 512 GB total capacity from eight 64 GB modules
  • DDR5 4800 speed with CL40 latency at 1.1 V
  • ECC registered design protects data integrity in servers
  • 2Rx4 dual-rank layout optimises bandwidth per channel
  • Built for Dell PowerEdge 16th Gen rack and tower models

Dell PowerEdge 16th Gen DDR5 kit

This 512GB kit contains eight 64GB DDR5 4800 EC8 RDIMM modules built for Dell PowerEdge 16th generation rack and tower servers. It targets IT teams expanding memory capacity on supported platforms such as the R760, R760xa, R760xd2, R760xs, R7615, R7625, R860, R960, T560, R660, R660xs, R6615 and R6625. The modules are ECC registered and not intended for desktop or laptop systems.

Tool-less DIMM installation

Modules install into standard 288-pin DDR5 slots on the server motherboard. Follow the system manual for correct channel population order and seating pressure. Common issues include mixing registered DIMMs with unbuffered memory, ignoring per-channel rank limits, or leaving a module partially seated which causes boot failures. Speeds may be mixed but the system will run at the slowest installed module.

Verify server model and memory rules

Confirm the exact PowerEdge model matches the supported list before ordering. Check the server documentation for maximum total capacity, allowed ranks per channel, and required DIMM population sequence. Ensure the platform accepts 2Rx4 EC8 registered DDR5 at 1.1V. This kit will not work in systems that only support non-ECC unbuffered memory.

Highlights

  • 512 GB total capacity from eight 64 GB modules
  • DDR5 4800 speed with CL40 latency at 1.1 V
  • ECC registered design protects data integrity in servers
  • 2Rx4 dual-rank layout optimises bandwidth per channel
  • Built for Dell PowerEdge 16th Gen rack and tower models

Specifications

BrandA-Tech
Series16th Gen. Dell PowerEdge Rack & Tower Server Compatible
Model512GB (8x64GB) 2Rx4 DDR5-4800 EC8 RDIMM for Dell PowerEdge T560, R660, R660xs, R6615, R6625, R760, R760xa, R760xd2, R760xs, R7615, R7625, R860, R960
Part NumberNE-MS-0084
Capacity512GB (8 x 64GB)
Type288-Pin DDR5 SDRAM
SpeedDDR5 4800 (PC5 38400)
CAS LatencyCL40
Voltage1.10V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemDell PowerEdge T560, R660, R660xs, R6615, R6625, R760, R760xa, R760xd2, R760xs, R7615, R7625, R860, R960 | 16th Gen Rack & Tower Servers
OptionCompatible with Dell PowerEdge T560, R660, R660xs, R6615, R6625, R760, R760xa, R760xd2, R760xs, R7615, R7625, R860, R960
FeaturesDesigned for Dell PowerEdge T560, R660, R660xs, R6615, R6625, R760, R760xa, R760xd2, R760xs, R7615, R7625, R860, R960
Package ContentEight Modules

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I confirm the 512GB kit runs at DDR5 4800 after installation?

Enter the server BIOS or use Dell iDRAC to verify the memory speed shows 4800 MT/s and the total capacity reads 512GB across all eight slots.

What is included in the package and do I need anything else?

The box contains eight 64GB 288-pin DDR5 RDIMM modules; no extra cables, brackets or licences are required for the listed PowerEdge servers.

Which capacity option should I choose for a Dell PowerEdge R760?

This 512GB kit (8 x 64GB) fills eight DIMM slots with dual-rank 2Rx4 modules, matching the R760's supported configuration for maximum registered ECC memory.
