Analog Technologies AHV12VN6KV1MAW High Voltage Power Supply 0 to -6kV 1mA 12V Input

SKU CH-EHZF-8GFAP

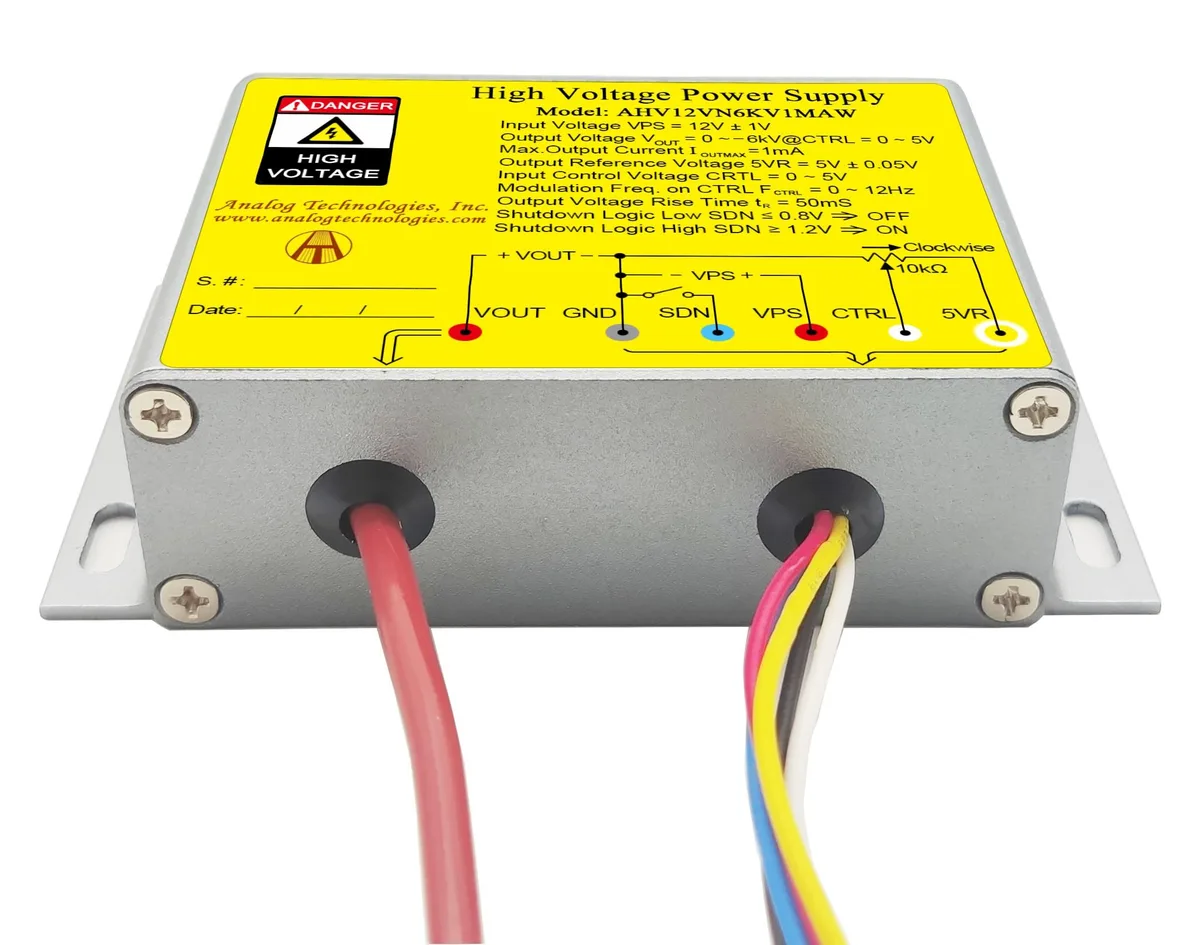

Compact DC-DC module converts 12 V to adjustable 0 to -6 kV at 1 mA for scientific equipment

  • TypeHigh Voltage Power Supply

Options 12V to -6000V 1mA

  • Compact 0 to -6 kV output for demanding HV applications
  • 1 mA maximum current supports precision low-power tasks
  • 12 V DC input enables simple system integration
  • 0 to 5 V control voltage gives full-span output modulation
  • Electronic shutdown control adds fast protection

Compact High-Voltage Module for Laboratory Use

This Analog Technologies module converts a low-voltage DC input into a regulated negative high-voltage output up to 6 kV with a maximum current of 1 mA. It is intended for engineers and researchers building or servicing equipment such as X-ray sources, spectroscopy instruments, electrospinning rigs or semiconductor process tools where a compact, programmable HV bias is required.

Stable Output Under Continuous Operation

The unit accepts a 24 V supply drawing between 80 mA and 450 mA depending on load, and delivers 0 to -6 kV proportional to a 0 to 5 V control signal with a 5 V reference accurate to ±0.05 V. Full-span modulation and electronic shutdown allow the output to be varied or disabled instantly without interrupting the input power, supporting long runs in analytical or deposition systems.

PCB-Mount Installation With Simple Control Wiring

The converter is designed for direct board-level integration using the supplied pin-out for input power, control voltage, reference and ground connections. Correct polarity on the 24 V rail and the control signal is essential; reversing either can damage the internal regulation stage. No external high-voltage cabling is included, so the builder must provide suitably rated leads and maintain clearance distances appropriate for 6 kV operation.

Highlights

  • Compact 0 to -6 kV output for demanding HV applications
  • 1 mA maximum current supports precision low-power tasks
  • 12 V DC input enables simple system integration
  • 0 to 5 V control voltage gives full-span output modulation
  • Electronic shutdown control adds fast protection

Specifications

TypeHigh Voltage Power Supply

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat and input current does the 12 V version draw when running continuously at full output?

The 12 V input model is not described in the specifications; the documented unit operates from 24 V ± 1 V and draws between 80 mA and 450 mA depending on load.

What control signals and reference voltage must my system provide to regulate the output?

You need a 0 to 5 V control voltage and the module supplies a 5 V ± 0.05 V reference for setting the output from 0 to −6 kV.

Will this supply work with older equipment that expects a positive high-voltage output?

No, the output is 0 to −6 kV only, so it cannot directly replace a positive-polarity source.
