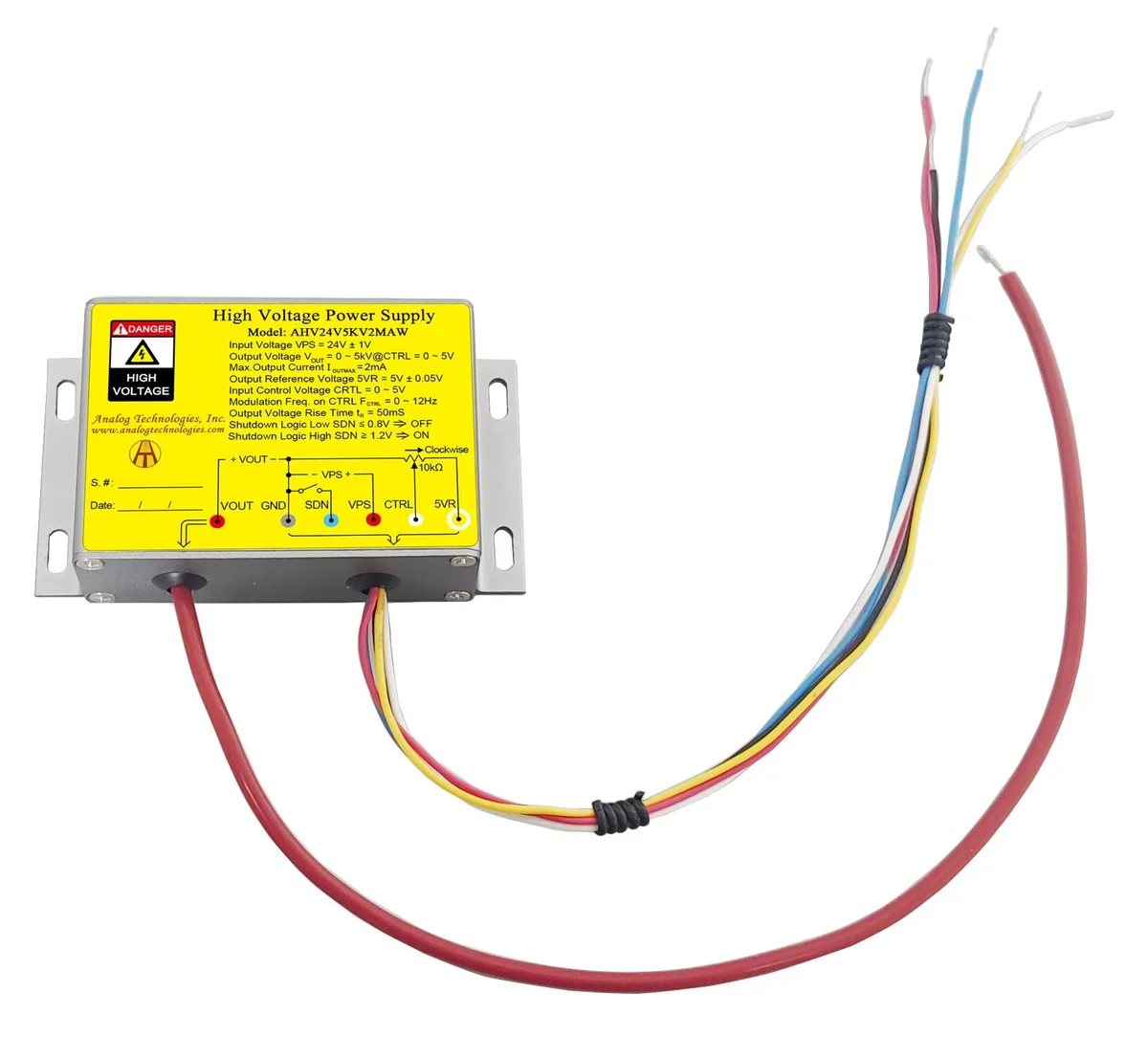

Analog Technologies High Voltage Power Supply 0-5kV 2mA 24V Input AHV24V5KV2MAW

SKU CH-NR99-X8TTQ

Converts 24 V DC to an adjustable 0–5 kV output at up to 2 mA with electronic shutdown control for precision high-voltage applications

  • TypeHigh Voltage Power Supply

Options AHV24V5KV2MAW

  • 0 to 5 kV output driven by a 0 to 5 V control signal
  • 24 V DC input draws only 130 to 590 mA
  • 5 V ± 0.05 V reference enables precise voltage setting
  • Electronic shutdown control protects connected equipment
  • Compact DC-DC module suits X-ray, spectrometry and coating systems

Compact High-Voltage DC-DC Module

This Analog Technologies module converts a 24 V DC input into a regulated 0–5 kV output with up to 2 mA of current. It targets engineers and integrators building X-ray sources, spectrometry front-ends, electrospinning rigs or thin-film deposition systems that require a programmable high-voltage rail.

Straightforward Wiring With Control Pin

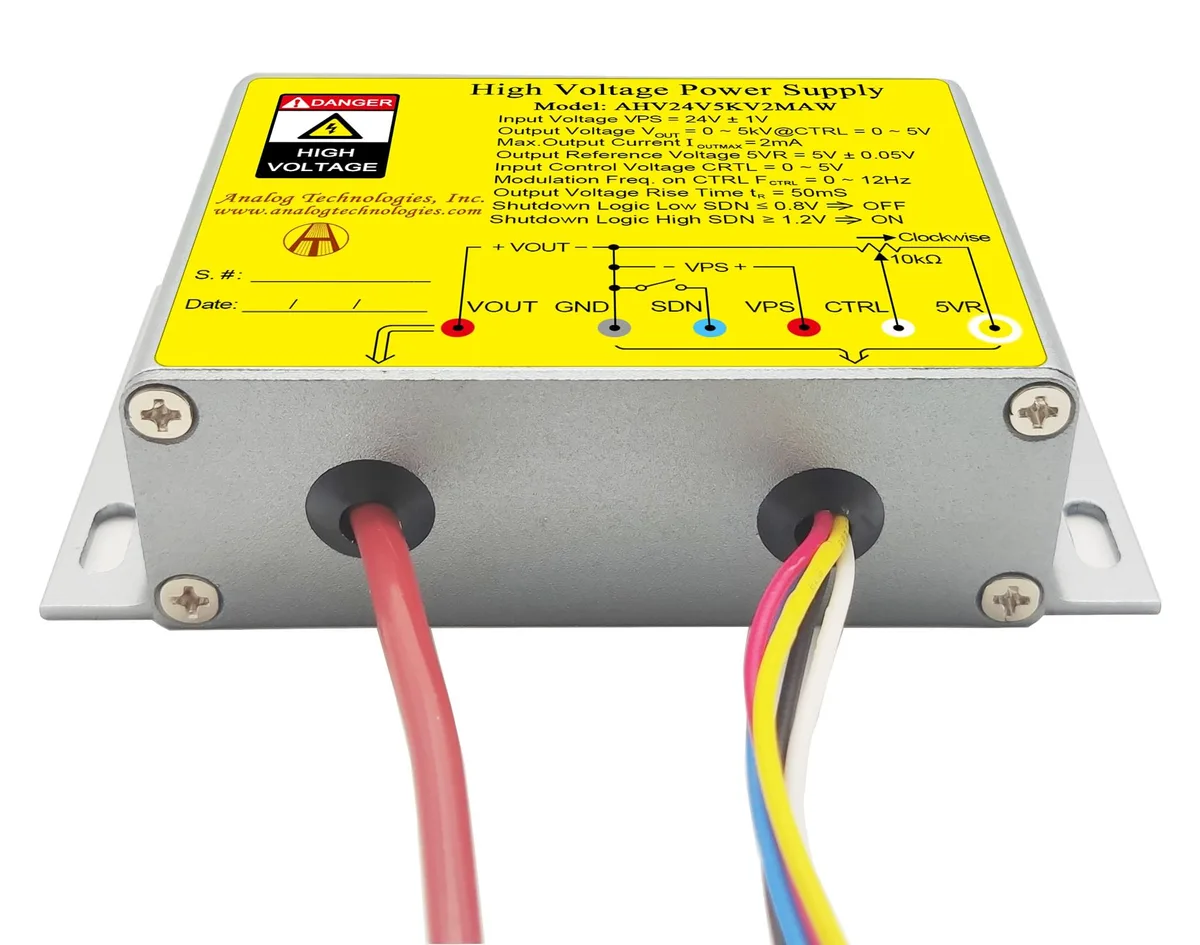

The unit accepts 24 V ± 1 V and draws between 130 mA and 590 mA depending on load. Output voltage follows a 0–5 V control signal, while a 5 V ± 0.05 V reference and an electronic shutdown pin simplify integration. No high-voltage cabling is included, so insulation rating and creepage distances must be provided by the installer.

Verify Your 24 V Rail And Safety Clearance

Confirm that your 24 V supply can deliver at least 590 mA continuously and that its regulation stays within the ± 1 V window. Ensure the enclosure provides adequate creepage and clearance for 5 kV operation and that your control electronics can source a clean 0–5 V analogue signal for voltage programming.

Highlights

  • 0 to 5 kV output driven by a 0 to 5 V control signal
  • 24 V DC input draws only 130 to 590 mA
  • 5 V ± 0.05 V reference enables precise voltage setting
  • Electronic shutdown control protects connected equipment
  • Compact DC-DC module suits X-ray, spectrometry and coating systems

Specifications

TypeHigh Voltage Power Supply

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I verify the 0-5kV output is tracking the 0-5V control input correctly?

Measure the 5V reference pin — it should read 5V ± .05V. Then apply a known control voltage between 0 and 5V and confirm the high-voltage output scales proportionally up to 5kV.

What comes in the box and what must I source separately?

The module itself is supplied. You must provide a 24V DC source capable of 130-590mA, a 0-5V control signal, wiring for the high-voltage output, and any safety interlocks or enclosures your application requires.

The unit is listed as a single 5kV 2mA model — how do I know it fits my voltage and current needs?

This module delivers 0-5kV at up to 2mA from a 24V input. If your load stays within that voltage and current envelope and you can supply 130-590mA at 24V, this version matches the requirement.
