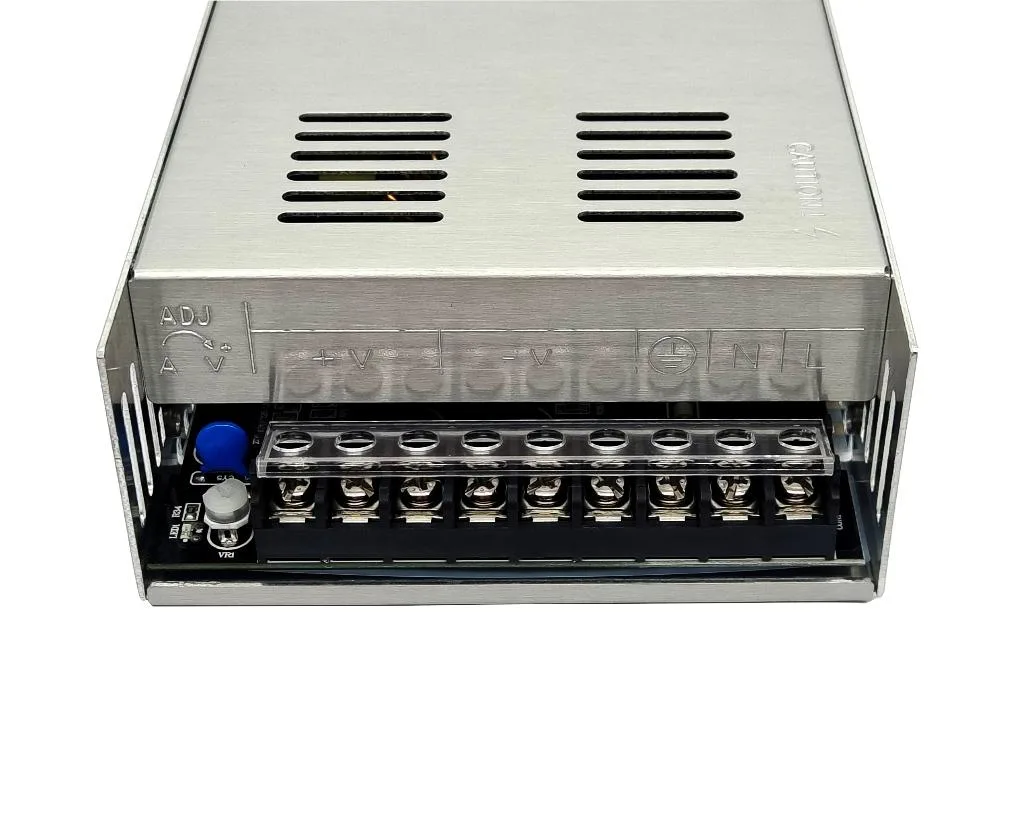

Enclosed metal power supply unit with built-in fan, low-profile 41mm design

Analog Technologies

Analog Technologies ALRS12V40AT 480W Power Supply

SKU CH-KDXE-BDT2N

Enclosed 480W switching supply converts 90–264 VAC to 12 VDC at 40 A with selectable input, 41 mm profile, built-in fan and 5G vibration resistance

  • TypeSwitching Power Supply

Options 480W

  • 480W output powers demanding 12V equipment
  • 40A continuous current drives heavy loads reliably
  • >85% efficiency cuts waste heat and running cost
  • Selectable 110V/220V input suits global mains supplies
  • 41mm low profile fits tight enclosures easily

480W Single-Output Power Supply

The Analog Technologies ALRS12V40AT is a 480W enclosed switching power supply that converts AC input to a 12V DC output rated at 40A. Its 41mm low-profile design suits industrial equipment, 3D printers, and other space-constrained installations requiring a compact, single-rail source.

90–264VAC Input with 12V 40A Output

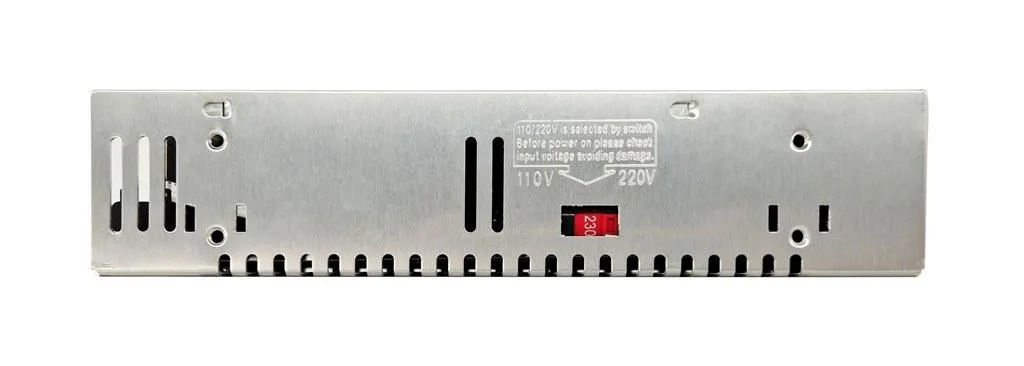

The unit accepts 90V to 264VAC, selectable by a built-in switch for 110V or 220V nominal supplies, and delivers up to 40A continuously. Efficiency exceeds 85%, and the supply withstands a 300VAC surge for five seconds. It operates at full load from 10°C to 60°C, so headroom drops outside that temperature window.

Built-In Fan, Protection Suite and 5G Antivibration

A long-life internal fan provides active cooling without external airflow planning. Complete protection functions guard against overload, overvoltage and short-circuit events, while 5G antivibration rating secures reliability in high-shock industrial environments. Compliance with international safety regulations simplifies integration into certified systems.

Highlights

  • 480W output powers demanding 12V equipment
  • 40A continuous current drives heavy loads reliably
  • >85% efficiency cuts waste heat and running cost
  • Selectable 110V/220V input suits global mains supplies
  • 41mm low profile fits tight enclosures easily

Specifications

TypeSwitching Power Supply

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the ALRS12V40AT run alongside my older 12V equipment without voltage mismatch?

The unit delivers a fixed 12V DC output at 40A, so any legacy 12V gear that draws within that current limit will receive the correct voltage.

How can I verify the ALRS12V40AT is operating correctly after installation?

Measure the output with a multimeter; it should read 12V DC while the built-in fan spins and the supply stays within its 10°C to 60°C operating range.

What comes in the box with the ALRS12V40AT and what must I source separately?

The enclosed 480W power supply with its integrated fan is included; you will need to provide AC input wiring and DC output cables or connectors yourself.
