Enclosed 60W switching power supply with built-in fan and low profile design

Analog Technologies

Analog Technologies ALRS12V5AT 60W 12V 5A Switching Power Supply

SKU CH-RRYK-TD97E

Converts AC 90–264 V to 12 V DC at 5 A with 85 % efficiency in a 41 mm low-profile enclosure

  • TypeSwitching Power Supply

Options 60W

  • 60 W output powers 12 V 5 A devices
  • 90–264 VAC input works worldwide with selector switch
  • >85 % efficiency cuts heat and running cost

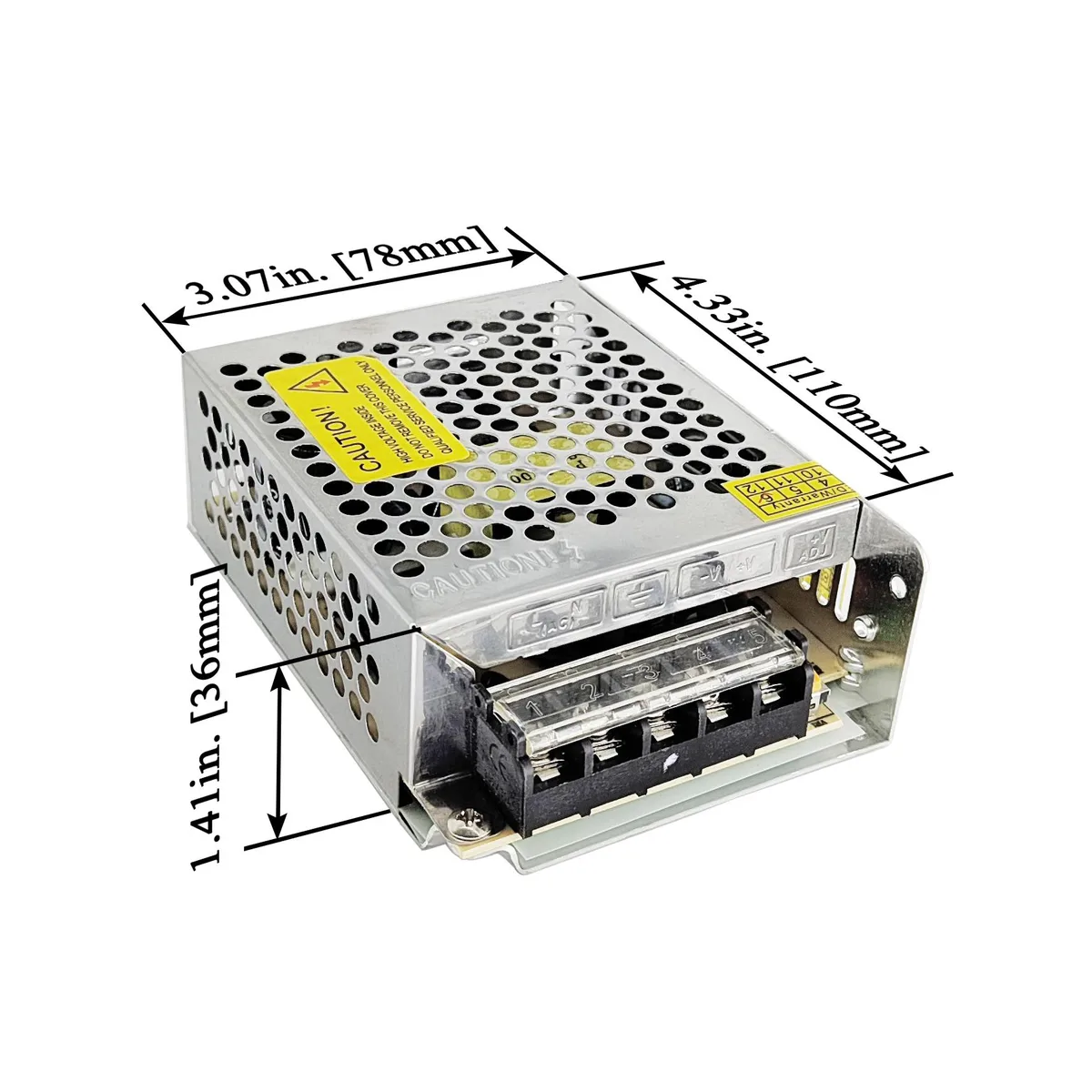

  • 41 mm low profile fits tight enclosures
  • Built-in fan runs full load from 10 °C to 60 °C

Compact 60 W Industrial Supply

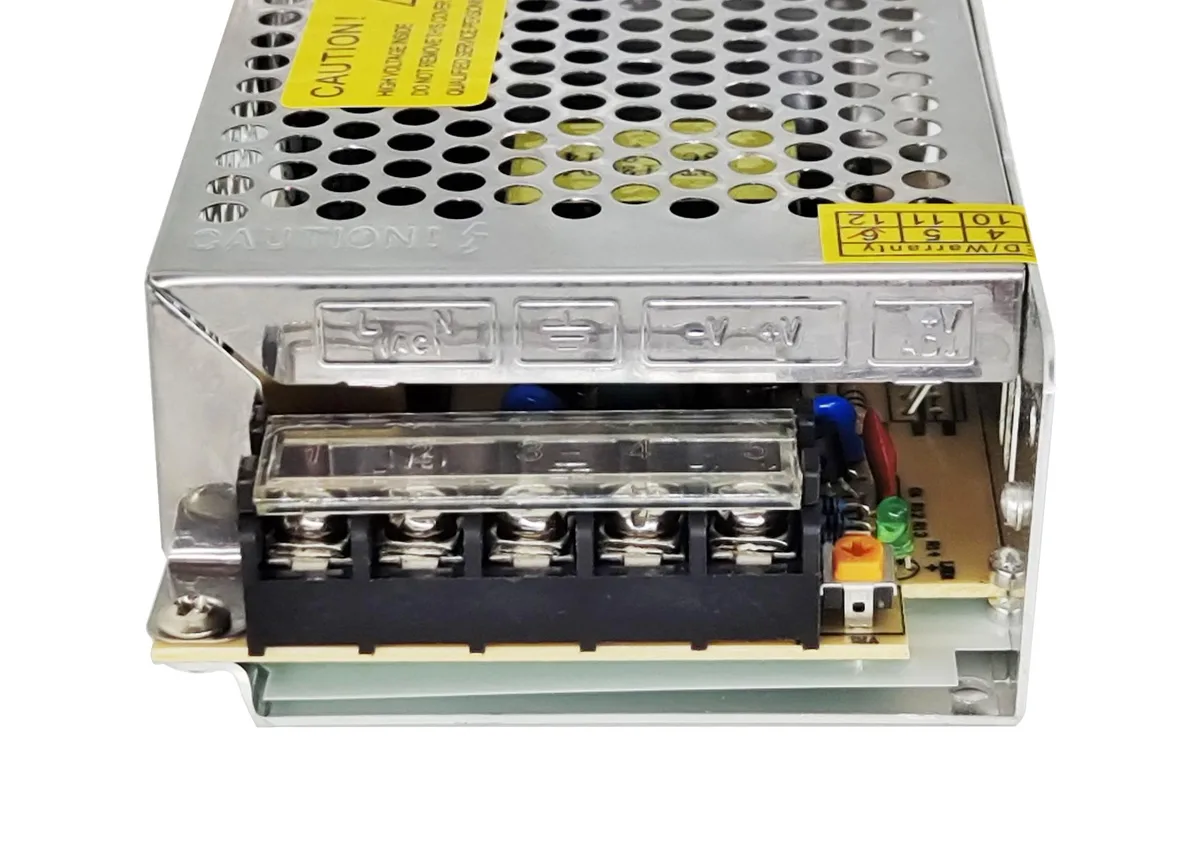

The Analog Technologies ALRS12V5AT is a 60 W single-output enclosed switching power supply that converts selectable 110 V or 220 V AC input to a regulated 12 V DC output at 5 A. Its 41 mm low-profile enclosure fits tight industrial cabinets and 3D-printer frames where vertical space is limited. The unit accepts a wide 90 V to 264 V AC range, making it suitable for global mains voltages without rewiring.

Thermals Noise and Power Draw

A built-in long-life fan maintains operation from 10 °C to 60 °C at full load while efficiency exceeds 85 %, reducing waste heat and keeping acoustic output low in typical indoor environments. The supply withstands a 300 V AC surge for five seconds, protecting downstream equipment during transient mains events. High efficiency also lowers overall power draw from the wall compared with lower-rated alternatives.

Protection and Vibration Resistance

Complete protection functions guard against over-voltage, over-current and short-circuit conditions, automatically recovering once the fault clears. The chassis meets 5 G anti-vibration capability, so the supply remains reliable on moving machinery or vehicle-mounted systems. Compliance with international safety regulations simplifies integration into certified industrial panels without additional qualification work.

Highlights

  • 60 W output powers 12 V 5 A devices
  • 90–264 VAC input works worldwide with selector switch
  • >85 % efficiency cuts heat and running cost
  • 41 mm low profile fits tight enclosures
  • Built-in fan runs full load from 10 °C to 60 °C

Specifications

TypeSwitching Power Supply

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I set the AC input selector switch for a 220V mains supply?

Slide the selector to the 220V position before connecting power; the supply accepts 90V to 264VAC and withstands a 300VAC surge for 5 seconds.

What maintenance does the built-in long-life fan require?

The fan is rated for continuous full-load operation from 10°C to 60°C; keep ventilation clear and clean dust periodically to maintain airflow.

At what ambient temperature does the 60W output become limited?

Full 60W output is guaranteed up to 60°C ambient; above that temperature the supply will derate to protect internal components.
