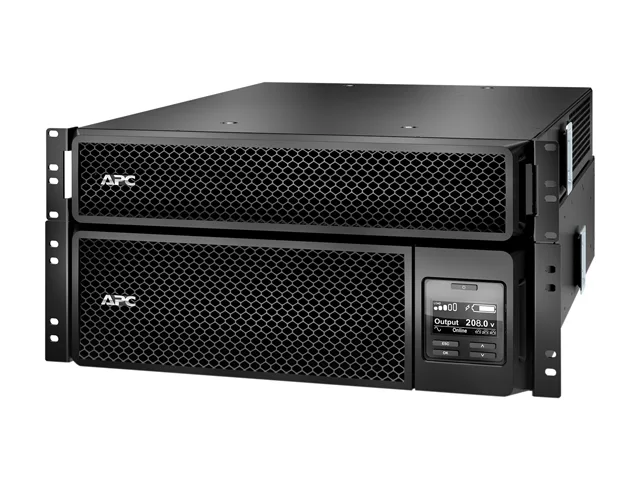

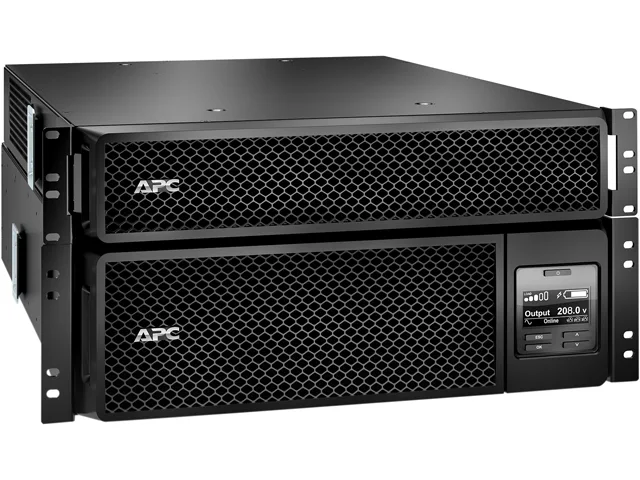

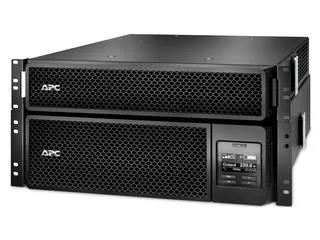

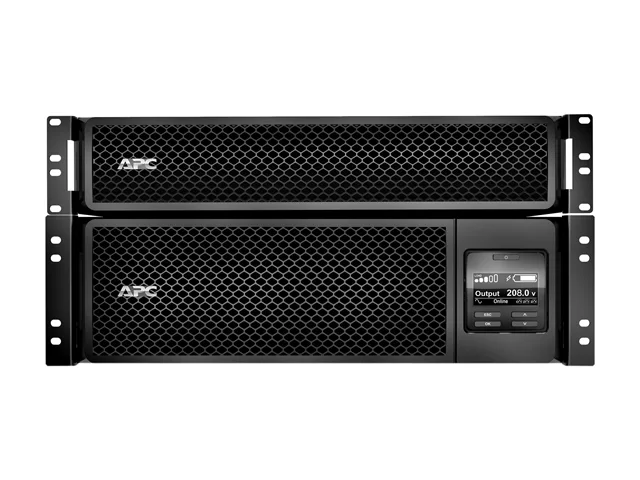

Black rectangular 2U rackmount UPS with front LCD display, multiple NEMA outlets and network ports visible

APC

APC Smart-UPS SRT 5000VA 208V-120V 2U Step-Down Transformer SRT5KRMXLT-5KTF UPS

SKU CH-PZ5J-EK920 MPN SRT5KRMXLT-5KTF

Double-conversion on-line UPS delivering 5000 VA and 4800 W with 15 outlets, scalable runtime, and integrated network management card

  • International Version208V
  • Input Voltage Range160 - 275V
  • Input Frequency40 - 70 Hz (auto sensing)
  • Input ConnectionNEMA L6-30P
  • VA Rating5000 VA
  • Watts4800 Watts

Options SRT5KRMXLT-5KTF

Struck-through versions exist but are not stocked here.

  • 5000 VA double-conversion online UPS protects critical servers
  • 15 outlets including L6-30R, L6-20R and twelve 5-20R receptacles
  • 480 joules surge rating shields equipment from transients
  • Network management via 10/100 Ethernet, serial, SmartSlot and USB
  • 5 minutes runtime at full load, 10.7 minutes at half load

Smart-UPS SRT 5000VA Step-Down Transformer

The APC Smart-UPS SRT 5000VA is a double-conversion on-line UPS that steps 208V input down to 120V output. It delivers 4800 watts of regulated power for servers, network gear, medical labs and light industrial equipment that require clean 120V supply from a 208V source.

Rack-mount 2U form with NEMA L6-30P input

The unit occupies 2U of rack space and connects via a NEMA L6-30P plug on a 160-275V, 40-70 Hz supply. It provides fifteen battery-backed outlets: one NEMA L6-30R, two NEMA L6-20R and twelve NEMA 5-20R. Management interfaces include RJ-45 10/100 Base-T, RJ-45 serial, SmartSlot and USB for integration with PowerChute software.

Runtime at 5000 VA load and battery replacement

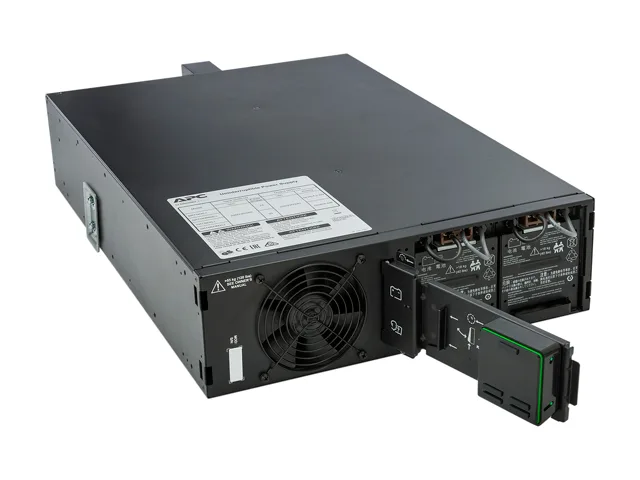

At full 5000 VA load the internal battery provides 3.5 minutes of runtime; at half load it extends to 10.7 minutes. Recharge takes 1.5 hours. The replaceable battery cartridge is APCRBC140. The UPS is not suited for loads exceeding 4800 watts or for installations that cannot supply a NEMA L6-30P circuit.

Highlights

  • 5000 VA double-conversion online UPS protects critical servers
  • 15 outlets including L6-30R, L6-20R and twelve 5-20R receptacles
  • 480 joules surge rating shields equipment from transients
  • Network management via 10/100 Ethernet, serial, SmartSlot and USB
  • 5 minutes runtime at full load, 10.7 minutes at half load

Specifications

BrandAPC
SeriesSmart-UPS
ModelSRT5KRMXLT-5KTF
International Version208V
Input Voltage Range160 - 275V
Input Frequency40 - 70 Hz (auto sensing)
Input ConnectionNEMA L6-30P
VA Rating5000 VA
Watts4800 Watts
Output Voltage120V, 208V
Output Frequency50/60 Hz +/- 3 Hz
Outlets15
Outlet Type1 x NEMA L6-30R (Battery Backup)
2 x NEMA L6-20R (Battery Backup)
12 x NEMA 5-20R (Battery Backup)
Battery Run TimeAt Full Load: 3.5 Minutes
At Half Load: 10.7 Minutes
Battery Recharge Time1.5 Hour(s)
Battery ReplaceableAPCRBC140

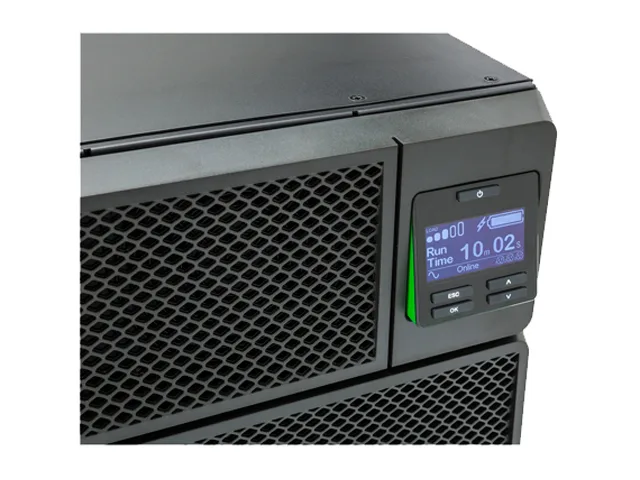

AlarmsAudible and visible alarms prioritized by severity
Interface PortRJ-45 10/100 Base-T, RJ-45 Serial, SmartSlot, USB
ApprovalsCSA C22.2 No.107.3-05, ENERGY STAR V2.0 (USA), FCC Part 15 Class A, UL 1778
Surge Energy Rating480 Joules
Dimensions8.60" x 17.00" x 28.32"
Weight218.00 lbs.
Shipping weight117.93 kg
Package size991 × 719 × 590 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How long will the 4800 Watt output last before the battery is depleted?

The internal battery provides 3.5 minutes at the full 4800 Watt load and 10.7 minutes at half load, with a 1.5 hour recharge time.

What is the audible alarm behavior when the UPS runs continuously under load?

Audible and visible alarms activate and are prioritised by severity to indicate battery, overload or fault conditions during extended operation.

Which input plug must the site already provide for this 208V unit?

A NEMA L6-30P receptacle is required to connect the UPS input.
