APC Smart-UPS 5.4kVA rackmount 3U unit dark metal front panel outlets handles rails

APC

APC SRT5KRMXLT 5.4kVA 208V UPS 3U 2x L6-20R 2x L6-30R Network Card SmartSlot Extended Runtime Rail Kit

SKU CH-TBYZ-2VFAB MPN SRT5KRMXLT

Rackmount on-line UPS delivers 5.4 kVA at 208 V with four locking outlets, network card, SmartSlot and extended runtime in 3U

  • Input Voltage Range208V
  • Input Frequency40 - 70 Hz (auto sensing)
  • Input ConnectionNEMA L6-30P
  • VA Rating5000 VA
  • Watts4250 Watts
  • Output Voltage208V

Options SRT5KRMXLT

Struck-through versions exist but are not stocked here.

  • On-line double-conversion topology delivers clean sine-wave power
  • 4 kVA / 4250 W rating handles dense server loads
  • 5-hour recharge restores backup capacity quickly

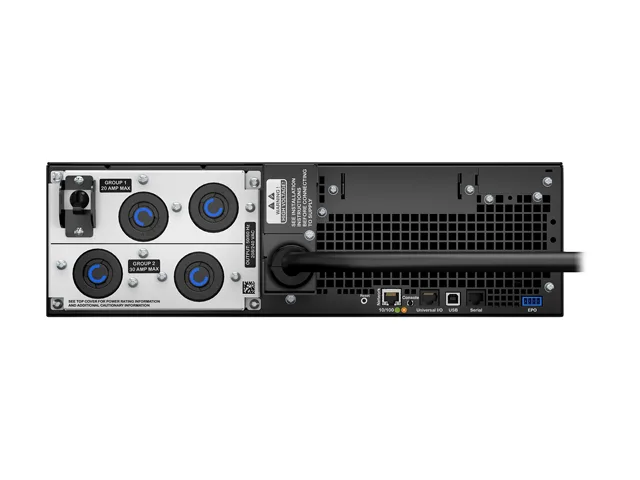

  • Four NEMA outlets (two L6-20R, two L6-30R) connect varied equipment
  • SmartSlot plus USB, serial and network ports enable remote management

Rackmount UPS for 208V Server Loads

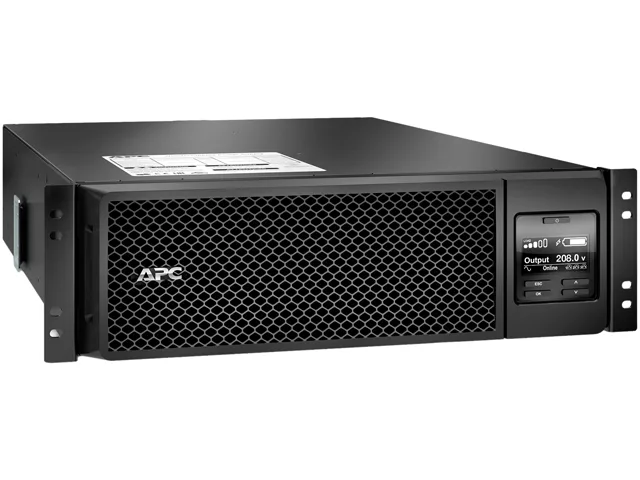

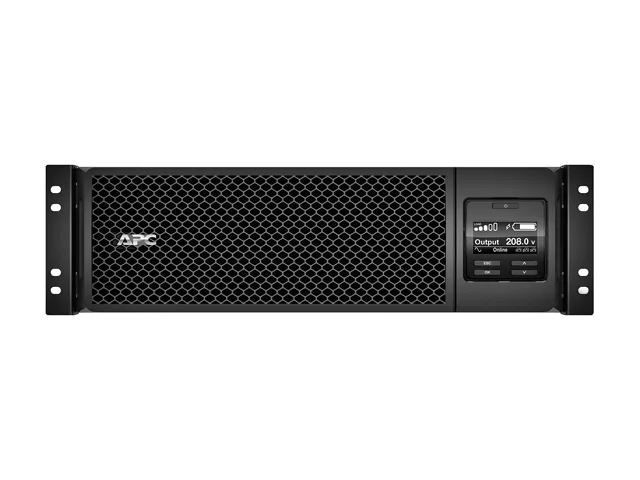

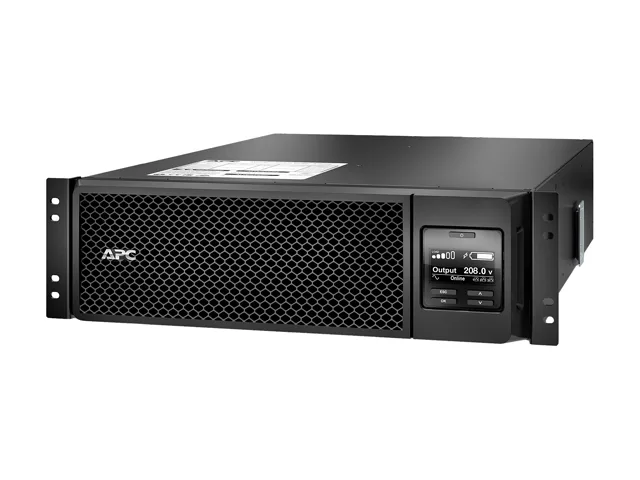

The APC Smart-UPS On-Line SRT5KRMXLT delivers 5.4 kVA and 4250 W of double-conversion sine-wave power in a 3U rackmount chassis. It suits server rooms and network closets that require continuous clean power for critical 208 V equipment.

Verify 30 A Service and L6-30P Feed

Confirm the site provides a 208 V single-phase circuit terminated with a NEMA L6-30P plug. The unit draws up to 30 A and occupies 3U of rack depth; ensure the rack can support the installed weight and that clearance allows the rear outlets and interface ports to be accessed.

Network Card and Rail Kit Accelerate Deployment

A pre-installed network management card enables SNMP and web monitoring through the RJ-45 10/100 port, while the SmartSlot remains open for additional accessories. The included rail kit, mounting brackets and hardware let two people secure the chassis without sourcing separate sliding rails.

Highlights

  • On-line double-conversion topology delivers clean sine-wave power
  • 4 kVA / 4250 W rating handles dense server loads
  • 5-hour recharge restores backup capacity quickly
  • Four NEMA outlets (two L6-20R, two L6-30R) connect varied equipment
  • SmartSlot plus USB, serial and network ports enable remote management

Specifications

BrandAPC
SeriesSmart-UPS On-Line
ModelSRT5KRMXLT
Input Voltage Range208V
Input Frequency40 - 70 Hz (auto sensing)
Input ConnectionNEMA L6-30P
VA Rating5000 VA
Watts4250 Watts
Output Voltage208V
Output Frequency50/60 Hz +/- 3 Hz
Outlets4
Outlet Type2 x NEMA L6-20R
2 x NEMA L6-30R
Battery TypeSealed Lead Acid
Battery Run Time1 - 30 minutes
Battery Recharge Time1.50 hour(s)

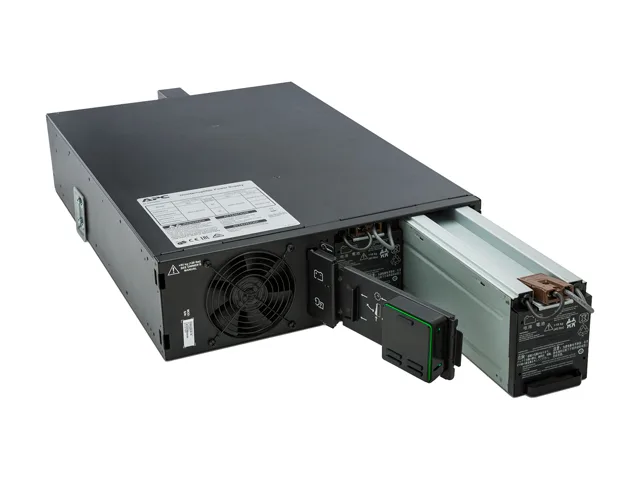

Battery ReplaceableAPCRBC140
AlarmsAudible and visible alarms prioritized by severity
Interface PortContact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
ApprovalsCSA C22.2 No.107.3-05, ENERGY STAR (USA), FCC Part 15 Class A, UL 1778
Rackmountable3U
Surge Energy Rating480 Joules
Dimensions5.10" x 17.00" x 28.32"
Weight199.00 lbs.
Package ContentsAPC Smart-UPS SRT5KRMXLT, Documentation CD, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, USB cable, User Manual, Warranty card, Web / SNMP Management Card
Shipping weight90.27 kg
Package size953 × 622 × 330 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the box and what must I buy separately?

The package includes the UPS, documentation CD, rack mounting brackets, hardware, support rails, and a USB cable. The replacement battery cartridge APCRBC140 is sold separately.

How do I choose between the L6-20R and L6-30R outlets for my equipment?

The unit provides two NEMA L6-20R and two NEMA L6-30R outlets, all delivering 208 V. Match each device's plug to the corresponding receptacle rating.

What does the 5.4 kVA rating mean for actual load capacity in my rack?

The UPS supports up to 5,400 VA or 4,250 W of connected equipment at 208 V output with a pure sine-wave waveform.
