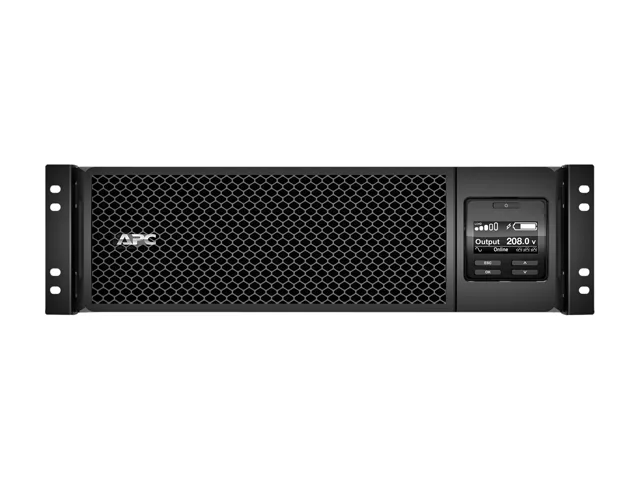

APC Smart-UPS On-Line 5000 VA 3U rackmount unit, black metal front with display and IEC outlets

APC

APC SRT5KRMXLT-IEC UPS 5000 VA 4250 W 208V 3U

SKU CH-N19M-H90J0 MPN SRT5KRMXLT-IEC

A 5000 VA double-conversion online UPS delivering 4250 W at 208 V with ten IEC outlets in a 3U rackmount form

  • International Version208V
  • Input Voltage Range160 - 275V Adjustable range for mains operation: 100 - 275V
  • Input Frequency40 - 70 Hz (auto sensing)
  • Input ConnectionNEMA L6-30P
  • VA Rating5000 VA
  • Watts4250 Watts

Options SRT5KRMXLT-IEC

Struck-through versions exist but are not stocked here.

  • 5000 VA / 4250 W double-conversion on-line power protection

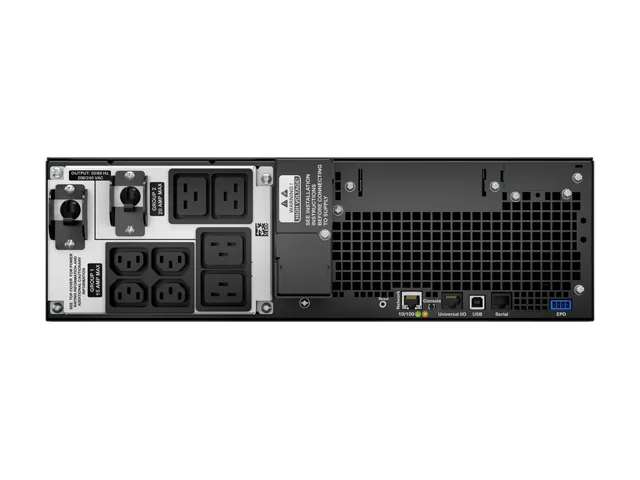

  • 10 IEC outlets (4 C13, 4 C19, 2 jumpers) for dense rack deployments
  • 4 min runtime at full load with 1.50 h recharge
  • 3U rackmount fits standard 19" cabinets, 28.3" deep
  • Smart-Slot, USB, serial and 10/100 Base-T for remote management

5000 VA 208 V On-Line UPS

This APC Smart-UPS On-Line unit delivers 5000 VA and 4250 W of double-conversion power at 208 V. It mounts in a 3U rack space and provides ten IEC outlets: four C13, four C19 and two IEC jumpers. The input connects via a NEMA L6-30P plug and accepts 160–275 V at 40–70 Hz. A built-in network management card enables remote monitoring.

Sites needing 208 V rackmount protection

The UPS suits server rooms, network closets, medical labs and light-industrial sites that have 208 V three-phase or split-phase service and require true on-line topology. It is not for locations that only offer lower voltage utility feeds or that need longer backup time than the internal batteries provide without adding matching expansion packs.

4.4-minute runtime at full load

At 4250 W the internal batteries supply 4.4 minutes of runtime, and a full recharge takes 1.50 hours. This figure determines whether the unit can bridge the gap to generator start or graceful shutdown on its own.

Highlights

  • 5000 VA / 4250 W double-conversion on-line power protection
  • 10 IEC outlets (4 C13, 4 C19, 2 jumpers) for dense rack deployments
  • 4 min runtime at full load with 1.50 h recharge
  • 3U rackmount fits standard 19" cabinets, 28.3" deep
  • Smart-Slot, USB, serial and 10/100 Base-T for remote management

Specifications

BrandAPC
SeriesSmart-UPS On-Line
ModelSRT5KRMXLT-IEC
International Version208V
Input Voltage Range160 - 275V
Adjustable range for mains operation: 100 - 275V (half load)
Input Frequency40 - 70 Hz (auto sensing)
Input ConnectionNEMA L6-30P
VA Rating5000 VA
Watts4250 Watts
Output Voltage208V
Output Frequency50/60 Hz +/- 3 Hz
Outlets10
Outlet Type4 x IEC 320 C13
4 x IEC 320 C19
2 x IEC Jumpers
Battery Run Time4.4 minutes
Battery Recharge Time1.50 hour(s)

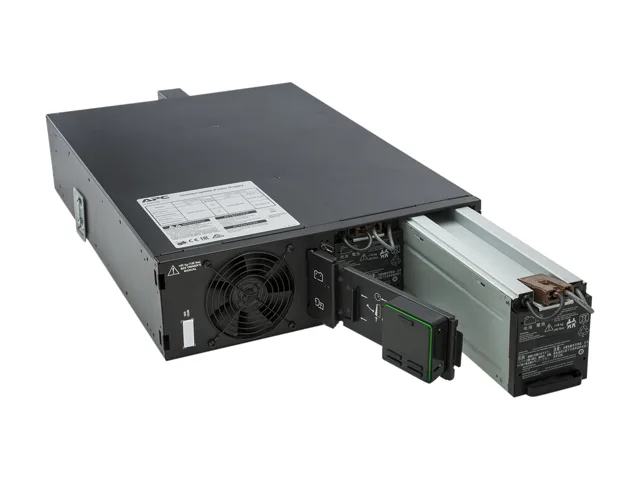

Battery ReplaceableAPCRBC140, SRT5KRMXLT
AlarmsAudible and visible alarms prioritized by severity
Interface PortContact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
Rackmountable3U
Surge Energy Rating480 Joules
FeaturesAPC Smart-UPS On-Line, 4250 Watts / 5000 VA, Input 208V /Output 208V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model, Rack Height 3U
Dimensions5.10" x 17.00" x 28.31"
Weight123.00 lbs.
Shipping weight68.04 kg
Package size965 × 635 × 330 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the 208V international version or look for a different voltage model?

This unit is the 208V international version and operates on an input range of 160 to 275V with an adjustable range down to 100V at half load, so select it when your facility supplies 208V power.

What does the 4.4 minute runtime figure mean when the UPS is fully loaded?

At the full 4250 W load the internal battery provides 4.4 minutes of backup, giving enough time for graceful shutdown or for a generator to start.

Which management interfaces are built in and what do they connect to?

The UPS includes USB, serial RJ-45, 10/100 Base-T Ethernet, contact closure and a Smart-Slot for an optional management card, enabling local and remote monitoring.
