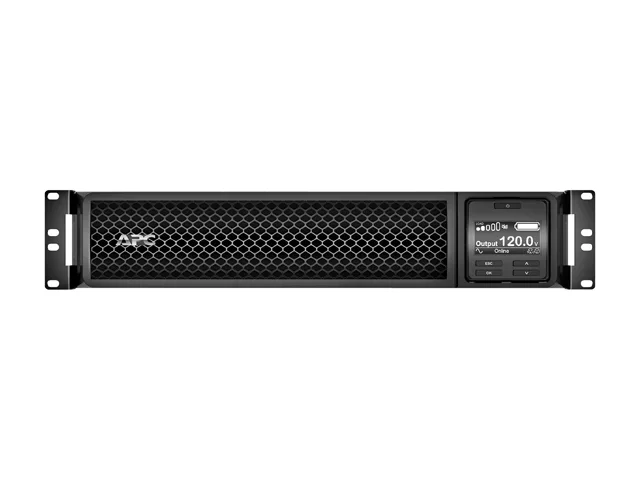

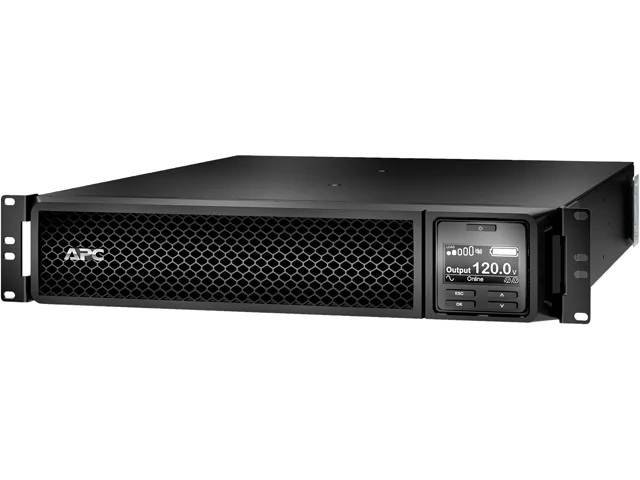

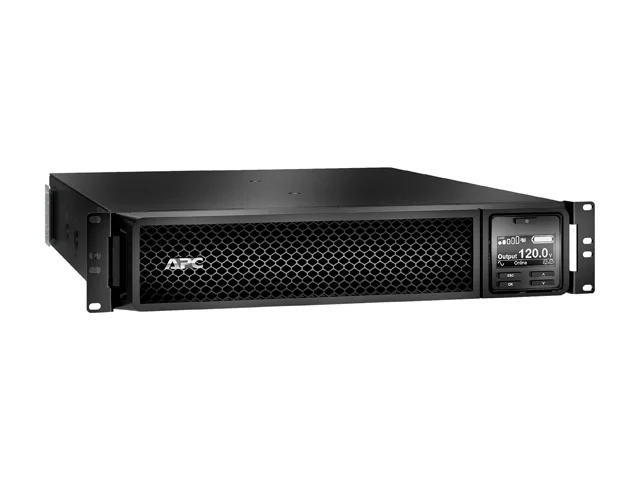

Black 2U rackmount UPS with LCD display and six NEMA 5-15R outlets

APC

APC SRT1500RMXLA-NC UPS 1500VA 1350W 120V 2U 6x NEMA 5-15R Network Card

SKU CH-FXVS-V7C2G MPN SRT1500RMXLA-NC

Rackmount 2U UPS delivers 1500VA/1350W pure sine wave power with six NEMA 5-15R outlets and a preinstalled network management card for remote monitoring

  • International Version120V
  • Input Voltage Range108 - 150V
  • Input Frequency40 - 70 Hz
  • Input ConnectionNEMA 5-15P
  • VA Rating1500 VA
  • Watts1350 Watts

Options SRT1500RMXLA-NC

Show 1 more configurations
  • 1500 VA / 1350 W pure sine wave power protects critical equipment
  • 6 min runtime at full load keeps systems running during outages
  • Six NEMA 5-15R outlets support multiple servers and network gear
  • Preinstalled network card enables remote monitoring via EcoStruxure IT
  • 2U rack-mount design fits standard server cabinets for space efficiency

Rack-mount UPS for IT environments

The APC Smart-UPS SRT 1500VA 120V 2U unit delivers 1500 VA and 1350 W of pure sine wave output to protect servers and network gear during power disruptions. It accepts 108 to 150 V input at 40 to 70 Hz through a NEMA 5-15P plug and provides six NEMA 5-15R outlets for connected equipment. A preinstalled Network Management Card enables remote monitoring and integration with EcoStruxure IT or third-party platforms. The rack/tower convertible chassis fits standard 2U spaces.

Thermals noise and efficiency

The UPS operates within the stated input frequency range of 50/60 Hz ± 3 Hz and maintains output voltage at 120 V. ECO Mode bypasses unused electrical components when power quality is good, raising operating efficiency without sacrificing protection. Automatic self-tests run periodically to detect battery degradation early, reducing the risk of unexpected thermal events. The sealed lead-acid battery recharges in 3 hours after discharge.

Network Card and management accessories

The bundled Network Management Card adds an RJ-45 10/100 Base-T port for network-based monitoring, complementing the existing USB, RJ-45 serial and Smart-Slot interfaces. This allows administrators to track load, runtime and alarms from a central console without additional hardware. The LCD graphics display shows operating modes, system parameters and alarms locally. Buyers who need longer runtime at full load beyond 4.6 minutes or additional outlet types not listed here will need external battery packs or a different power distribution unit.

Highlights

  • 1500 VA / 1350 W pure sine wave power protects critical equipment
  • 6 min runtime at full load keeps systems running during outages
  • Six NEMA 5-15R outlets support multiple servers and network gear
  • Preinstalled network card enables remote monitoring via EcoStruxure IT
  • 2U rack-mount design fits standard server cabinets for space efficiency

Specifications

BrandAPC
SeriesSmart-UPS
ModelSRT1500RMXLA-NC
International Version120V
Input Voltage Range108 - 150V
Input Frequency40 - 70 Hz
Input ConnectionNEMA 5-15P
VA Rating1500 VA
Watts1350 Watts
Output Voltage120V
Output Frequency50/60 Hz +/- 3 Hz
Outlets6
Outlet TypeNEMA 5-15R
Battery TypeSealed Lead Acid
Battery Run TimeAt Full Load: 4.6 Minutes
At Half Load: 13.2 Minutes
Battery Recharge Time3 Hour(s)
Battery ReplaceableAPCRBC155
Interface PortRJ-45 10/100 Base-T, RJ-45 Serial, USB, Smart-Slot
ApprovalsCSA C22.2 No.107.3-05, ENERGY STAR (USA), FCC Part 15 Class A, UL 1778
Rackmountable2U
Surge Energy Rating432 Joules
FeaturesLow operating and maintenance costs with proven reliability and intelligent battery management
Avoids costly power problems by keeping your IT equipment and data protected and available
Peace of mind that comes with full equipment compatibility and reliability of a leader
Save time with easy and convenient remote accessibility
Dimensions3.35" x 17.00" x 20.00"
Weight48.50 lbs.
VA1500 VA
Watt1350 W
Shipping weight25.40 kg
Package size737 × 597 × 241 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the SRT1500RMXLA-NC in a 2U rack and what step is often missed?

Mount the unit using the included rack ears, connect the NEMA 5-15P plug to a 108-150V source, then link the pre-installed Network Management Card via RJ-45 to your LAN for remote monitoring.

Which battery module replaces the internal pack and how often should it be swapped?

Order the APCRBC155 replacement cartridge; the UPS runs automatic self-tests and will alert you when the sealed lead-acid cells no longer hold the rated 4.6-minute full-load or 13.2-minute half-load runtime.

What is the first limit reached when the UPS runs at 1350 W continuously?

At full 1350 W load the battery provides only 4.6 minutes of runtime before shutdown, so the energy reserve is the limiting factor under sustained outage conditions.
