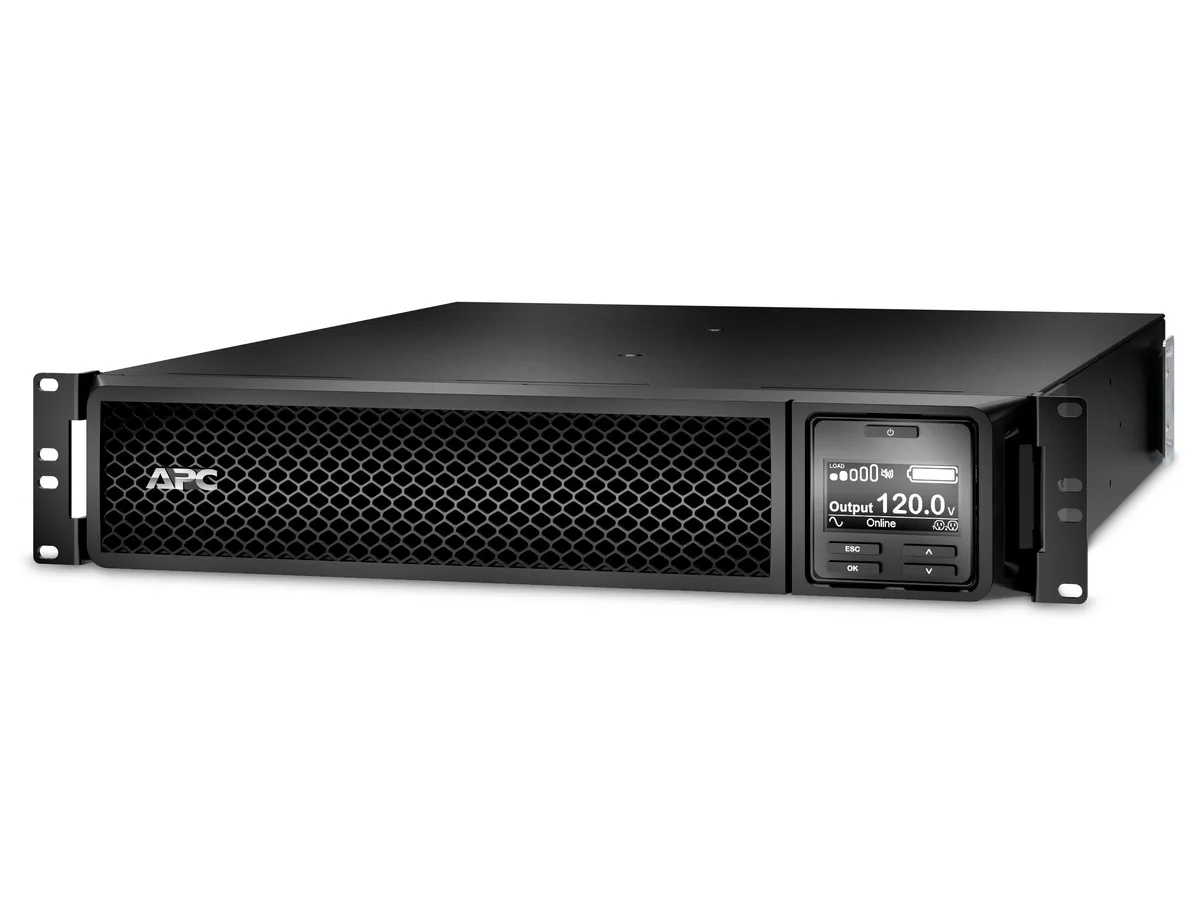

Black rack-mount UPS with LCD screen and seven outlets

APC

APC SRT2200RMXLA-NC 2200 VA 1800 W UPS Network Card

SKU CH-ZZ9K-AWZKJ MPN SRT2200RMXLA-NC

Double-conversion online UPS delivering 2200 VA and 1800 W with seven battery-backed outlets and a pre-installed network card

  • International Version120V
  • Input Frequency40 - 70 Hz (auto sensing)
  • Input ConnectionNEMA 5-20P
  • VA Rating2200 VA
  • Watts1800 Watts
  • Output Voltage120V

Options SRT2200RMXLA-NC

Show 1 more configurations
  • Double-conversion online topology delivers clean 120 V power
  • 2200 VA 1800 W capacity supports dense server loads
  • Seven battery-backup outlets include locking L5-20R
  • Pre-installed AP9631 network card enables remote management
  • Multi-function LCD console shows status and alarms at a glance

High-density online UPS

The APC Smart-UPS SRT 2200VA RM 120V Network Card is a double-conversion online UPS rated at 2200 VA and 1800 Watts. It delivers continuous power conditioning for servers, networking gear and critical workstations. The unit includes a pre-installed AP9631 network management card for remote monitoring. It suits environments that demand zero transfer time during outages.

Rack or tower integration

This rack/tower convertible chassis fits standard racks and can stand upright on a floor. Input connects via a NEMA 5-20P plug on a 120 V, 40–70 Hz supply. Seven battery-backed outlets provide six NEMA 5-20R receptacles and one NEMA L5-20R receptacle. An LCD console shows operating mode, parameters and alarms. ECO mode bypasses unused components when input power is clean, reducing energy draw without losing protection.

Runtime and battery headroom

Sealed lead-acid batteries recharge in three hours and are replaceable with the APCRBC141 cartridge. The 340 Joule surge rating absorbs spikes and lightning transients. Cold-start capability supplies temporary battery power when mains are absent. Scalable runtime options let you extend backup for longer outages, while the double-conversion topology isolates connected loads from all input disturbances until battery capacity is exhausted.

Highlights

  • Double-conversion online topology delivers clean 120 V power
  • 2200 VA 1800 W capacity supports dense server loads
  • Seven battery-backup outlets include locking L5-20R
  • Pre-installed AP9631 network card enables remote management
  • Multi-function LCD console shows status and alarms at a glance

Specifications

BrandAPC
SeriesSmart-UPS
ModelSRT2200RMXLA-NC
International Version120V
Input Frequency40 - 70 Hz (auto sensing)
Input ConnectionNEMA 5-20P
VA Rating2200 VA
Watts1800 Watts
Output Voltage120V
Output Frequency50/60 Hz +/- 3 Hz
Outlets7
Outlet Type6 x NEMA 5-20R (Battery Backup)
1 x NEMA L5-20R (Battery Backup)
Battery TypeSealed Lead Acid
Battery Recharge Time3 hour(s)
Battery ReplaceableAPCRBC141
AlarmsAudible and visible alarms prioritized by severity
Interface PortRJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
ApprovalsCSA C22.2 No.107.3-05, ENERGY STAR (USA), FCC Part 15 Class A, UL 1778, RoHS Compliant
Surge Energy Rating340 Joules
FeaturesAPC Smart-UPS SRT 2200VA RM 120V Network Card
High density, double-conversion on-line power protection with scalable runtime
Dimensions3.35" x 17.00" x 23.00"
Weight55.00 lbs.
Package ContentsCD with software, Documentation CD, Installation guide, Network Management Card, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, USB cable, Warranty card
Shipping weight33.50 kg
Package size815 × 599 × 241 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How long does the sealed lead-acid battery take to recharge after a full discharge?

The internal battery pack recharges in 3 hours and is user-replaceable with the APCRBC141 cartridge.

What audible and visible alarms does the unit provide during extended operation?

Alarms are prioritised by severity and sound or light to warn of overload, battery fault, or temperature events.

Which network-management card comes pre-installed for remote monitoring?

The AP9631 card is factory-fitted, giving RJ-45 10/100 Base-T access plus Smart-Slot expansion.
