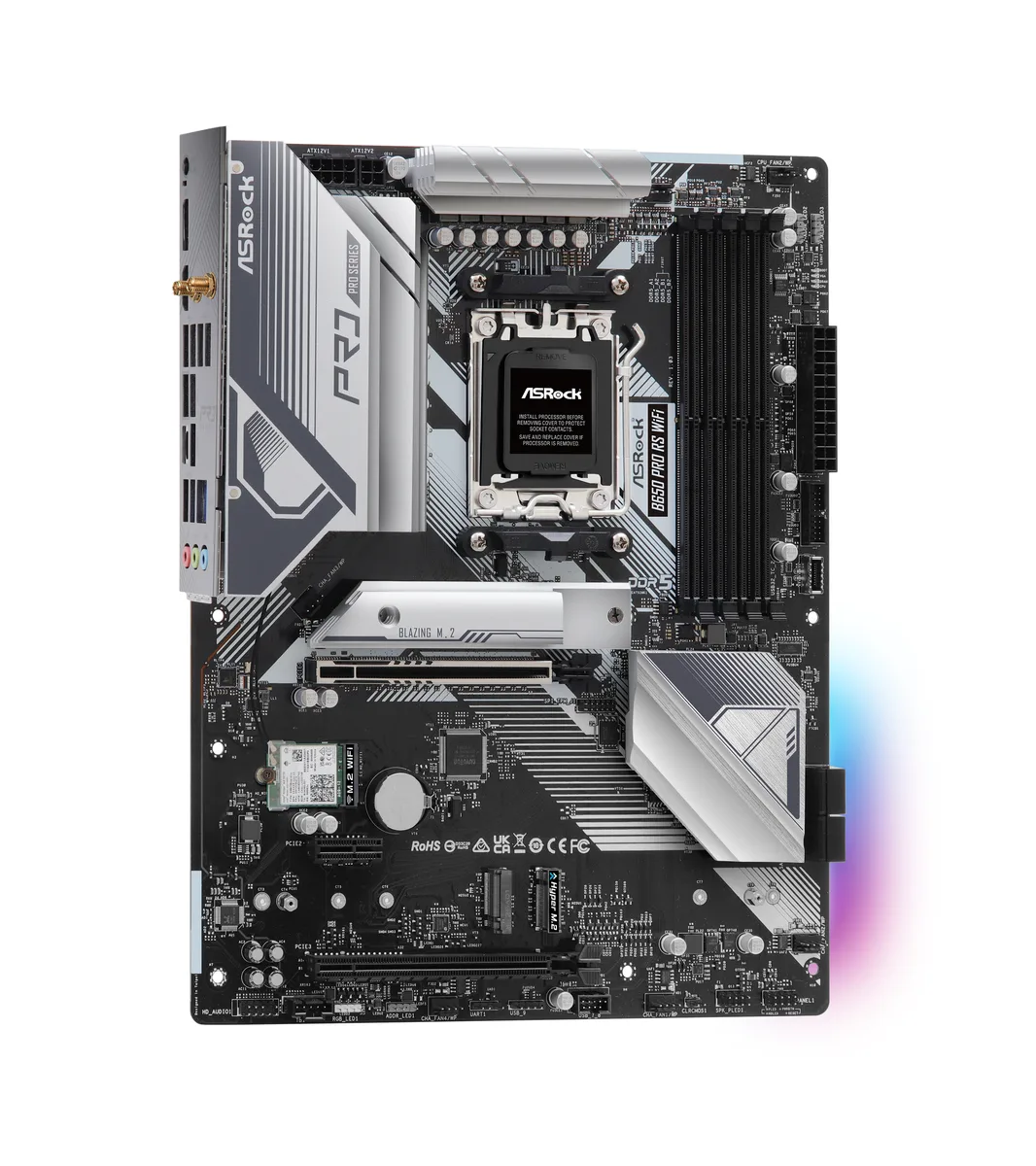

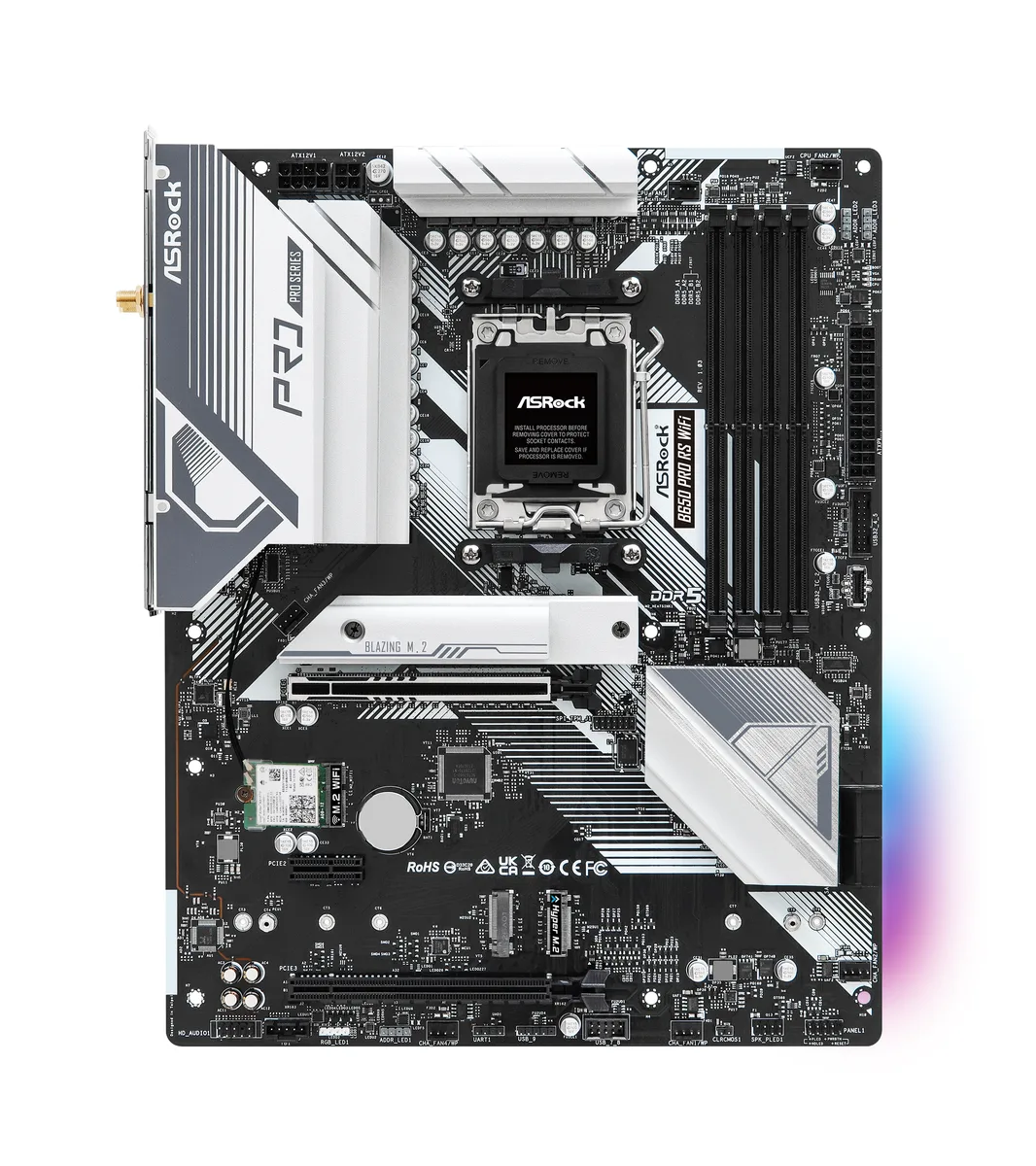

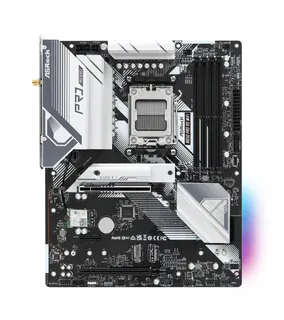

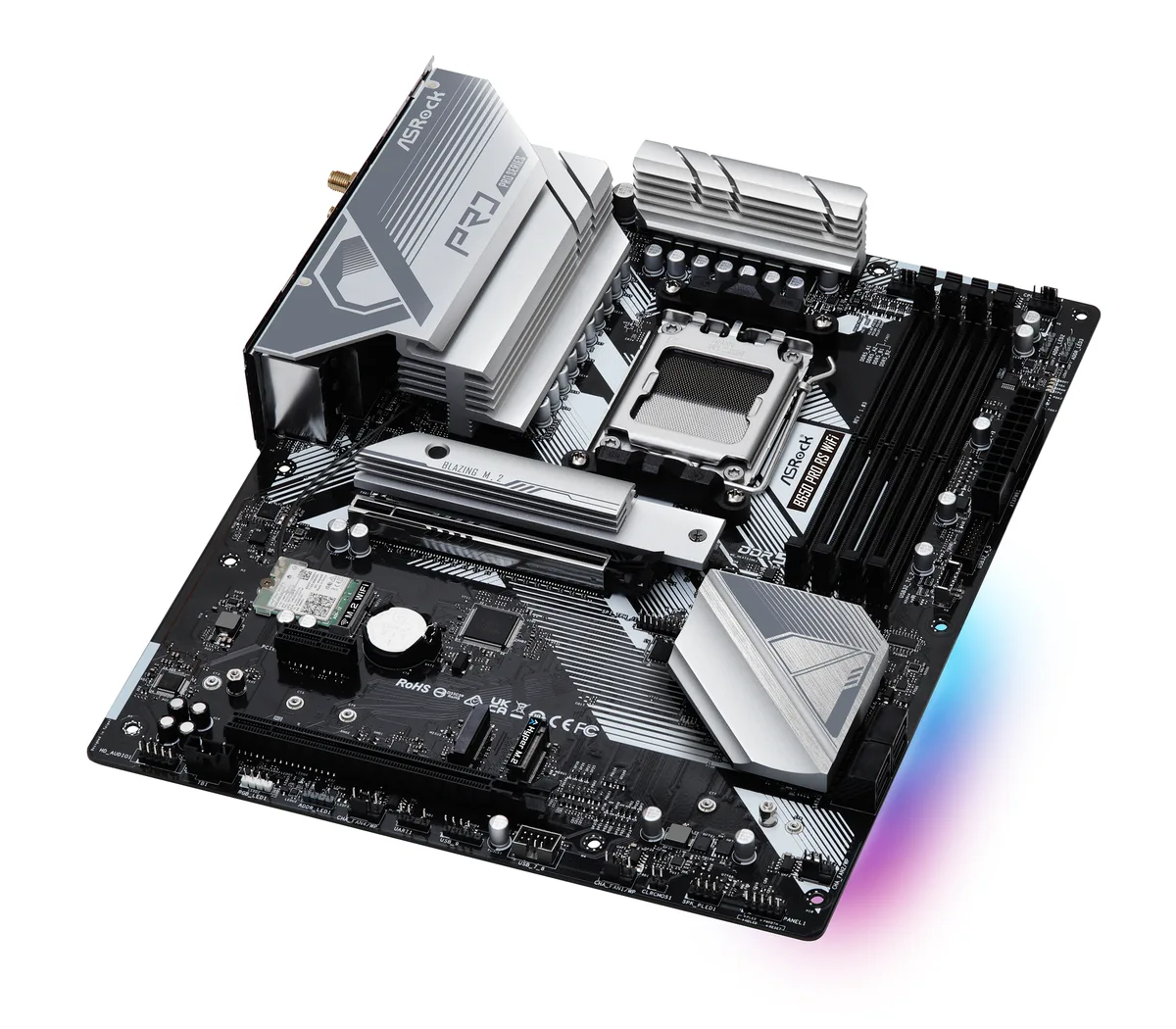

ATX motherboard with black heatsinks and silver accents

ASRock

ASRock B650 Pro RS WiFi AMD motherboard

SKU CH-FV9K-MDKY5 MPN B650 Pro RS WiFi

ATX board for AM5 Ryzen 7000 and 8000 CPUs with four DDR5 slots up to 7200 MT/s, PCIe 5.0 M.2, Wi-Fi, four SATA ports, 14+2+1 power phases and HDMI plus DisplayPort outputs

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to 7200+(OC)
  • Maximum Memory Supported192GB

Option B650 Pro RS WiFi

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 7000 and 8000 series processors on AM5 socket
  • 14+2+1 power phases with enlarged heatsink armour for stable delivery
  • DDR5 memory up to 7200 MHz overclocked across four slots
  • PCIe Gen5 x4 M.2 slot delivers 128 Gb/s storage bandwidth
  • USB 3.2 Gen2x2 front Type-C plus rear Type-A and Type-C ports

AM5 Motherboard for Ryzen 7000 and 8000

The ASRock B650 Pro RS WiFi is an ATX motherboard built around the AMD B650 chipset and AM5 socket. It accepts Ryzen 7000 and 8000 series processors and provides four DDR5 slots supporting up to 192 GB of memory at 7200 MT/s with EXPO and XMP profiles. The board includes a Realtek ALC897 7.1 channel audio codec, HDMI and DisplayPort outputs, four SATA 6.0 Gb/s ports, and a 14+2+1 power phase design with enlarged heatsinks.

Suited for single GPU builds with Gen5 storage

This board suits builders who want one graphics card at PCIe 4.0 x16 and a primary M.2 drive at PCIe Gen5 x4 (128 Gb/s). A second PCIe 3.0 x16 slot runs at x4 mode, and a PCIe 4.0 x1 slot is available for add-in cards. Two further M.2 sockets from the chipset offer SATA or PCIe Gen3 x2 connectivity. It is less suitable for multi-GPU configurations or systems needing more than three M.2 drives.

CPU-connected Blazing M.2 at PCIe Gen5 x4

The single specification that decides fit is the CPU-linked M.2 socket (M2_1) running at PCIe Gen5 x4 with 128 Gb/s bandwidth. This slot delivers the full speed of current Gen5 NVMe drives directly from the processor. The chipset M.2 sockets operate at Gen3 x2 or SATA speeds, so only the top slot provides Gen5 performance.

Highlights

  • Supports Ryzen 7000 and 8000 series processors on AM5 socket
  • 14+2+1 power phases with enlarged heatsink armour for stable delivery
  • DDR5 memory up to 7200 MHz overclocked across four slots
  • PCIe Gen5 x4 M.2 slot delivers 128 Gb/s storage bandwidth
  • USB 3.2 Gen2x2 front Type-C plus rear Type-A and Type-C ports

Specifications

BrandASRock
ModelB650 Pro RS WiFi
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to 7200+(OC)
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory Performance ProfileSupports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 4.0 x161 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
PCI Express 3.0 x161 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode
PCI Express x11 x PCIe 4.0 x1 Slot (PCIE2)
Other Slots1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
* Supports NVMe SSD as boot disks
SATA RAIDSupports RAID 0 and RAID 1 for SATA storage devices
Additional RAID ControllerSupports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
* Requires additional M.2 NVMe expansion cards to support RAID 10
Audio ChipsetRealtek ALC897 Audio Codec
Nahimic Audio
Audio Channels7.1 Channels
LAN ChipsetDragon RTL8125BG
Max LAN Speed2.5Gbps
Wireless LAN802.11axe Wi-Fi 6E Module
BluetoothBluetooth 5.2

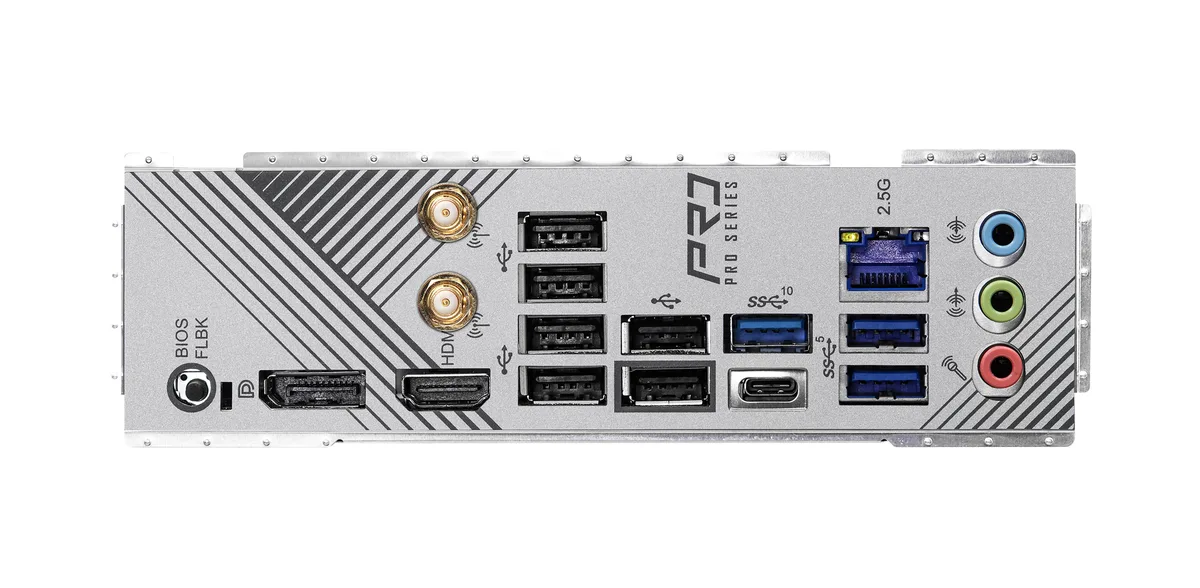

Back I/O Ports2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
2 x USB 3.2 Gen1 Ports
6 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)
Other Connectors1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x 4 pin 12V Power Connector
BIOS Feature256Mb AMI UEFI Legal BIOS with GUI support
SoftwareSoftware
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Windows 11Windows 10 64-bit / 11 64-bit
FeaturesSuperb Productivity
- PCIe Gen5 (M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 14+2+1 Power Phase, SPS with Enlarged Heatsink Armor
- Flexible Integrated I/O Shield
Ultrafast Connectivity
- 2.5G LAN, 802.11axe Wi-Fi 6E Module
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
Package Contents1 x User Manual
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
2 x Screws for M.2 Sockets
Shipping weight2.11 kg
Package size381 × 330 × 102 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick a Ryzen 7000 Series or Ryzen 8000 Series processor for this AM5 board?

Both families fit the AM5 socket and B650 chipset; the 7000 Series launched first and the 8000 Series adds newer integrated graphics, so choose based on whether you need built-in display output.

What does the DDR5 7200+(OC) memory standard deliver in a built system?

It lets you run DDR5 kits at up to 7200 MT/s when XMP or EXPO profiles are enabled, giving higher bandwidth than JEDEC speeds while staying within the board's 192 GB four-slot limit.

How fast is the Blazing M.2 socket that runs PCIe Gen5x4?

The CPU-connected M2_1 slot provides a 128 Gb/s link for a 2280 NVMe drive, which is the fastest storage interface on this motherboard.
