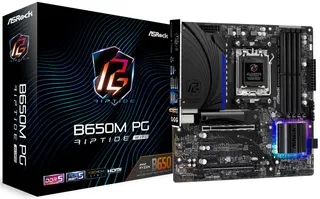

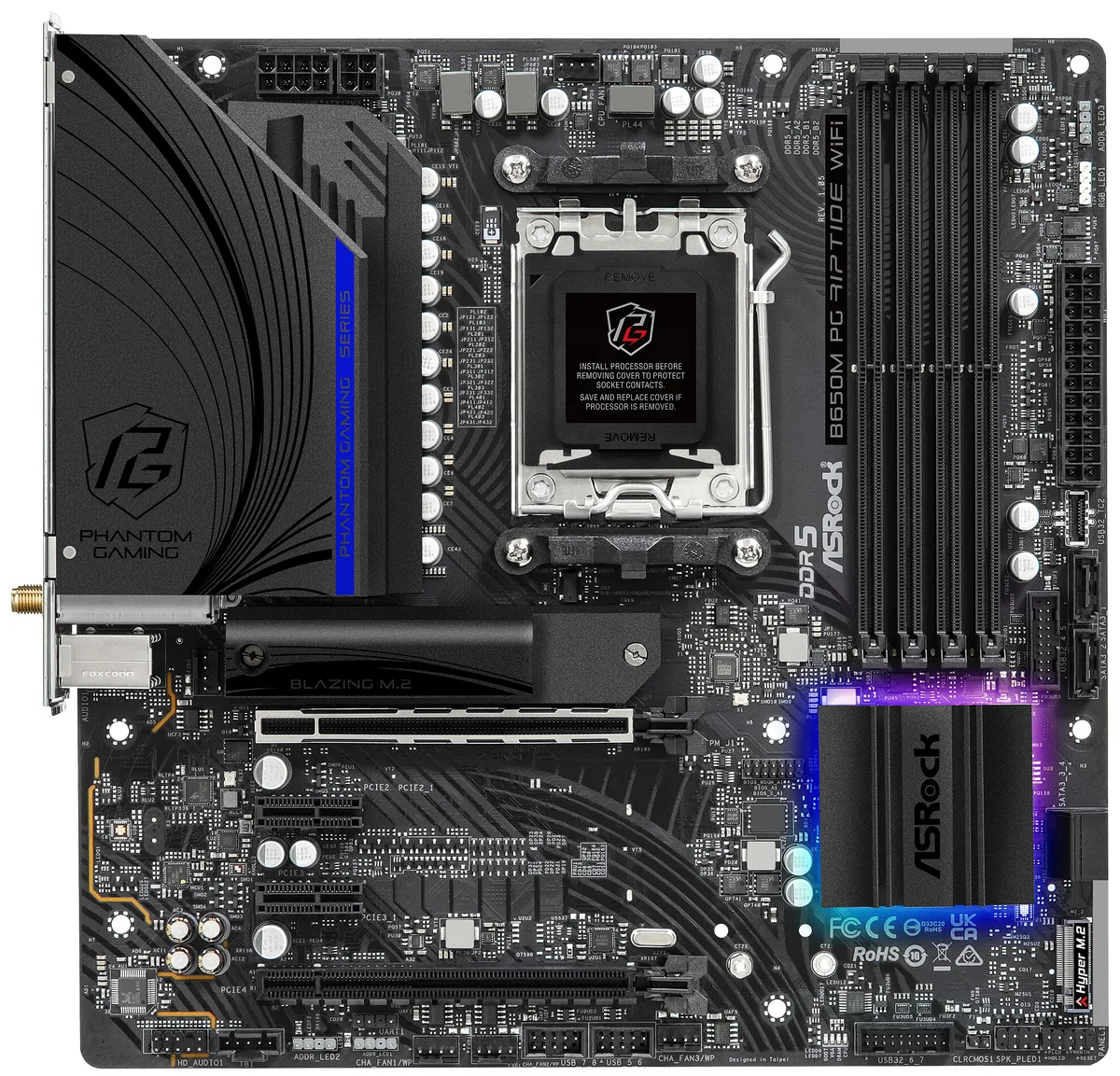

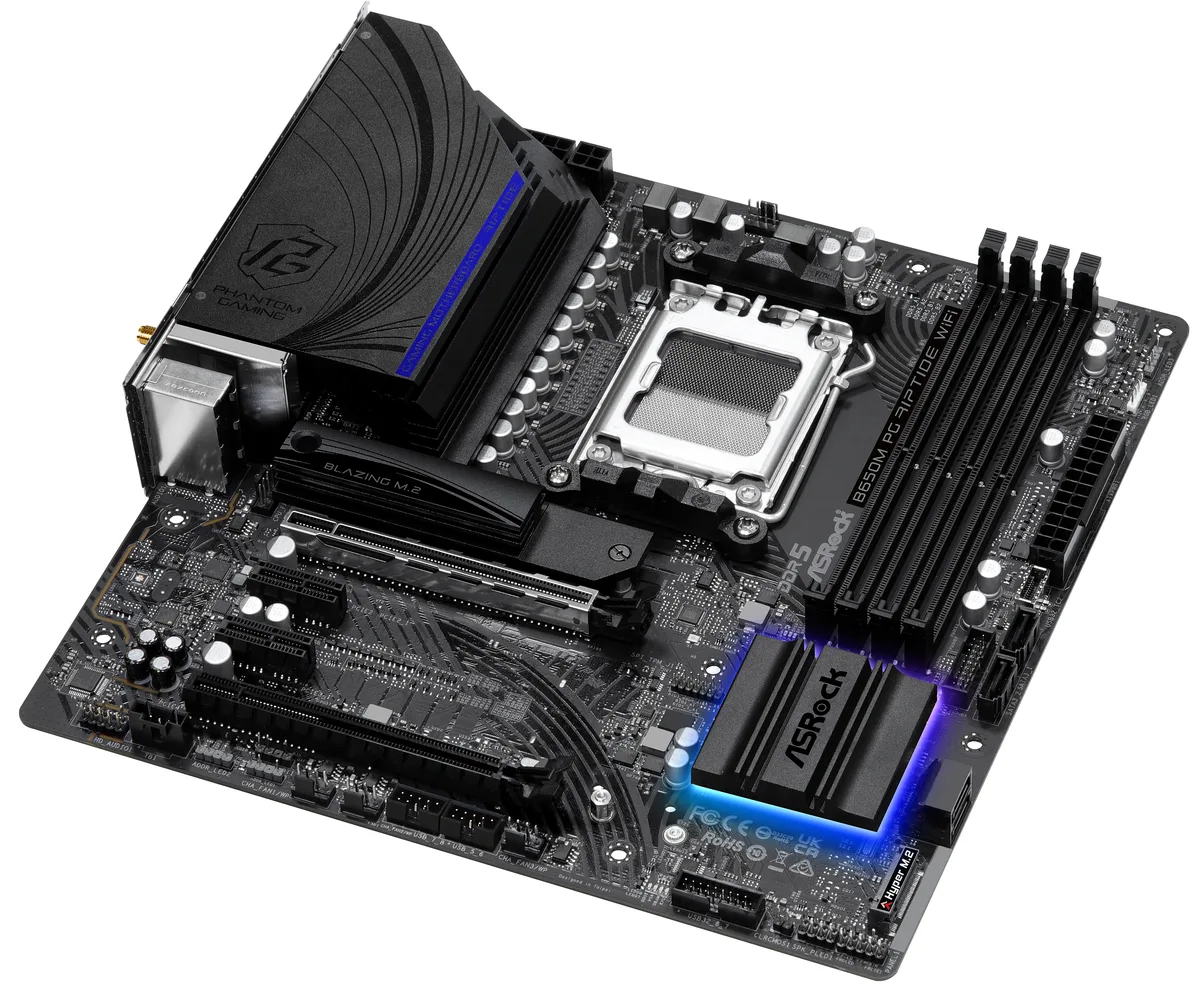

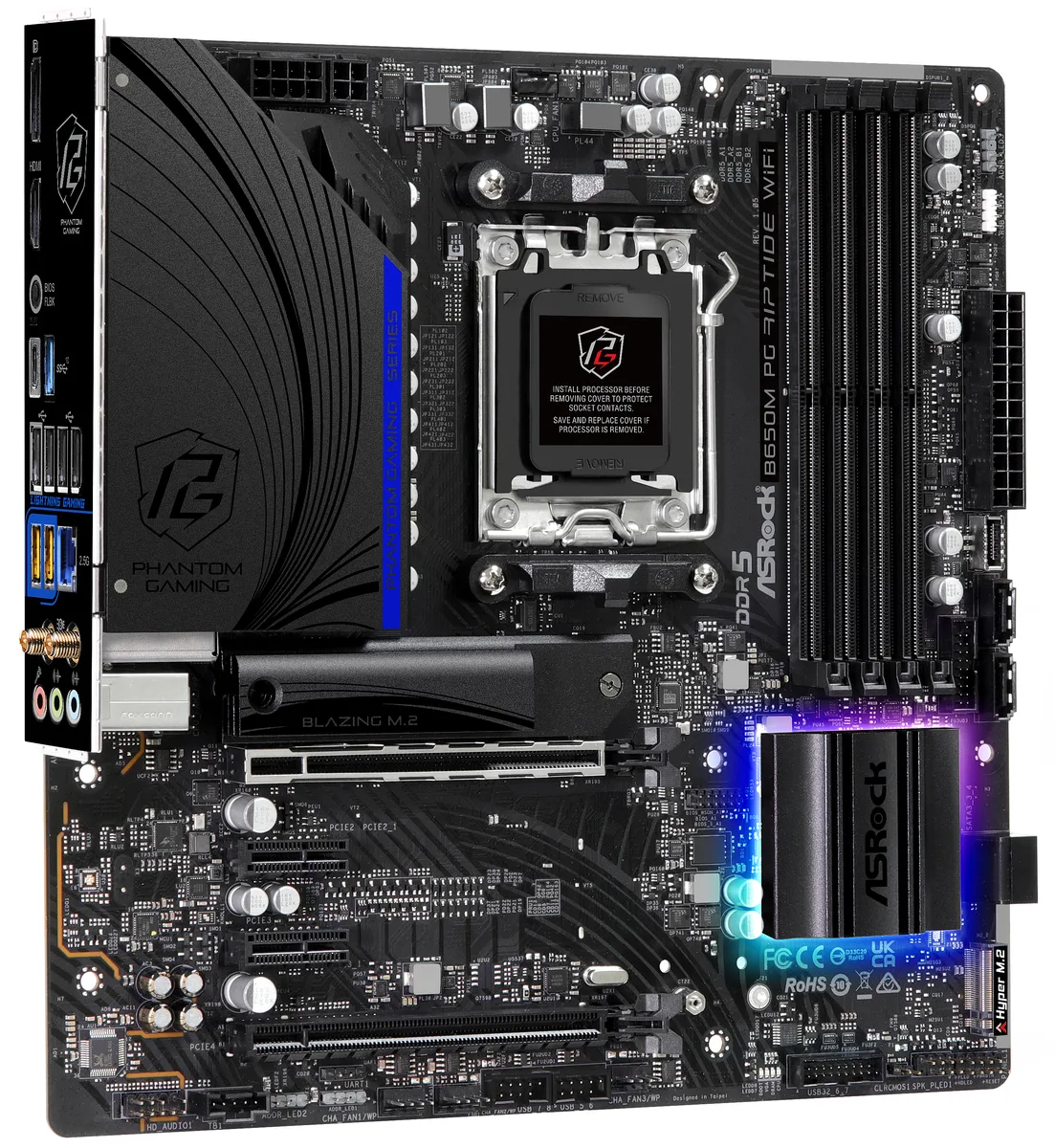

Micro-ATX board with dark heatsinks, four DDR5 slots, two full-length PCIe slots, rear I/O shield showing HDMI, DisplayPort

ASRock

ASRock B650M PG RIPTIDE WIFI AMD motherboard

SKU CH-V31N-NZF5H MPN B650M PG RIPTIDE WIFI

Micro-ATX AM5 board with four DDR5 slots, one PCIe Gen5 M.2 and one Gen4 M.2, 2.5Gb LAN, Wi-Fi, and 7.1 audio

  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen 7000 Series Processors
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports DDR5 non-ECC, un-buffered memory up to 6200+(OC)
  • Maximum Memory Supported128GB

Option B650M PG RIPTIDE WIFI

Struck-through versions exist but are not stocked here.

  • Supports AMD Ryzen 7000 and 9000 Series processors for high performance
  • 12+2+1 power phase Dr.MOS with enlarged heatsink armour for stable delivery
  • Four DDR5 slots up to 6200 MHz OC and 128 GB capacity
  • One PCIe Gen5 x4 M.2 plus one Gen4 x4 M.2 for fast storage
  • 5 Gb LAN, Wi-Fi AX and 7.1 Nahimic Audio for connectivity and sound

AM5 Micro-ATX Board for Ryzen 7000 and 9000

This Micro-ATX motherboard uses the AMD B650 chipset and AM5 socket to support Ryzen 7000 Series and Ryzen 9000 Series processors. It provides four DDR5 slots for up to 128GB of dual-channel memory with XMP 3.0 and EXPO profiles. A 12+2+1 Dr.MOS power phase design with enlarged heatsink armour delivers stable current for high-core-count CPUs.

PCIe 4.0 and 3.0 Slots with Gen5 and Gen4 M.2

The board offers one PCIe 4.0 x16 slot running at x16 and a second PCIe 4.0 x16 slot running at x4, plus two PCIe 3.0 x1 slots. Storage includes one M.2 socket for PCIe Gen5x4 at 128 Gb/s and a second for PCIe Gen4x4 at 64 Gb/s, both accepting 2260 or 2280 drives. Four SATA 6Gb/s ports and a 2.5Gb LAN port complete the I/O.

Standard Micro-ATX Install With BIOS Check

Installation follows normal Micro-ATX mounting and uses standard 24-pin plus 8-pin CPU power connectors. A BIOS update may be required before a Ryzen 9000 Series processor will post. Builders should verify memory kits against the vendor QVL to avoid training failures at higher DDR5 speeds.

Highlights

  • Supports AMD Ryzen 7000 and 9000 Series processors for high performance
  • 12+2+1 power phase Dr.MOS with enlarged heatsink armour for stable delivery
  • Four DDR5 slots up to 6200 MHz OC and 128 GB capacity
  • One PCIe Gen5 x4 M.2 plus one Gen4 x4 M.2 for fast storage
  • 5 Gb LAN, Wi-Fi AX and 7.1 Nahimic Audio for connectivity and sound

Specifications

BrandASRock
ModelB650M PG RIPTIDE WIFI
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen 7000 Series Processors
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports DDR5 non-ECC, un-buffered memory up to 6200+(OC)
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0 / AMD EXPO
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
PCI Express 4.0 x161 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode*
PCI Express x12 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
* Supports NVMe SSD as boot disks
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
SATA RAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Additional RAID ControllerSupports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
* Requires additional M.2 NVMe expansion cards to support RAID 10
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetDragon RTL8125BG
Max LAN Speed2.5Gbps
Wireless LAN802.11ax Wi-Fi 6E Module

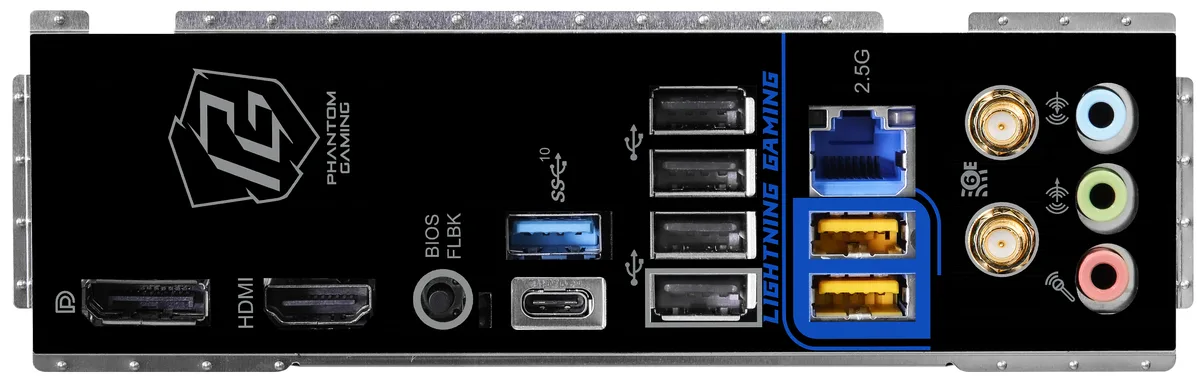

Back I/O Ports2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports.)
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
Other Connectors1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x 4 pin 12V Power Connector
Windows 11Supported
FeaturesSuperb Productivity
- PCIe Gen5 (M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 12+2+1 Power Phase, 50A Dr.MOS with Enlarged Heatsink Armor
- Flexible Integrated I/O Shield
Ultrafast Gaming
- 2.5G LAN
- ASRock Lightning Gaming Ports
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
Package Contents1 x User Manual
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
2 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
Shipping weight1.50 kg
Package size305 × 287 × 70 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the 128 Gb/s M.2 slot or the 64 Gb/s M.2 slot for my fastest NVMe drive?

Use the Blazing M.2 socket (M2_1) for your fastest NVMe drive. It runs at PCIe Gen5 x4 and delivers up to 128 Gb/s. The Hyper M.2 socket (M2_2) is PCIe Gen4 x4 at 64 Gb/s. Both accept 2260 and 2280 form factors.

What does DDR5 6200+(OC) actually give me once the memory is installed?

The board supports DDR5 modules rated up to 6200 MT/s when you enable the EXPO or XMP 3.0 profile in BIOS. You get dual-channel bandwidth at that speed with up to 128 GB total across the four slots.

What PCIe generation does the primary x16 slot use, and what bandwidth does that cap the graphics card at?

The primary PCIe 4.0 x16 slot (PCIE1) runs at full x16 electrical width, giving a graphics card up to 64 GB/s of PCIe 4.0 bandwidth. The second x16-size slot (PCIE4) is wired for x4 speed.
