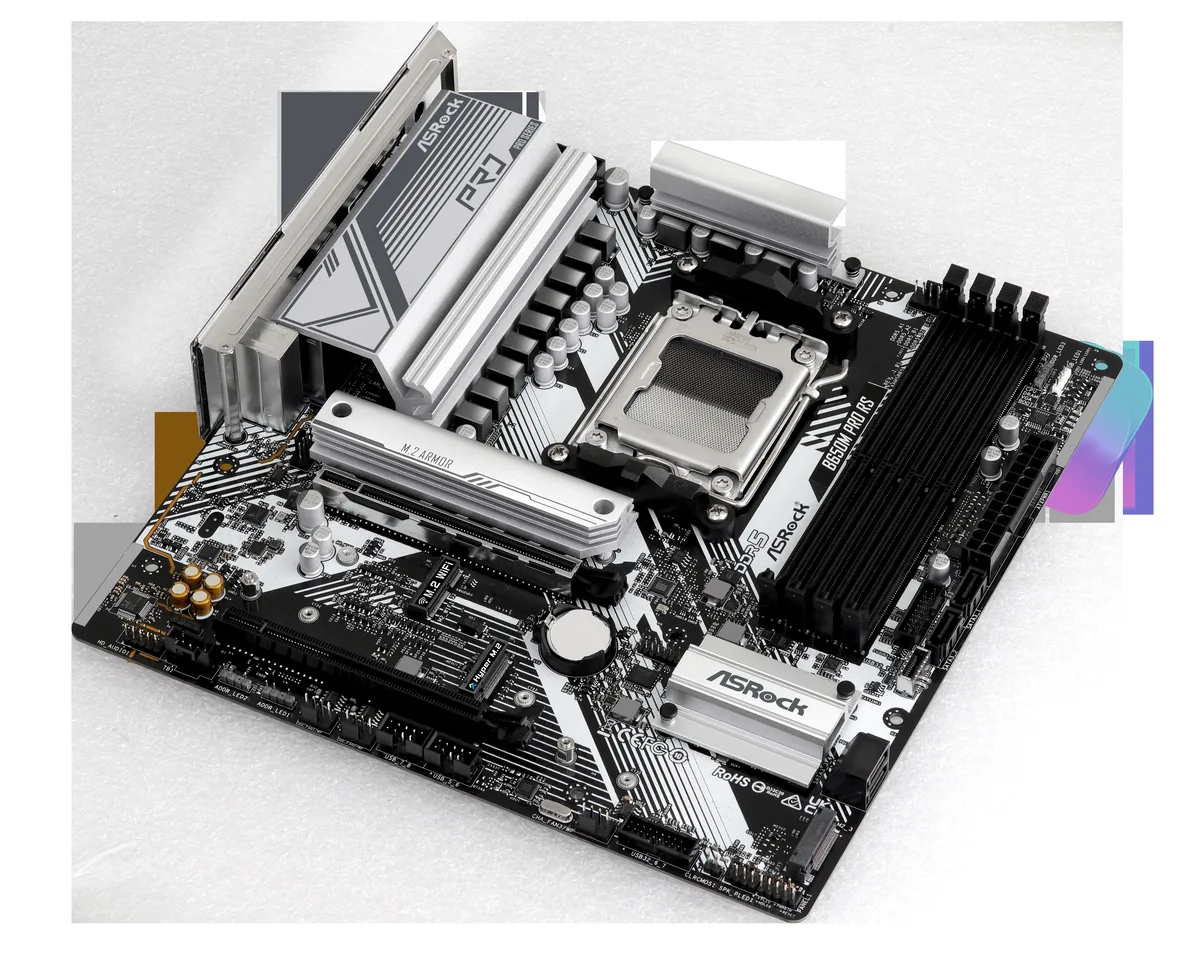

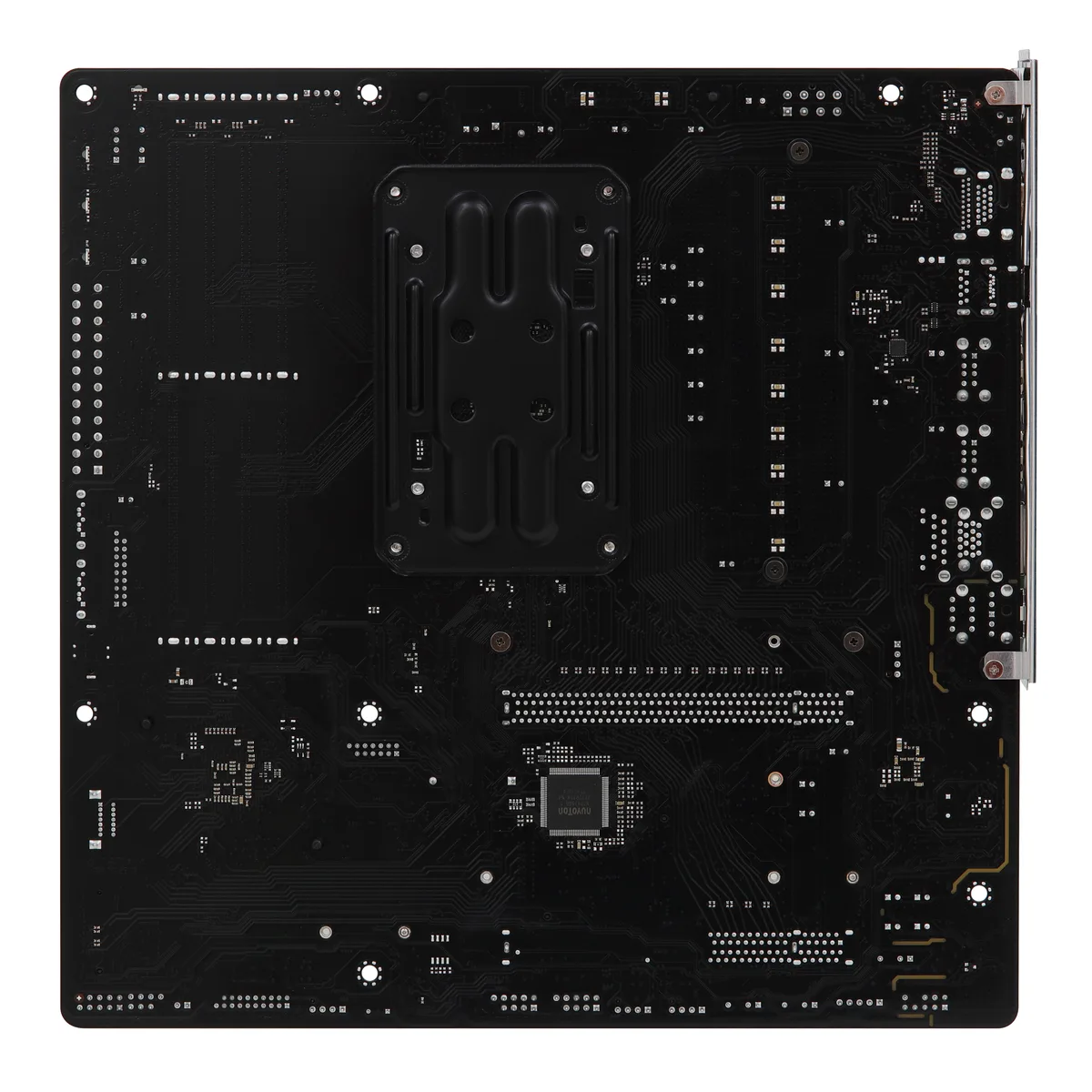

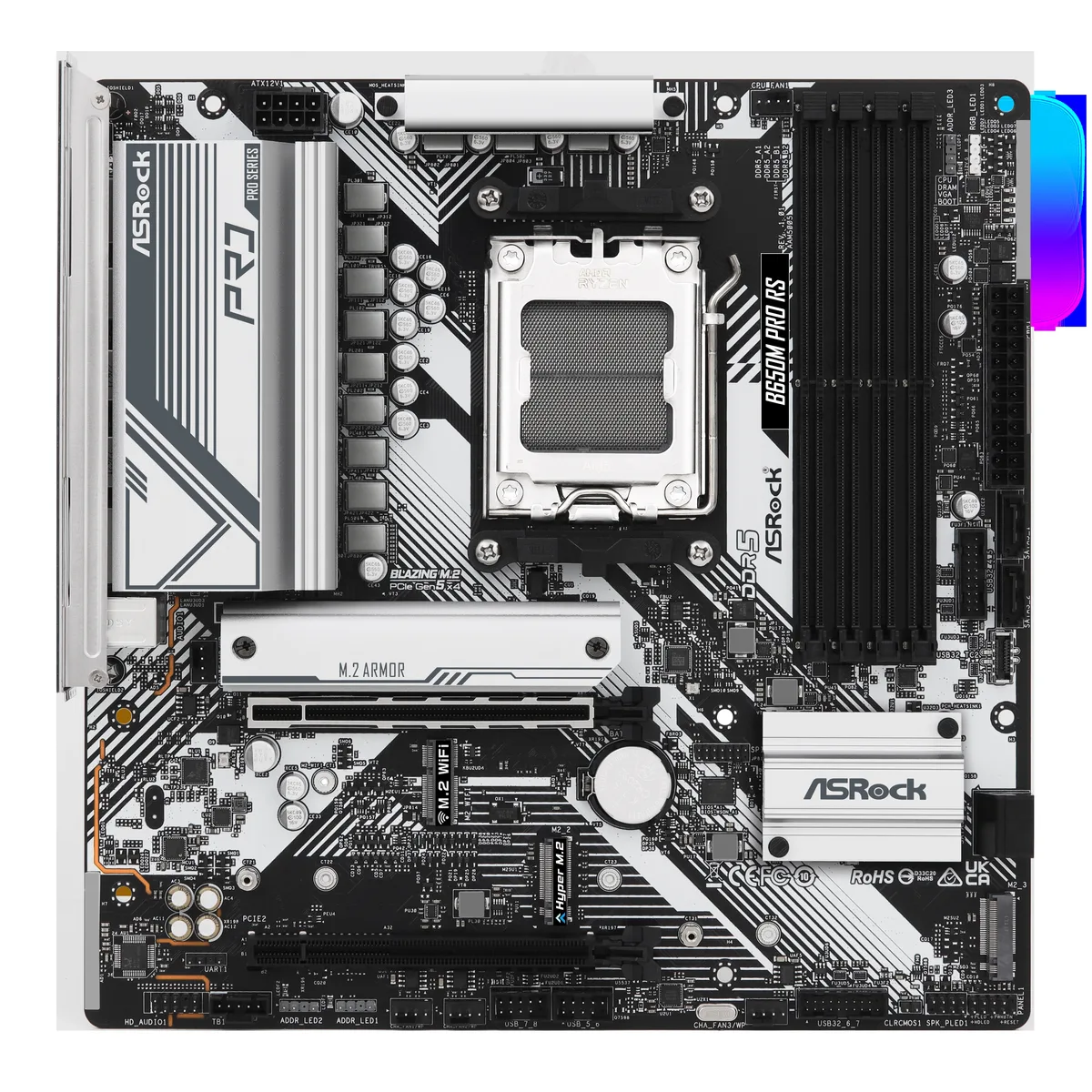

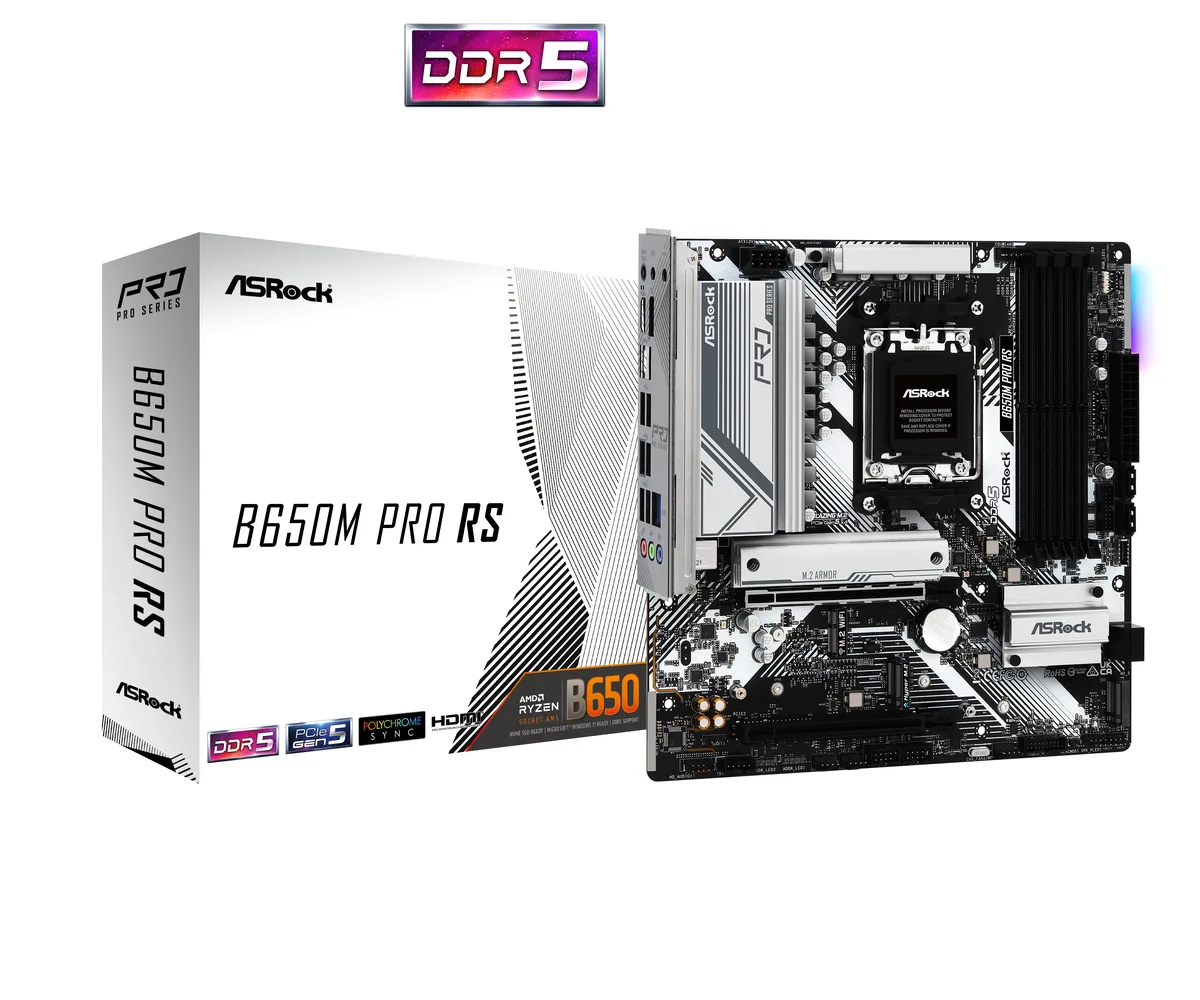

Micro ATX motherboard with black PCB and silver heatsinks

ASRock

ASRock B650M Pro RS AMD motherboard

SKU CH-HGPF-EY53N MPN B650M Pro RS

Micro-ATX AM5 board with PCIe 5.0 M.2, four SATA ports, 1 GbE LAN and 7.1-channel audio

  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Socket AM5 Ryzen 7000 Series Processors
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 6000+ (OC)
  • Maximum Memory Supported128GB

Option B650M Pro RS

Struck-through versions exist but are not stocked here.

  • Supports AMD Ryzen 7000 and 9000 Series CPUs with AM5 socket
  • 8+2+1 Dr.MOS power phases deliver stable CPU voltage
  • Four DDR5 slots reach 7200 MHz OC for 128 GB capacity
  • Blazing M.2 slot enables PCIe Gen5 x4 NVMe at 128 Gb/s
  • Realtek ALC897 7.1-channel audio with Nahimic enhancement

AM5 Micro-ATX for Ryzen 7000 and 9000

This ASRock B650M Pro RS motherboard fits the AM5 socket and supports AMD Ryzen 7000 Series and Ryzen 9000 Series processors. It uses the AMD B650 chipset on a compact Micro-ATX layout. A BIOS update may be required before installing a 9000 Series CPU. The board delivers an 8+2+1 Dr.MOS power phase design for stable operation.

Suits compact DDR5 builds, not multi-GPU

The board suits builders who want a small-form-factor system with up to 128 GB of dual-channel DDR5 across four slots. Memory runs at DDR5 6000+ (OC) and supports both AMD EXPO and Intel XMP 3.0 profiles. Only one PCIe 4.0 x16 slot is wired for graphics, so multi-GPU configurations are not an option. The second x16 slot runs at PCIe 3.0 x4 electrically.

PCIe Gen5 M.2 and 5 GbE ceiling

The primary M.2 socket (M2_1) connects directly to the CPU and runs at PCIe Gen5 x4, providing 128 Gb/s bandwidth for the fastest NVMe drives. Two additional M.2 sockets operate at PCIe Gen4 x4 and Gen4 x2 respectively. Wired networking tops out at 5 GbE via the Realtek Dragon RTL8125BG controller.

Highlights

  • Supports AMD Ryzen 7000 and 9000 Series CPUs with AM5 socket
  • 8+2+1 Dr.MOS power phases deliver stable CPU voltage
  • Four DDR5 slots reach 7200 MHz OC for 128 GB capacity
  • Blazing M.2 slot enables PCIe Gen5 x4 NVMe at 128 Gb/s
  • Realtek ALC897 7.1-channel audio with Nahimic enhancement

Specifications

BrandASRock
ModelB650M PRO RS
CPU Socket TypeAM5
CPU TypeSupports AMD Socket AM5 Ryzen 7000 Series Processors
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 6000+ (OC)
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0 / AMD EXPO
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 4.0 x161 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
PCI Express 3.0 x161 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
Other Slots* Supports NVMe SSD as boot disks
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
SATA RAID0/1/10
Audio Channels7.1 Channels
LAN ChipsetDragon RTL8125BG
Max LAN Speed2.5Gbps

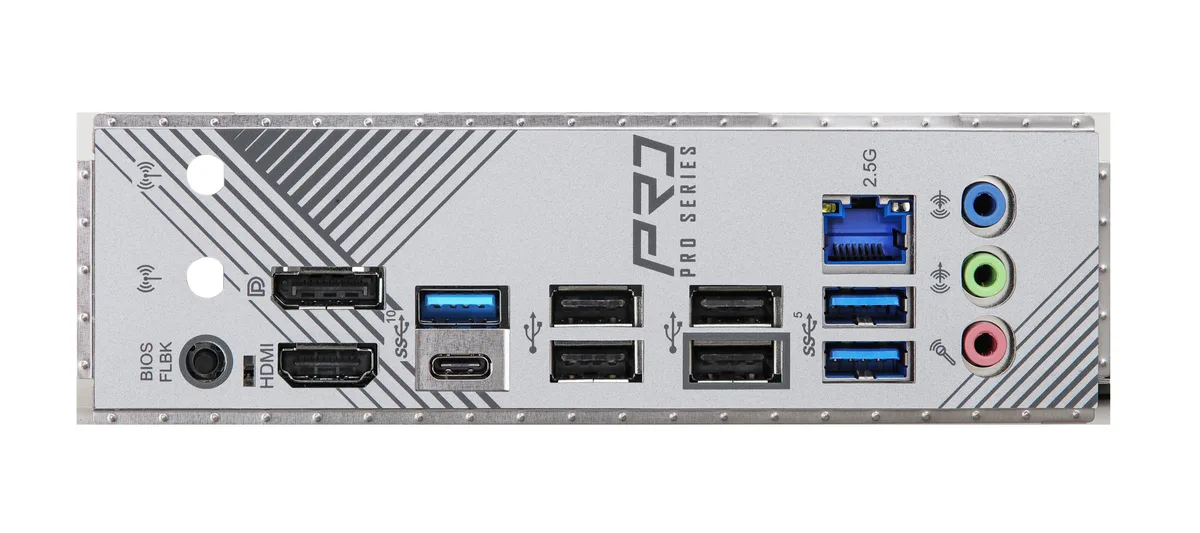

Back I/O Ports2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
Other Connectors1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
*Supports in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***CPU_FAN1 supports the fan power up to 1A (12W).
****CPU_FAN2/WP supports the fan power up to 2A (24W
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
FeaturesSuperb Productivity
- PCIe Gen5 (M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 8+2+1 Power Phase, 50A Dr.MOS
- Pre-Installed I/O Shield
Ultrafast Connectivity
- 2.5G LAN
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker

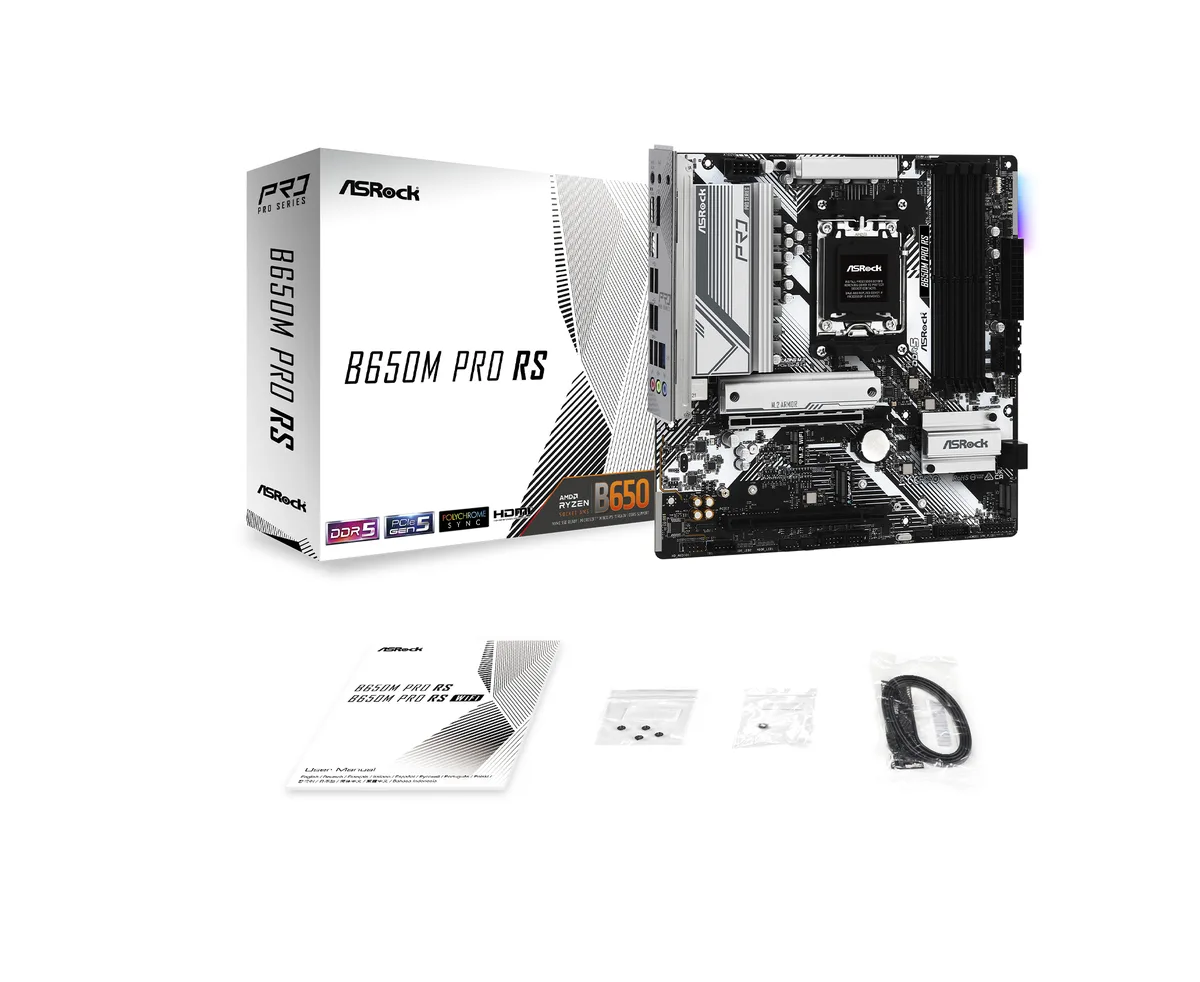

Package Contents1 x User Manual
2 x SATA Data Cables
4 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
Shipping weight1.81 kg
Package size275 × 260 × 60 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will my Ryzen 7000 CPU work without a BIOS update?

Yes, the board supports Ryzen 7000 series processors out of the box.

Can I run four DDR5 sticks at 6000 MT/s or higher?

The board has four 288-pin slots and supports DDR5 6000+ OC up to 128 GB in dual-channel mode.

Which M.2 slot gives the fastest NVMe speed?

The Blazing M.2 socket (M2_1) runs at PCIe Gen5 x4, while the Hyper M.2 (M2_2) runs at Gen4 x4 and M2_3 at Gen4 x2.
