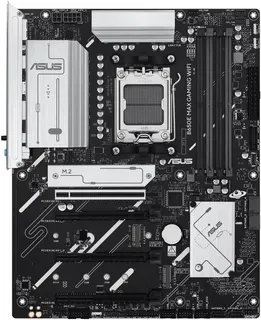

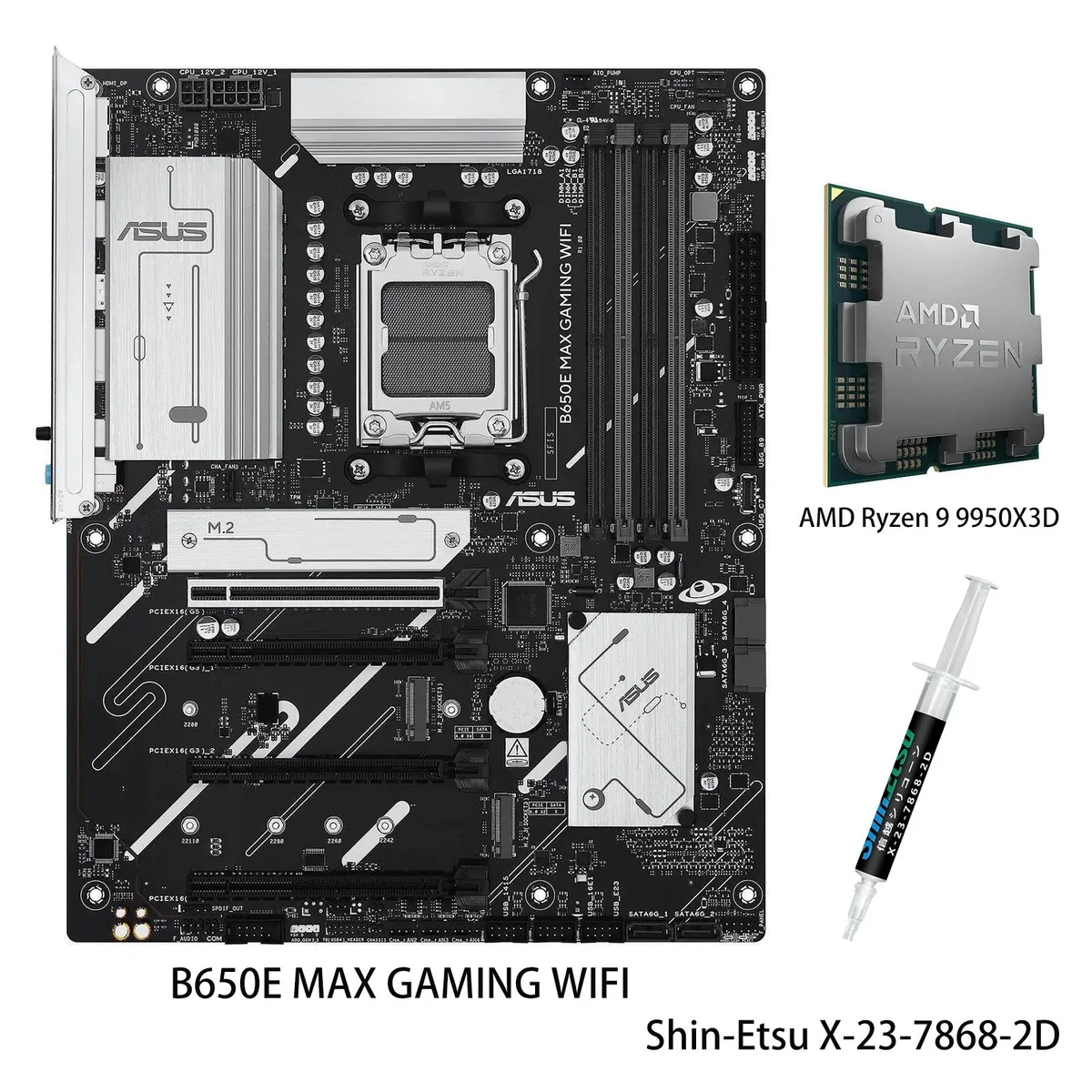

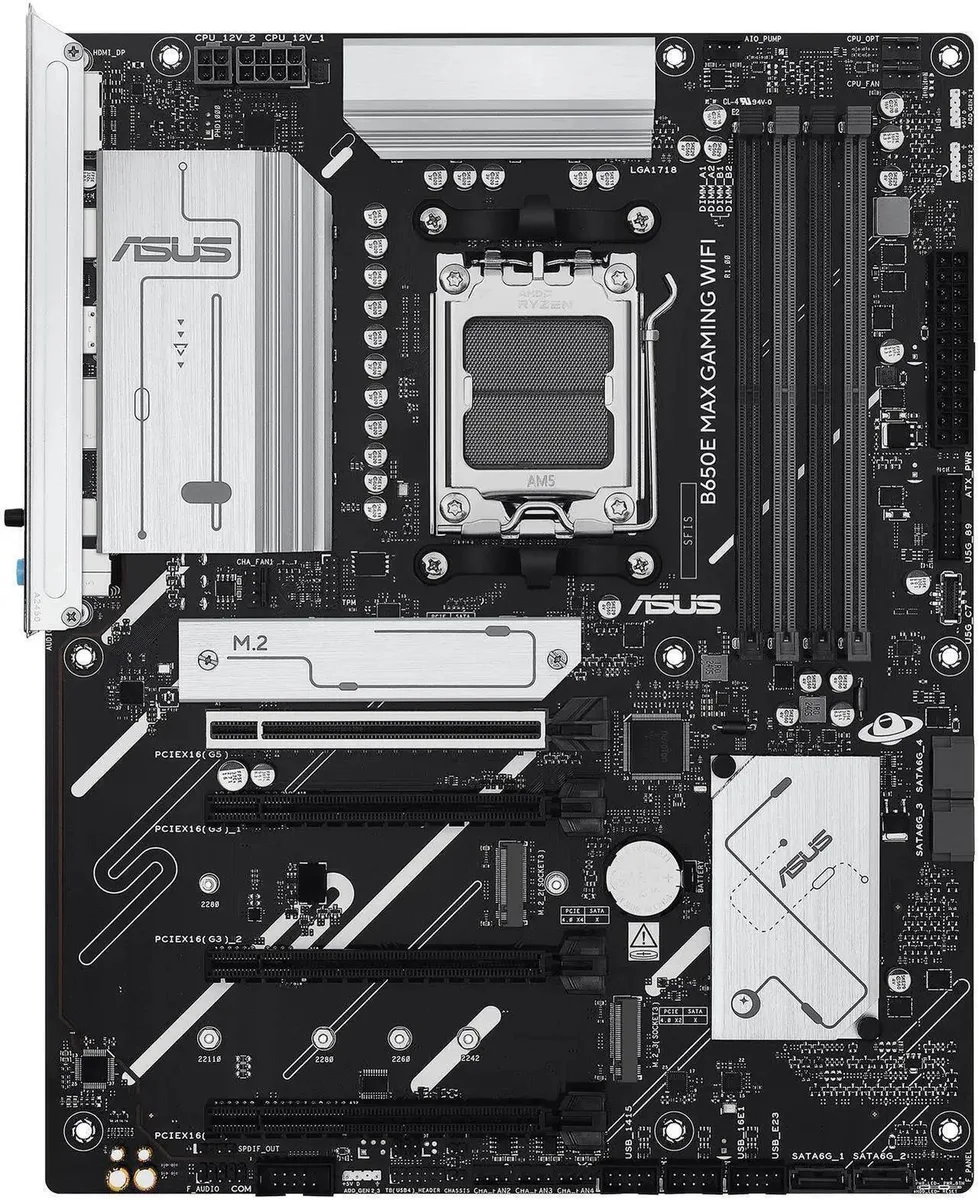

ASUS B650E MAX GAMING WIFI motherboard with Ryzen 9 9950X3D CPU installed, ATX board, dark PCB with large VRM heatsinks

ASUS

ASUS B650E MAX GAMING WIFI AMD motherboard with Ryzen 9 9950X3D CPU

SKU CH-3HB6-FZSQH

Socket AM5 motherboard paired with a 16-core Ryzen 9 9950X3D CPU, DDR5 memory support to 192 GB, PCIe 5.0 x16 slot, three M.2 2280 slots, Wi-Fi 6E, 2.5 Gb Ethernet, USB 10 Gbps Type-A and Type-C.

  • CPU Socket TypeAM5
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to 8000+MT/s (OC)
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel

model B650E MAX GAMING WIFI

+CPU +Ryzen 9 9950X3D

  • 16-core Ryzen 9 9950X3D with 128 MB L3 cache for heavy multitasking
  • 192 GB DDR5 capacity across four slots for large workloads
  • PCIe 5.0 x16 slot plus PCIe 5.0 M.2 for fastest GPU and storage
  • Wi-Fi 6E and 2.5 Gbps Ethernet for low-latency networking
  • 8+2+1 phase VRM with heatsinks keeps 170 W CPU stable

ASUS B650E Motherboard with Ryzen 9 9950X3D

This motherboard and CPU combination targets enthusiasts building high-performance AMD systems. The AM5 socket supports Ryzen 7000, 8000 and 9000 series processors. Four DDR5 slots accept up to 192GB of memory at speeds beyond 8000 MT/s when overclocked. The bundle delivers a ready-to-run platform for demanding workloads and gaming.

Thermals Noise and Power Draw

The board uses an 8+2+1 phase power design on a 6-layer PCB with alloy chokes and durable capacitors. VRM, M.2 and PCH heatsinks handle heat from the 170W CPU and fast storage. Hybrid fan headers and Fan Xpert 2+ software allow quiet fan curves at idle and light load. Realtek 2.5Gb Ethernet, Wi-Fi 6E and Bluetooth 5.3 add connectivity without extra cards.

Sustained Load Behaviour

Under prolonged load the enhanced power delivery maintains stable voltage to the 16-core processor with 128MB L3 cache and 16MB L2 cache. PCIe 5.0 x16 and PCIe 5.0 M.2 slots keep graphics and storage bandwidth high during extended sessions. Rear USB 10Gbps Type-A and Type-C ports sustain fast peripheral throughput. Aura Sync RGB headers remain configurable throughout heavy use.

Highlights

  • 16-core Ryzen 9 9950X3D with 128 MB L3 cache for heavy multitasking
  • 192 GB DDR5 capacity across four slots for large workloads
  • PCIe 5.0 x16 slot plus PCIe 5.0 M.2 for fastest GPU and storage
  • Wi-Fi 6E and 2.5 Gbps Ethernet for low-latency networking
  • 8+2+1 phase VRM with heatsinks keeps 170 W CPU stable

Specifications

BrandASUS
ModelB650E MAX GAMING WIFI+R9 9950X3D
CPU Socket TypeAM5
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to 8000+MT/s (OC)
Maximum Memory Supported192GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (support x4 mode)
PCI Express 3.0 x162 x PCIe 3.0 x16 slots (support x1 mode)***
*** The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
* Specifications vary by CPU types.
SATA RAID0/1/5/10
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth 5.3
Back I/O Ports1 x USB 10Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan header
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
1 x Thunderbolt (USB4) header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connectors
1 x 4-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS Driver Hub
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Windows 11Supported
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- Q-Antenna
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Pre-mounted I/O shield
- SafeSlot
Aura Sync
- Addressable RGB Gen 2 headers
Package Contents1 x AMD Ryzen 9 9950X3D CPU
1 x Shin-Etsu X-23-7868-2D (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber packages
3 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this board take four DDR5 sticks and what is the top capacity?

The board has four 288-pin DDR5 slots and supports up to 192GB in dual-channel mode.

What CPU cooling headroom does the 8+2+1 phase VRM give for the 170W Ryzen 9 9950X3D?

The 8+2+1 phase design with alloy chokes and a 6-layer PCB is built to deliver stable power to the 170W processor.

Which M.2 slot runs at PCIe 5.0 and what length does it accept?

The primary M.2_1 slot supports PCIe 5.0 x4 and accepts 2280-length drives.
