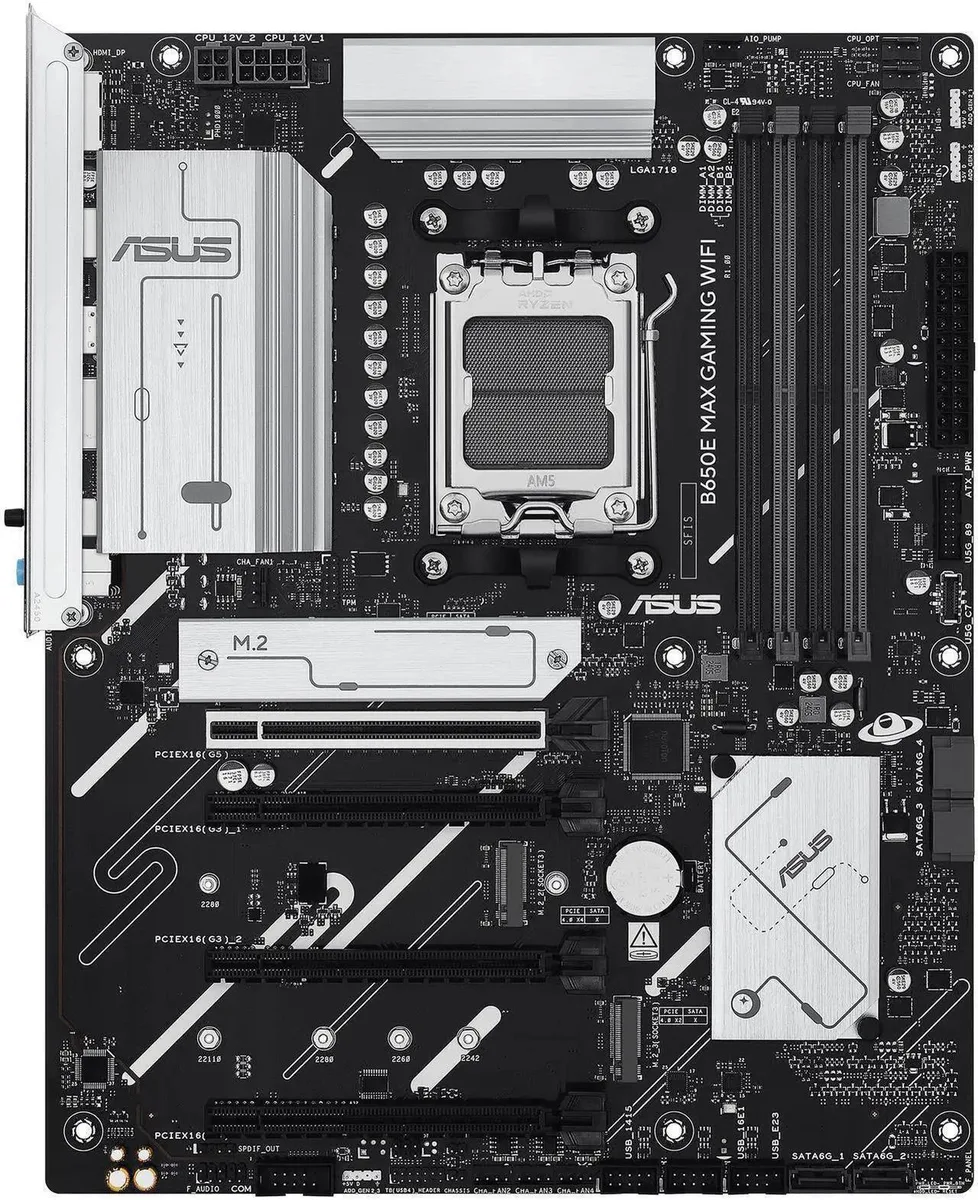

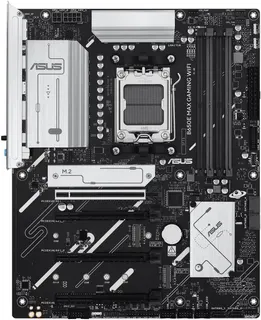

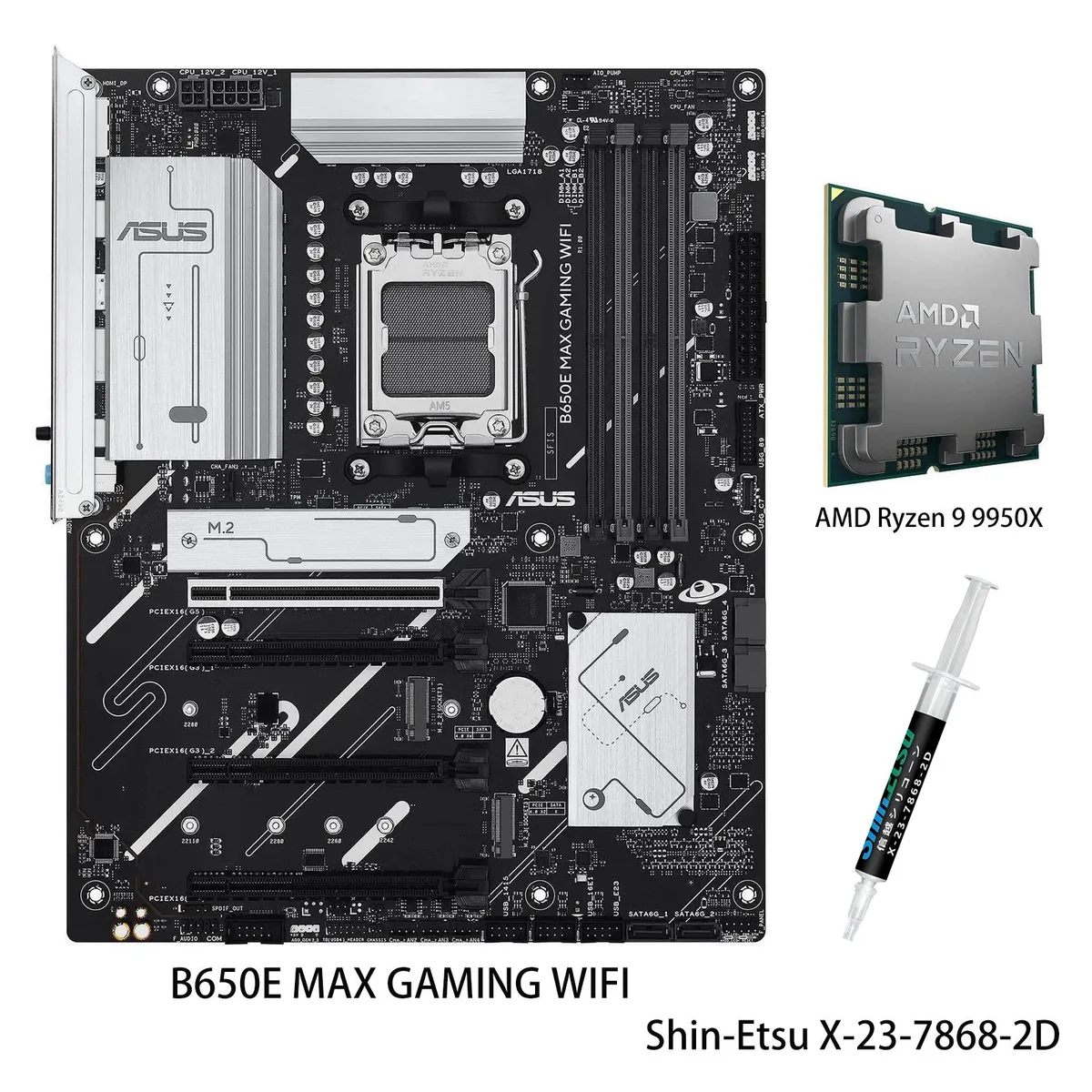

Black ATX motherboard with silver heatsinks, AM5 socket, DDR5 slots, three M.2 shields, rear I/O shield installed

ASUS

ASUS B650E MAX GAMING WIFI + Ryzen 9 9950X AMD motherboard & CPU combo

SKU CH-EJDW-YG5SJ

A motherboard and CPU combo for Socket AM5 with 16-core Ryzen 9 9950X, DDR5 memory up to 192 GB, PCIe 5.0 slots, Wi-Fi 6E, Bluetooth 5.3 and 2.5 Gb Ethernet

  • CPU Socket TypeAM5
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to 8000+MT/s (OC)
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel

model B650E MAX GAMING WIFI

+CPU +Ryzen 9 9950X

  • 16 cores and 32 threads handle heavy workloads
  • Ryzen 9 9950X reaches 5.7 GHz max boost for responsive performance
  • DDR5 memory scales to 8000+ MT/s with 192 GB capacity
  • PCIe 5.0 x16 slot and PCIe 5.0 M.2 enable high-speed GPU and storage
  • Wi-Fi 6E, Bluetooth 5.3 and 2.5 Gb Ethernet deliver fast wired and wireless connectivity

Combo for Advanced AI PCs

This bundle pairs an ASUS B650E MAX GAMING WIFI motherboard with an AMD Ryzen 9 9950X processor for the AM5 platform. The 16 core, 32 thread CPU reaches a 5.7 GHz max boost and includes 64 MB L3 cache plus 16 MB L2 cache. It targets builders who want a ready to run foundation for demanding AI workloads and high end gaming.

192 GB DDR5 capacity with 8000 MT/s headroom

Four 288 pin slots support dual channel DDR5 up to 192 GB and 8000+ MT/s when overclocked. The CPU officially supports DDR5 5600, so memory beyond that speed requires manual tuning. ECC unbuffered modules are accepted for users who need error correction at capacity limits.

PCIe 5.0 x16 slot and PCIe 5.0 M.2 share CPU lanes

The primary graphics slot and the top M.2 2280 drive connect through the Ryzen 9000 and 7000 series CPU at PCIe 5.0 x4 and x16 respectively. A second M.2 2280 slot runs at PCIe 4.0 x4 from the CPU. Additional chipset slots operate at PCIe 4.0 x4 and PCIe 3.0 x1, with SATA ports disabled when the PCIe 3.0 slots are populated. Rear USB 10 Gbps Type A and Type C, 2.5 Gbps Ethernet, Wi-Fi 6E and Bluetooth 5.3 complete the I/O.

Highlights

  • 16 cores and 32 threads handle heavy workloads
  • Ryzen 9 9950X reaches 5.7 GHz max boost for responsive performance
  • DDR5 memory scales to 8000+ MT/s with 192 GB capacity
  • PCIe 5.0 x16 slot and PCIe 5.0 M.2 enable high-speed GPU and storage
  • Wi-Fi 6E, Bluetooth 5.3 and 2.5 Gb Ethernet deliver fast wired and wireless connectivity

Specifications

BrandASUS
ModelB650E MAX GAMING WIFI+R9 9950X
CPU Socket TypeAM5
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to 8000+MT/s (OC)
Maximum Memory Supported192GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (support x4 mode)
PCI Express 3.0 x162 x PCIe 3.0 x16 slots (support x1 mode)***
*** The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
* Specifications vary by CPU types.
SATA RAID0/1/5/10
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth 5.3
Back I/O Ports1 x USB 10Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan header
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
1 x Thunderbolt (USB4) header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connectors
1 x 4-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS Driver Hub
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Windows 11Supported
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- Q-Antenna
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Pre-mounted I/O shield
- SafeSlot
Aura Sync
- Addressable RGB Gen 2 headers
Package Contents1 x AMD Ryzen 9 9950X CPU
1 x Shin-Etsu X-23-7868-2D (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber packages
3 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the board still run my SATA SSDs if I populate the two PCIe 3.0 x16 slots?

The two PCIe 3.0 x16 slots share bandwidth with SATA6G_1/2; enabling either slot disables those two SATA ports, while the remaining two SATA 6Gb/s ports stay active.

How do I confirm the system posts correctly on first boot?

The Q-LED Core indicator shows CPU, memory, graphics and boot status LEDs; a steady white light means the Ryzen 9 9950X and DDR5 are initialised without errors.

Does the combo include a CPU cooler or must I buy one separately?

The Ryzen 9 9950X ships without a cooler; you need to purchase a compatible AM5 cooler before assembly.
