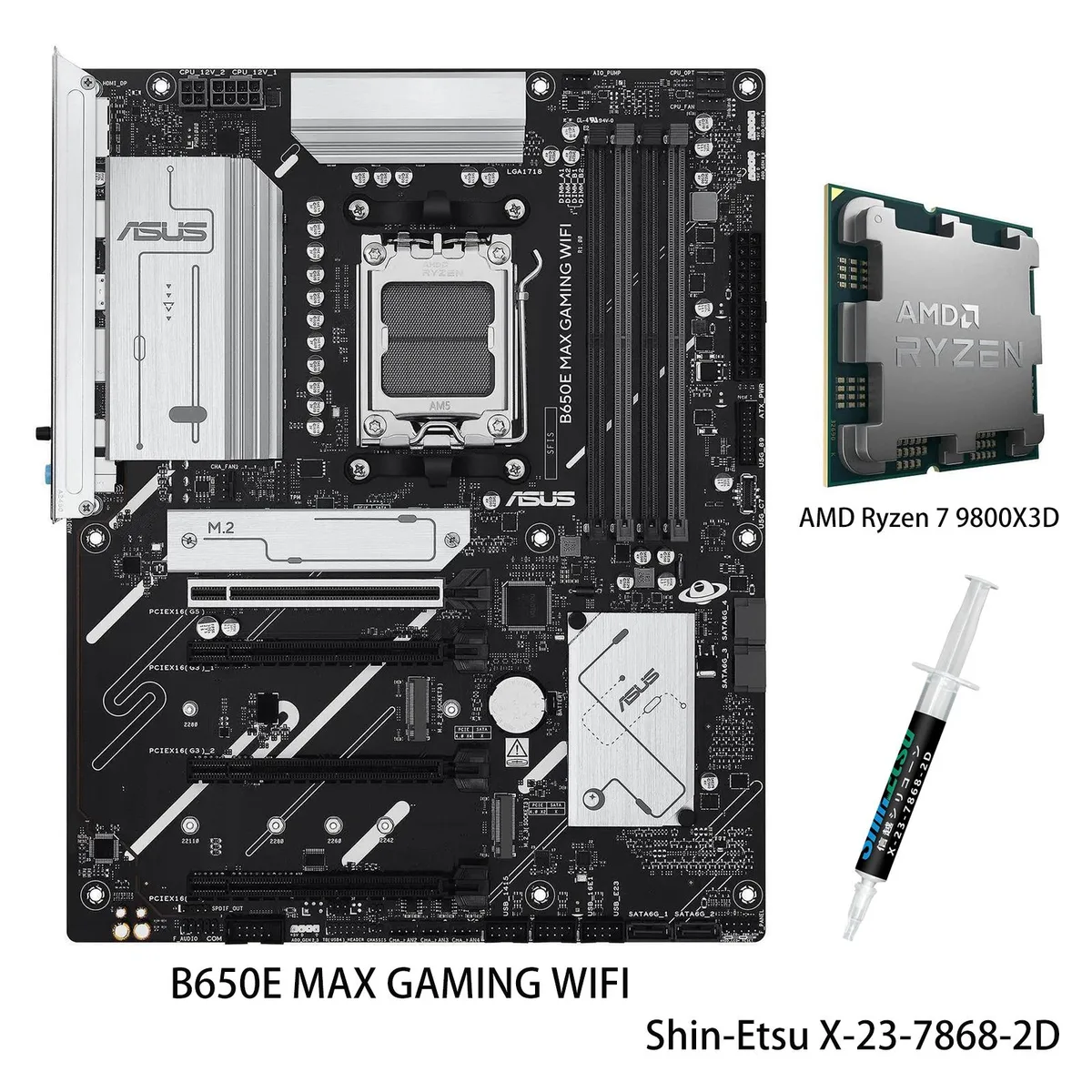

ATX motherboard with silver heatsinks and a boxed Ryzen CPU beside it

ASUS

ASUS B650E MAX GAMING WIFI + Ryzen 7 9800X3D AMD motherboard combo

SKU CH-GA26-6HSAB

Bundled AM5 board with DDR5, PCIe 5.0 slots, Wi‑Fi 6E, 2.5Gb LAN and 192 GB memory ceiling paired with a Ryzen 7 9800X3D CPU for low‑latency gaming

  • CPU Socket TypeAM5
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to 8000+MT/s (OC)
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel

model B650E MAX GAMING WIFI

+CPU +Ryzen 7 9800X3D

  • Ready for advanced AI workloads with AMD Ryzen 9000 and 7000 series support
  • Stable power delivery via 8+2+1 phase design, 6-layer PCB and alloy chokes
  • Ultrafast connectivity with Wi-Fi 6E, 2.5Gb Ethernet, USB 10Gbps Type-A and Type-C
  • Comprehensive cooling from VRM, M.2 and PCH heatsinks plus Fan Xpert 2+
  • DIY-friendly build with pre-mounted I/O shield, BIOS FlashBack and Q-LED Core

Ready-to-run AM5 gaming combo

The bundle pairs an ASUS B650E MAX GAMING WIFI board with an AMD Ryzen 7 9800X3D processor. It targets builders who want a single validated kit for high-frame-rate gaming and multitasking workloads. The board delivers AM5 socket support, four DDR5 slots and extensive rear I/O for immediate assembly.

PCIe 5.0 M.2 slot for fastest storage

The primary M.2_1 socket connects through the CPU at PCIe 5.0 x4 and accepts 2280 modules. This lane width decides whether the platform can saturate current flagship SSDs without sharing bandwidth. A second M.2_2 slot runs at PCIe 4.0 x4 for additional high-speed drives.

Sustained delivery through 8+2+1 phase VRM

An 8+2+1 power phase design on a six-layer PCB uses alloy chokes and durable capacitors to keep voltage stable during long compile or render sessions. VRM and M.2 heatsinks plus a PCH heatsink are managed by hybrid fan headers and Fan Xpert 2+ for consistent thermal behaviour.

Highlights

  • Ready for advanced AI workloads with AMD Ryzen 9000 and 7000 series support
  • Stable power delivery via 8+2+1 phase design, 6-layer PCB and alloy chokes
  • Ultrafast connectivity with Wi-Fi 6E, 2.5Gb Ethernet, USB 10Gbps Type-A and Type-C
  • Comprehensive cooling from VRM, M.2 and PCH heatsinks plus Fan Xpert 2+
  • DIY-friendly build with pre-mounted I/O shield, BIOS FlashBack and Q-LED Core

Specifications

BrandASUS
ModelB650E MAX GAMING WIFI+R7 9800X3D
CPU Socket TypeAM5
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to 8000+MT/s (OC)
Maximum Memory Supported192GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (support x4 mode)
PCI Express 3.0 x162 x PCIe 3.0 x16 slots (support x1 mode)***
*** The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
* Specifications vary by CPU types.
SATA RAID0/1/5/10
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth 5.3
Back I/O Ports1 x USB 10Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan header
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
1 x Thunderbolt (USB4) header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connectors
1 x 4-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS Driver Hub
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Windows 11Supported
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- Q-Antenna
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Pre-mounted I/O shield
- SafeSlot
Aura Sync
- Addressable RGB Gen 2 headers
Package Contents1 x AMD Ryzen 7 9800X3D CPU
1 x Shin-Etsu X-23-7868-2D (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber packages
3 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 8+2+1 phase power design deliver for the Ryzen 7 9800X3D in daily use?

The 8+2+1 phase design feeds the CPU with stable current through alloy chokes and durable capacitors on a 6-layer PCB, keeping voltages steady during gaming or heavy workloads.

How does the PCIe 5.0 x16 slot and the primary M.2_1 slot limit graphics and storage bandwidth?

The top x16 slot runs at PCIe 5.0 x16 with a Ryzen 9000 or 7000 processor, while the M.2_1 slot supports PCIe 5.0 x4 for a single 2280 drive; both share the CPU lanes.

What clearance and mounting details matter when fitting this ATX board into a case?

The board follows the standard ATX form factor with a pre-mounted I/O shield, so it fits any ATX-compatible case using the usual nine mounting holes and rear cut-out.
