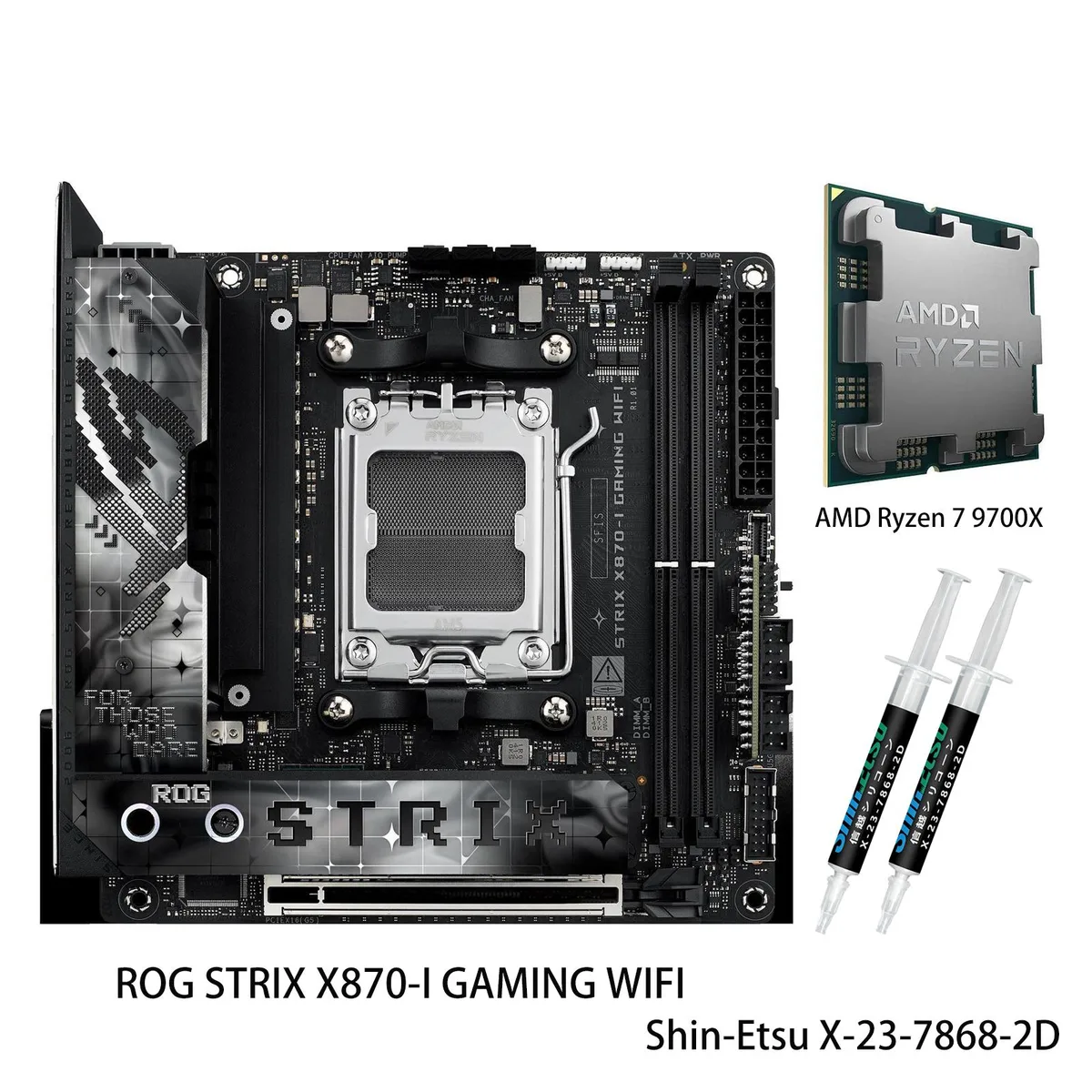

ASUS ROG STRIX X870-I motherboard with Ryzen 7 9700X CPU in Mini-ITX form factor

ASUS

ASUS FF4D516G6000HC38ADC01 AMD motherboard & Ryzen 7 9700X combo

SKU CH-6D2A-FMB8C MPN FF4D516G6000HC38ADC01

Mini-ITX AMD X870 board paired with an 8-core Ryzen 7 9700X, DDR5 to 8400 MT/s, PCIe 5.0 M.2, Wi-Fi 7 and 2.5 Gb LAN

  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported96GB
  • ECC SupportedNon-ECC
  • Buffer SupportedUn-buffered

model ROG STRIX X870-I GAMING WIFI

+CPU +R7 9700X

  • Ready for AI workloads with power and connectivity for demanding applications
  • 10+2+1 power stages rated 110A each with ProCool II connectors for multi-core stability
  • Massive heatsinks, integrated I/O cover and high-conductivity pads with L-shaped backplate keep temperatures low
  • One PCIe 5.0 M.2 slot and one PCIe 4.0 M.2 slot both with substantial cooling solutions
  • Ryzen 7 9700X delivers 8 cores, 16 threads, Zen 5 architecture and 5.5 GHz max boost clock

Combo for compact AI‑ready builds

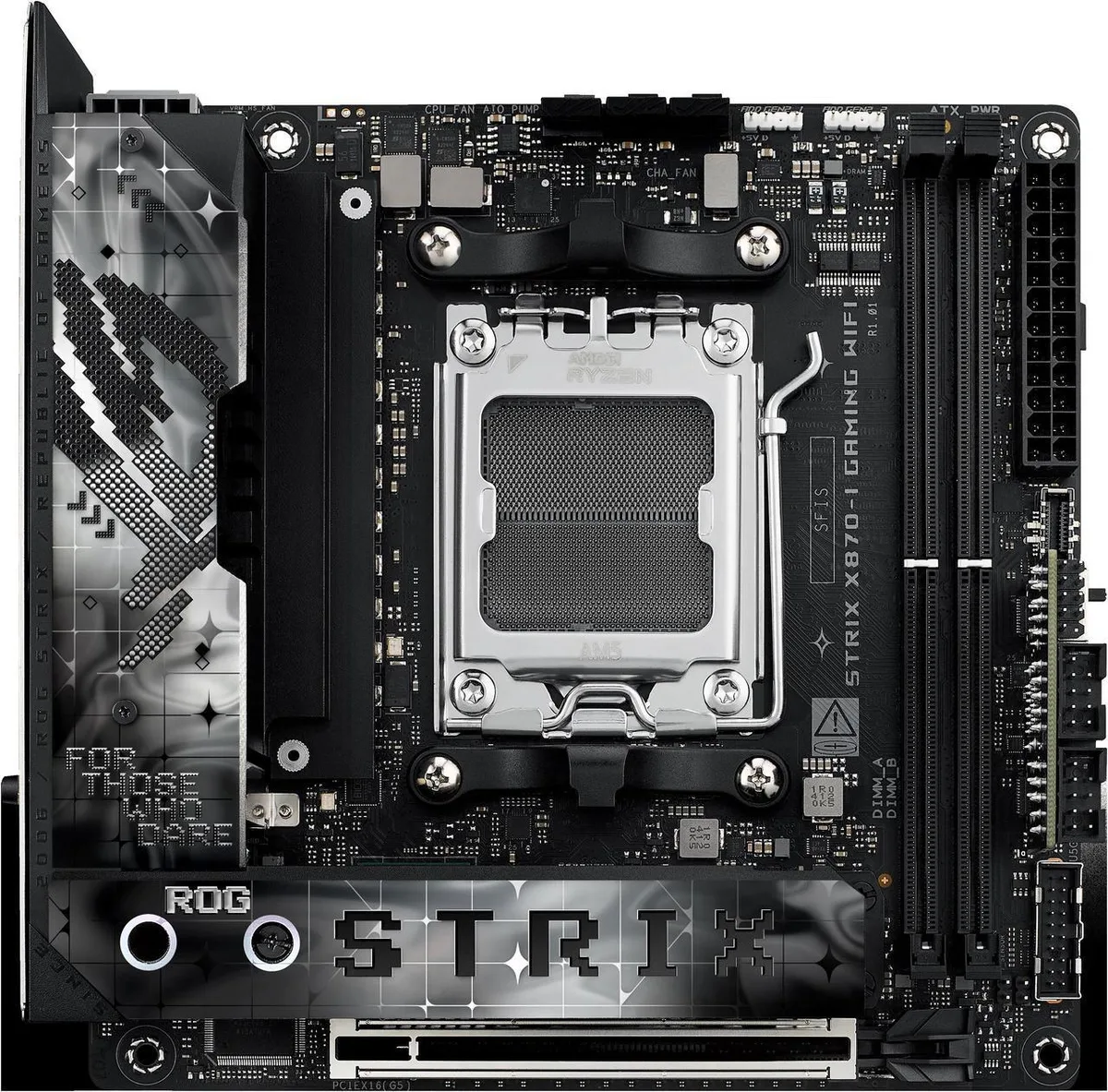

This bundle pairs the ROG STRIX X870‑I GAMING WIFI motherboard with the AMD Ryzen 7 9700X processor. The board uses the AMD X870 chipset on a Mini‑ITX layout and supports Ryzen 7000, 8000 and 9000 series CPUs. The included 8‑core, 16‑thread chip runs on the Zen 5 architecture with a max boost clock of 5.5 GHz. It targets builders who want high performance in a small chassis and need connectivity for AI workloads.

Mini‑ITX layout with DDR5 and dual M.2

Four 288‑pin DDR5 slots accept up to 96 GB of memory and can reach 8400+ MT/s when overclocked with Ryzen 9000 series processors. One PCIe 5.0 x16 slot handles modern graphics cards, while two M.2 sockets provide fast storage: the primary slot runs at PCIe 5.0 x4 with Ryzen 9000 and 7000 CPUs, the second at PCIe 4.0 x4. Two SATA 6 Gb/s ports remain available for additional drives. The 10+2+1 power stage design rated at 110 A per stage feeds the CPU through an 8‑pin and 24‑pin connector.

AI tuning utilities and high‑speed I/O

ASUS AI Overclocking, AI Cooling II, AI Networking and AEMP firmware automate frequency, fan curves and memory timing adjustments. ROG overclocking tools include Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement for manual control. Connectivity covers 2.5 Gbps LAN, Wi‑Fi 7 (802.11be) 2×2 with 320 MHz channels on 2.4/5/6 GHz bands, USB4 and a front‑panel USB 10 Gbps Type‑C header. Massive heatsinks with an integrated I/O cover, high‑conductivity thermal pads and an L‑shaped backplate cool the VRM and M.2 slots.

Highlights

  • Ready for AI workloads with power and connectivity for demanding applications
  • 10+2+1 power stages rated 110A each with ProCool II connectors for multi-core stability
  • Massive heatsinks, integrated I/O cover and high-conductivity pads with L-shaped backplate keep temperatures low
  • One PCIe 5.0 M.2 slot and one PCIe 4.0 M.2 slot both with substantial cooling solutions
  • Ryzen 7 9700X delivers 8 cores, 16 threads, Zen 5 architecture and 5.5 GHz max boost clock

Specifications

BrandASUS
ModelROG STRIX X870-I GAMING WIFI+R7 9700X
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported96GB
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory Feature2 x DIMM slots, max. 96GB, DDR5
Supports up to
8400+MT/s(OC) with Ryzen™ 9000 Series Processors,
8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*"
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
Serial ATA (SATA)2 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
*** Install ROG FPS Card to support 2 x SATA 6Gb/s ports.
SATA RAID* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
BluetoothBluetooth v5.4***
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB 3.0USB4
Onboard USBUSB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header support(s) 2
additional USB 5Gbps ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
Miscellaneous
2 x Addressable Gen 2 headers
1 x 2-pin Power Button header
1 x Thermal Sensor header
2 x USB Type-C® connectors to install ROG FPS card
ROG FPS card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Front Panel header
1 x Alteration PCIe Mode switch
2 x USB 2.0 headers support 3
additional USB 2.0 ports
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS Driver Hub
ASUS GlideX
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI
BIOS EZ Mode
- ASUS
MyHotkey
FlexKey
Dynamic OC Switcher
FeaturesASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- Aluminum backplate
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 header(s)
ROG STRIX HIVE II
1 x USB Type-C® connects to motherboard
2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)
1 x Headphone jack with mic in
1 x Power button
1 x
Package Contents1 x AMD Ryzen 7 9700X CPU
Cables
1 x Panel cable
1 x ROG USB2.0 splitter cable
2 x SATA 6Gb/s cables
ROG FPS Card
1 x ROG FPS Card
ROG STRIX HIVE II
1 x ROG STRIX HIVE II
1 x USB Type-C® power connection cable
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package(s)
1 x ROG key chain
1 x ROG Strix stickers
1 x M.2 rubber package(s)
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How far can the 10+2+1 power stage rated at 110A push the Ryzen 7 9700X before thermal throttling under sustained all-core load?

The 10+2+1 power solution delivers up to 110A per stage with ProCool II connectors and alloy chokes, while massive heatsinks with an integrated I/O cover and L-shaped backplate draw heat away from the VRM to sustain high boost clocks.

What noise and heat levels should I expect from the VRM and chipset heatsinks when the system runs 24/7 at stock settings?

AI Cooling II adjusts fan curves based on real-time VRM and CPU temperatures, so the massive heatsinks and high-conductivity pads keep thermals low while fans spin only as fast as needed for quiet operation.

Which DDR5 memory kit do I need to populate the two 288-pin slots and reach the advertised 6000 MT/s CL38 speed out of the box?

The combo includes a 16 GB DDR5-6000 CL38 kit validated for AEMP profiles, so installing those two modules in the two DIMM slots enables the rated frequency and timings without manual tuning.
