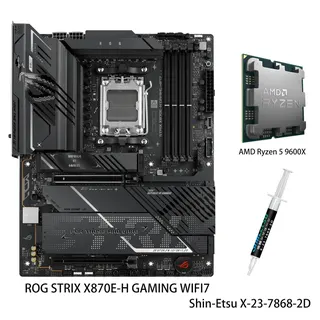

ATX motherboard in dark finish with large heatsinks and CPU in socket

ASUS

ASUS ROG STRIX X870E-H GAMING WIFI7 AMD motherboard & Ryzen 5 9600X CPU combo

SKU CH-M0CW-JVBGP

AM5 motherboard with 16+2+1 power stages, WiFi 7, four M.2 slots and dual USB4 ports bundled with a 6-core Ryzen 9600X processor

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s(OC) with Ryzen
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

model ROG STRIX X870E-H GAMING WIFI7

+CPU +R5 9600X

  • Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors with AM5 socket
  • 16+2+1 power solution rated for 80A per stage with dual ProCool II connectors
  • Two onboard PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots with substantial cooling solutions
  • On-board WiFi 7 (802.11be) with Realtek 5Gb Ethernet for high-performance networking
  • Ryzen 5 9600X CPU with 6 cores and 12 threads based on Zen 5 architecture

Combo Ready for AMD AM5 Builds

This bundle pairs the ROG STRIX X870E-H GAMING WIFI7 motherboard with an AMD Ryzen 5 9600X processor. The board uses the AMD X870E chipset and AM5 socket, supporting Ryzen 9000, 8000 and 7000 series CPUs. It delivers a 16+2+1 power stage design rated for 80A per stage with dual ProCool II connectors. Four DDR5 slots support up to 256GB at speeds beyond 8000MT/s when overclocked.

Suits Gamers and AI Workloads

The six-core, twelve-thread Ryzen 5 9600X based on Zen 5 architecture targets 100+ FPS in popular titles and earned a CES 2025 Innovation Award Honoree nod. Builders needing maximum multi-threaded throughput for rendering or compile farms should look at higher-core-count Ryzen 9 parts instead. The platform also fits enthusiasts who want WiFi 7, 5Gbps Ethernet and dual USB4 40Gbps ports for fast external storage.

Four M.2 Slots with Dedicated Cooling

Two PCIe 5.0 and two PCIe 4.0 M.2 slots each receive substantial heatsinks, letting you add high-speed storage without thermal throttling. The rear I/O includes two USB4 Type-C ports, four USB 10Gbps ports (one Type-C with 30W PD), six USB 5Gbps Type-A ports and two USB 2.0 ports. Onboard headers add a USB 20Gbps Type-C connector, extra USB 5Gbps and USB 2.0 ports, plus three addressable RGB Gen 2 headers for lighting sync.

Highlights

  • Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors with AM5 socket
  • 16+2+1 power solution rated for 80A per stage with dual ProCool II connectors
  • Two onboard PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots with substantial cooling solutions
  • On-board WiFi 7 (802.11be) with Realtek 5Gb Ethernet for high-performance networking
  • Ryzen 5 9600X CPU with 6 cores and 12 threads based on Zen 5 architecture

Specifications

BrandASUS
ModelROG STRIX X870E-H GAMING WIFI7+R5 9600X
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s(OC) with Ryzen
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Back I/O Ports2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)**
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers
Package Contents1 x AMD Ryzen 5 9600X CPU
1 x Shin-Etsu X-23-7868-2D (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubber
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What DDR5 memory kit do I need to install so the board and the Ryzen 5 9600X will post?

You need a DDR5 kit that fits the four 288-pin slots and runs up to 8000+ MT/s when overclocked; the board supports a maximum of 256 GB in dual-channel non-ECC mode.

Will my existing PCIe 4.0 graphics card run at full speed in the primary slot with the Ryzen 5 9600X installed?

Yes. With a Ryzen 9000 series processor the primary slot operates at PCIe 5.0 x16 and is fully backward compatible, so a PCIe 4.0 card will run at its native x16 speed.

How can I confirm WiFi 7 and the 5 Gbps Ethernet are active after I finish the build?

In Windows Device Manager the wireless adapter will show as Wi-Fi 7 (802.11be) and the wired adapter will report a 5 Gbps link speed when connected to a compatible switch or router.
