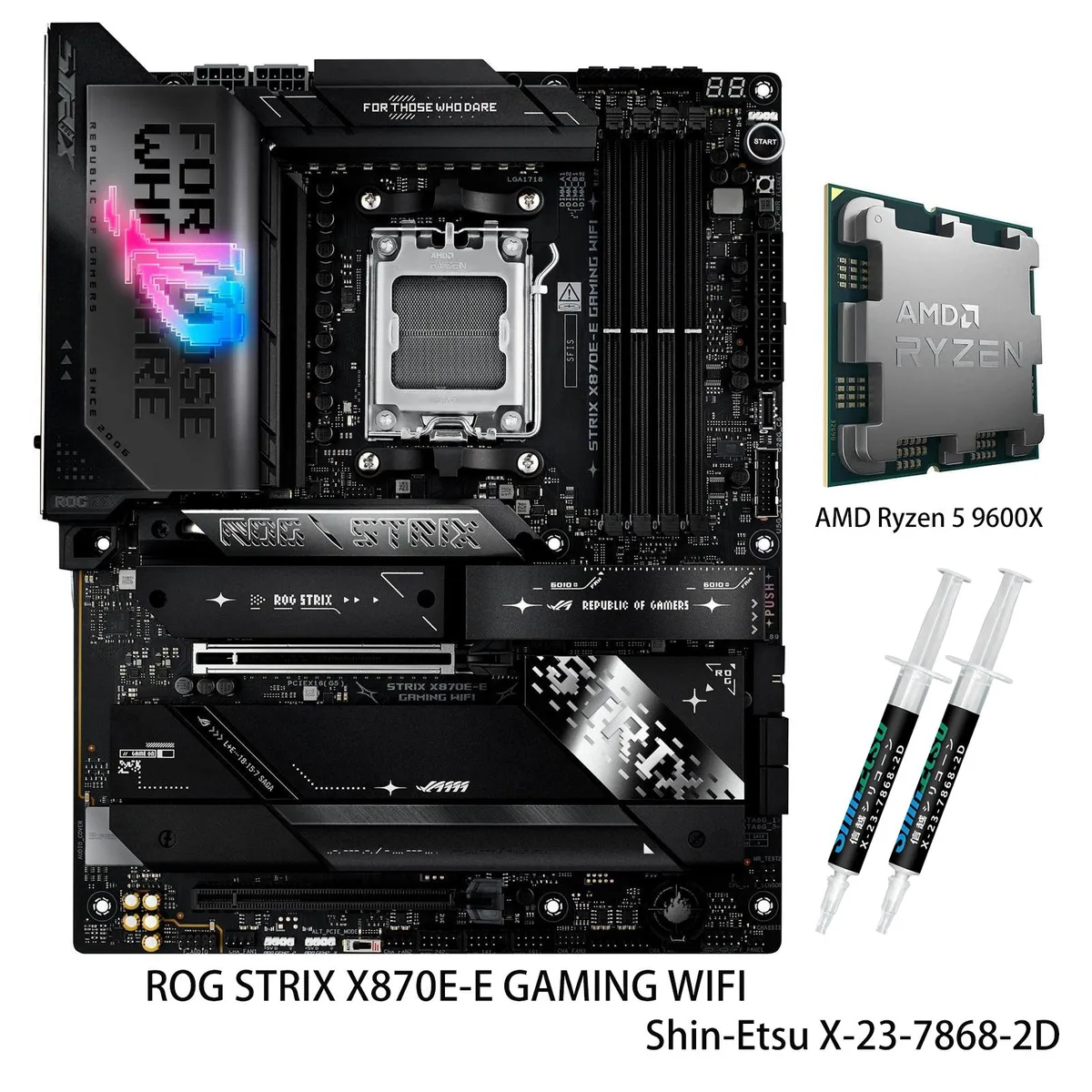

Black ATX motherboard with silver heatsinks and a boxed Ryzen 5 9600X processor

ASUS

ASUS ROG STRIX X870E-E GAMING WIFI + Ryzen 5 9600X Combo

SKU CH-V5TY-AD50P

A motherboard and CPU bundle pairing an X870E chipset board with 18+2+2 power stages, DDR5 support up to 192 GB, three PCIe 5.0 M.2 slots, WiFi 7, Bluetooth 5.4 and a Ryzen 5 9600X processor

  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel
  • ECC SupportedYes

model ROG STRIX X870E-E GAMING WIFI

+CPU +R5 9600X

  • Ready for advanced AI workloads with power and connectivity built for demanding applications
  • Robust 18+2+2 power stages rated at 110A each with dual ProCool II connectors
  • Three PCIe 5.0 M.2 slots plus two PCIe 4.0 slots, all with substantial cooling
  • Dual USB4 Type-C ports, USB 20Gbps front-panel connector and USB 10Gbps port with 30W PD
  • WiFi 7 and Bluetooth 5.4 for fast, reliable wireless networking

Combo for AMD AM5 builds

This bundle pairs the ROG STRIX X870E-E GAMING WIFI motherboard with an AMD Ryzen 5 9600X processor. The board uses the X870E chipset and an AM5 socket that accepts Ryzen 9000, 8000 and 7000 series CPUs. It targets enthusiasts who want a ready-to-run platform for gaming and AI workloads. The combo simplifies component matching and BIOS compatibility.

Memory capacity and overclocking headroom

Four DDR5 slots support up to 192GB of un-buffered memory at 4400MT/s standard. With Ryzen 9000 series chips the board can reach 8000+MT/s when overclocked, while Ryzen 8000 series allows 8400+MT/s and Ryzen 7000 series allows 8000+MT/s. Dual-channel architecture and ECC support give headroom for heavy multitasking. Limits appear when pushing beyond the validated OC ranges or filling all four slots at the highest speeds.

Power delivery, storage layout and connectivity

An 18+2+2 power stage design rated at 110A per stage uses dual ProCool II connectors, alloy chokes and durable capacitors. Storage includes three PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots with substantial cooling. Expansion provides one PCIe 5.0 x16 slot and one PCIe 4.0 x16 slot at x4 mode. Rear I/O supplies dual USB4 Type-C ports, one USB 20Gbps Type-C, one USB 10Gbps with PD 3.0 up to 30W, nine additional USB 10Gbps ports, 5Gbps LAN, WiFi 7 and Bluetooth 5.4. SupremeFX 7.1 audio with ALC4080 handles impedance sensing and jack detection.

Highlights

  • Ready for advanced AI workloads with power and connectivity built for demanding applications
  • Robust 18+2+2 power stages rated at 110A each with dual ProCool II connectors
  • Three PCIe 5.0 M.2 slots plus two PCIe 4.0 slots, all with substantial cooling
  • Dual USB4 Type-C ports, USB 20Gbps front-panel connector and USB 10Gbps port with 30W PD
  • WiFi 7 and Bluetooth 5.4 for fast, reliable wireless networking

Specifications

BrandASUS
ModelROG STRIX X870E-E GAMING WIFI+R5 9600X
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported192GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports up to
8000+MT/s(OC) with Ryzen 9000 Series Processors,
8400+MT/s(OC) with Ryzen 8000 Series Processors,
8000+MT/s(OC) with Ryzen 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO)
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
PCI Express 5.0 x16AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slots (supports x16 mode)
PCI Express 4.0 x16AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD X870E Chipset
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
** M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run x8 only.
SATA RAID*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen 9000 series CPU.
Audio ChipsetROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C with up to 30W PD Fast-charge)
10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C)
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
USB 3.0USB4
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Package Contents1 x AMD Ryzen 5 9600X CPU
Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
2 x M.2 Q-Slides
1 x ROG key chain
1 x ROG Strix stickers
5 x M.2 Rubbers
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will my existing DDR5 memory kits run at their rated speed with the Ryzen 5 9600X on this board?

The board supports DDR5 up to 8000+ MT/s with Ryzen 9000 series CPUs and up to 8400+ MT/s with Ryzen 8000 series CPUs. Four 288-pin slots accept up to 192 GB total in dual-channel mode.

How can I confirm the 18+2+2 power stage VRM and AI overclocking features are active after building?

Enter the UEFI BIOS to verify the 18+2+2 power stage configuration and enable ASUS AI Overclocking, AI Cooling II, AI Networking and AEMP. The ROG SupremeFX ALC4080 audio and WiFi 7 with Bluetooth 5.4 will initialise automatically.

Which cables, drives or coolers must I buy separately because they are not in the combo box?

The combo includes the ROG STRIX X870E-E GAMING WIFI motherboard and Ryzen 5 9600X CPU only. You must supply a CPU cooler, DDR5 memory modules, M.2 SSDs for the five slots, SATA drives, case fans and all required power and data cables.
