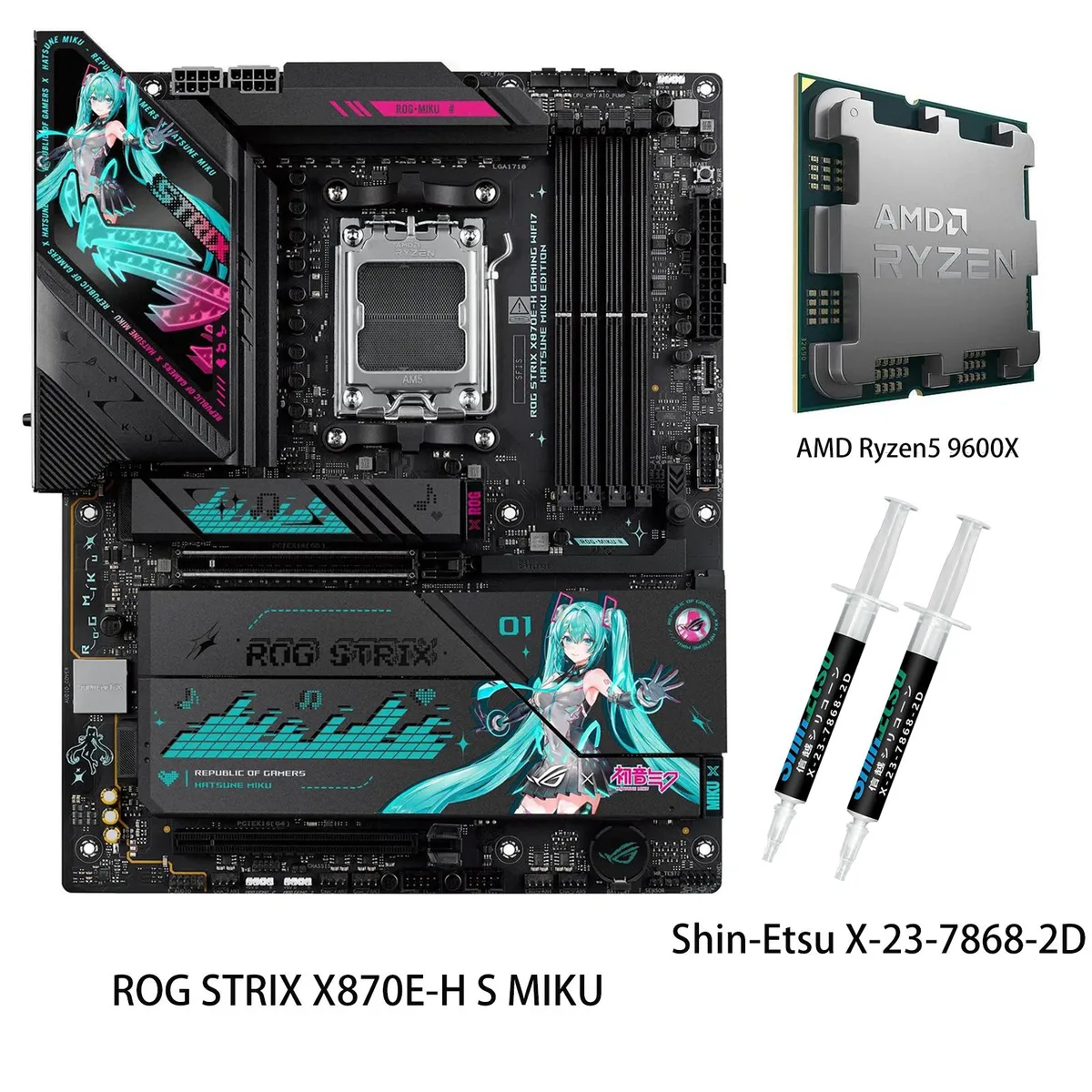

ATX motherboard in teal and white with matching Ryzen 5 9600X CPU

ASUS

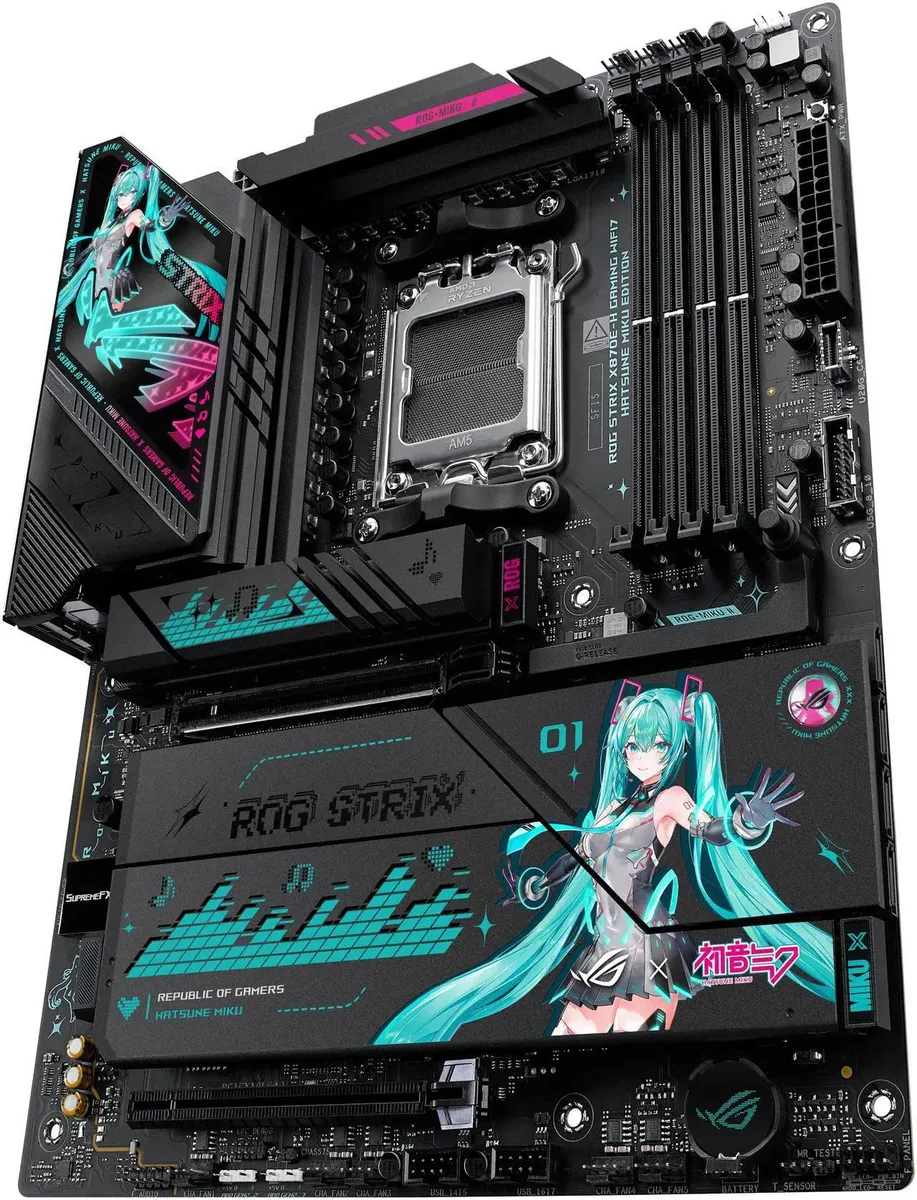

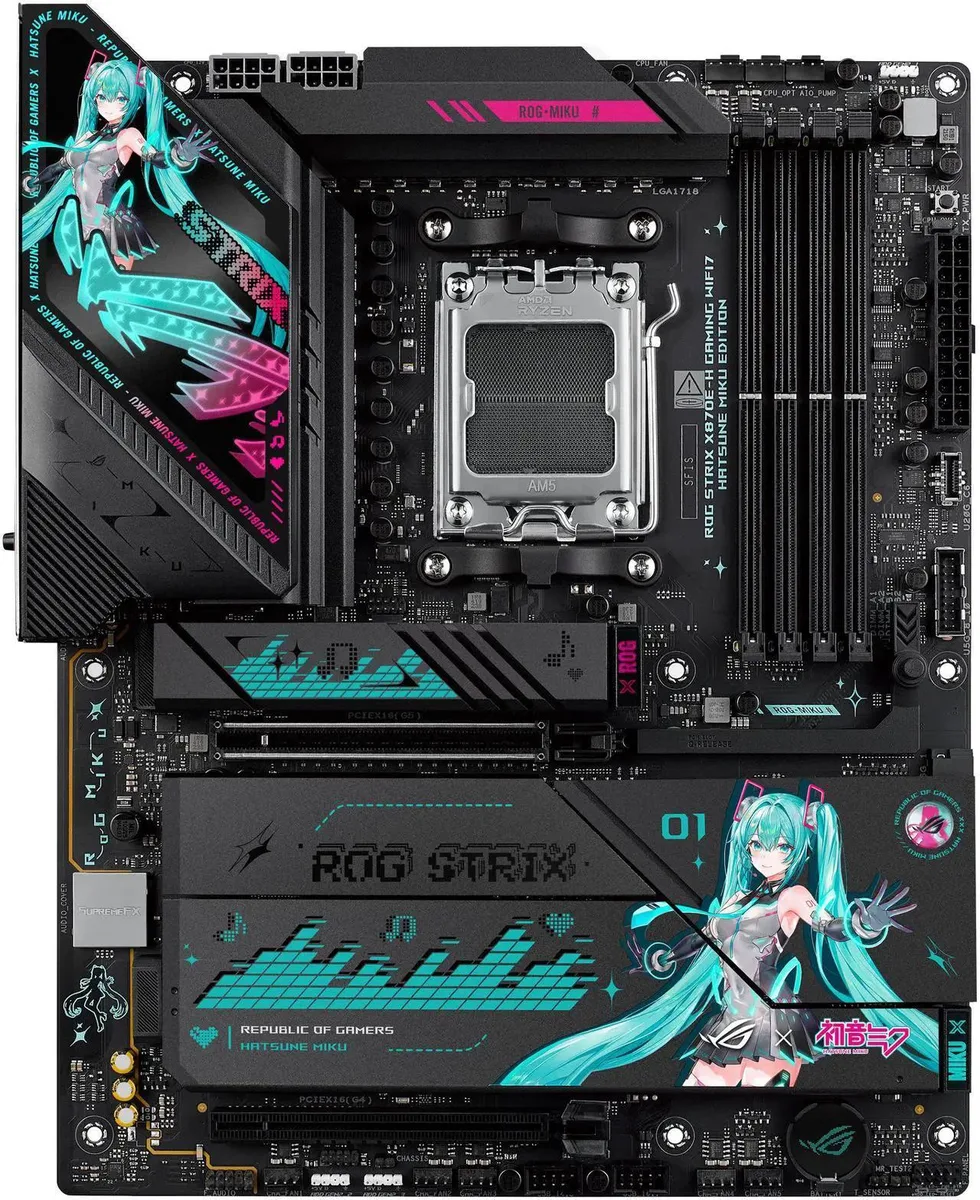

ASUS ROG STRIX X870E-H S MIKU AMD motherboard & Ryzen 5 9600X CPU Combo

SKU CH-XFGF-30AYQ

AM5 combo pairs a Hatsune Miku edition X870E board with a Ryzen 5 9600X, offering DDR5 up to 8000 MT/s, dual USB4, Wi-Fi 7 and 5 Gbps LAN

  • CPU Socket TypeAM5
  • CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Deskt
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s(OC)
  • Maximum Memory Supported256GB

model ROG STRIX X870E-H S MIKU

+CPU +R5 9600X

  • AI-ready platform with Ryzen 9000 support
  • 16+2+1 power stages rated 80A for stable multi-core loads
  • Dual PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots all cooled
  • Dual USB4 Type-C and USB 20Gbps front header for high-speed peripherals
  • Wi-Fi 7 and Bluetooth 5.4 with 5Gbps LAN for fast networking

Combo for AI-Ready Builds

This bundle pairs an ASUS ROG STRIX X870E-H S MIKU motherboard with an AMD Ryzen 5 9600X processor. The board uses the AMD X870E chipset on an ATX layout with an AM5 socket. It targets enthusiasts building high-performance desktops for gaming and advanced AI workloads. Dual USB4 ports and WIFI7 give modern connectivity headroom.

Jump from Older AM5 Boards

Upgrading from a 600-series chipset adds PCIe 5.0 lanes for graphics and two M.2 slots plus dual USB4 and 5 Gbps LAN. The move is worth it when you need faster storage throughput, higher USB bandwidth or the AI-focused tuning utilities. Existing DDR5 kits and coolers carry over because the socket and memory standard stay the same.

Straightforward AM5 Install

The AM5 socket is LGA so there are no fragile pins on the CPU — align the triangle markers and lower the retention lever. Four 288-pin DDR5 slots support up to 256 GB at 8000+ MT/s with AEMP profiles. Common issues are forgetting the 8-pin and 24-pin ProCool II power cables or not seating the M.2 heatsink screws evenly.

Highlights

  • AI-ready platform with Ryzen 9000 support
  • 16+2+1 power stages rated 80A for stable multi-core loads
  • Dual PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots all cooled
  • Dual USB4 Type-C and USB 20Gbps front header for high-speed peripherals
  • Wi-Fi 7 and Bluetooth 5.4 with 5Gbps LAN for fast networking

Specifications

BrandASUS
ModelROG STRIX X870E-H S MIKU+(R5 9600X)
Part NumberROG STRIX X870E-H S MIKU+(R5 9600X)
CPU Socket TypeAM5
CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s(OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)*
AMD Ryzen 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not supports)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
* M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occu
SATA RAIDAMD RAIDXpert2 Technology*
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What case size and power connectors does the ATX board with 16+2+1 power stages and dual ProCool II headers need?

The board fits a standard ATX case and requires both ProCool II power connectors to feed the 80A per stage VRM.

Which M.2 slot runs at PCIe 5.0 x4 and which heatsink step is often missed?

M.2_1 is the PCIe 5.0 x4 slot for 2242/2260/2280 drives; the step people miss is removing the protective film from the pre-applied thermal pad before mounting the heatsink.
