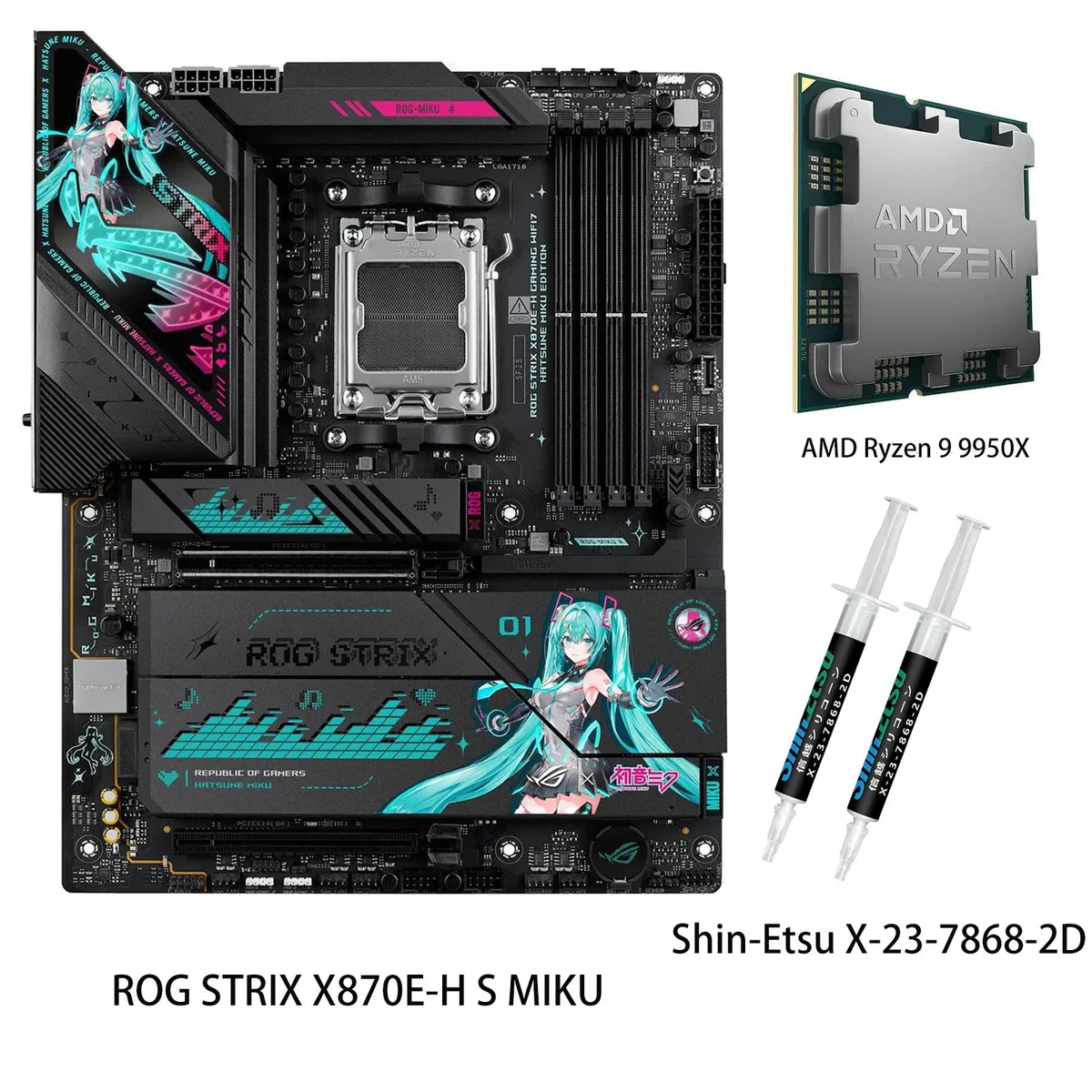

ATX motherboard with teal heatsinks and Hatsune Miku graphics, boxed with Ryzen 9 9950X CPU

ASUS

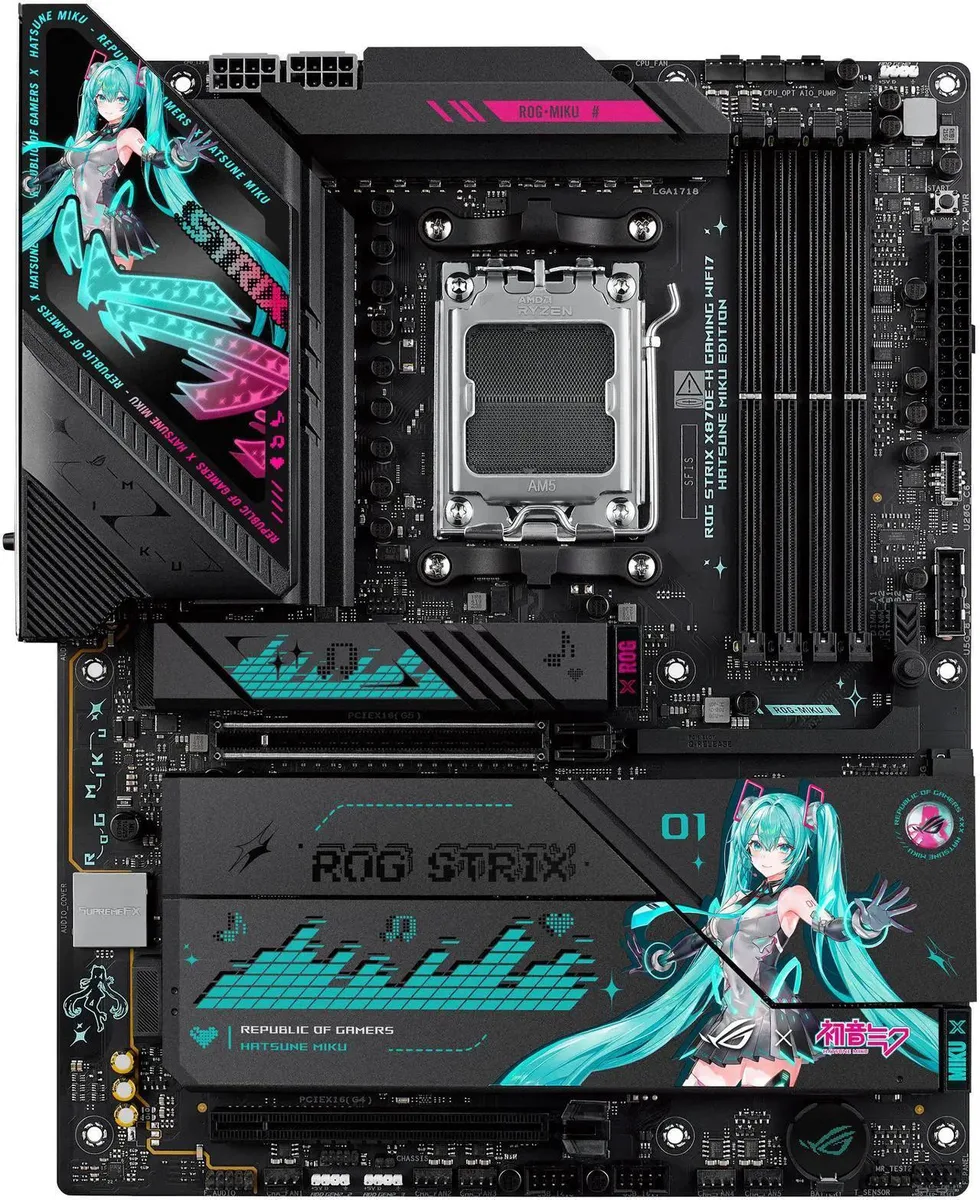

ASUS ROG STRIX X870E-H S MIKU AMD motherboard & Ryzen 9 9950X CPU combo

SKU CH-2G9K-V1MKX

A Hatsune Miku themed AM5 motherboard paired with a 16 core 32 thread Ryzen 9 9950X CPU, featuring DDR5 support up to 256GB, PCIe 5.0 graphics and M.2 slots, dual USB4 ports, Wi-Fi 7 and 5Gbps LAN

  • CPU Socket TypeAM5
  • CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Deskt
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s(OC)
  • Maximum Memory Supported256GB

model ROG STRIX X870E-H S MIKU

+CPU +R9 9950X

  • Ready for advanced AI workloads with power and connectivity for demanding applications
  • 16-core 32-thread Ryzen 9 9950X CPU based on Zen 5 architecture with 5.7 GHz max boost
  • Robust 16+2+1 power solution rated 80A per stage with dual ProCool II connectors for multi-core stability
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots with substantial cooling for latest storage
  • Dual USB4 Type-C ports plus USB 20Gbps front-panel and USB 10Gbps rear with PD 3.0 up to 30W

Combo ready for AI workloads

This bundle pairs the ROG STRIX X870E-H S MIKU motherboard with a Ryzen 9 9950X processor. The board targets enthusiasts who want a distinctive Hatsune Miku aesthetic alongside high-end connectivity. It supports Ryzen 7000, 8000 and 9000 series CPUs out of the box.

AM5 socket with 16+2+1 power stages

The AM5 socket accepts current and future AMD desktop processors. The 16+2+1 power solution is rated for 80A per stage and uses dual ProCool II connectors, alloy chokes and durable capacitors to sustain the 16-core, 32-thread CPU at its 5.7 GHz maximum boost.

Straightforward ATX install with four M.2 slots

Mount the board in any ATX case using standard standoffs, connect the dual ProCool II power cables and seat the CPU with its supplied cooler. Four M.2 slots — two PCIe 5.0 and two PCIe 4.0 — all include heatsinks; remove the protective film before fitting drives. Dual USB4 Type-C ports and WIFI7 require no extra cables.

Highlights

  • Ready for advanced AI workloads with power and connectivity for demanding applications
  • 16-core 32-thread Ryzen 9 9950X CPU based on Zen 5 architecture with 5.7 GHz max boost
  • Robust 16+2+1 power solution rated 80A per stage with dual ProCool II connectors for multi-core stability
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots with substantial cooling for latest storage
  • Dual USB4 Type-C ports plus USB 20Gbps front-panel and USB 10Gbps rear with PD 3.0 up to 30W

Specifications

BrandASUS
ModelROG STRIX X870E-H S MIKU+(R9 9950X)
Part NumberROG STRIX X870E-H S MIKU+(R9 9950X)
CPU Socket TypeAM5
CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s(OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)*
AMD Ryzen 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not supports)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
* M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occu
SATA RAIDAMD RAIDXpert2 Technology*
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How does the 5.7 GHz maximum boost clock of the Ryzen 9 9950X behave once it is installed on this motherboard?

The 16-core, 32-thread Zen 5 processor can reach its 5.7 GHz max boost when thermal and power headroom allow, supported by the board's 16+2+1 power stages rated for 80A each and dual ProCool II connectors.

What practical throughput does the USB4 interface provide on this board?

Dual USB4 Type-C ports handle display output, data transfer and power delivery simultaneously, while a front-panel USB 20Gbps Type-C header and a rear USB 10Gbps Type-C port with 30 W PD 3.0 add further connectivity.

What physical space and mounting does the M.2 installation require?

Four M.2 slots accept 2242, 2260, 2280 and 22110 form factors; two run at PCIe 5.0 x4 and two at PCIe 4.0 x4, each covered by substantial heatsinks that are part of the board's thermal design.
