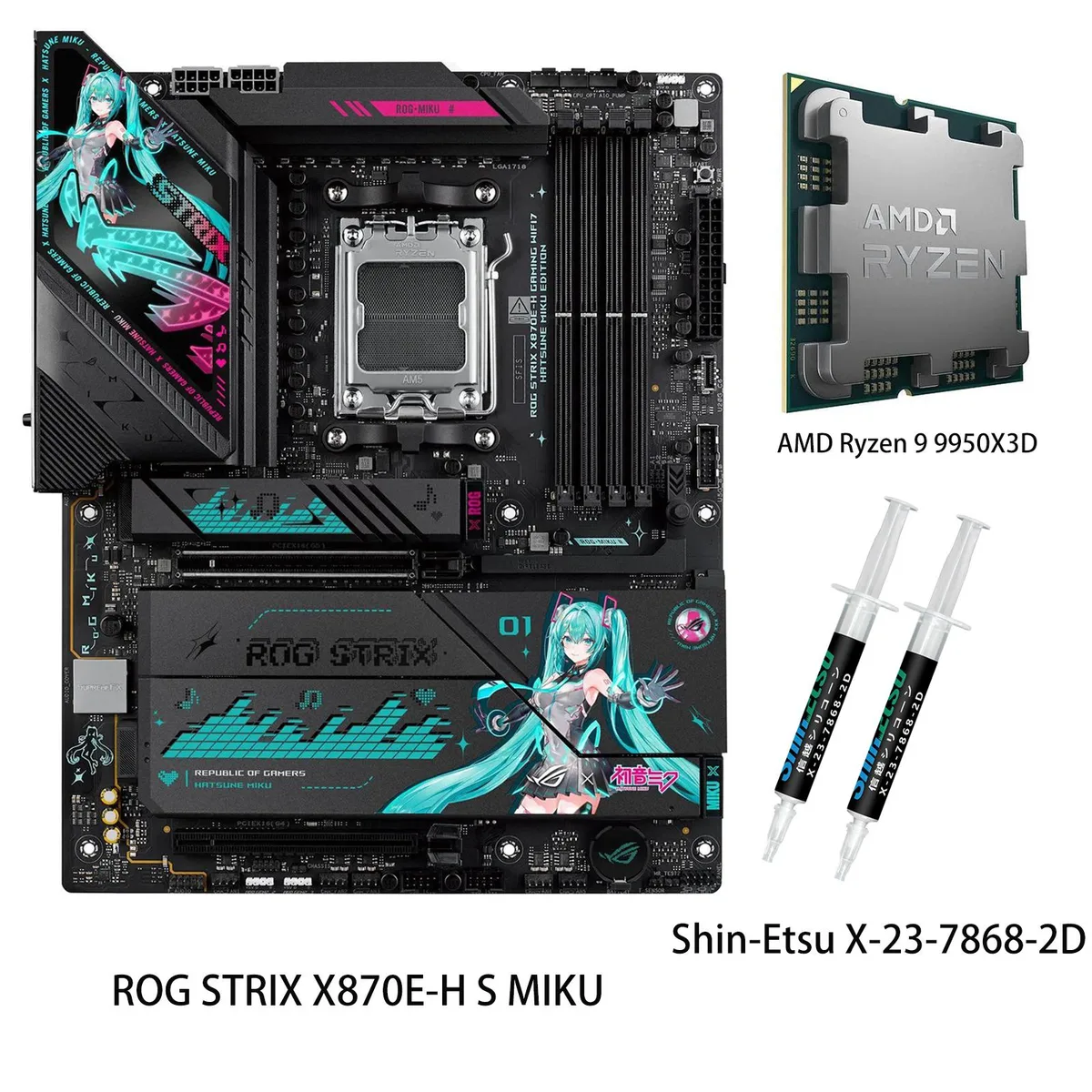

ATX motherboard with teal and white Hatsune Miku graphics, large heatsinks covering VRM and M.2 slots, integrated rear I/O cover

ASUS

ASUS ROG STRIX X870E-H S MIKU AMD motherboard with Ryzen 9 9950X3D CPU

SKU CH-AQEK-SPQM5

A motherboard and CPU combo for AMD Ryzen 9000, 8000 and 7000 series processors with DDR5 memory support, PCIe 5.0 slots, WIFI7 and Bluetooth 5.4 connectivity

  • CPU Socket TypeAM5
  • CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Deskt
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s(OC)
  • Maximum Memory Supported256GB

model ROG STRIX X870E-H S MIKU

+CPU +9 9950X3D

  • AI-ready platform with AMD Ryzen 9000, 8000 and 7000 series support
  • 16+2+1 power stages rated 80A each with dual ProCool II connectors
  • Two PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots with heatsinks
  • Dual USB4 Type-C ports and USB 10Gbps Type-C rear I/O with PD 3.0 up to 30W
  • Ryzen 9 9950X3D CPU includes 128MB L3 cache on TSMC 4nm Zen 5

Hatsune Miku Edition AM5 Platform

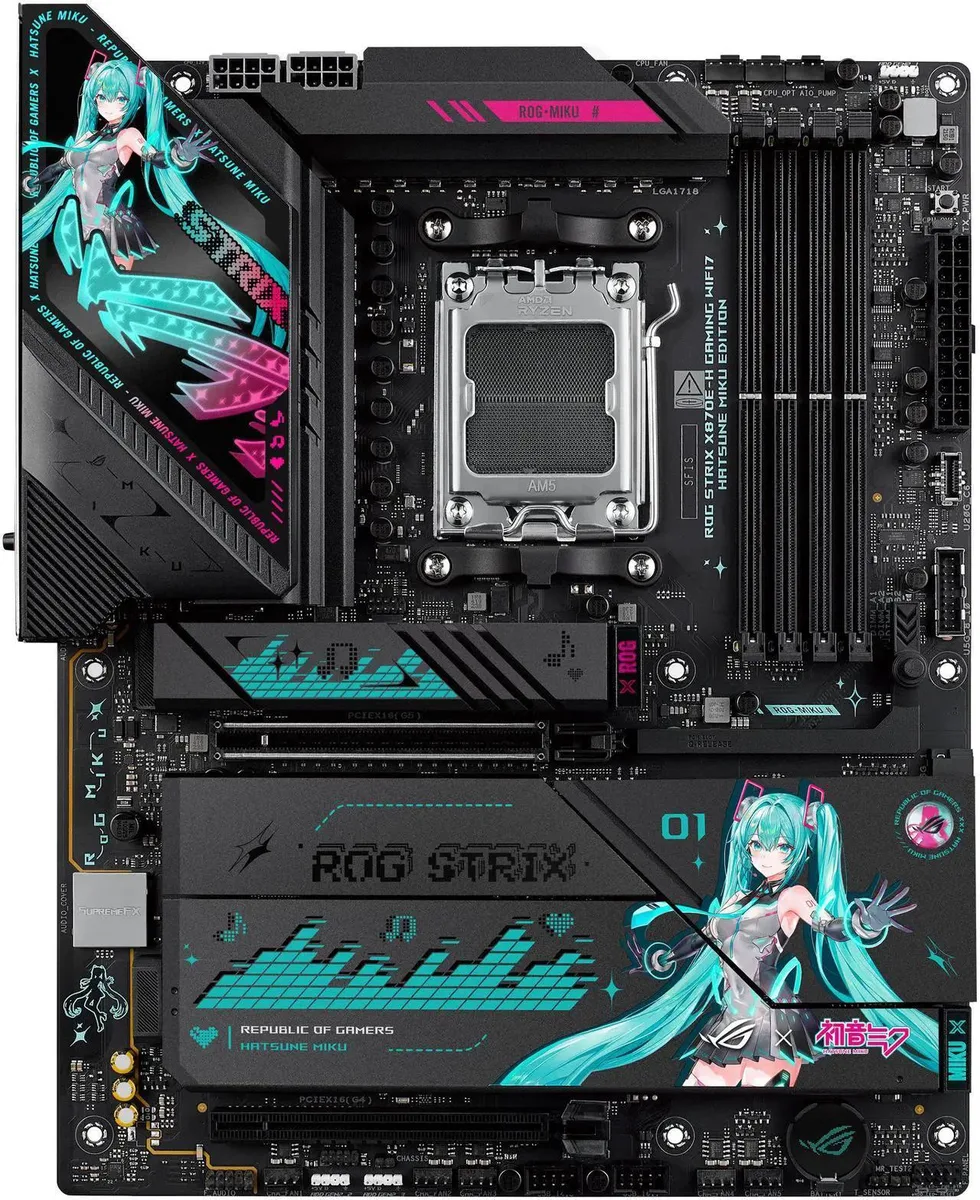

The ASUS ROG STRIX X870E-H S MIKU motherboard pairs with the AMD Ryzen 9 9950X3D processor in a themed AM5 package. The board uses the X870E chipset with a 16+2+1 power design rated for 80A per stage and dual ProCool II connectors. It supports DDR5 memory up to 8000+MT/s across four 288-pin slots with a 256GB maximum capacity.

Enthusiast Builders and AI Workloads

This combination suits users who want a distinctive Hatsune Miku aesthetic alongside high multi-core performance for gaming and AI tasks. The 128MB L3 cache and 170W TDP processor benefits from the robust VRM and massive heatsinks with integrated I/O cover. Builders needing a smaller form factor or a non-themed board should consider alternative X870E models.

Standard ATX Installation With BIOS Preparation

The ATX motherboard fits standard cases and uses familiar mounting points, while the pre-mounted I/O shield and Q-Release mechanisms simplify assembly. Installers must update the BIOS to support Ryzen 9000 series CPUs if the board ships on an older revision. The four M.2 slots — two PCIe 5.0 and two PCIe 4.0 — each include substantial heatsinks that require removing screws before drive installation.

Highlights

  • AI-ready platform with AMD Ryzen 9000, 8000 and 7000 series support
  • 16+2+1 power stages rated 80A each with dual ProCool II connectors
  • Two PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots with heatsinks
  • Dual USB4 Type-C ports and USB 10Gbps Type-C rear I/O with PD 3.0 up to 30W
  • Ryzen 9 9950X3D CPU includes 128MB L3 cache on TSMC 4nm Zen 5

Specifications

BrandASUS
ModelROG STRIX X870E-H S MIKU+(R9 9950X3D)
Part NumberROG STRIX X870E-H S MIKU+(R9 9950X3D)
CPU Socket TypeAM5
CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s(OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)*
AMD Ryzen 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not supports)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
* M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occu
SATA RAIDAMD RAIDXpert2 Technology*
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What DDR5 memory speed and capacity does the ROG STRIX X870E-H S MIKU board require for the Ryzen 9 9950X3D to run?

The board has four 288-pin DDR5 slots supporting up to 256 GB in dual-channel mode and rated for 8000+ MT/s when overclocked, so you need DDR5 modules that match those specifications.

Will my existing PCIe 4.0 graphics card and M.2 SSDs work at full speed on this motherboard with the 9950X3D installed?

With a Ryzen 9000 series CPU the primary PCIe x16 slot runs at 5.0 x16 and the first M.2 slot at 5.0 x4, so PCIe 4.0 devices will operate at their native 4.0 speeds without bottleneck.

How can I confirm the 5 Gbps LAN, Wi-Fi 7 and Bluetooth 5.4 are active after building the system?

In Windows Device Manager check for a 5 Gbps Ethernet adapter, an 802.11be Wi-Fi controller and a Bluetooth 5.4 radio; the ROG software suite also reports link speed and connection status for each interface.
