Black ATX motherboard with silver heatsinks, bundled with a boxed Ryzen 7 9700X CPU

ASUS

ASUS ROG STRIX X870E-E GAMING WIFI & Ryzen 7 9700X Combo AMD motherboard

SKU CH-1DH3-7F3P9

X870E motherboard paired with an 8-core 16-thread Ryzen 7 9700X, 18+2+2 power stages, WiFi 7, Bluetooth 5.4, five M.2 slots and USB4

  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel
  • ECC SupportedYes

model ROG STRIX X870E-E GAMING WIFI

+CPU +R7 9700X

  • 8 cores and 16 threads deliver high gaming frame rates
  • 18+2+2 power stages rated at 110A each ensure stable multi-core performance
  • DDR5 memory overclocks to 8000+ MT/s with Ryzen 9000 series processors
  • Three PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots provide fast storage expansion
  • WiFi 7 and Bluetooth 5.4 give low-latency wireless connectivity

Combo for AMD AM5 builds

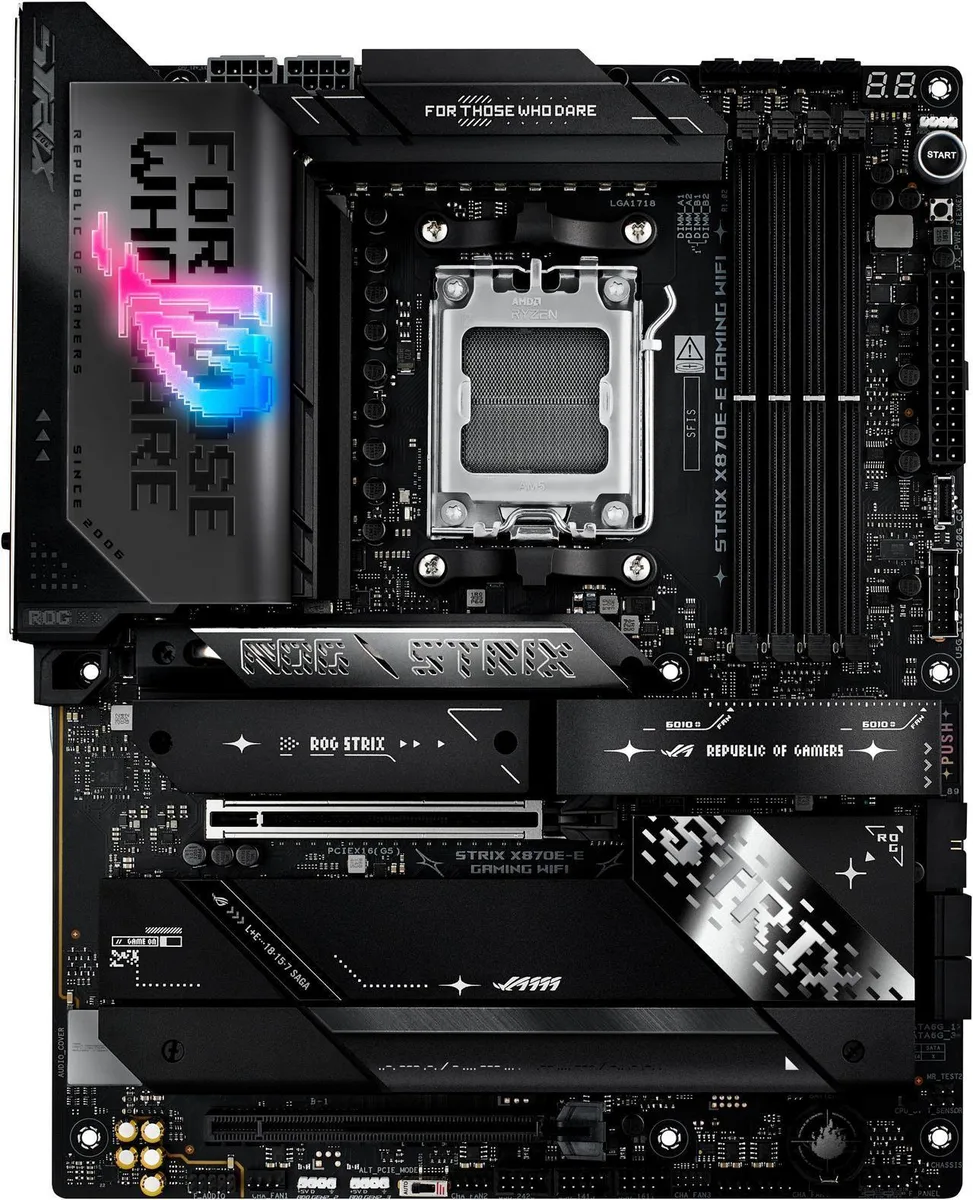

This bundle pairs the ROG STRIX X870E-E GAMING WIFI motherboard with the AMD Ryzen 7 9700X processor. It targets enthusiasts who want a ready-to-run platform for high-frame-rate gaming and multi-threaded workloads on the AM5 socket. The board supports Ryzen 9000, 8000 and 7000 series CPUs.

18+2+2 power stages and five M.2 slots

The motherboard delivers a robust power solution rated for 110A per stage with dual ProCool II connectors, alloy chokes and durable capacitors. Five M.2 slots accept 2242, 2260 and 2280 drives; three run at PCIe 5.0 x4 and two at PCIe 4.0 x4, all with substantial heatsinks. Dual USB4 Type-C ports, a USB 20Gbps front-panel header and nine additional USB 10Gbps ports handle peripherals. WiFi 7 and Bluetooth 5.4 provide modern wireless connectivity.

Upgrade path from older AM5 or AM4 systems

The jump is worth it when you need the combined uplift in memory speed, lane count and wireless standard for new GPUs and fast storage drives. DDR5 support reaches 8000+ MT/s with Ryzen 9000 series and 8400+ MT/s with Ryzen 8000 series, up to 192GB across four slots. PCIe 5.0 x16 graphics and PCIe 5.0 M.2 remove bottlenecks for current and upcoming components.

Highlights

  • 8 cores and 16 threads deliver high gaming frame rates
  • 18+2+2 power stages rated at 110A each ensure stable multi-core performance
  • DDR5 memory overclocks to 8000+ MT/s with Ryzen 9000 series processors
  • Three PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots provide fast storage expansion
  • WiFi 7 and Bluetooth 5.4 give low-latency wireless connectivity

Specifications

BrandASUS
ModelROG STRIX X870E-E GAMING WIFI+R7 9700X
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported192GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports up to
8000+MT/s(OC) with Ryzen 9000 Series Processors,
8400+MT/s(OC) with Ryzen 8000 Series Processors,
8000+MT/s(OC) with Ryzen 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO)
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
PCI Express 5.0 x16AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slots (supports x16 mode)
PCI Express 4.0 x16AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD X870E Chipset
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
** M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run x8 only.
SATA RAID*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen 9000 series CPU.
Audio ChipsetROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C with up to 30W PD Fast-charge)
10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C)
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
USB 3.0USB4
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Package Contents1 x AMD Ryzen 7 9700X CPU
Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
2 x M.2 Q-Slides
1 x ROG key chain
1 x ROG Strix stickers
5 x M.2 Rubbers
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the PCIe 5.0 x16 slot run at full x16 speed with a Ryzen 9000 CPU?

Yes, the single PCIe 5.0 x16 slot operates at x16 mode when paired with a Ryzen 9000 series processor.

What CPU cooler clearance does the 18+2+2 power stage layout and heatsink design require?

The dual ProCool II connectors and alloy chokes sit close to the socket; verify your cooler specifications against the AM5 keep-out zone before purchase.

How do I enable DDR5 speeds above 4400 MT/s, and which BIOS setting is most often missed?

Enable EXPO or manually set the frequency in the AI Overclocking section; the step many skip is saving and rebooting twice to train memory.
