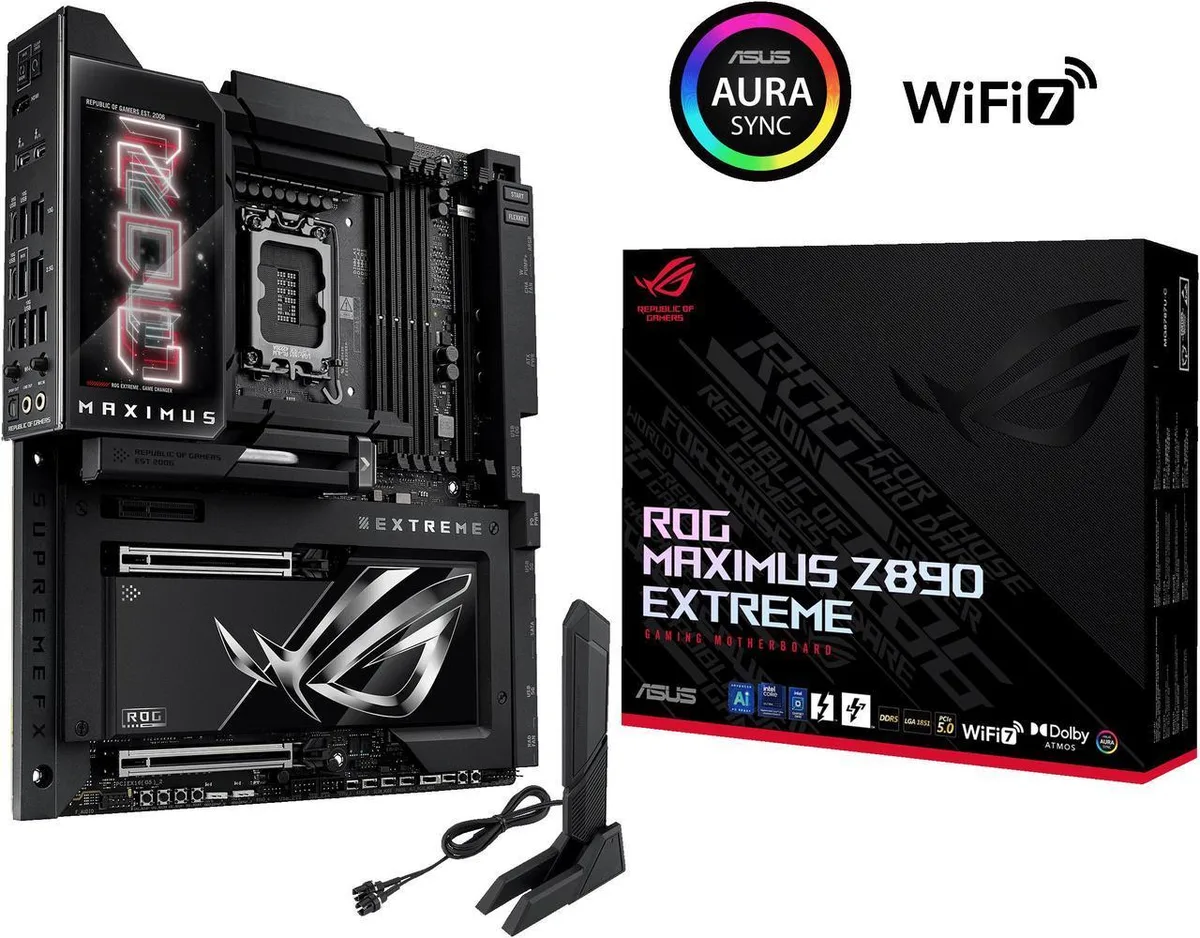

Large E-ATX motherboard in dark finish with massive integrated heatsinks, U-shaped heatpipe and 3D VC M.2 cooler

ASUS

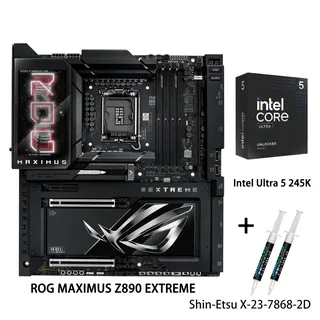

ASUS ROG MAXIMUS Z890 EXTREME Intel motherboard & Ultra 5 245K CPU Combo

SKU CH-P3EA-BY3YV

Paired Z890 motherboard and Core Ultra 5 245K CPU deliver 24+2+1+2 power stages, DDR5 to 9200 MT/s, WiFi7, 2.5G and 10G LAN, Thunderbolt 5 and PCIe 5.0 M.2 for AI-ready performance

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

Motherboard ROG MAXIMUS Z890 EXTREME

+CPU +Ultra 5 245K

  • AI overclocking and cooling simplify tuning while boosting performance
  • CES 2025 Innovation Award honours exceptional design and engineering
  • 256 GB DDR5 capacity at up to 9200 MT/s for high-speed memory headroom
  • Thunderbolt 5 plus 10 Gbps and 2.5 Gbps LAN deliver extreme connectivity
  • Massive heatsinks with U-shaped heatpipe and 3D VC M.2 cooling sustain heavy loads

AI-Ready Platform

The ASUS ROG MAXIMUS Z890 EXTREME motherboard paired with an Intel Core Ultra 5 245K processor targets builders who want an advanced AI PC foundation. The LGA 1851 socket supports Intel Core Ultra Series 2 chips and the board carries the Z890 chipset with a 24+2+1+2 stage power design. Four DDR5 slots accept up to 256 GB running at 9200 MT/s via XMP or AEMP III. Connectivity includes WiFi7, Bluetooth 5.4, 2.5 GbE and 10 GbE LAN, two Thunderbolt 5 ports and multiple USB 20 Gbps and 10 Gbps ports.

Sustained Load Behaviour

The 24+2+1+2 stage VRM delivers stable current to the 125 W Arrow Lake CPU during extended workloads. AI Overclocking and NPU Boost tune frequencies automatically while AI Cooling II adjusts fan curves in real time. The U-shaped heatpipe links massive heatsinks across the I/O cover and power stages using high-conductivity pads. A 3D vapour-chamber heatsink covers the primary PCIe 5.0 M.2 slot to keep storage temperatures in check under continuous throughput.

Thermals Noise Power

The integrated thermal solution spreads heat from the VRM and chipset across a large surface area, allowing lower fan speeds at typical desktop loads. AI Networking II manages traffic to reduce unnecessary controller activity. The 125 W processor base power sets a clear envelope for cooling planning. Onboard SupremeFX 7.1 audio with the ALC4082 codec isolates analogue sections from digital noise for cleaner output during quiet operation.

Highlights

  • AI overclocking and cooling simplify tuning while boosting performance
  • CES 2025 Innovation Award honours exceptional design and engineering
  • 256 GB DDR5 capacity at up to 9200 MT/s for high-speed memory headroom
  • Thunderbolt 5 plus 10 Gbps and 2.5 Gbps LAN deliver extreme connectivity
  • Massive heatsinks with U-shaped heatpipe and 3D VC M.2 cooling sustain heavy loads

Specifications

BrandASUS
SeriesROG MAXIMUS Z890 EXTREME+Ultra 5 245K
ModelROG MAXIMUS Z890 EXTREME+Ultra 5 245K
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory FeatureSupport up to 9200+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Supports DIMM Flex
DIMM Fit
NitroPath DRAM Technology
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16Intel Core Ultra Processors (series 2)*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)**
PCI Express x4Intel Z890 Chipset**
1 x PCIe 4.0x4 slot
**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Support Intel Core Ultra Processors (series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**
Intel Z890 Chipset
DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
**M.2_3 & M.2_4 share bandwidth wit
SATA RAID*Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Audio ChannelsROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082**
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 10 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- ESS ES9219 QUAD DAC
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Soun
Max LAN Speed10Gbps + 2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x Thunderbolt 5 USB Type-C ports
1 x USB 20Gbps port (1 x USB Type-C)
7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C)
1 x HDMITM port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
1 x Marvell AQtion 10Gb Ethernet port
2 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x WB_SENSOR header
Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
2 x Addressable Gen 2 header
1 x Alteration PCIe mode switch
4 x BCLK button
1 x BIOS Switch button
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x LN2 Mode jumper
18 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switchs
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin Sy
BIOS Feature2 x 256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
- LCD Display
ASUS AI Advisor
ASUS Driver Hub
Turbo Vcore
ASUS GlideX
Thunderbolt Share
USB Wattage Watcher
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
AI Overclocking Guide
NPU Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Windows 11, Windows 10 64-bit
Form FactorExtended ATX
Dimensions (W x L)12.0" x 10.9"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
FeaturesExtreme OC Kit
- FlexKey button
- LN2 Mode
- ProbeIt
- ReTry button
- Safe boot button
- Start button
- Slow Mode
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
- Q-DIMM.2
ASUS Thermal Solution
- Fan bracket
- M.2 heatsink backplate
- M.2 heatsink
- Metal backplate
- VRM heatsink design
- 3D VC M.2 Heatsink
ASUS EZ DIY
- Backpla

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud or hot does the 24+2+1+2 stage VRM and 125 W Ultra 5 245K get when the system runs all day?

The board uses massive heatsinks integrated with the I/O cover, a U-shaped heatpipe, high-conductivity thermal pads and a 3D VC M.2 heatsink to dissipate heat from the 24+2+1+2 power stages and the 125 W processor. AI Cooling II adjusts fan curves automatically to keep noise low under sustained loads.

Which DDR5 memory kit must I already own for the 4×288-pin slots to reach the advertised 9200+ MT/s?

You need a DDR5 CUDIMM kit rated for 9200+ MT/s (OC) that supports Intel XMP or ASUS AEMP III; the four slots accept up to 256 GB total in dual-channel mode.

Will my existing PCIe 4.0 graphics card and SATA SSDs work without bandwidth loss on the PCIe 5.0 x16 and SATA 6 Gb/s ports?

Yes. The primary PCIe 5.0 x16 slot is backward compatible with PCIe 4.0 cards, and the four SATA 6 Gb/s ports run at full speed regardless of M.2 configuration.
