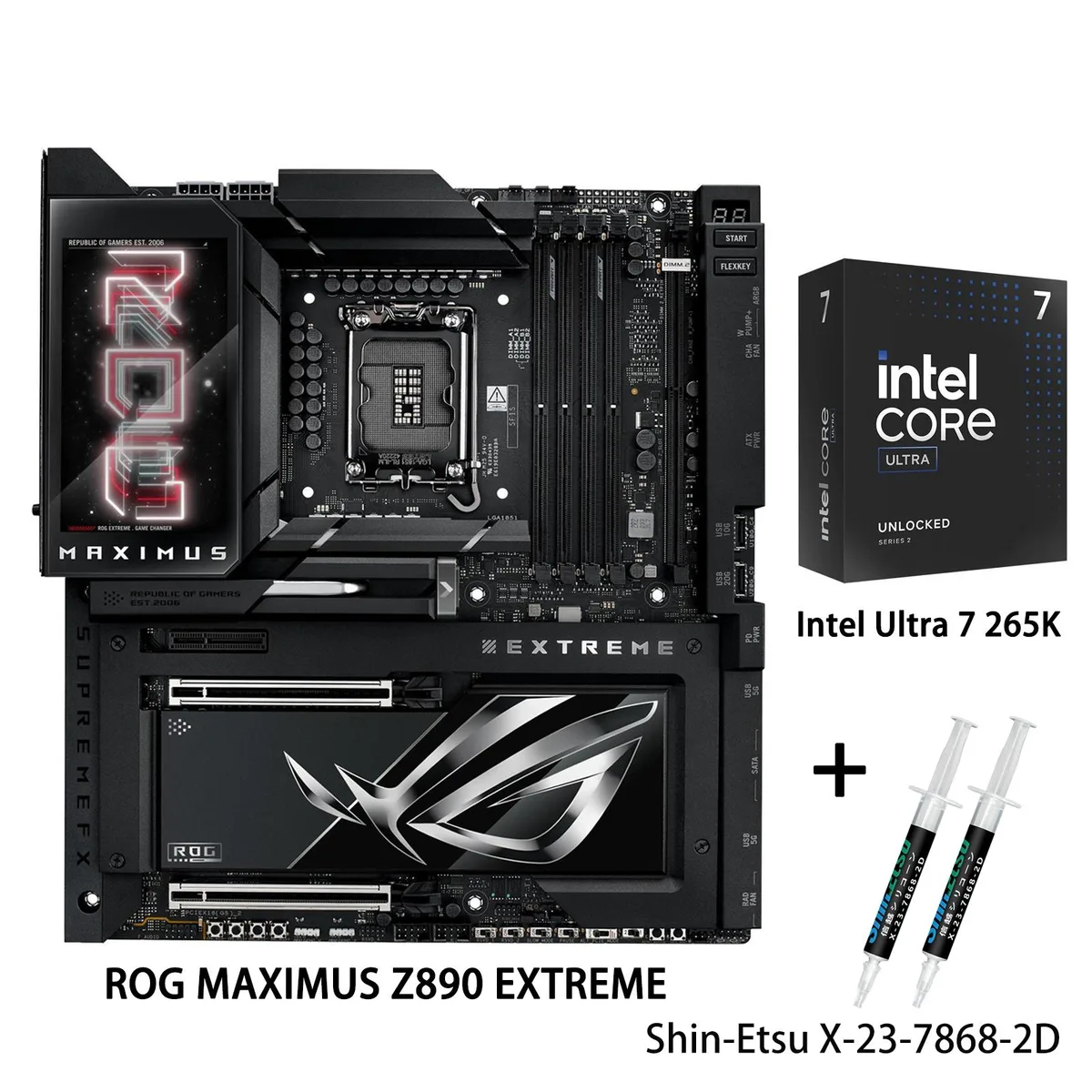

Large black E-ATX motherboard with silver heatsinks and installed CPU visible in socket

ASUS

ASUS ROG MAXIMUS Z890 EXTREME Intel motherboard & Ultra 7 265K CPU Combo

SKU CH-JXMP-S79PM

LGA 1851 E-ATX motherboard paired with an Intel Core Ultra 7 265K CPU, 24+2+1+2 power stages, DDR5 up to 9200 MT/s, WiFi7, 2.5G and 10G LAN, PCIe 5.0 M.2 and Thunderbolt 5

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

Motherboard ROG MAXIMUS Z890 EXTREME

+CPU +Ultra 7 265K

  • AI overclocking and cooling simplify tuning
  • 24+2+1+2 power stages feed the Ultra 7 265K
  • DDR5 up to 9200 MT/s with NitroPath layout
  • Thunderbolt 5 plus 10G and 2.5G LAN
  • 3D vapour-chamber heatsink on PCIe 5.0 M.2

Ready for Advanced AI PCs

This bundle pairs the ROG MAXIMUS Z890 EXTREME motherboard with the Intel Core Ultra 7 265K processor. The board uses the Intel Z890 chipset and an LGA 1851 socket to support Intel Core Ultra Processors (Series 2). It targets builders who want a platform designed for demanding AI applications and high-performance desktop computing.

E-ATX build with extensive connectivity

The E-ATX board integrates massive heatsinks with the I/O cover, linked by a U-shaped heatpipe and high-conductivity thermal pads. Rear I/O provides two Thunderbolt 5 USB Type-C ports, one USB 20Gbps Type-C port, seven USB 10Gbps ports, HDMI, Intel 2.5Gb Ethernet, Marvell 10Gb Ethernet, WiFi7 and Bluetooth 5.4. Four SATA 6Gb/s ports and multiple M.2 slots with PCIe 5.0 and 4.0 support handle storage. The 24+2+1+2 stage power design feeds the CPU.

Optimised thermal design for sustained loads

Massive heatsinks, a U-shaped heatpipe and a 3D VC M.2 heatsink for a PCIe 5.0 slot dissipate heat from the 125W processor and power stages. AI Cooling II manages fan speeds based on system temperatures. The CPU includes Intel Graphics; a separate cooling device is not included.

Highlights

  • AI overclocking and cooling simplify tuning
  • 24+2+1+2 power stages feed the Ultra 7 265K
  • DDR5 up to 9200 MT/s with NitroPath layout
  • Thunderbolt 5 plus 10G and 2.5G LAN
  • 3D vapour-chamber heatsink on PCIe 5.0 M.2

Specifications

BrandASUS
SeriesROG MAXIMUS Z890 EXTREME+Ultra 7 265K
ModelROG MAXIMUS Z890 EXTREME+Ultra 7 265K
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory FeatureSupport up to 9200+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Supports DIMM Flex
DIMM Fit
NitroPath DRAM Technology
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16Intel Core Ultra Processors (series 2)*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)**
PCI Express x4Intel Z890 Chipset**
1 x PCIe 4.0x4 slot
**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Support Intel Core Ultra Processors (series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**
Intel Z890 Chipset
DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
**M.2_3 & M.2_4 share bandwidth wit
SATA RAID*Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Audio ChannelsROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082**
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 10 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- ESS ES9219 QUAD DAC
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Soun
Max LAN Speed10Gbps + 2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x Thunderbolt 5 USB Type-C ports
1 x USB 20Gbps port (1 x USB Type-C)
7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C)
1 x HDMITM port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
1 x Marvell AQtion 10Gb Ethernet port
2 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x WB_SENSOR header
Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
2 x Addressable Gen 2 header
1 x Alteration PCIe mode switch
4 x BCLK button
1 x BIOS Switch button
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x LN2 Mode jumper
18 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switchs
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin Sy
BIOS Feature2 x 256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
- LCD Display
ASUS AI Advisor
ASUS Driver Hub
Turbo Vcore
ASUS GlideX
Thunderbolt Share
USB Wattage Watcher
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
AI Overclocking Guide
NPU Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Windows 11, Windows 10 64-bit
Form FactorExtended ATX
Dimensions (W x L)12.0" x 10.9"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
FeaturesExtreme OC Kit
- FlexKey button
- LN2 Mode
- ProbeIt
- ReTry button
- Safe boot button
- Start button
- Slow Mode
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
- Q-DIMM.2
ASUS Thermal Solution
- Fan bracket
- M.2 heatsink backplate
- M.2 heatsink
- Metal backplate
- VRM heatsink design
- 3D VC M.2 Heatsink
ASUS EZ DIY
- Backpla

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What PCIe generation does the primary M.2 slot use and what speed does it cap at?

The M.2_1 slot runs PCIe 5.0 x4, capping sequential throughput at the drive's PCIe 5.0 limit.

What case clearance and mounting pattern does the E-ATX board with integrated I/O cover require?

The board needs an E-ATX compatible case with standard ATX standoffs and enough vertical clearance for the tall heatsink and U-shaped heatpipe assembly.

How is the Ultra 7 265K installed in the LGA 1851 socket and what step is often missed?

Align the processor notches with the socket keys, lower the load plate, and engage the retention lever; the step often missed is removing the protective socket cover before seating the CPU.
