Black ATX motherboard with silver VRM heatsinks and integrated I/O cover

ASUS

ASUS ROG Strix Z790-A Gaming WiFi D4 Intel motherboard

SKU CH-JXM9-44KFG

LGA 1700 ATX board for 12th, 13th and 14th Gen Intel Core with DDR4, 16+1 power stages, four M.2 slots, PCIe 5.0, WiFi 6E and 2.5 Gb Ethernet

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel® Socket LGA1700 for 14th & 13th & 12th Gen Intel® Core
  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4:5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4
  • Maximum Memory Supported128GB

model ROG STRIX Z790-A GAMING WIFI D4

  • Ready for 12th, 13th and 14th Gen Intel Core CPUs via LGA 1700 socket
  • 16+1 power stages rated 70A with dual ProCool II connectors for stable multi-core delivery
  • Massive VRM heatsinks with integrated I/O cover and high-conductivity thermal pads keep temperatures low
  • Four PCIe 4.0 M.2 slots — one with heatsink and backplate, three with heatsinks — for fast storage expansion
  • USB 3.2 Gen 2x2 Type-C rear port and front-panel connector with PD 3.0 up to 30W, plus WiFi 6E and 2.5 Gb Ethernet

LGA 1700 DDR4 ATX motherboard

The ASUS ROG Strix Z790-A Gaming WiFi D4 fits Intel Core processors from the 12th, 13th and 14th generations plus Pentium Gold and Celeron CPUs in an LGA 1700 socket. Four 288-pin DDR4 slots support dual-channel memory up to 128 GB with overclocked speeds reaching 5333 MT/s. The board targets enthusiasts who want a high-end Z790 platform while retaining existing DDR4 kits.

16+1 power stages rated 70A

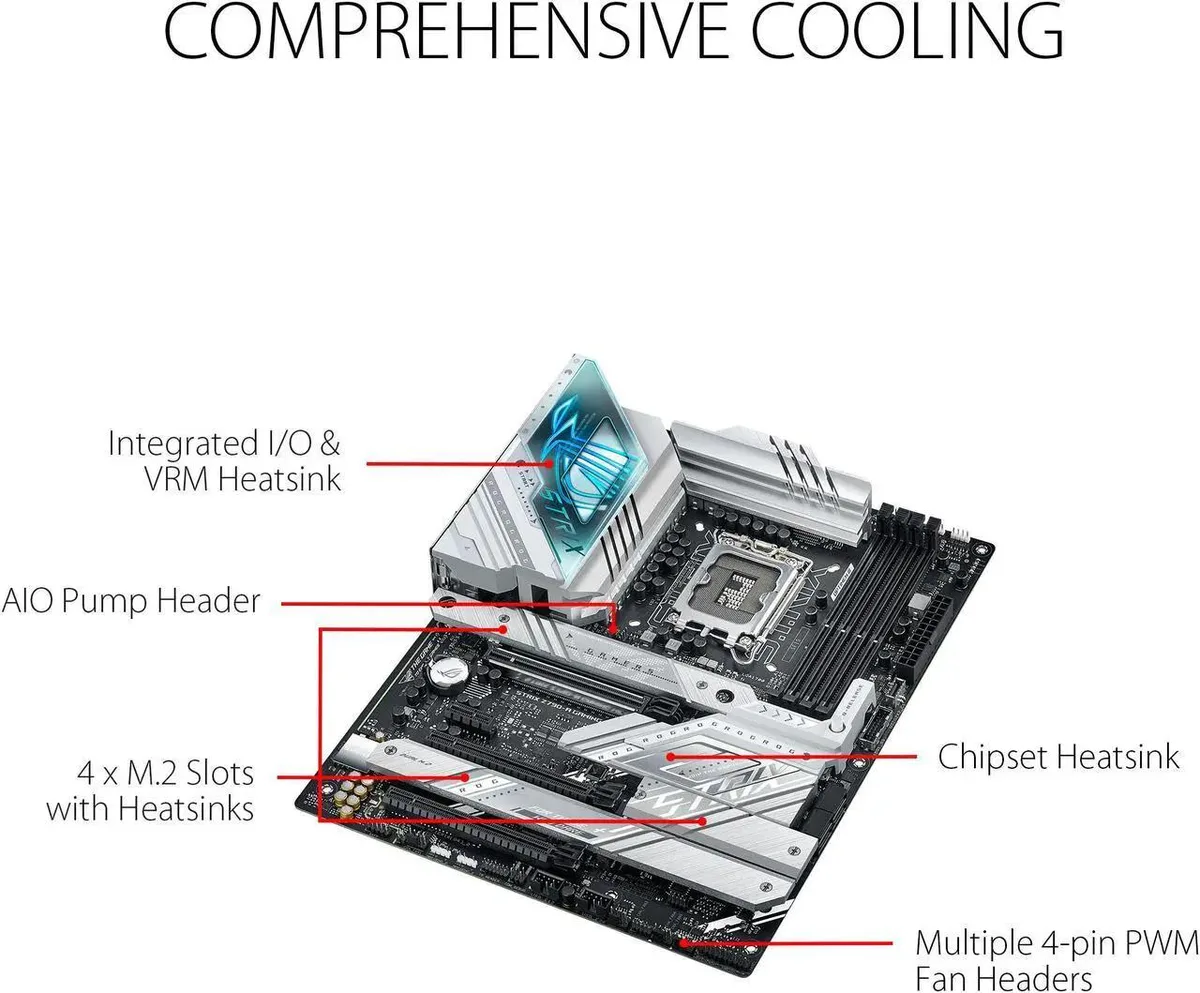

A 16+1 phase VRM delivers up to 70 A per stage through dual ProCool II connectors, alloy chokes and durable capacitors. Massive heatsinks with an integrated I/O cover and high-conductivity thermal pads spread heat across the power delivery area. This arrangement keeps voltages stable during prolonged multi-core workloads rather than only brief boost periods.

PCIe 5.0 x16 and four PCIe 4.0 M.2

The primary x16 slot runs at PCIe 5.0 with a CPU from the supported generations, while two chipset x16 slots operate at x4 electrical. Four M.2 sockets accept 2242, 2260, 2280 and 22110 form factors, all wired for PCIe 4.0 x4 and fitted with heatsinks. USB 3.2 Gen 2x2 Type-C on the rear I/O and a front-panel header with PD 3.0 up to 30 W set the practical bandwidth ceiling for external storage. WiFi 6E and 2.5 Gb Ethernet handle network traffic.

Highlights

  • Ready for 12th, 13th and 14th Gen Intel Core CPUs via LGA 1700 socket
  • 16+1 power stages rated 70A with dual ProCool II connectors for stable multi-core delivery
  • Massive VRM heatsinks with integrated I/O cover and high-conductivity thermal pads keep temperatures low
  • Four PCIe 4.0 M.2 slots — one with heatsink and backplate, three with heatsinks — for fast storage expansion
  • USB 3.2 Gen 2x2 Type-C rear port and front-panel connector with PD 3.0 up to 30W, plus WiFi 6E and 2.5 Gb Ethernet

Specifications

BrandASUS
SeriesROG
ModelSTRIX Z790-A GAMING WIFI D4
Part Number90MB1CN0-M0AAY0
CPU Socket TypeLGA 1700
CPU TypeIntel® Socket LGA1700 for 14th & 13th & 12th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4:5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/
3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem III
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 5.0 x16Intel® 14th & 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16Intel Z790 Chipset
2 x PCIe 4.0 x16 slots (support x4/x4 mode)
PCI Express x11 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel® 14th & 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports****
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAIDIntel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

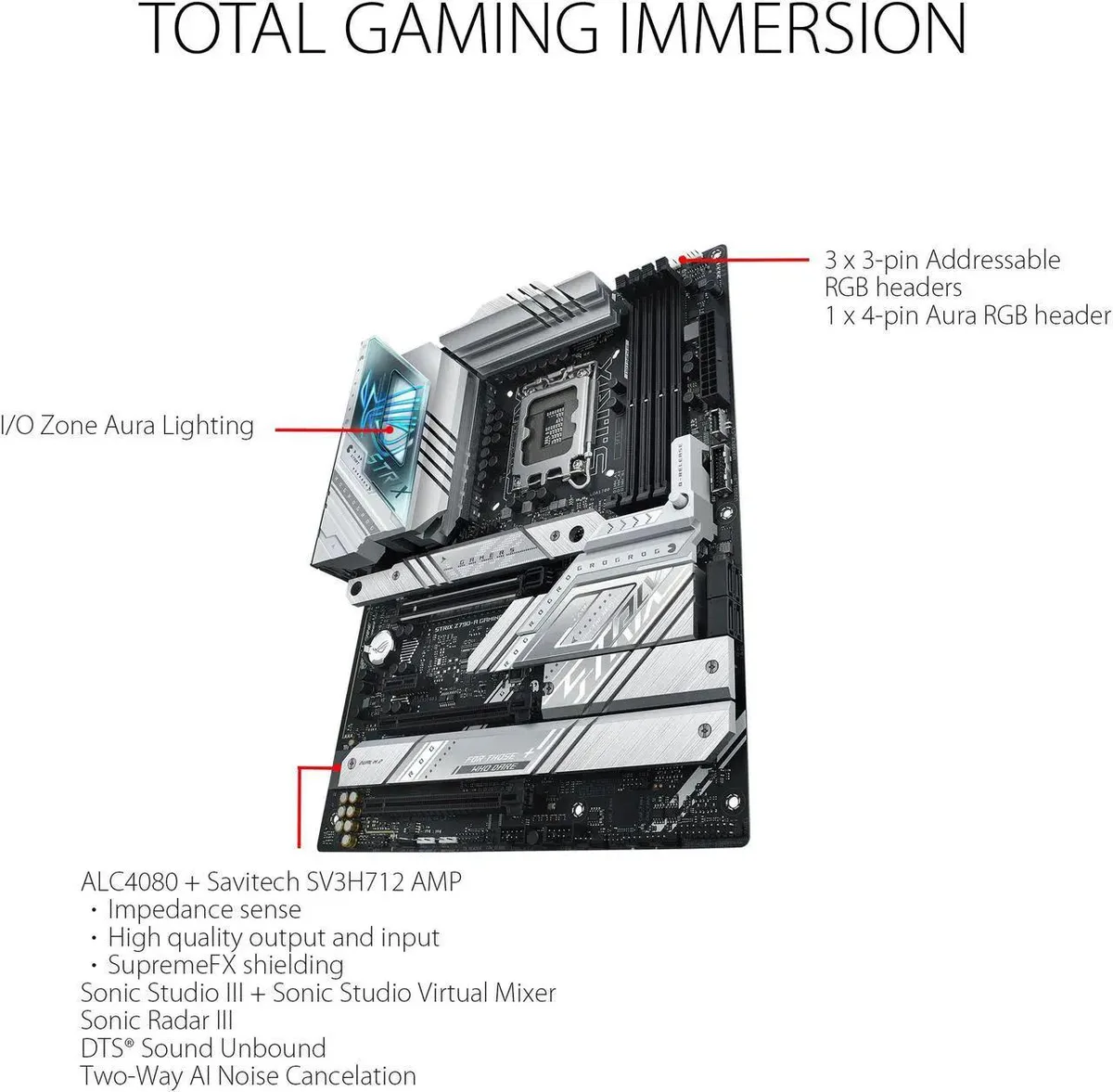

Audio ChipsetRealtek ALC4080
Audio ChannelsROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
* WiFi 6E 6GHz regulatory may vary between countries.
BluetoothBluetooth v5.2
Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 3.2 Gen 2x2 connector (supports USB Type-C )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan header(s)
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
Windows 11Windows® 11 64-bit, Windows® 10 64-bit
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
FeaturesExtreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Front Panel USB 3.2 Gen 2x2 with PD Fast-charge Support
- Support: up to 30W charging
-
Package ContentsCables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x M.2 Rubber Packages
1 x M.2 backplate Rubber Package
Documentation
1 x User guide

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How hot do the VRM heatsinks get when the 16+1 power stages run at 70A each all day?

Massive heatsinks with an integrated I/O cover and high-conductivity thermal pads are designed to keep VRM temperatures low under sustained multi-core loads.

Which DDR4 memory speeds up to 5333(OC) must I already own to populate the four 288-pin slots?

The board supports DDR4 from 2133 up to 5333(OC) in dual-channel mode, with a maximum capacity of 128GB across the four slots.

Will my existing PCIe 4.0 x4 M.2 drives fit the four Key M slots (2242/2260/2280/22110) without an adapter?

All four M.2 slots accept Key M drives in 2242, 2260, 2280 and 22110 form factors, each with a dedicated heatsink.
