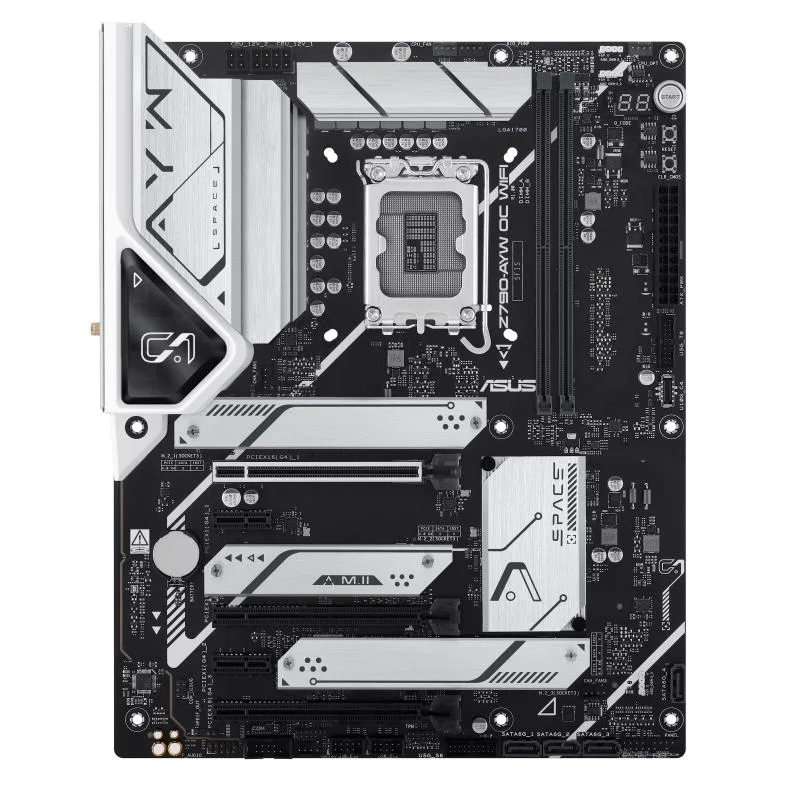

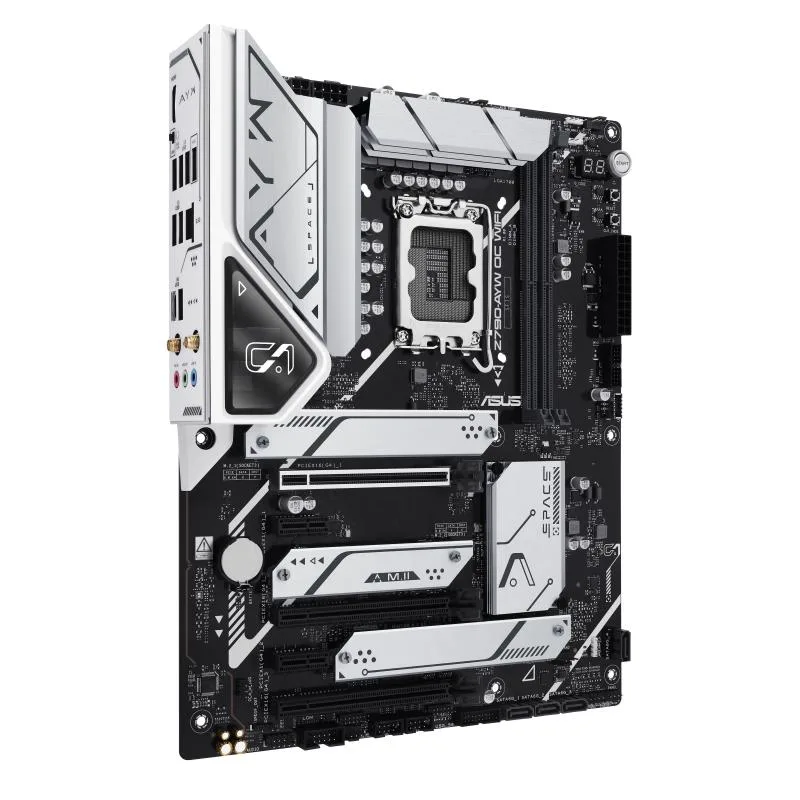

ATX motherboard with white finish, three M.2 heatsinks, VRM heatsinks, RGB lighting, two DDR5 slots, HDMI port, USB Type-C

ASUS

ASUS Z790-AYW OC WIFI Intel motherboard PCIe 4.0 three PCIe 4.0 M.2 slots DDR5 Realtek 2.5Gb Ethernet WiFi 6

SKU CH-K1VS-XYWHR

LGA 1700 ATX board with three PCIe 4.0 M.2 slots, DDR5 8200 OC support, 2.5Gb Ethernet and WiFi 6

  • CPU Socket TypeLGA 1700

model Z790-AYW OC WIFI

  • Supports 12th 13th 14th Gen Intel CPUs via LGA 1700 socket
  • 12 plus 1 plus 1 power stages at 60A each for stable overclocking
  • DDR5 memory up to 8200 MT/s with AEMP II profiles
  • Three PCIe 4.0 M.2 slots each with dedicated heatsink
  • Realtek 2.5Gb Ethernet and WiFi 6 for fast networking

Socket LGA 1700 ATX platform

This ASUS Z790 motherboard accepts Intel Core 12th, 13th and 14th generation processors plus Pentium Gold and Celeron chips in an LGA 1700 socket. The board uses a 12+1+1 power module rated at 60 amps per stage to deliver stable current to the CPU. Two DDR5 DIMM slots support memory speeds up to 8200 MT/s when overclocked and include AEMP II profiles for easier tuning.

Three PCIe 4.0 M.2 slots with heatsinks

Three M.2 slots wired for PCIe 4.0 each have a dedicated heatsink to keep drive temperatures in check during sustained workloads. A bundled M.2 carabiner tool simplifies drive installation without screws. SafeSlot Core+ reinforces the primary PCIe slot for heavier graphics cards and BIOS FlashBack allows firmware updates without a CPU installed.

Dual-channel DDR5 and 2.5 Gb Ethernet

Two memory slots limit total capacity to two modules so builders planning four sticks should choose a different board. The Realtek 2.5 Gb Ethernet port and WiFi 6 controller handle wired and wireless networking while SATA 6 Gbps ports remain available for additional storage drives. USB 10 Gbps Type-C and HDMI outputs cover modern peripheral and display connections.

Highlights

  • Supports 12th 13th 14th Gen Intel CPUs via LGA 1700 socket
  • 12 plus 1 plus 1 power stages at 60A each for stable overclocking
  • DDR5 memory up to 8200 MT/s with AEMP II profiles
  • Three PCIe 4.0 M.2 slots each with dedicated heatsink
  • Realtek 2.5Gb Ethernet and WiFi 6 for fast networking

Specifications

CPU Socket TypeLGA 1700

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the three PCIe 4.0 M.2 heatsinks need replacement or maintenance later?

The three M.2 heatsinks are passive metal parts with no moving components; they do not require scheduled replacement or maintenance.

What limit appears first when the 12+1+1 60A power modules run under sustained load?

The VRM heatsinks and thermal pads manage heat from the 60A power modules; thermal throttling of the CPU is the first limit under continuous heavy work.

How much noise, heat or power draw should I expect from the Realtek 2.5Gb Ethernet and WiFi 6 running all day?

Both the 2.5Gb Ethernet controller and WiFi 6 module are low-power silicon; they add minimal heat and no audible noise during continuous operation.
