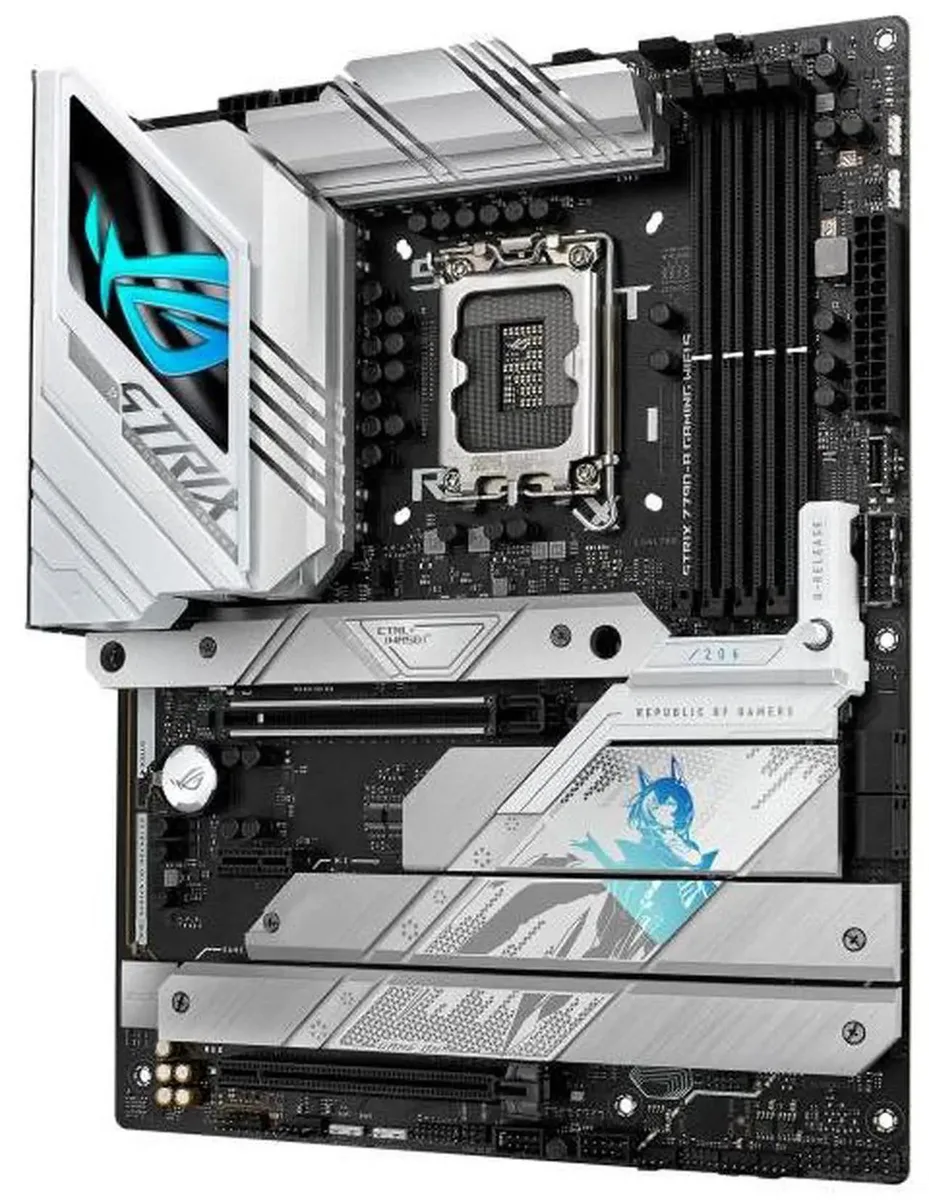

ATX motherboard in silver and white armour with VRM heatsinks and M.2 covers

ASUS

ASUS ROG Strix Z790-A Gaming WiFi S Intel motherboard

SKU CH-8E67-CZWNH

LGA 1700 ATX board with 16+1+2 power phases, DDR5 support up to 192 GB, five M.2 slots, WiFi 7 and 2.5 Gbps LAN

  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel
  • Memory FeatureSupports Intel® Extreme Memory Profile (XMP) memory module S
  • PCI Express 5.0 x16Intel® Core™ Processors (14th & 13th & 12th Gen)* 1 x PCIe 5

model ROG STRIX Z790-A GAMING WIFI S

  • 16+1+2 phase 70A DrMOS power with AI optimisation handles heavy overclocking
  • DDR5-8000+ support with DIMM Flex temperature control up to 192GB capacity
  • PCIe 5.0 x16 graphics slot plus five M.2 slots under full thermal armour
  • Wi-Fi 7 and 2.5Gbps LAN with Bluetooth 5.4 for high-speed dual networking
  • Silver-white armour with Polymo dynamic lighting and AURA Sync RGB synchronisation

Z790 ATX Motherboard for Intel LGA 1700

This ASUS ROG Strix board pairs the Intel Z790 chipset with an LGA 1700 socket for 12th, 13th and 14th generation Core processors. It delivers a 16+1+2 phase power design using 70A DrMOS stages and AI overclocking assistance. Four DDR5 slots support up to 192GB of memory with XMP, DIMM Flex and AEMP II profiles.

PCIe 5.0 Graphics Slot and Five M.2 Interfaces

A single PCIe 5.0 x16 slot connects directly to the CPU for the graphics card, while the chipset adds one PCIe 4.0 x16 slot running at x4 and one PCIe 3.0 x1 slot. Five M.2 slots accept 2242, 2260, 2280 and 22110 form factors; the top slot runs at PCIe 4.0 x4 from the processor and the remainder are wired through the Z790 chipset. Four SATA 6Gb/s ports remain available for additional drives.

DDR5 Memory Support Up to 192GB

The board provides four 288-pin DDR5 slots with a maximum capacity of 192GB in dual-channel mode. Supported data rates and module counts depend on the specific processor and memory kits installed. AI cooling and VRM thermal armour help sustain high-frequency operation during extended workloads.

Highlights

  • 16+1+2 phase 70A DrMOS power with AI optimisation handles heavy overclocking
  • DDR5-8000+ support with DIMM Flex temperature control up to 192GB capacity
  • PCIe 5.0 x16 graphics slot plus five M.2 slots under full thermal armour
  • Wi-Fi 7 and 2.5Gbps LAN with Bluetooth 5.4 for high-speed dual networking
  • Silver-white armour with Polymo dynamic lighting and AURA Sync RGB synchronisation

Specifications

BrandASUS
ModelROG STRIX Z790-A GAMING WIFI S
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory FeatureSupports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
OptiMem II
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
PCI Express 5.0 x16Intel® Core™ Processors (14th & 13th & 12th Gen)*
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16Intel® Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot
PCI Express x41 x PCIe 4.0 x16 slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
SATA RAID* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Audio Channels7.1 Channels
Max LAN Speed5Gbps + 2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A+1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Onboard USBRear USB (Total 12 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps (supports USB Type-C® with up to with up to 30W PD Fast-charge )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over voltage jumper
1 x Front panel audio header (F_AUDIO)
1 x 20-3 pin system panel header with Chassis intrude function
1 x Thermal sensor header
1 x Thunderbolt™ (USB4®) header
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- DTS® Sound Unbound
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- Power Saving
- Sonic Studio
- Two-Way AI Noise Cancelation
AI Suite 3
- Easy Optimization with AI Overclocking
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyASUS
USB Wattage Watcher
Intel® Unison™
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Fla
Windows 11Windows® 11, Windows® 10 64-bit
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin main power connector
2 x 8-pin +12V power connector
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) with DRAM Detection
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- S

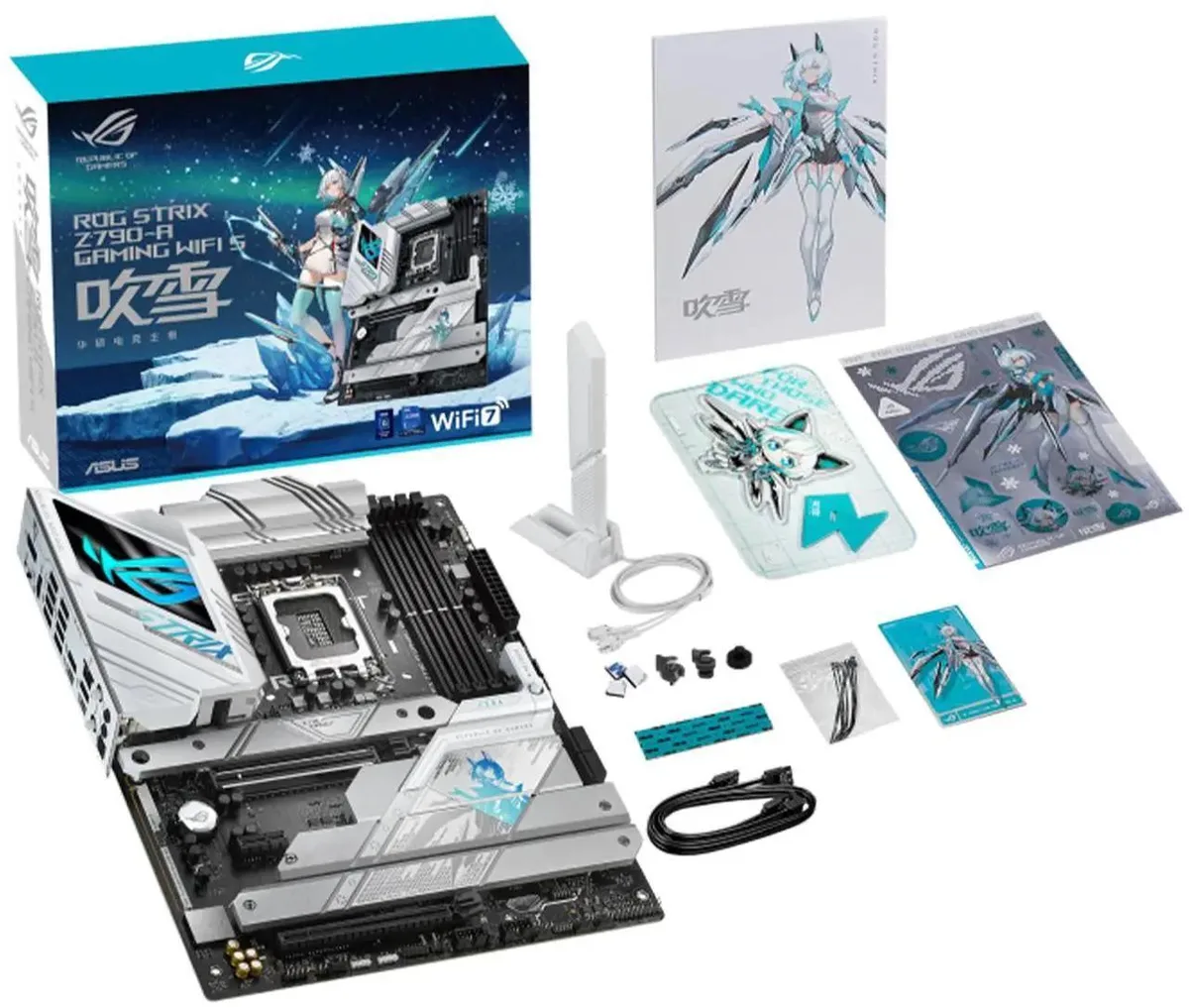

Package ContentsCables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi Q-Antenna
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
2 x M.2 rubber packages
1 x M.2 backplate Rubber package
Documentation
1 x Quick start guide

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which DDR5 kit should I pick for this board?

The board has four DDR5 slots supporting up to 192 GB total and speeds beyond 8000 MT/s with XMP, AEMP II and DIMM Flex; populate all four slots for maximum capacity or two slots for the highest frequencies.

What does the 16+1+2 phase 70 A DrMOS design mean for daily use?

It delivers stable power to 14th, 13th and 12th Gen Intel Core processors, allowing sustained boost clocks and headroom for AI-assisted overclocking without VRM throttling.

How fast are the M.2 slots and what limits them?

One slot runs at PCIe 5.0 x4 from the CPU while four run at PCIe 4.0 x4 from the Z790 chipset; each is covered by full thermal armour to prevent throttling.
