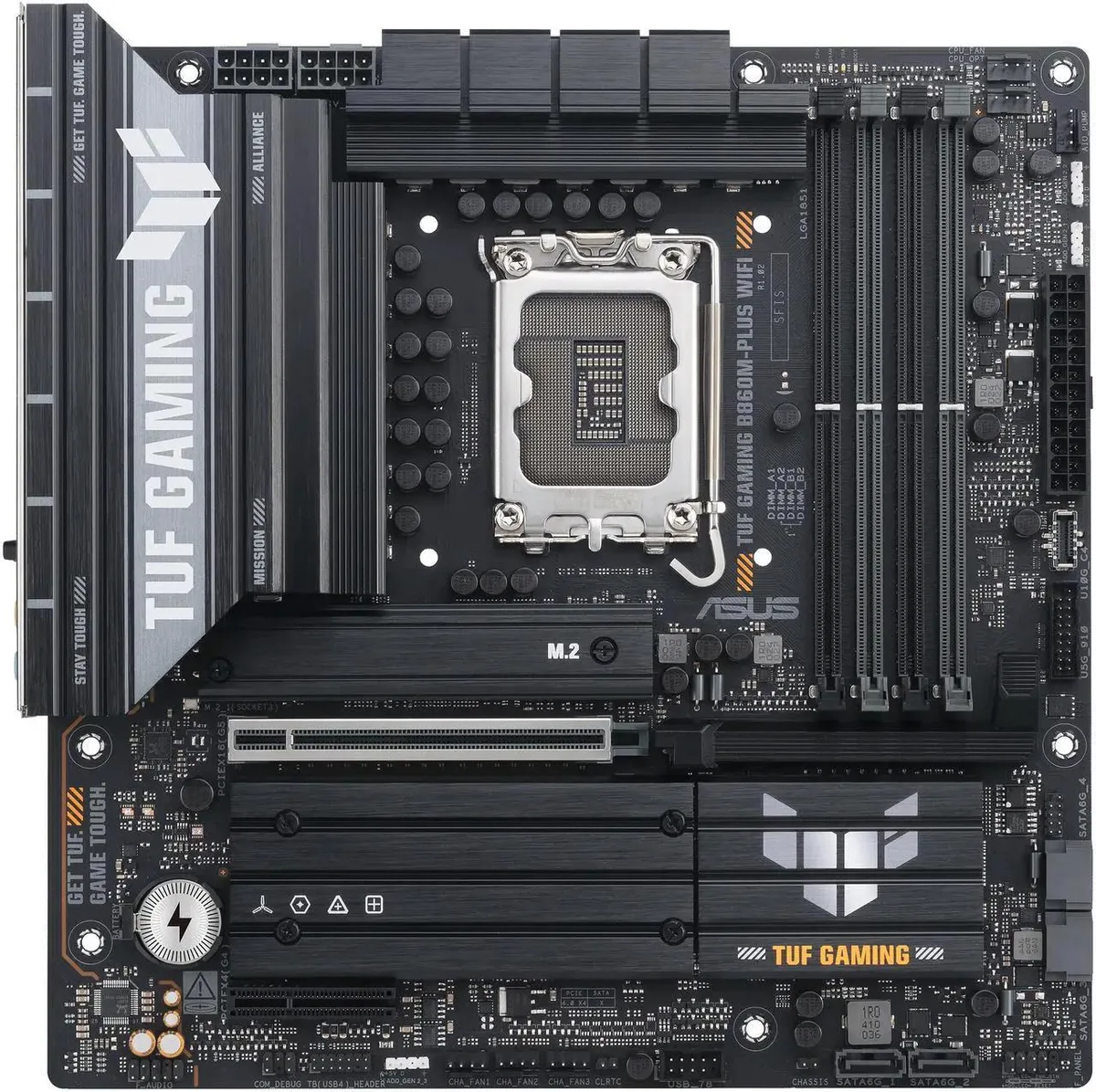

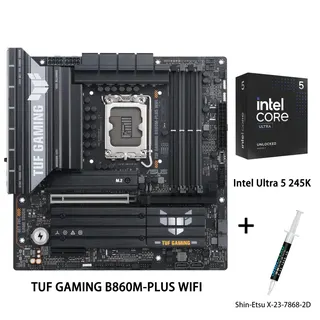

ASUS TUF B860M motherboard with Intel Ultra 5 245K CPU and thermal paste

ASUS

ASUS TUF GAMING B860M-PLUS WIFI Intel motherboard Ultra 5 245K combo

SKU CH-AR21-32JT0

Bundled Intel Ultra 5 245K processor and B860 mATX motherboard with DDR5 support up to 8800 MT/s, PCIe 5.0 graphics slot, three M.2 slots, Wi-Fi 7, Bluetooth 5.4.

  • CPU Socket TypeLGA 1851
  • ChipsetIntel B860
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to 8800+ MT/s (OC)
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel

model TUF GAMING B860M-PLUS WIFI

+CPU +Ultra 5 245K

  • Ready for Intel Core Ultra Series 2 processors with LGA 1851 socket
  • 12+2+1 80A DrMOS power stages for stable CPU delivery
  • DDR5 memory support up to 8800 MT/s and 192 GB capacity
  • One PCIe 5.0 M.2 slot plus two PCIe 4.0 M.2 slots with heatsinks
  • Onboard Wi-Fi 7 and 2.5 Gb Ethernet for high-speed networking

Combo purpose

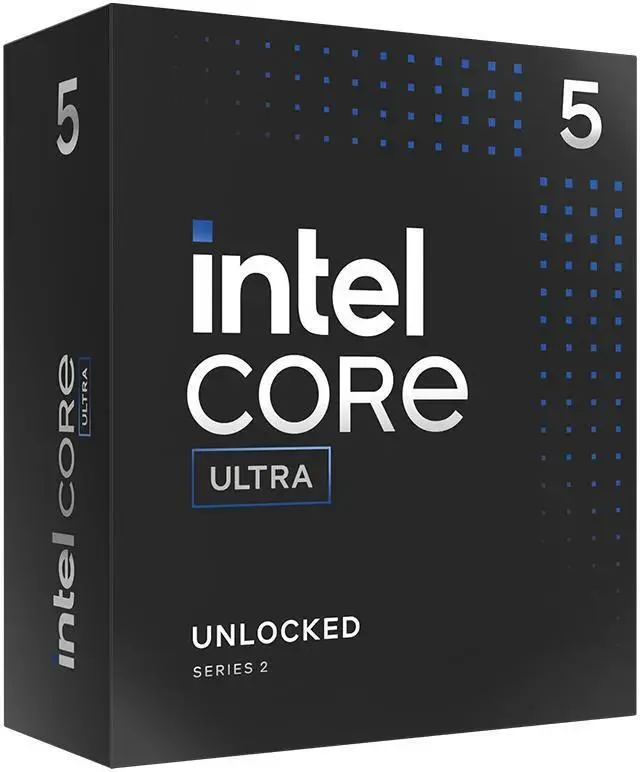

This package pairs the ASUS TUF GAMING B860M-PLUS WIFI motherboard with an Intel Ultra 5 245K processor and Shin-Etsu X-23-7868-2D thermal grease. It targets builders who want a ready-to-assemble foundation for an AI-capable desktop without selecting components separately. The board uses the Intel B860 chipset and LGA 1851 socket to support Core Ultra Series 2 CPUs. The 125W processor brings 24MB L3 and 26MB L2 cache plus integrated Intel Graphics.

Interface limits

Memory runs on four 288-pin DDR5 slots in dual-channel mode up to 192GB with XMP and AEMP III profiles. Expansion includes one PCIe 5.0 x16 slot from the CPU and one PCIe 4.0 x4 slot from the chipset. Storage offers three M.2 Key-M slots: one 2280 at PCIe 5.0 x4, one 2242/2260/2280 at PCIe 4.0 x4, and one 2280 at PCIe 4.0 x4, plus four SATA 6Gb/s ports with RAID 0/1/5/10. Rear I/O supplies USB 20Gbps Type-C with DP Alt mode, two USB 10Gbps Type-A, four USB 5Gbps Type-A, one USB 2.0 Type-A, HDMI, DisplayPort, 2.5Gb Ethernet, Wi-Fi 7 and Bluetooth 5.4.

Deciding spec

The power delivery uses 12+2+1 80A DrMOS stages fed by 8+8 pin ProCool connectors, alloy chokes and durable capacitors. This VRM design determines whether the board can sustain the Ultra 5 245K at its rated power without throttling.

Highlights

  • Ready for Intel Core Ultra Series 2 processors with LGA 1851 socket
  • 12+2+1 80A DrMOS power stages for stable CPU delivery
  • DDR5 memory support up to 8800 MT/s and 192 GB capacity
  • One PCIe 5.0 M.2 slot plus two PCIe 4.0 M.2 slots with heatsinks
  • Onboard Wi-Fi 7 and 2.5 Gb Ethernet for high-speed networking

Specifications

BrandASUS
ModelTUF GAMING B860M-PLUS WIFI+Ultra 5 245K
Part NumberTUF GAMING B860M-PLUS WIFI+Ultra 5 245K
CPU Socket TypeLGA 1851
ChipsetIntel B860
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to 8800+ MT/s (OC)
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory FeatureSupport up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16Intel Core Ultra Processors(series 2)
1 x PCIe 5.0 x16 slot
PCI Express x4Intel B860 Chipset
1 x PCIe 4.0 x4 slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Ultra Processors(series 2)*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
SATA RAID* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Onboard USB1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x Front panel audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt (USB4) header
BIOS Feature2 x 128 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost
Windows 11Windows 11
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- Addressable Gen 2 headers
Package Contents1 x Intel Ultra 5 245K CPU
1 x Thermal grease: Shin-Etsu X-23-7868-2D
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 Rubber Packages
1 x TUF Gaming sticker
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the combo with the Ultra 5 245K or look for a board-only option?

This listing is a fixed bundle that includes the TUF GAMING B860M-PLUS WIFI motherboard, the Intel Ultra 5 245K processor and a tube of Shin-Etsu X-23-7868-2D thermal grease; no board-only variant is offered here.

What does the 12+1+2+1 80A power-stage design actually deliver for the Ultra 5 245K?

The 12+1+2+1 DrMOS stages rated at 80 A each feed the processor's 125 W base power through dual 8-pin ProCool connectors, giving stable voltage for sustained boost clocks and overclocking headroom.

Which M.2 slot runs at PCIe 5.0 and what speed does that cap at?

The primary M.2_1 slot is wired to the CPU and operates at PCIe 5.0 x4, while the two chipset-linked slots run at PCIe 4.0 x4; all three accept 2280 drives and include heatsinks.
