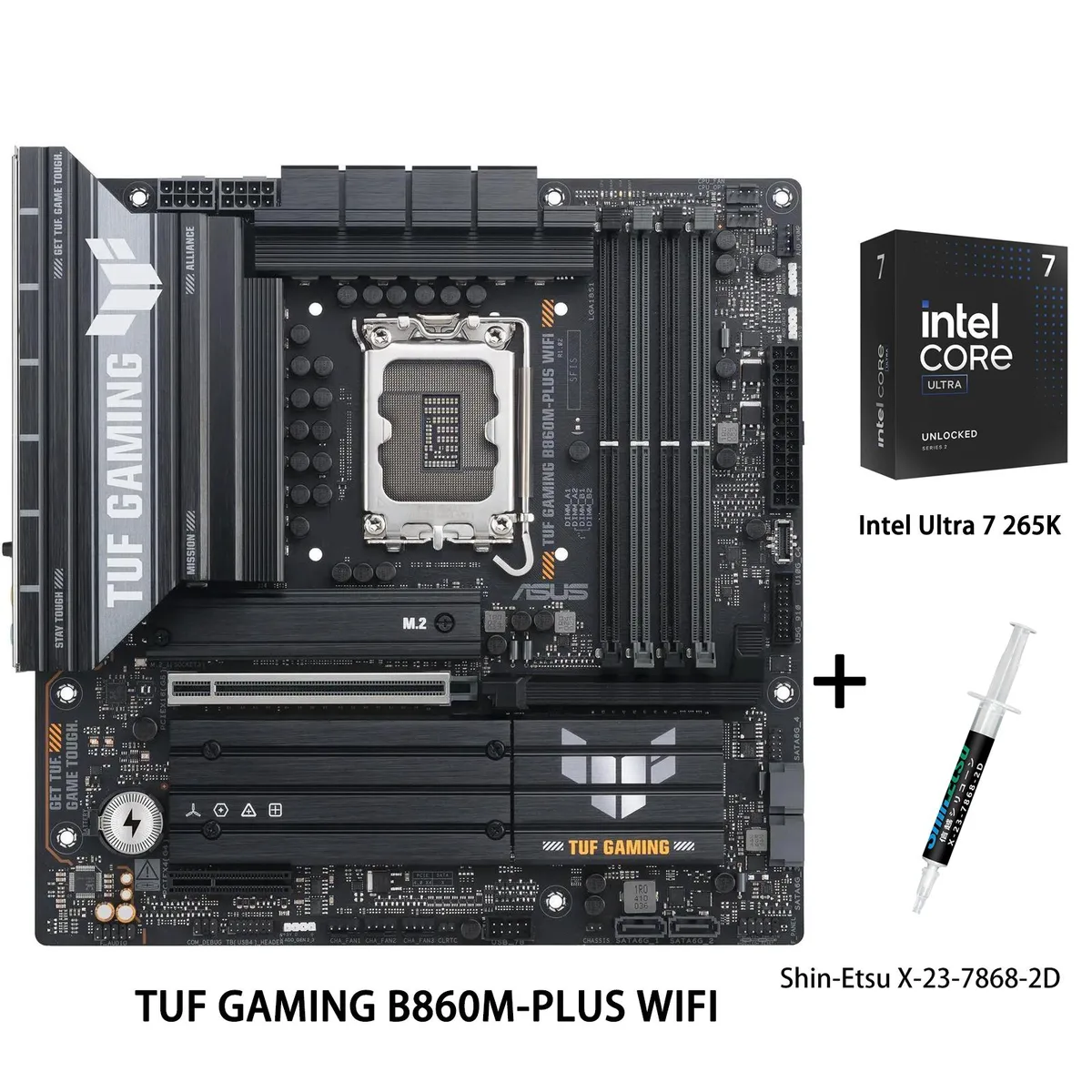

ASUS TUF B860M motherboard and Ultra 7 265K CPU with thermal grease

ASUS

ASUS TUF GAMING B860M-PLUS WIFI Intel motherboard & Ultra 7 265K CPU combo

SKU CH-JA47-GAWV7

Pairs an Intel B860 mATX board with a 125 W Core Ultra 7 265K, delivering DDR5 up to 8800 MT/s, PCIe 5.0 graphics and M.2, 2.5 Gb Ethernet and Wi-Fi 7

  • CPU Socket TypeLGA 1851
  • ChipsetIntel B860
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to 8800+ MT/s (OC)
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel

model TUF GAMING B860M-PLUS WIFI

+CPU +Ultra 7 265K

  • Ready for Intel Core Ultra Series 2 processors with LGA 1851 socket
  • 12+2+1 80A DrMOS power stages deliver stable CPU power
  • DDR5 memory support up to 8800 MT/s and 192 GB capacity
  • One PCIe 5.0 M.2 slot plus two PCIe 4.0 M.2 slots with heatsinks
  • Wi-Fi 7 and 2.5 Gb Ethernet for high-speed networking

Combo contents

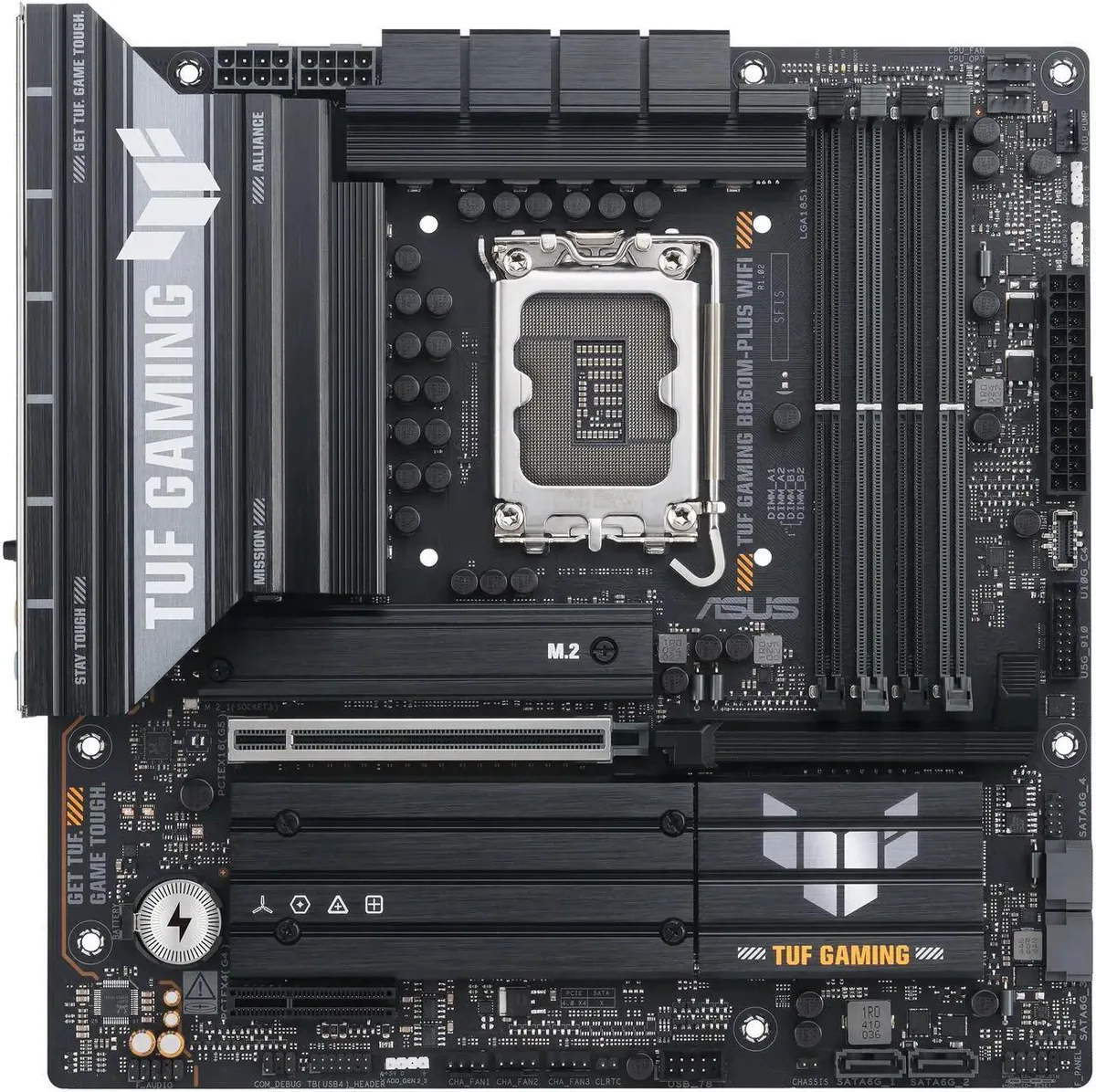

This bundle pairs an ASUS TUF GAMING B860M-PLUS WIFI motherboard with an Intel Core Ultra 7 265K processor and a tube of Shin-Etsu X-23-7868-2D thermal grease. The board uses the Intel B860 chipset on a micro-ATX PCB and is built around the LGA 1851 socket for Intel Core Ultra Series 2 CPUs. It targets builders who want a ready-matched platform for AI-assisted workloads and high-refresh gaming without selecting parts separately.

Before ordering

Verify that your chassis accepts a micro-ATX board and provides clearance for the VRM heatsinks and the three onboard M.2 heatsinks. The CPU draws 125 W base power, so confirm your cooler is rated for that thermal load and that your power supply carries dual 8-pin EPS connectors for the board's ProCool headers. Memory must be DDR5 CUDIMM; the board offers four 288-pin slots supporting up to 192 GB in dual-channel mode at speeds up to 8800 MT/s when overclocked.

Sustained load behaviour

The 12+2+1 80 A DrMOS power stages and large VRM heatsinks are designed to maintain stable voltage delivery during extended compute sessions. All three M.2 slots — one PCIe 5.0 x4 and two PCIe 4.0 x4 — include dedicated heatsinks to throttle NAND temperatures under continuous read-write cycles. Fan Xpert 4 and hybrid fan headers allow custom curves that keep airflow proportional to actual component temperatures rather than short bursts.

Highlights

  • Ready for Intel Core Ultra Series 2 processors with LGA 1851 socket
  • 12+2+1 80A DrMOS power stages deliver stable CPU power
  • DDR5 memory support up to 8800 MT/s and 192 GB capacity
  • One PCIe 5.0 M.2 slot plus two PCIe 4.0 M.2 slots with heatsinks
  • Wi-Fi 7 and 2.5 Gb Ethernet for high-speed networking

Specifications

BrandASUS
ModelTUF GAMING B860M-PLUS WIFI+Ultra 7 265K
Part NumberTUF GAMING B860M-PLUS WIFI+Ultra 7 265K
CPU Socket TypeLGA 1851
ChipsetIntel B860
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to 8800+ MT/s (OC)
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory FeatureSupport up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16Intel Core Ultra Processors(series 2)
1 x PCIe 5.0 x16 slot
PCI Express x4Intel B860 Chipset
1 x PCIe 4.0 x4 slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Ultra Processors(series 2)*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
SATA RAID* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Onboard USB1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x Front panel audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt (USB4) header
BIOS Feature2 x 128 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost
Windows 11Windows 11
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- Addressable Gen 2 headers

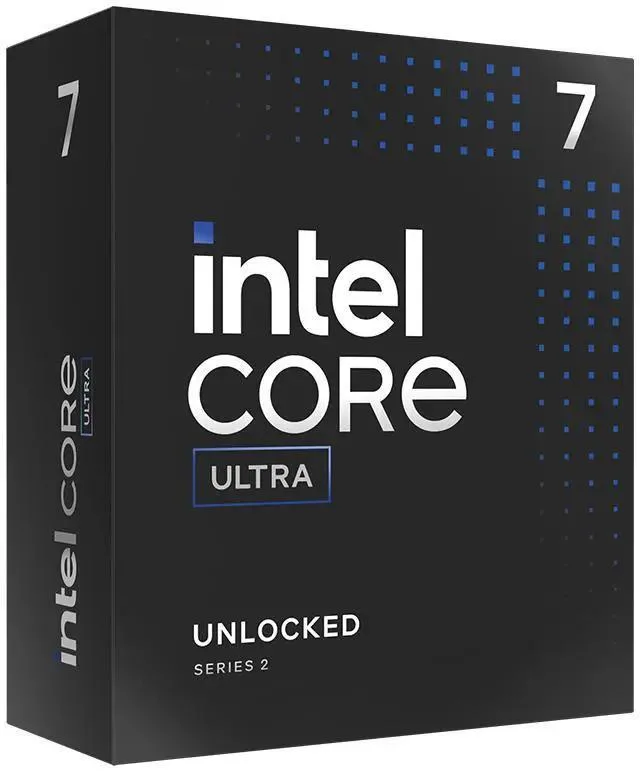

Package Contents1 x Intel Ultra 7 265K CPU
1 x Thermal grease: Shin-Etsu X-23-7868-2D
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 Rubber Packages
1 x TUF Gaming sticker
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the ASUS TUF GAMING B860M-PLUS WIFI combo box and what must I buy separately?

The box contains the B860M-PLUS WIFI motherboard, an Intel Core Ultra 7 265K processor and Shin-Etsu X-23-7868-2D thermal grease. You must buy DDR5 memory, storage drives, a graphics card, a CPU cooler, a power supply, a case and an operating system separately.

How do I choose between the three M.2 slots on the B860M-PLUS WIFI for my SSD?

M.2_1 supports PCIe 5.0 x4 and is the fastest slot for a 2280 drive. M.2_2 and M.2_3 run at PCIe 4.0 x4; M.2_2 accepts 2242, 2260 or 2280 lengths while M.2_3 takes 2280 only. All three have heatsinks.

What does the 8800 MT/s DDR5 rating mean once the Ultra 7 265K and motherboard are assembled?

8800 MT/s is an overclocked ceiling reachable with XMP or AEMP III modules and a capable cooler. Default JEDEC speeds will be lower; actual throughput depends on the memory kit, CPU silicon quality and BIOS tuning.
