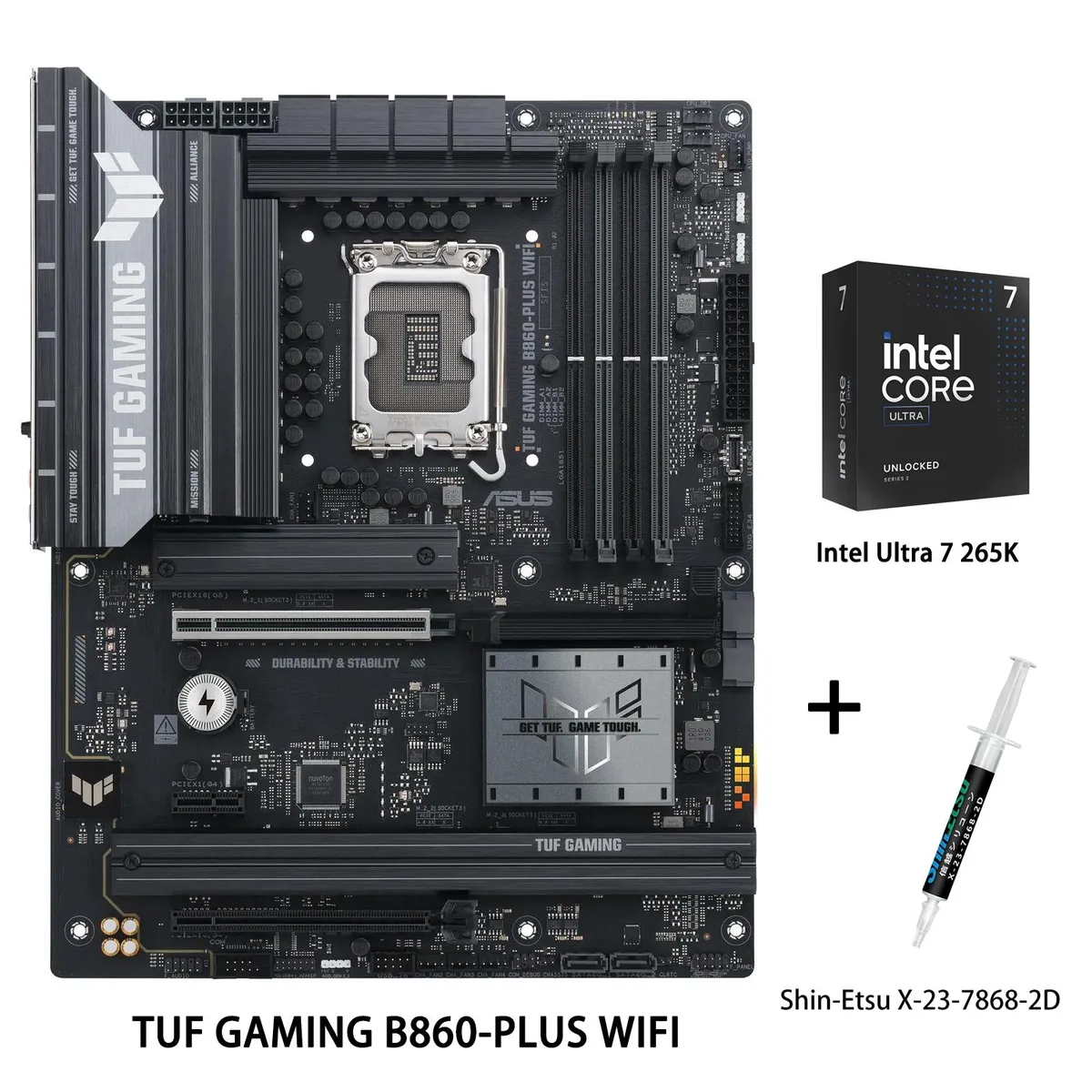

ATX motherboard and LGA 1851 CPU in retail packaging

ASUS

ASUS TUF GAMING B860-PLUS WIFI Intel Ultra 7 265K Combo Intel motherboard

SKU CH-2WRQ-1H47Q

Combines an Intel Core Ultra 7 265K processor with a B860 ATX motherboard featuring DDR5 support up to 8666 MT/s, three M.2 slots, Wi-Fi 7, 2.5 Gbps LAN, and 12+2+1 80A DrMOS power stages

  • CPU Socket TypeLGA 1851
  • ChipsetIntel B860
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to 8666+MT/s (OC)
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel

model TUF GAMING B860-PLUS WIFI

+CPU +Ultra 7 265K

  • Ready for Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 12+2+1 80A DrMOS power stages deliver stable CPU power
  • DDR5 memory support up to 8666+ MT/s (OC) and 192 GB capacity
  • PCIe 5.0 x16 slot plus one PCIe 5.0 M.2 and two PCIe 4.0 M.2 slots
  • Onboard Wi-Fi 7, Bluetooth 5.4 and 2.5 Gb Ethernet for fast networking

Ready for Advanced AI PC

This combo pairs the ASUS TUF GAMING B860-PLUS WIFI motherboard with the Intel Core Ultra 7 265K processor and Shin-Etsu X-23-7868-2D thermal grease. The board uses the Intel B860 chipset on an ATX form factor with an LGA 1851 socket. It targets builders who want a platform prepared for demanding AI workloads and high-performance computing. The processor operates at a 125W base power with 30MB L3 and 36MB L2 cache.

Bundled thermal grease and DIY features

The included Shin-Etsu X-23-7868-2D compound ensures effective heat transfer between the CPU and your chosen cooler. Motherboard conveniences such as PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED and BIOS FlashBack simplify assembly and troubleshooting. A pre-mounted I/O shield saves an installation step. These additions reduce build friction without changing the core specifications of the board or processor.

Interface and connectivity limits

The platform delivers one PCIe 5.0 x16 slot from the CPU and a second PCIe 4.0 x16 slot from the chipset that runs at x4 mode, sharing bandwidth with the PCIe 4.0 x1 slot. Storage options include one PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with heatsinks. Networking tops out at 2.5Gbps Ethernet and Wi-Fi 7 (802.11be) with Bluetooth 5.4. Rear USB reaches 20Gbps Type-C with DP Alt mode while front-panel USB offers 10Gbps Type-C.

Highlights

  • Ready for Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 12+2+1 80A DrMOS power stages deliver stable CPU power
  • DDR5 memory support up to 8666+ MT/s (OC) and 192 GB capacity
  • PCIe 5.0 x16 slot plus one PCIe 5.0 M.2 and two PCIe 4.0 M.2 slots
  • Onboard Wi-Fi 7, Bluetooth 5.4 and 2.5 Gb Ethernet for fast networking

Specifications

BrandASUS
ModelTUF GAMING B860-PLUS WIFI+Ultra 7 265K
Part NumberTUF GAMING B860-PLUS WIFI+Ultra 7 265K
CPU Socket TypeLGA 1851
ChipsetIntel B860
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to 8666+MT/s (OC)
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory FeatureSupport up to 8666+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
**Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
PCI Express 5.0 x16Intel Core Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16Intel B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)*
PCI Express x11 x PCIe 4.0 x1 slot*
* PCIEX16(G4) shares bandwidth with PCIEX1(G4). When PCIEX1(G4) runs at PCIe x1 mode, PCIEX16(G4) will only run at PCIe x2 mode.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAID* Intel Rapid Storage Technology supports, SATA RAID 0/1/5/10.
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
2 x USB 10Gbps ports (2 x USB Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
Onboard USB1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt (USB4) header
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
ASUS DriverHub
ASUS GlideX
TUF GAMING CPU-Z
Adobe Creative Cloud (Free Trial)
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Windows 11 (22H2 & later)
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Package Contents1 x Intel Ultra 7 265K CPU
1 x Thermal grease: Shin-Etsu X-23-7868-2D
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the included thermal grease be enough for the Intel Ultra 7 265K installation?

The bundle includes Shin-Etsu X-23-7868-2D thermal grease, supplied specifically for the included processor.

What memory speed can I expect without manual overclocking on this board?

The motherboard supports ASUS Enhanced Memory Profile III (AEMP III) which automatically optimises compatible DDR5 modules beyond base JEDEC speeds.

How many high-speed M.2 drives can I fit without losing PCIe 5.0 graphics bandwidth?

The top M.2_1 slot runs at PCIe 5.0 x4 directly from the CPU, while M.2_2 and M.2_3 run from the chipset, leaving the PCIe 5.0 x16 graphics slot unaffected.
