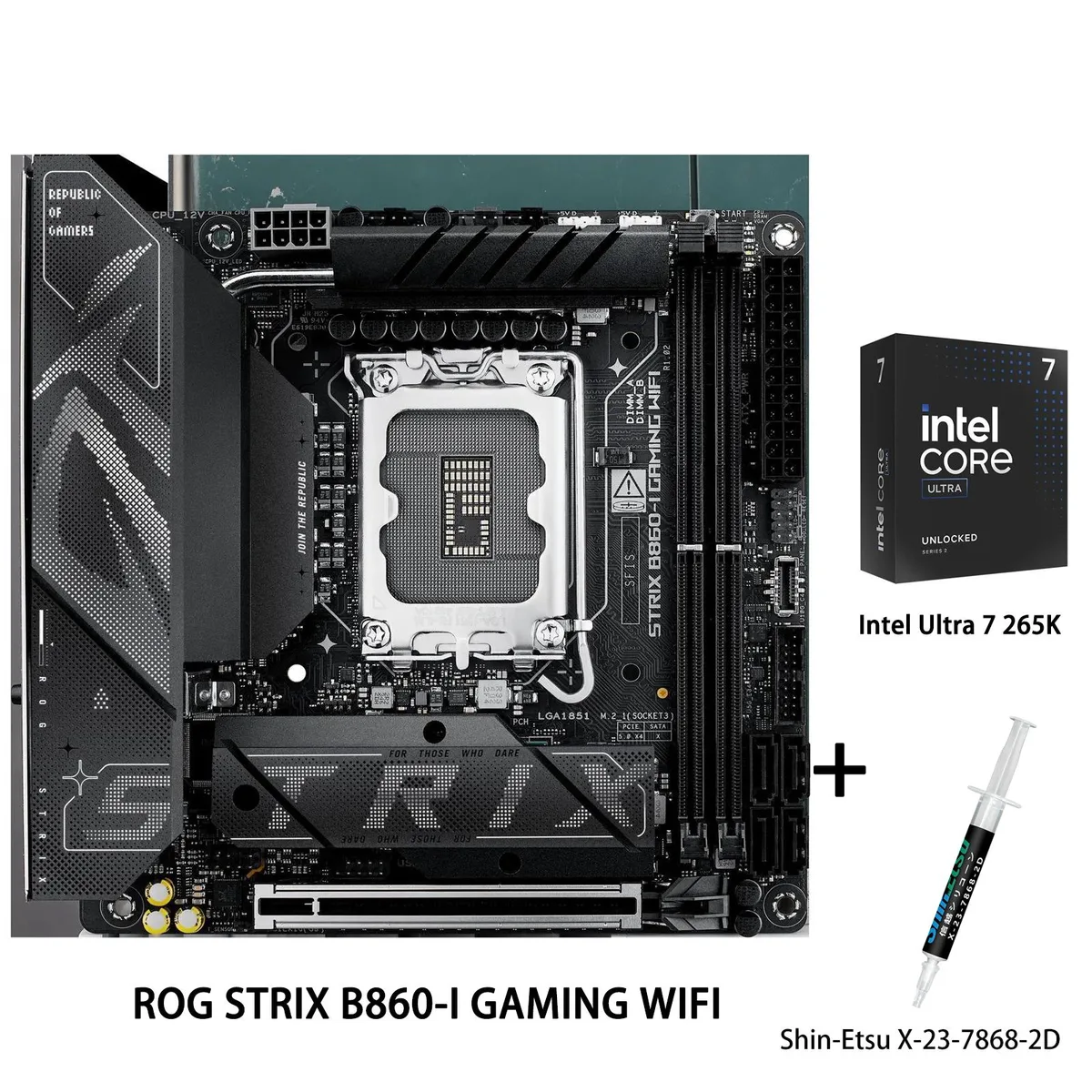

Compact Mini-ITX board with dark heatsinks and I/O shield, boxed CPU and small thermal-paste tube

ASUS

ASUS ROG STRIX B860-I GAMING WIFI + Ultra 7 265K Intel motherboard combo

SKU CH-8437-1K0XF

Mini-ITX B860 board with 10+1+2+1 80A power stages, dual DDR5 slots up to 9066 MT/s, PCIe 5.0 x16 and two M.2 slots, 2.5G LAN, WiFi7, Bluetooth 5.4, Thunderbolt.

  • CPU Socket TypeLGA 1851
  • ChipsetIntel B860
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardUp to 9066+MT/s (OC)
  • Maximum Memory Supported96GB
  • Channel SupportedDual Channel

model ROG STRIX B860-I GAMING WIFI

+CPU +Ultra 7 265K

  • Ready for Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 10+1+2+1 80A power stages deliver stable energy to the CPU
  • Dual DDR5 slots support up to 96GB at 9066 MT/s
  • Two M.2 slots with PCIe 5.0 and 4.0 x4 modes for fast storage
  • WiFi7 and 2.5G LAN plus Thunderbolt 4 give high-speed connectivity

Combo contents

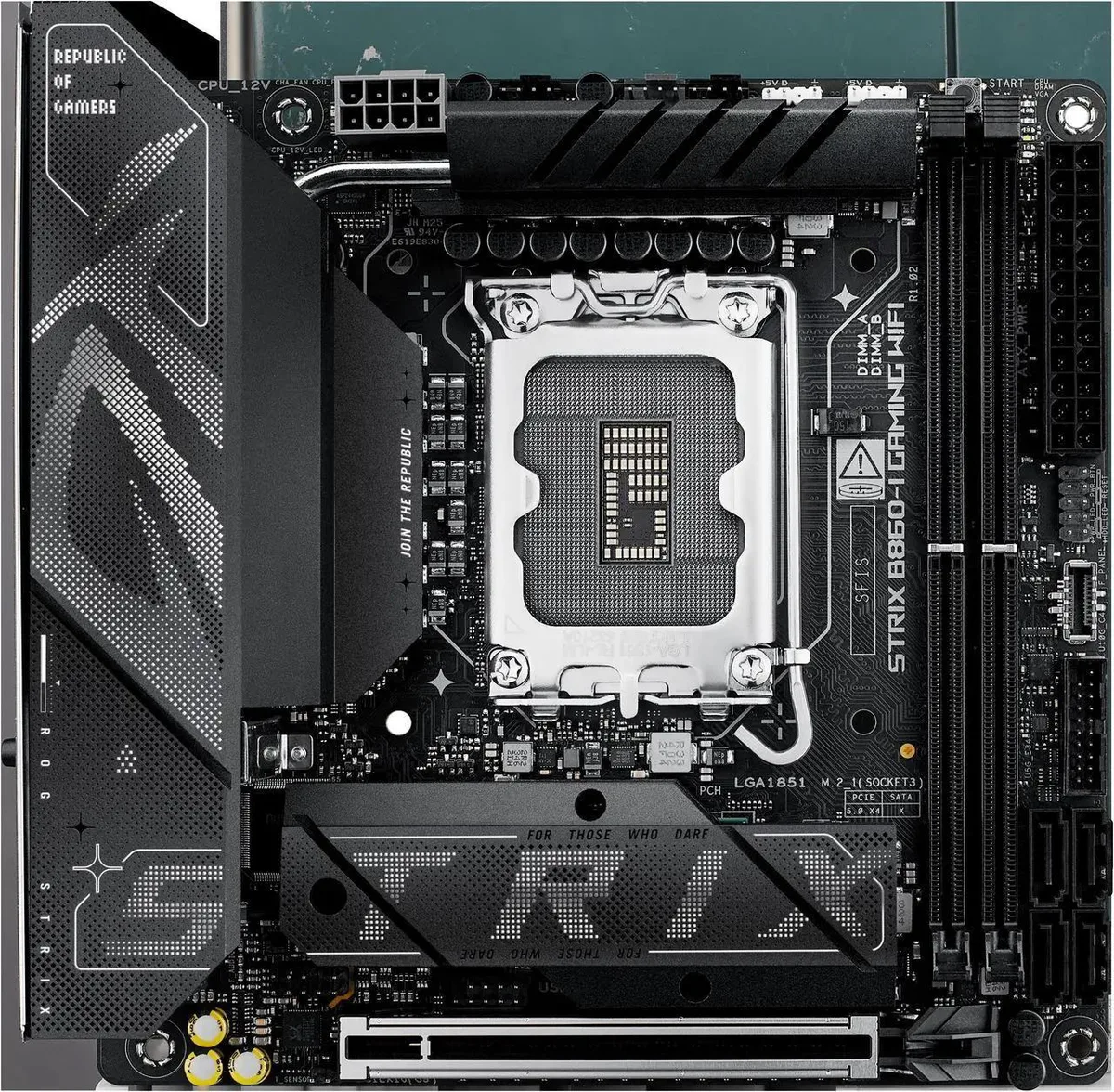

This bundle pairs the ROG STRIX B860-I GAMING WIFI motherboard with an Intel Core Ultra 7 265K processor and Shin-Etsu X-23-7868-2D thermal grease. The board uses the Intel B860 chipset on a Mini-ITX PCB with an LGA 1851 socket. It is aimed at builders who want a compact platform ready for advanced AI workloads and high-speed connectivity.

Before ordering

Verify that your chassis accepts a Mini-ITX motherboard and that the CPU cooler you plan to use clears the board’s integrated I/O cover and L-shaped heatpipe. The processor draws 125 W, so ensure your power supply has the required 8-pin ProCool connector and sufficient headroom. You will need DDR5 modules; the board has two 288-pin slots supporting up to 96 GB in dual-channel mode.

Under sustained load

The 10+1+2+1 power-stage design uses 80 A stages with MicroFine alloy chokes and metallic capacitors to deliver stable current during extended compute tasks. Massive heatsinks linked by the L-shaped heatpipe spread heat from the VRM and the primary M.2 slot. WiFi7 and 2.5 Gbps LAN maintain throughput, while the Realtek ALC1220P codec drives 7.1 audio without thermal throttling.

Highlights

  • Ready for Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 10+1+2+1 80A power stages deliver stable energy to the CPU
  • Dual DDR5 slots support up to 96GB at 9066 MT/s
  • Two M.2 slots with PCIe 5.0 and 4.0 x4 modes for fast storage
  • WiFi7 and 2.5G LAN plus Thunderbolt 4 give high-speed connectivity

Specifications

BrandASUS
ModelROG STRIX B860-I GAMING WIFI+Ultra 7 265K
Part NumberROG STRIX B860-I GAMING WIFI+Ultra 7 265K
CPU Socket TypeLGA 1851
ChipsetIntel B860
Number of Memory Slots2x288pin (DDR5)
Memory StandardUp to 9066+MT/s (OC)
Maximum Memory Supported96GB
Channel SupportedDual Channel
Memory FeatureDual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMPIII)
PCI Express 5.0 x16Intel Core Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAIDIntel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio ChipsetRealtek ALC1220P
Audio ChannelsRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
* Due to limitati
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports1 x Thunderbolt 4 port (1 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps ports (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x Clear CMOS button
Onboard USB1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
1 x 4-pin Chassis Fan headers
Miscellaneous
2 x Addressable Gen2 headers
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- GameFirst
- Power Saving
AIDA64 Extreme (60 days free trial)
HWiNFO
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost
Windows 11Windows 11 (22H2 & later)
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- M.2 Q-Latch
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- Clear CMOS button
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen2 headers
Package Contents1 x Intel Ultra 7 265K CPU
1 x Thermal grease: Shin-Etsu X-23-7868-2D
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
2 x Screw packages for M.2 SSD
1 x Fan Bracket
1 x ROG key chain
1 x ROG Strix stickers
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the combo ship with thermal grease, or do I need to buy paste separately?

The package includes Shin-Etsu X-23-7868-2D thermal grease, so no separate purchase is required.

Which DDR5 speed should I target for the Ultra 7 265K on this board?

The motherboard supports up to 9066+ MT/s when overclocked; pick a kit rated at or above your desired frequency with XMP or AEMP III support.

What does the 125 W rating mean for daily cooling on this mini-ITX build?

The processor has a 125 W base power; pair it with a capable low-profile or AIO cooler that fits the LGA 1851 socket and the compact chassis.
