Silver 10-bay desktop NAS enclosure with front drive trays

ASUSTOR

ASUSTOR AS6510T 10-Bay NAS 8GB DDR4

SKU CH-XFY2-508E9 MPN AS6510T

Ten-bay desktop NAS with quad-core Atom C3538 CPU, 8GB DDR4 RAM, dual 10GbE and dual 2.5GbE ports, plus two M.2 slots for NVMe cache

  • TypeDesktop NAS
  • Ports2 x 10GbE / 2 x 2.5GbE / 2 x USB 3.2 Gen 1
  • Port RJ-452 x 2.5 GbE, 2 x 10 GbE
  • Port USB2 x USB 3.2 Gen 1
  • HDD Interface10 x SATA (10 x Bay)
  • Form Factor10-Bay

Form Factor 10-Bay

  • 4-Bay
  • 6-Bay
  • 8-Bay
  • 10-Bay

Struck-through versions exist but are not stocked here.

Processor Intel Atom

Option AS6510T

Struck-through versions exist but are not stocked here.

  • 10 drive bays support up to 220 TB raw capacity
  • Quad-core Intel Atom C3538 at 2.1 GHz delivers responsive processing
  • Dual 10 GbE and dual 2.5 GbE ports enable high-speed network throughput
  • 8 GB DDR4-2133 RAM expandable to 64 GB for demanding workloads
  • Two M.2 2280 slots add NVMe or SATA cache acceleration

10-Bay Desktop NAS with Dual 10GbE

The ASUSTOR AS6510T is a diskless 10-bay desktop NAS powered by an Intel Atom C3538 quad-core processor running at 2.1 GHz. It ships with 8 GB of DDR4-2133 memory, expandable to 64 GB across two SODIMM slots. The unit provides two 10 GbE and two 2.5 GbE RJ45 ports, plus two USB 3.2 Gen 1 ports for peripheral expansion.

Who this suits and who should look elsewhere

This NAS suits businesses and power users needing high-capacity storage with fast multi-gigabit networking and hardware-accelerated encryption. It is not for buyers who need more than ten drive bays, who require 25 GbE or faster networking, or who want a rackmount form factor instead of a desktop chassis.

Specification that decides fit

The defining specification is the ten SATA drive bays combined with dual 10 GbE ports, allowing up to 220 TB raw capacity and aggregated 20 Gbps throughput for demanding file-serving and virtualisation workloads.

Highlights

  • 10 drive bays support up to 220 TB raw capacity
  • Quad-core Intel Atom C3538 at 2.1 GHz delivers responsive processing
  • Dual 10 GbE and dual 2.5 GbE ports enable high-speed network throughput
  • 8 GB DDR4-2133 RAM expandable to 64 GB for demanding workloads
  • Two M.2 2280 slots add NVMe or SATA cache acceleration

Specifications

BrandAsustor
ModelAS6510T
TypeDesktop NAS
Ports2 x 10GbE / 2 x 2.5GbE / 2 x USB 3.2 Gen 1
Port RJ-452 x 2.5 GbE, 2 x 10 GbE
Port USB2 x USB 3.2 Gen 1
HDD Interface10 x SATA (10 x Bay)
Form Factor10-Bay
Operating SystemWindows XP, Vista, 7, 8, 10, Server 2003, Server 2008, Server 2012, Server 2016, Server 2019
macOS
UNIX, Linux, and BSD
ProcessorIntel ATOM C3538
Installed Memory8GB DDR4
Max Memory Capacity64GB
Memory Slot2 x DDR4 SODIMM
Included HDD CapacityDiskless System
Max Capacity220TB
RAIDRAID 0, 1, 5, 6, 10, and JBOD
Drive Compatibility10 x 3.5"/2.5" HDD/SSD
2x M.2 PCIe (NVMe) / SATA *M.2 2280, 2260, 2242.
PowerPower Supply Unit / Adapter: 250W x1
Input Power Voltage: 100V to 240V AC
Power Consumption76.8W (Operation)
41.1W (Disk Hibernation)
FeaturesIntel Denverton-based Atom C3538 Quad-Core CPU
8GB DDR4-2133 SO-DIMM - 30% faster than DDR3
Dual Intel 10-Gigabit Ethernet ports - Supports up to 20 Gbps under Link Aggregation
Dual Realtek 2.5-Gigabit Ethernet ports - Supports up to 5 Gbps under Link Aggregation
Supports 10x 3.5" SATA hard drives
Dual M.2 NVMe SSD ports for fast caching
Supports an extra 144 TB with the AS6004U
Thumbscrews for easy M.2 SSD installation
Supports Wake on LAN and Wake on WAN
Efficient cooling design
Best in class three year warranty
UsageBackup & stream media through personal cloud

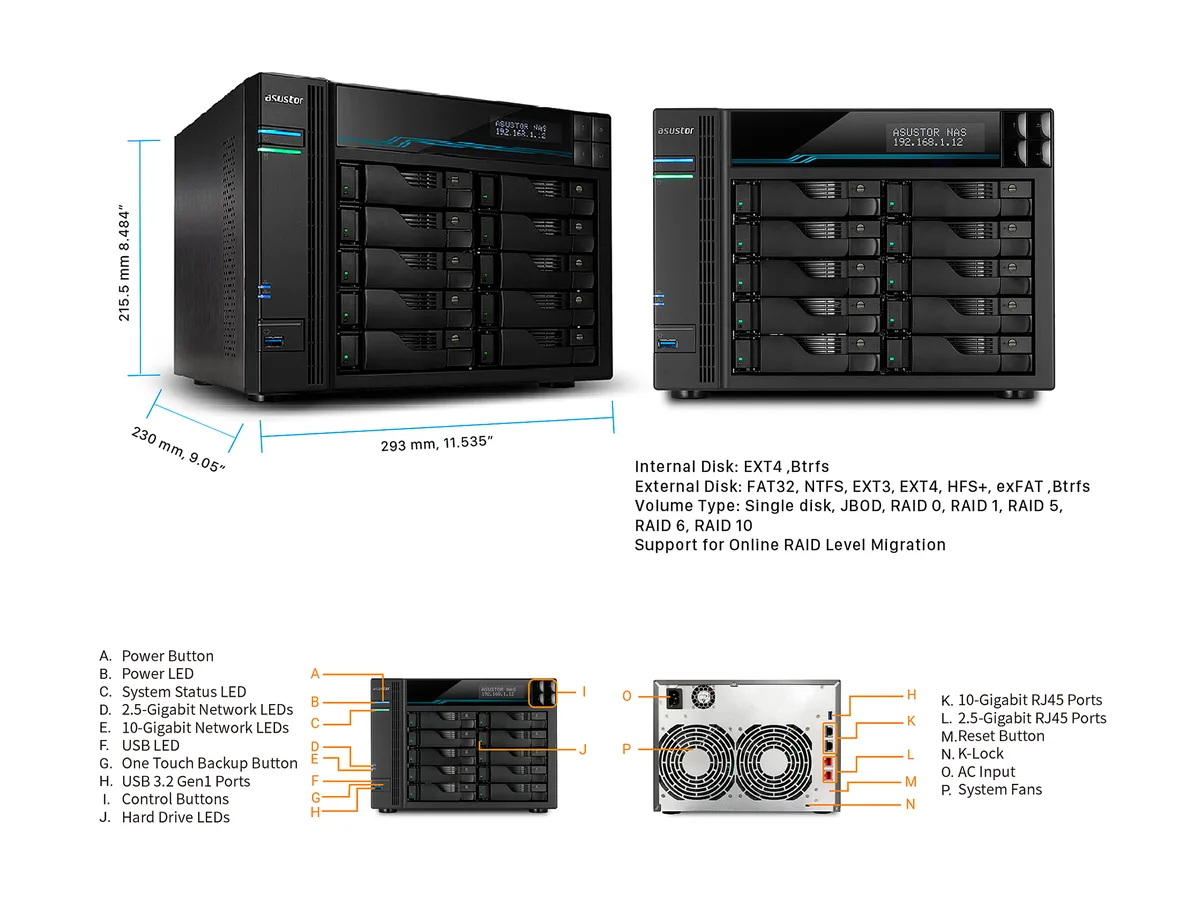

Dimensions8.48" x 11.54" x 9.06"
Weight14.10 lbs.

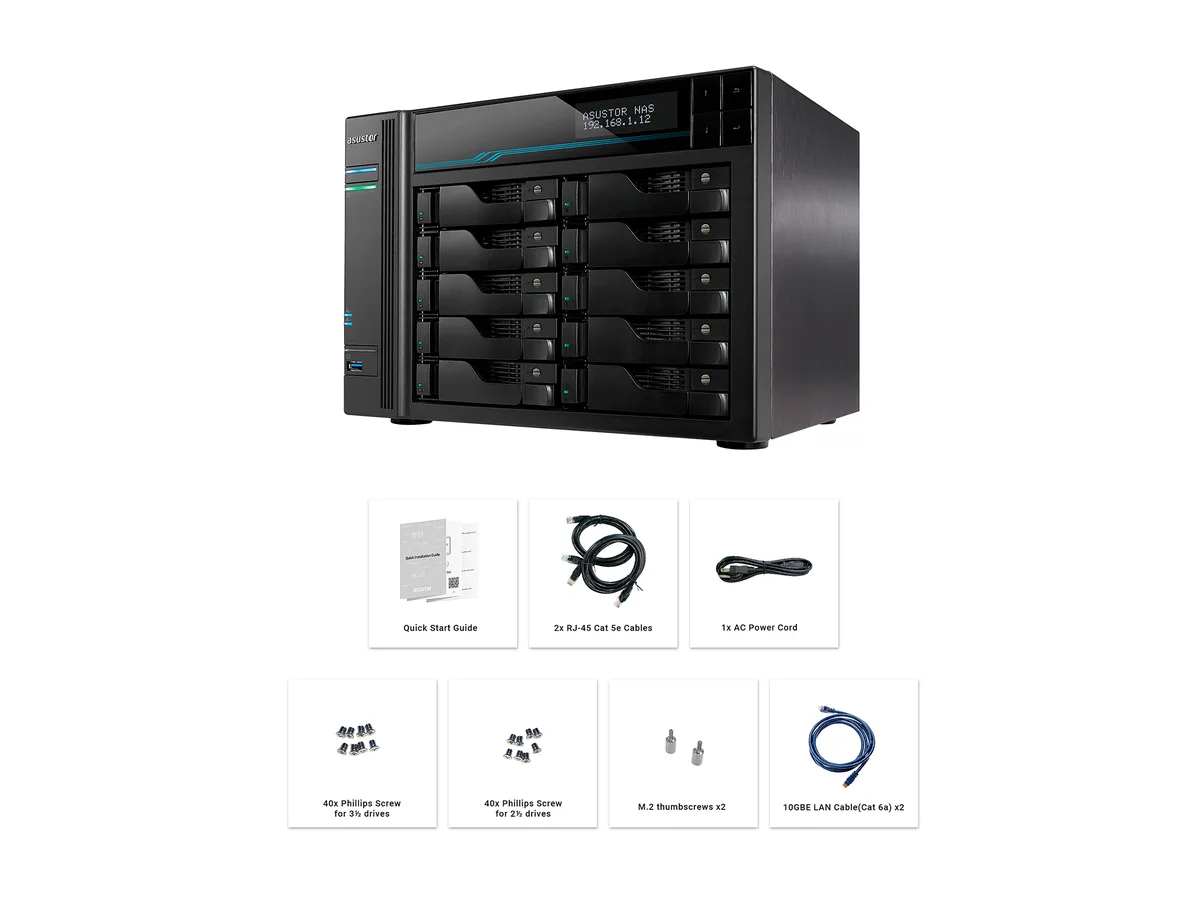

Package Contents1 x LOCKERSTOR 10 (AS6510T) Unit
Quick Installation Guide
1 x AC Power Cord
2 x RJ-45 LAN Cable(Cat 5e)
2 x 10GBE LAN Cable(Cat 6a)
40 x Flat Head Screw (for 3.5" HDD)
40 x Flat Head Screw (for 2.5" HDD)
2 x M.2 thumbscrews
Shipping weight7.68 kg
Package size379 × 339 × 323 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the M.2 2280 NVMe cache drives in the AS6510T?

Power off the unit, remove the two M.2 slot covers, insert each NVMe SSD at an angle into the PCIe 2280 slot, secure with the screw, replace covers, then enable SSD cache in ADM storage manager.

What memory upgrades does the AS6510T support later?

Two DDR4 SODIMM slots accept up to 64 GB total of DDR4-2133 modules; replace the factory 8 GB stick or add a second matching module for dual-channel operation.

What is the sustained write bottleneck when using the dual 10GbE ports in RAID 5?

RAID 5 write throughput peaks at 1040 Mb/s over 10GbE, so the array write speed becomes the limiting factor before the network links saturate.
