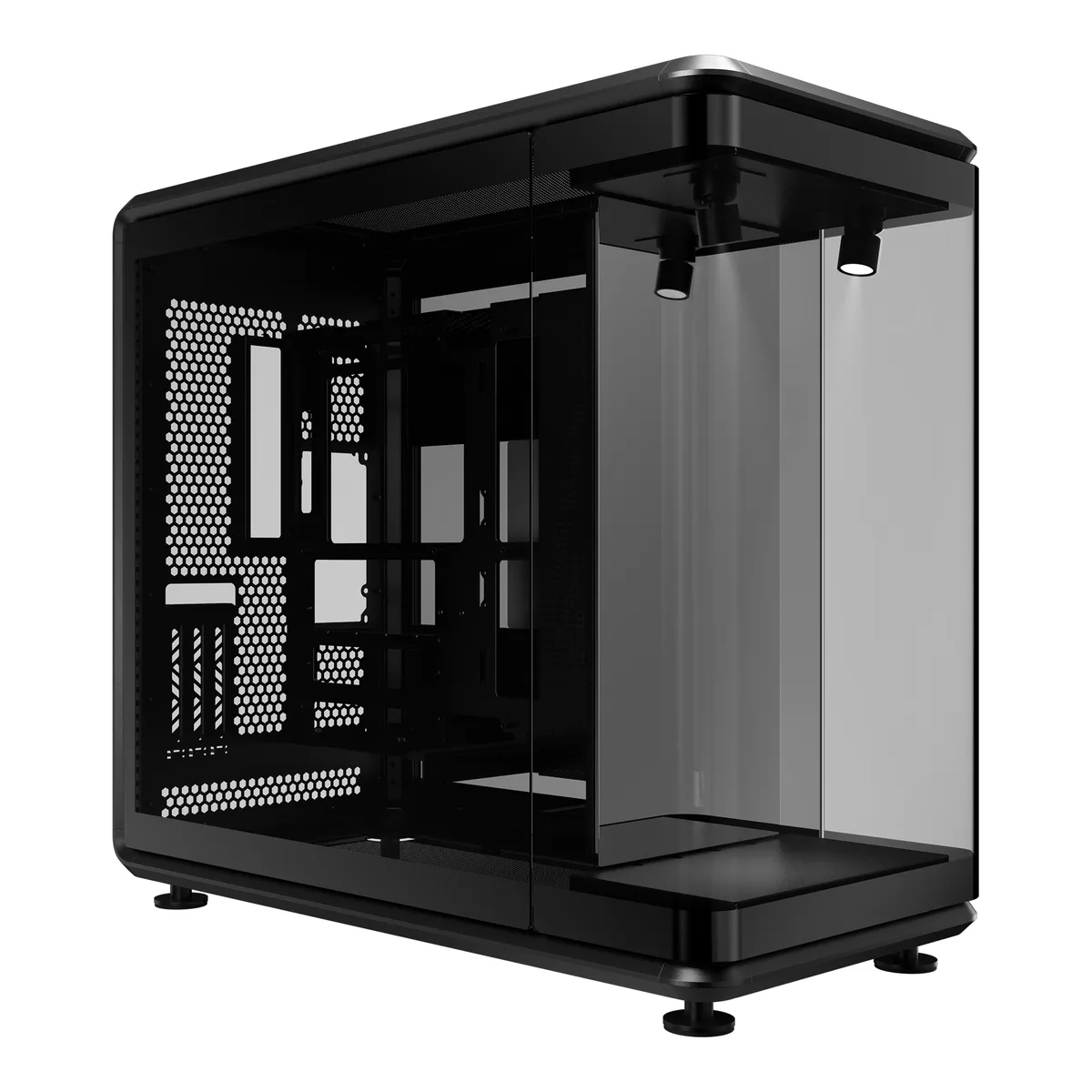

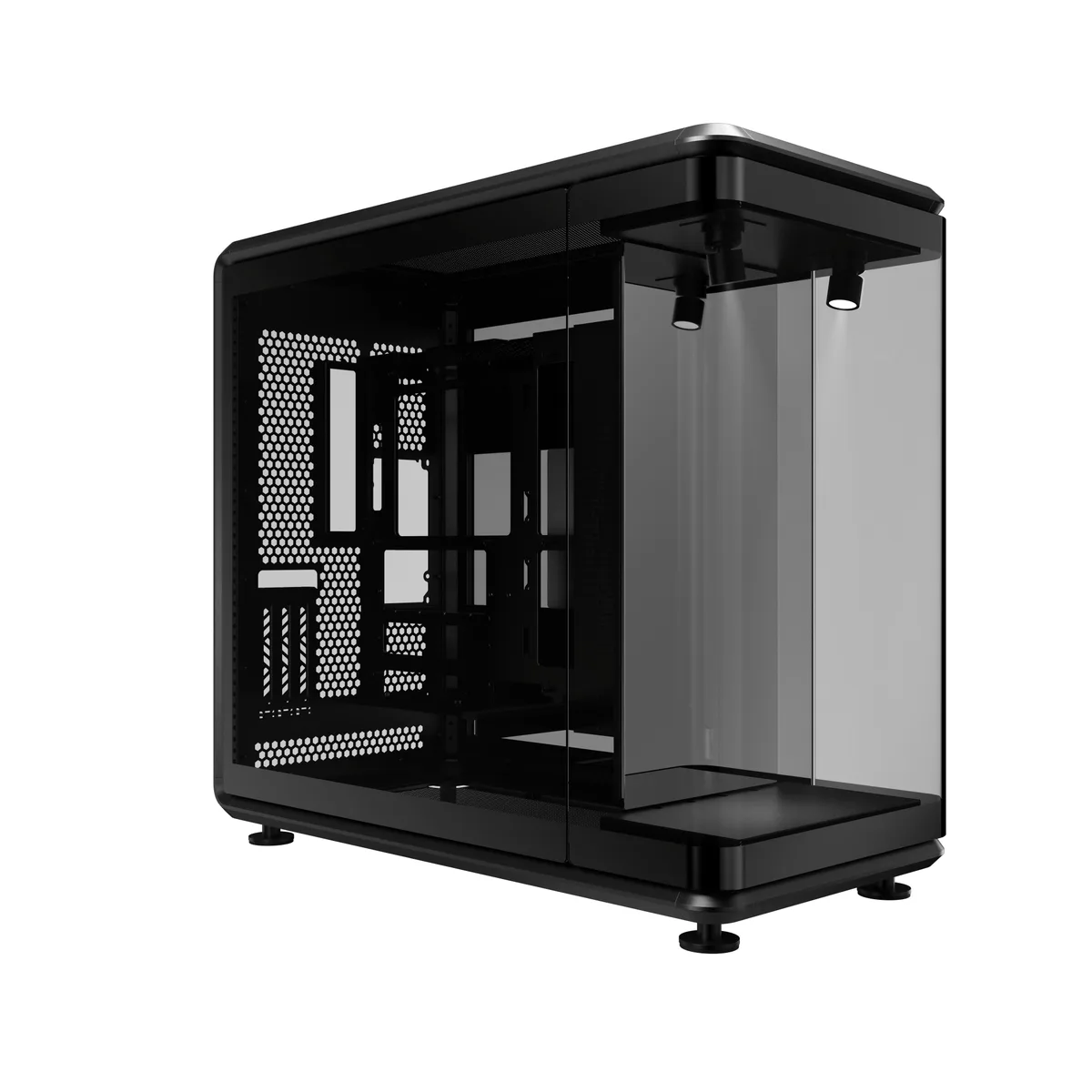

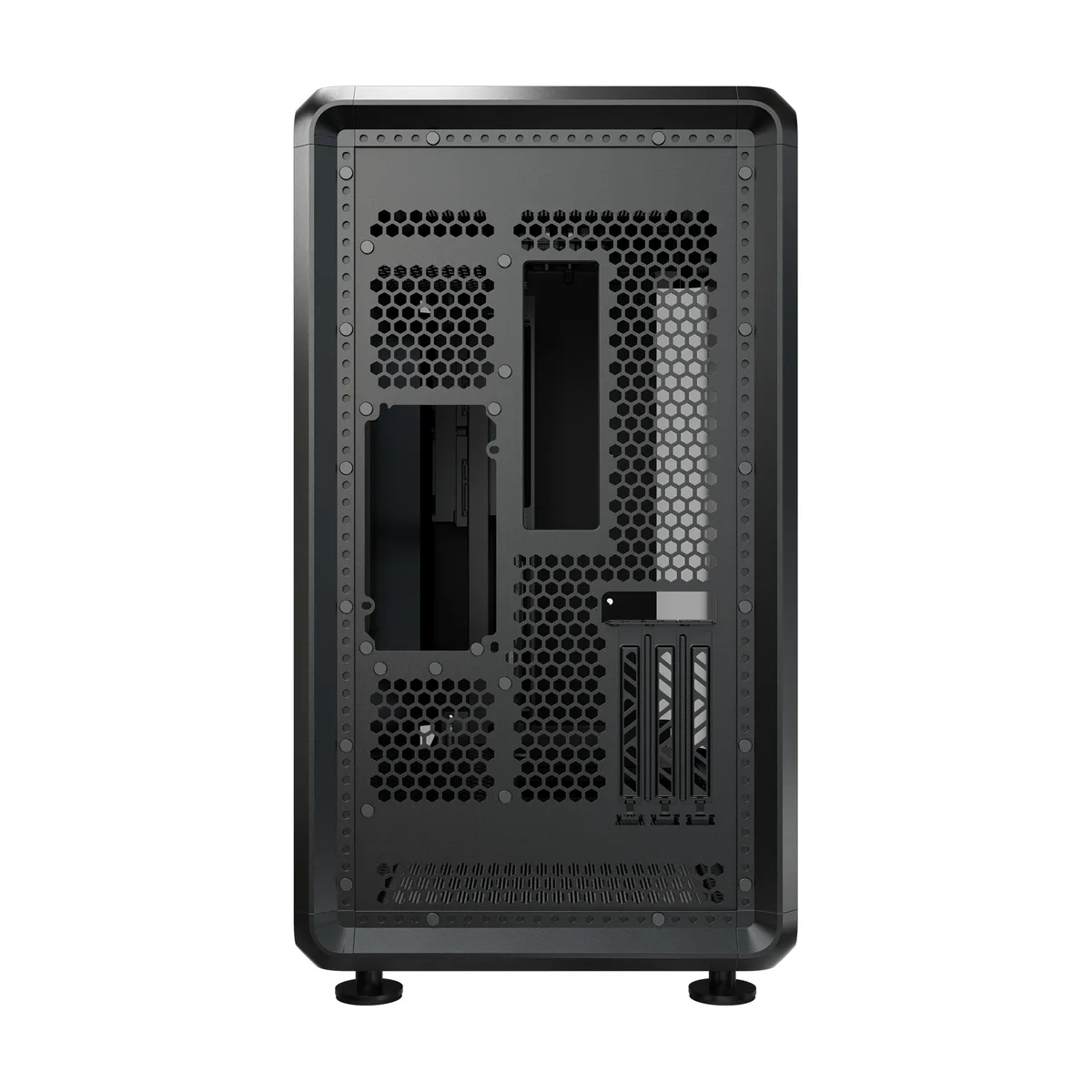

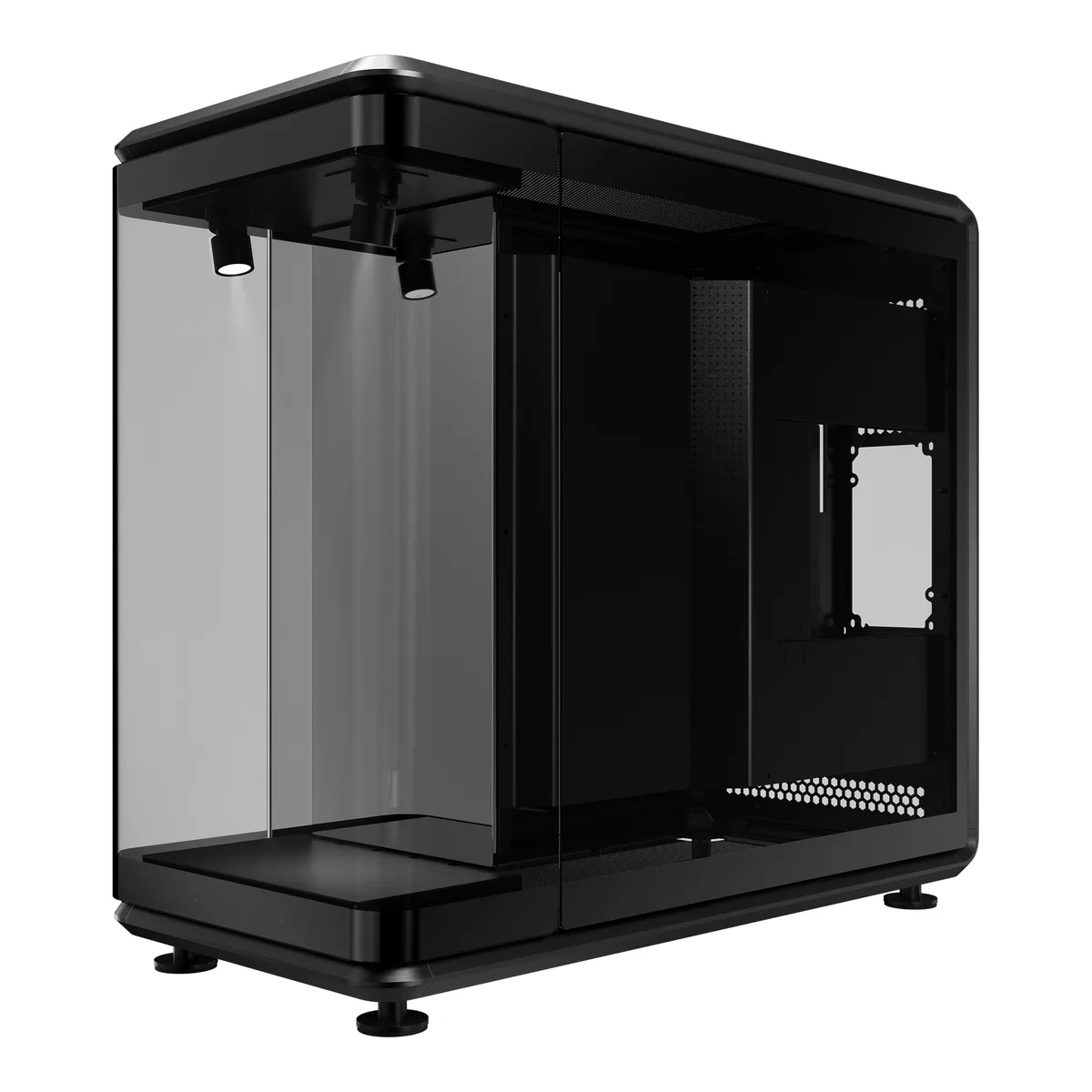

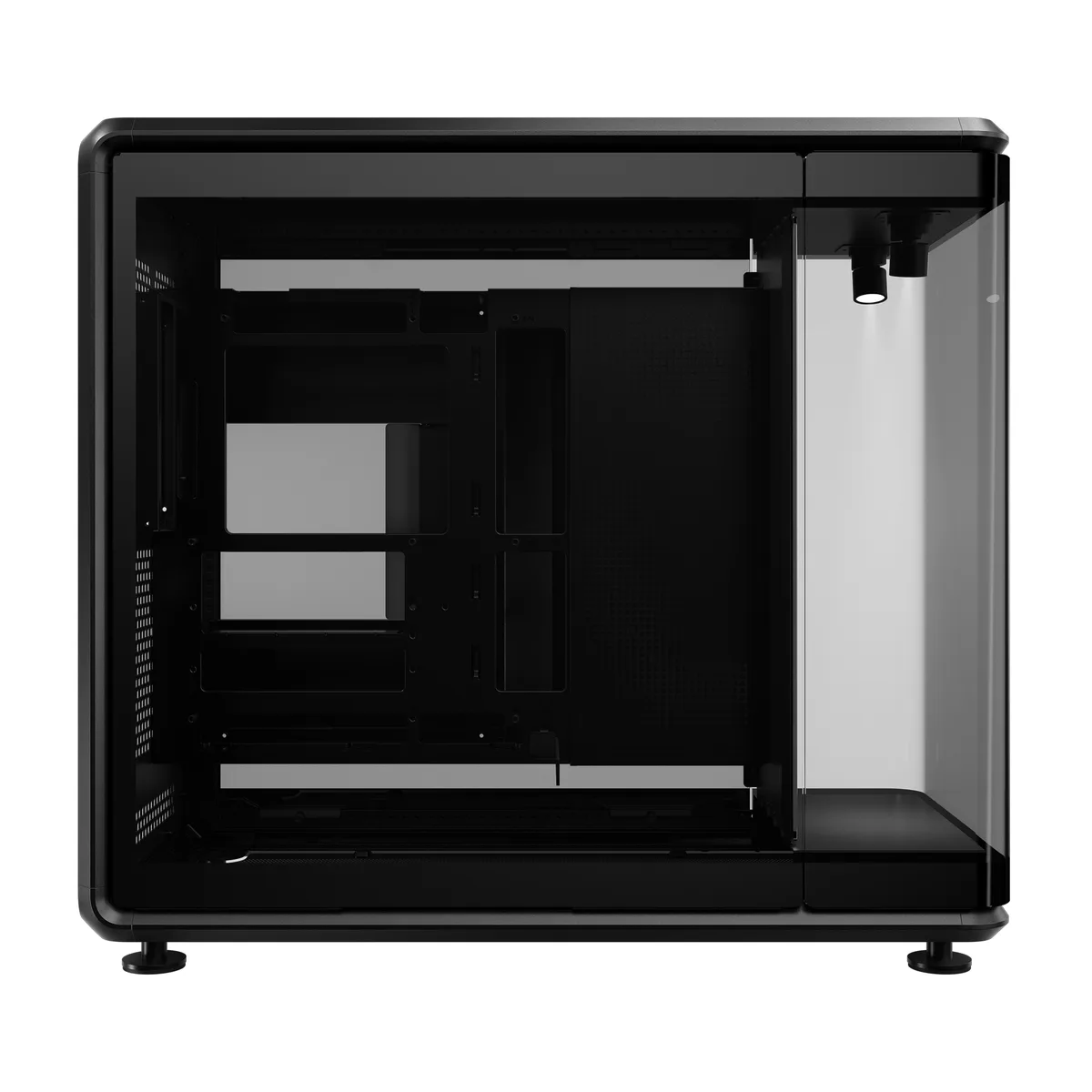

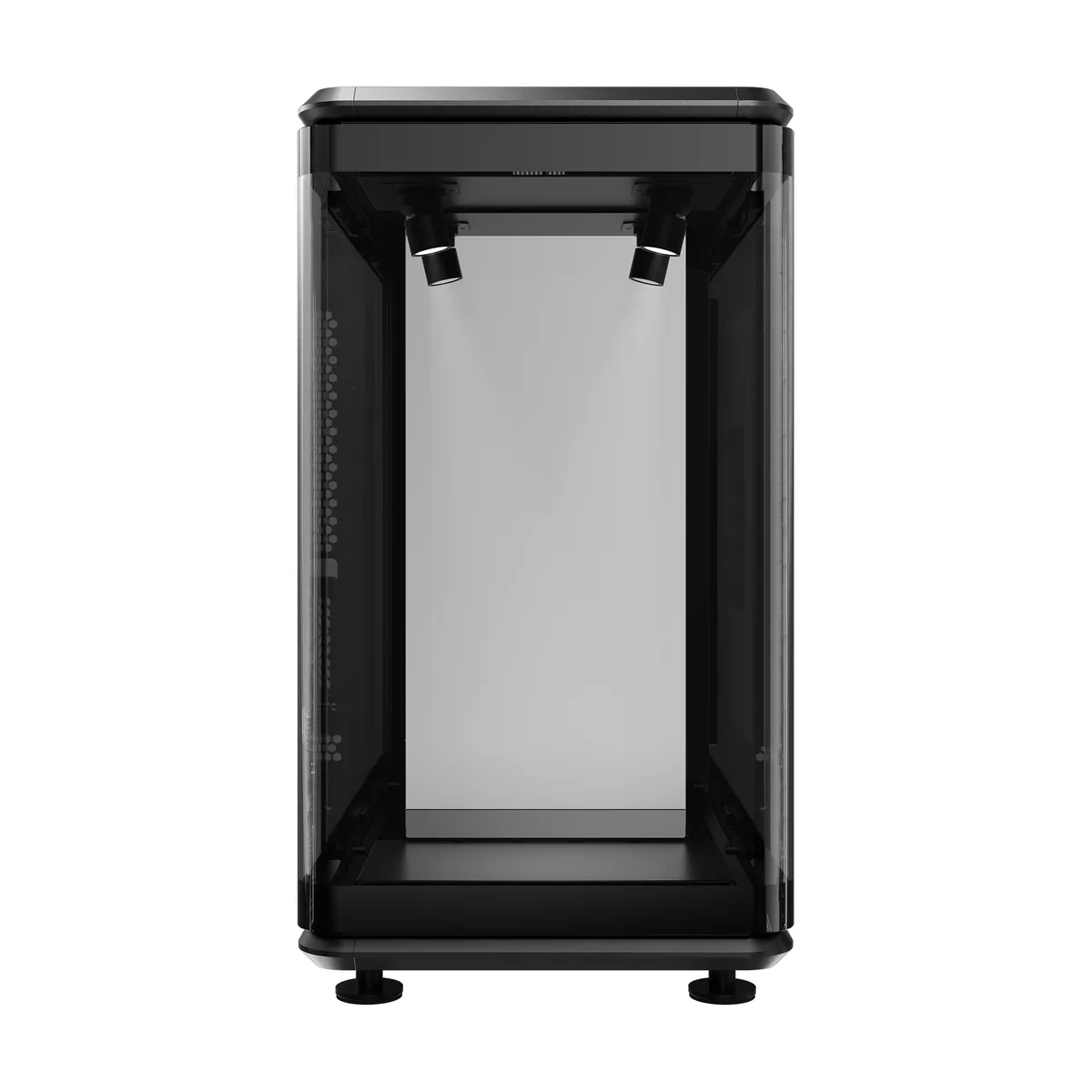

Black open-frame mid-tower with three tempered glass sides and mirrored front stage

Cooler Master

Cooler Master MasterFrame 360 Panorama MF360-KINN-S00 PC case

SKU CH-2RZ0-4Y0GB MPN MF360-KINN-S00

An open-frame ATX mid-tower with panoramic tempered glass on three sides, a front showcase stage with ARGB lighting, support for GPUs up to 430 mm and radiators up to 360 mm.

  • ColorBlack
  • Case MaterialExterior: SGCC Side Panel (Left / Right): TG / TG
  • Motherboard CompatibilityMini-ITX, Micro-ATX, ATX, BTF (ATX)
  • Dust FiltersMesh Only
  • Internal 3.5" Drive Bays1
  • Internal 2.5" Drive Bays2

Option Panorama

  • Open-loop cooling showcase with full 360-degree tubing visibility
  • Twelve 120mm fan mounts plus 360mm radiator support top and bottom
  • Three-sided panoramic tempered glass for component display from every angle
  • Front mirrored stage with ARGB lighting for figures or accessories
  • USB 4.0 Gen 2x2 Type-C at 20Gbps plus two USB 3.2 Gen 1 Type-A ports

Build showcase chassis

The Cooler Master MasterFrame 360 Panorama is an open-frame mid-tower designed for custom liquid-cooling loops that wrap completely around the hardware. It accepts Mini-ITX, Micro-ATX, ATX and ATX BTF motherboards and provides three panoramic tempered-glass panels plus a mirrored front stage with ARGB lighting for displaying collectibles.

Check motherboard form factor and component lengths

Verify that your board matches one of the four supported form factors before ordering. The case fits graphics cards up to 430 mm long, CPU coolers up to 145 mm tall and power supplies up to 210 mm deep, so measure existing parts against those limits.

Suits open-loop builders who want a 360-degree view

Enthusiasts planning a full custom loop with up to twelve 120 mm fans and 360 mm radiators on both top and bottom will use the layout fully. Builders who need more than one 3.5-inch drive bay, more than two 2.5-inch bays or more than 3.5 expansion slots should look at a different chassis.

Highlights

  • Open-loop cooling showcase with full 360-degree tubing visibility
  • Twelve 120mm fan mounts plus 360mm radiator support top and bottom
  • Three-sided panoramic tempered glass for component display from every angle
  • Front mirrored stage with ARGB lighting for figures or accessories
  • USB 4.0 Gen 2x2 Type-C at 20Gbps plus two USB 3.2 Gen 1 Type-A ports

Specifications

BrandCooler Master
SeriesMASTERFRAME Series
ModelMF360-KINN-S00
ColorBlack
Case MaterialExterior: SGCC
Side Panel (Left / Right): TG / TG
Motherboard CompatibilityMini-ITX, Micro-ATX, ATX, BTF (ATX)
Dust FiltersMesh Only
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays2
Expansion SlotsPCI Expansion Slots: 3.5
Front Ports2x USB 3.2 Gen 1 Type-A 5G
1x USB 4.0 Gen 2x2 Type-C 20G
1x 3.5mm Headset Jack (Audio+Mic)
Fan OptionsTop: 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Bottom: 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Radiator OptionsBottom - Up to 120mm / Bottom - Up to 140mm / Bottom - Up to 240mm / Bottom - Up to 280mm / Bottom - Up to 360mm / Top - Up to 120mm / Top - Up to 140mm / Top - Up to 240mm / Top - Up to 280mm / Top - Up to 360mm
Max GPU Length430 mm
Max CPU Cooler Height145 mm
Max PSU Length210 mm
Dimensions549 x 291 x 581 mm
Weight13.72kg
Shipping weight19.14 kg
Package size716 × 648 × 419 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will a 430 mm graphics card fit without hitting the front glass panel?

The case supports GPUs up to 430 mm in length, so a card at that maximum dimension will fit with clearance.

Can I mount a 360 mm radiator on both the top and the bottom at the same time?

Radiator support lists up to 360 mm for both top and bottom locations, allowing dual 360 mm radiators simultaneously.

What motherboard form factors are compatible with the included PCIe 5.0 vertical mount?

The chassis fits Mini-ITX, Micro-ATX, ATX and ATX BTF boards, and the PCIe 5.0 riser cable works with all supported layouts.
