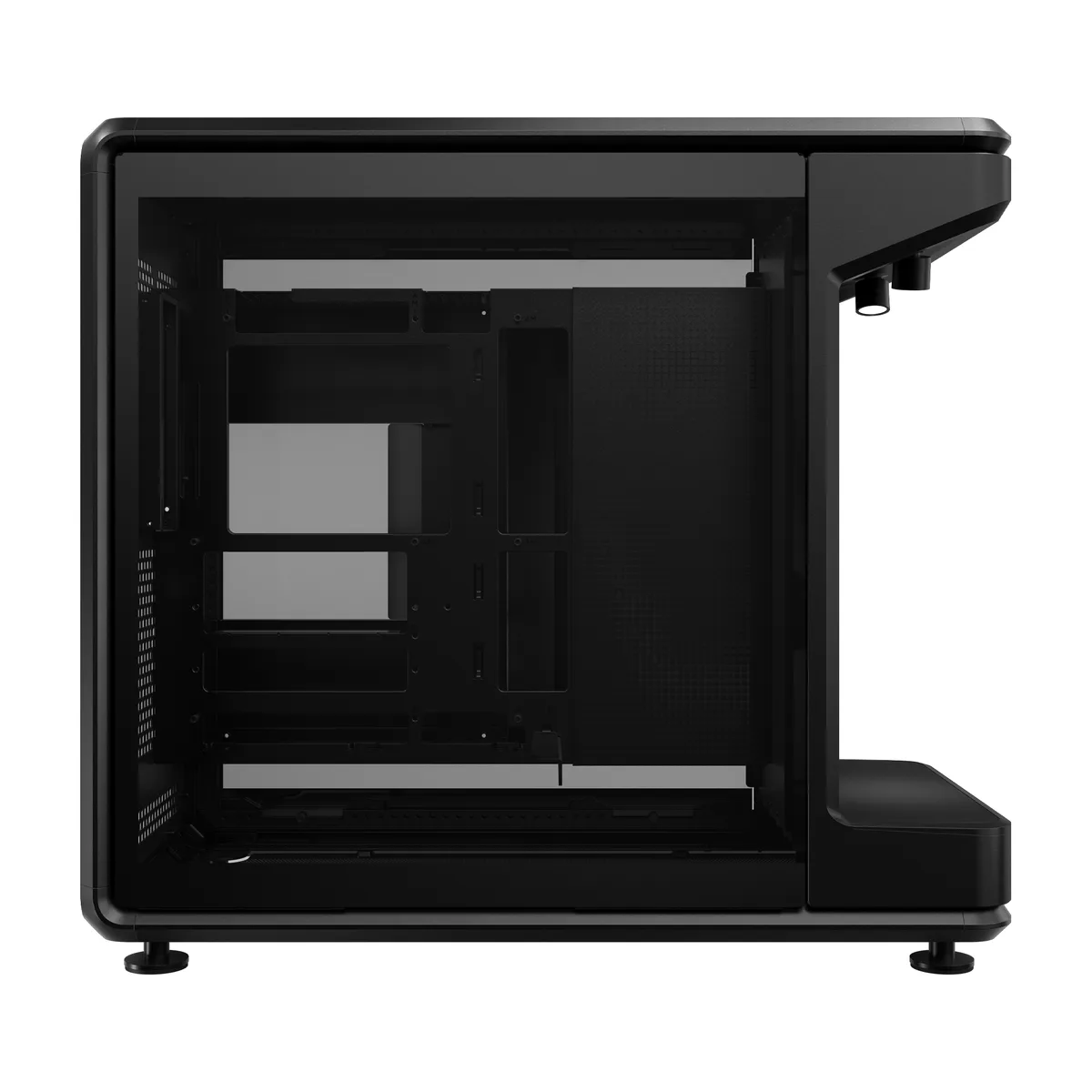

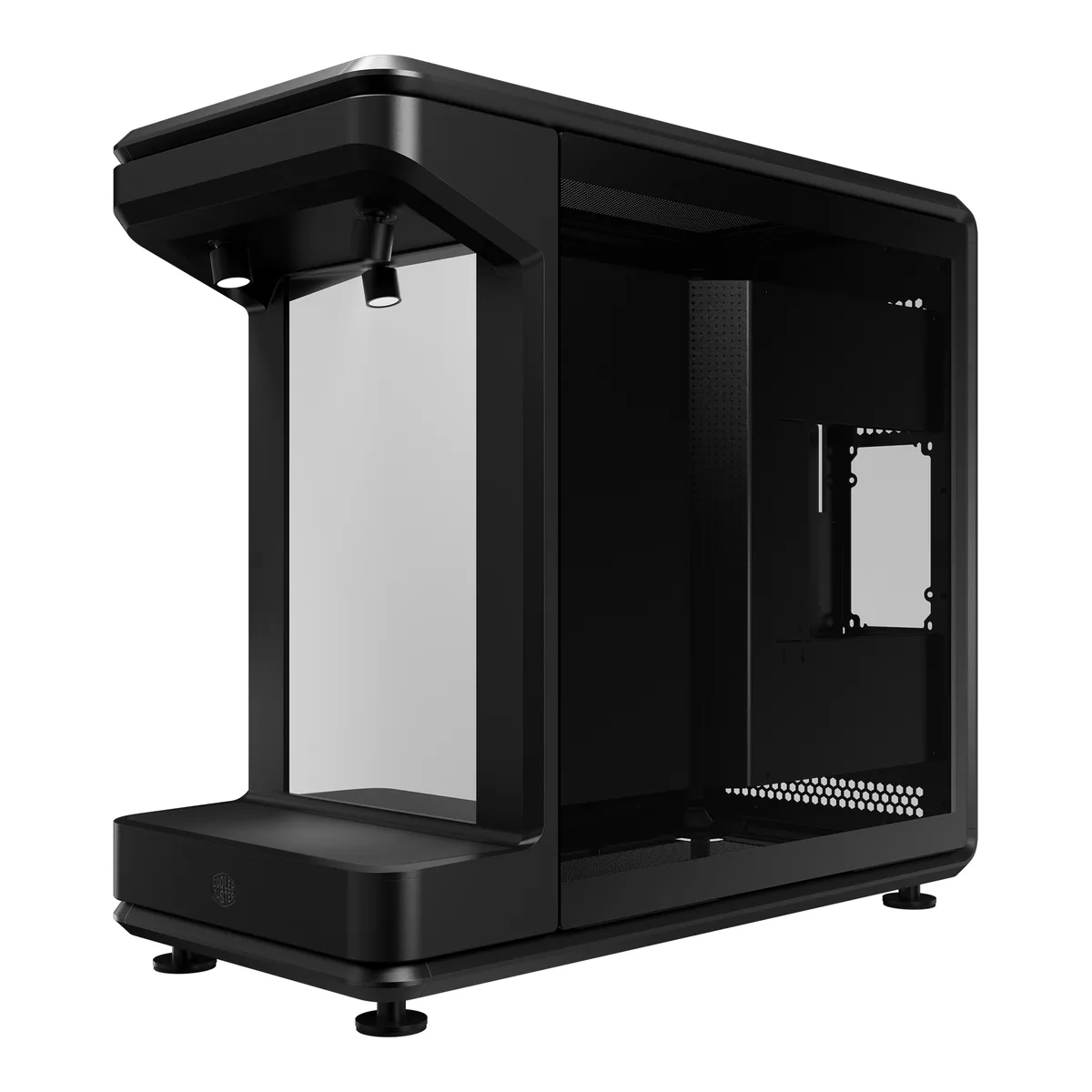

Black open-frame mid-tower case with mirrored front stage, tempered glass sides, and exposed internal layout

Cooler Master

Cooler Master MasterFrame 360 Stage Mirror MF360-KHNN-S01 PC case

SKU CH-0S4P-N0GXQ MPN MF360-KHNN-S01

An open-frame ATX mid-tower with a front mirrored stage, supporting 430mm GPUs, 360mm radiators and up to twelve 120mm fans

  • ColorBlack
  • Case MaterialExterior: SGCC Side Panel (Left / Right): TG / TG
  • Motherboard CompatibilityMini-ITX, Micro-ATX, ATX, BTF (ATX)
  • Dust FiltersMesh Only
  • Internal 3.5" Drive Bays1
  • Internal 2.5" Drive Bays2

Option Mirror

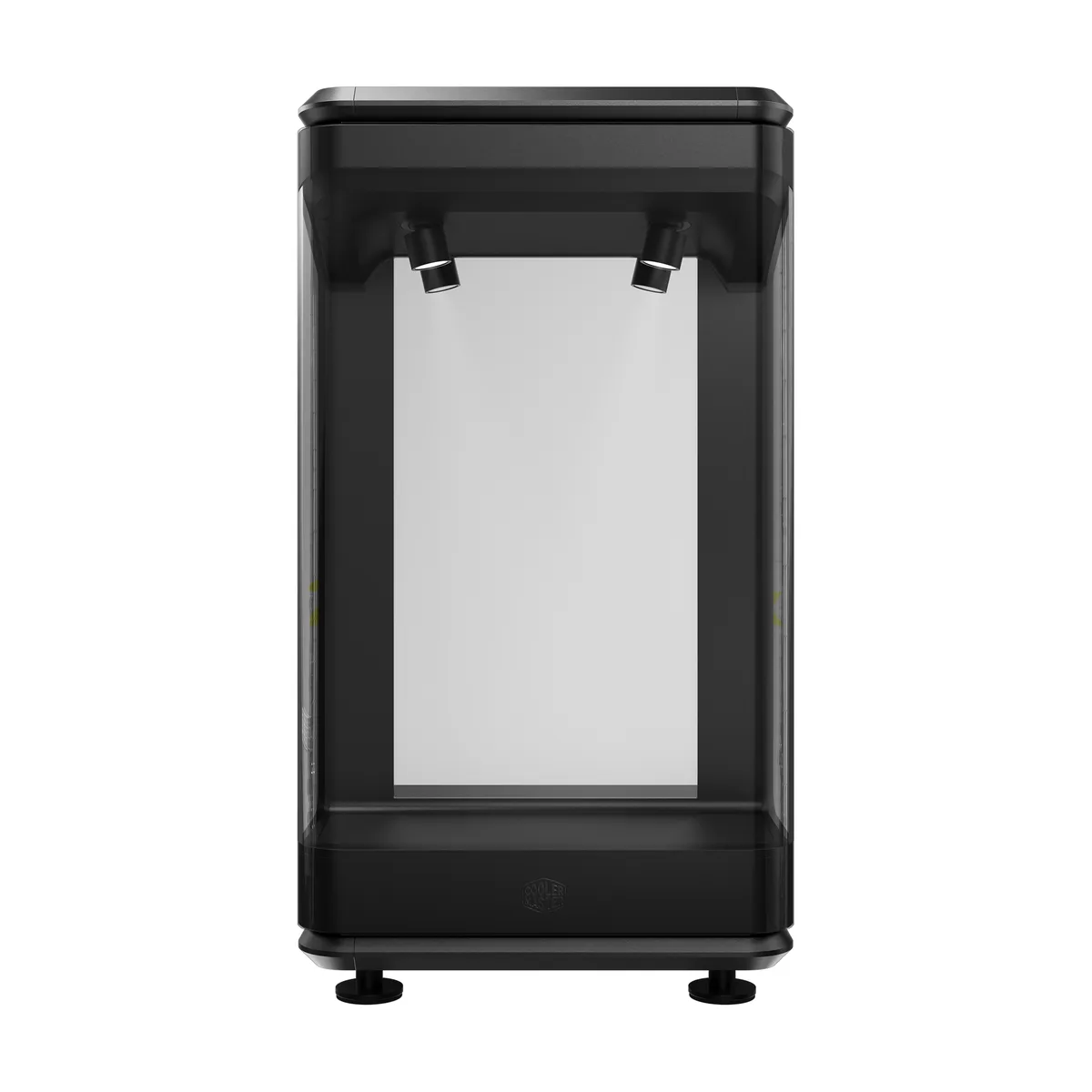

  • Mirrored front stage reflects components 360° for a unique showcase
  • Open-frame layout gives creators freedom to arrange hardware and collectibles
  • Up to twelve 120 mm fans plus 360 mm radiator support on top and bottom
  • Fits ATX BTF motherboards, 430 mm GPUs and 210 mm PSUs
  • Front I/O includes USB 4.0 Gen 2×2 Type-C 20 G and USB 3.2 Gen 1 Type-A 5 G

Showcase frame for themed builds

The MasterFrame 360 Stage Mirror is an open-frame chassis built around a front mirrored platform that reflects components and collectibles from every angle. It accepts Mini-ITX, Micro-ATX, ATX and ATX BTF motherboards and clears graphics cards up to 430 mm long. The layout is intended for creators and collectors who want unrestricted placement of hardware and accessories.

Thermal headroom with flexible fan choices

Six 120 mm fan mounts on the top and six on the bottom support sizes from 120 mm to 200 mm, and both locations accept radiators up to 360 mm. Mesh dust filters cover the intakes while the open structure lets air move freely through the frame. A 145 mm CPU cooler limit and 210 mm PSU length keep the internal volume compatible with common high-performance parts.

Single USB 4.0 Type-C front port

The front I/O panel provides one USB 4.0 Gen 2x2 Type-C connection running at 20 Gbps, two USB 3.2 Gen 1 Type-A ports and a combined 3.5 mm headset jack. This port mix decides whether the case matches a motherboard with a matching internal header and whether the builder needs that bandwidth for external storage or docks.

Highlights

  • Mirrored front stage reflects components 360° for a unique showcase
  • Open-frame layout gives creators freedom to arrange hardware and collectibles
  • Up to twelve 120 mm fans plus 360 mm radiator support on top and bottom
  • Fits ATX BTF motherboards, 430 mm GPUs and 210 mm PSUs
  • Front I/O includes USB 4.0 Gen 2×2 Type-C 20 G and USB 3.2 Gen 1 Type-A 5 G

Specifications

BrandCooler Master
SeriesMASTERFRAME Series
ModelMF360-KHNN-S01
ColorBlack
Case MaterialExterior: SGCC
Side Panel (Left / Right): TG / TG
Motherboard CompatibilityMini-ITX, Micro-ATX, ATX, BTF (ATX)
Dust FiltersMesh Only
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays2
Expansion SlotsPCI Expansion Slots: 3.5
Front Ports2x USB 3.2 Gen 1 Type-A 5G
1x USB 4.0 Gen 2x2 Type-C 20G
1x 3.5mm Headset Jack (Audio+Mic)
Fan OptionsTop: 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Bottom: 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Radiator OptionsBottom - Up to 120mm / Bottom - Up to 140mm / Bottom - Up to 240mm / Bottom - Up to 280mm / Bottom - Up to 360mm / Top - Up to 120mm / Top - Up to 140mm / Top - Up to 240mm / Top - Up to 280mm / Top - Up to 360mm
Max GPU Length430 mm
Max CPU Cooler Height145 mm
Max PSU Length210 mm
Dimensions549 x 291 x 581 mm
Weight13.72kg
Shipping weight17.65 kg
Package size711 × 635 × 432 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I mount the motherboard on the open-frame layout and which step is often missed?

Secure the board to the supplied tray using the standard ATX standoff pattern, then fasten the tray to the frame; the step most builders skip is installing the I/O shield before lowering the board into place.

What maintenance will the mesh dust filters need over time?

The mesh-only filters on the intake areas should be removed and cleaned with compressed air or a soft brush every few months to prevent airflow restriction.

What is the first thermal limit reached when running a 360 mm radiator with twelve 120 mm fans under sustained load?

The 145 mm CPU-cooler height clearance becomes the limiting factor, restricting the choice of water-block or air cooler that can fit above the motherboard.
