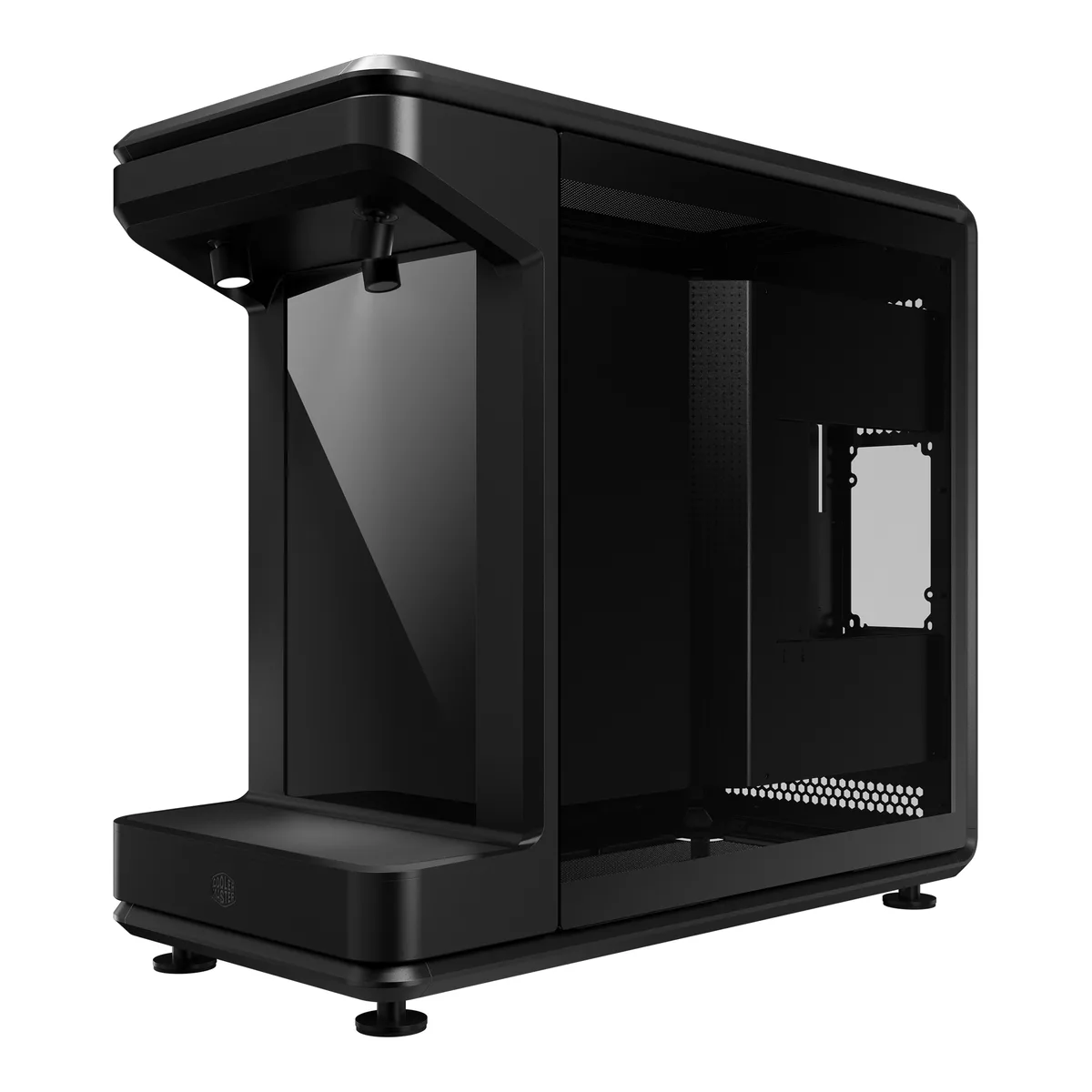

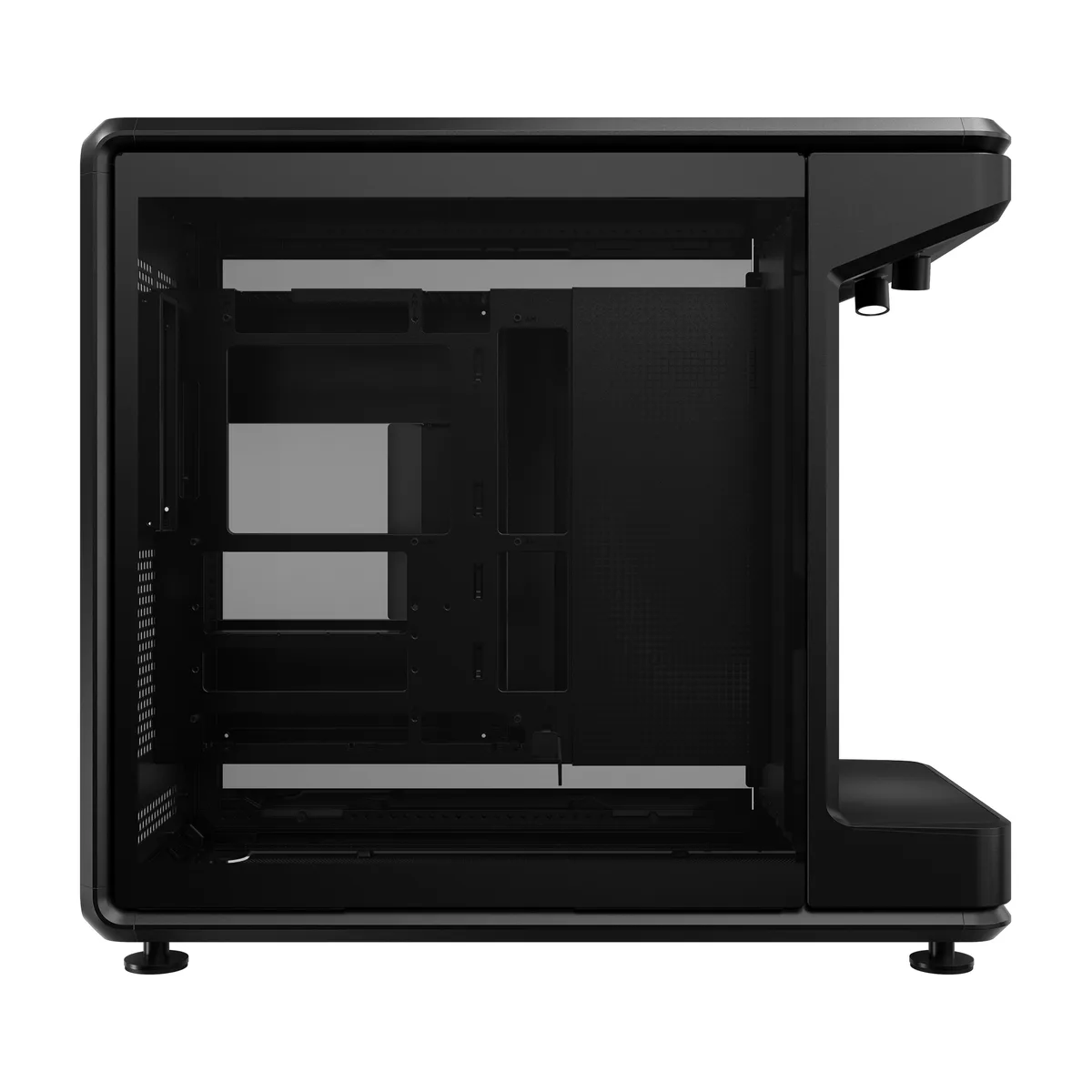

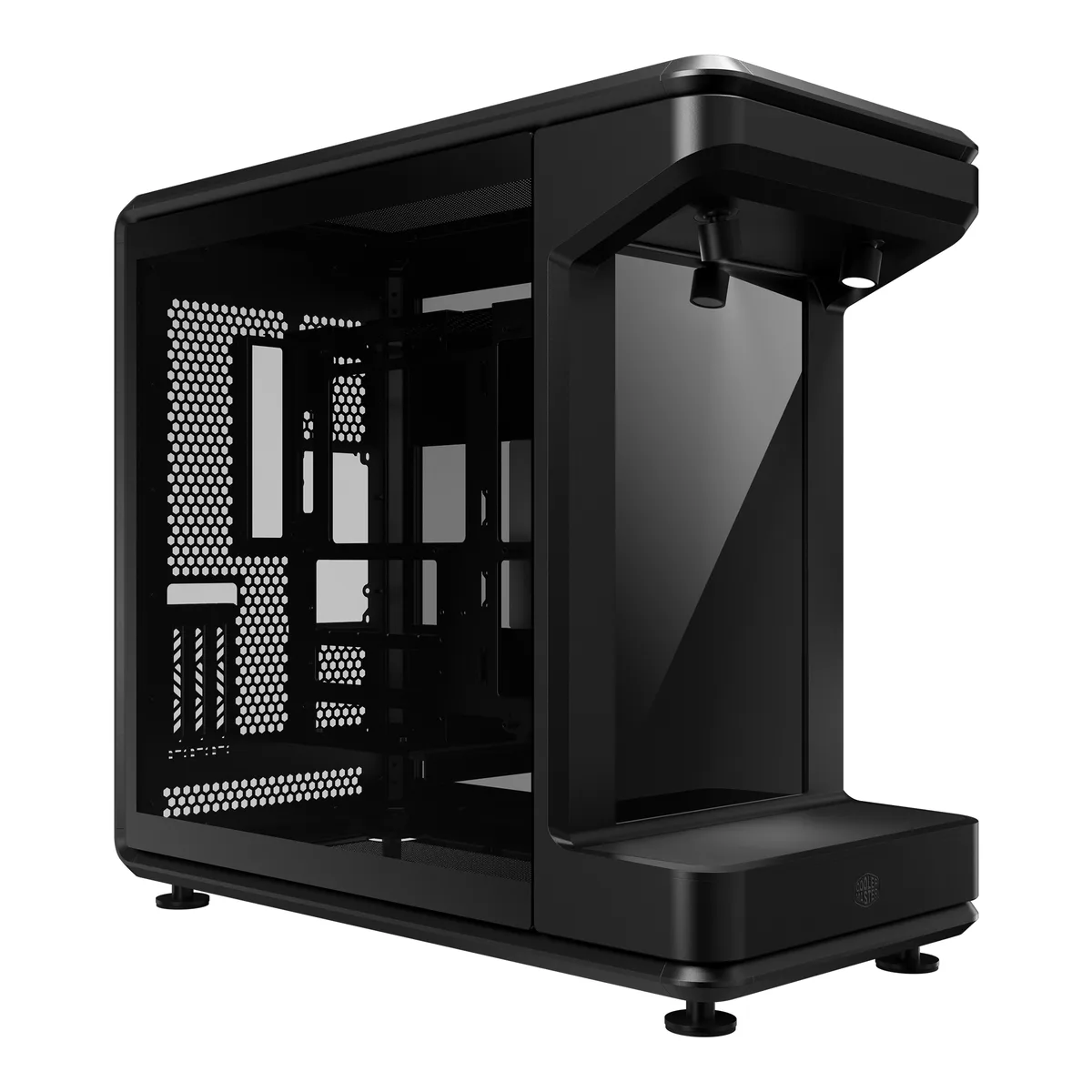

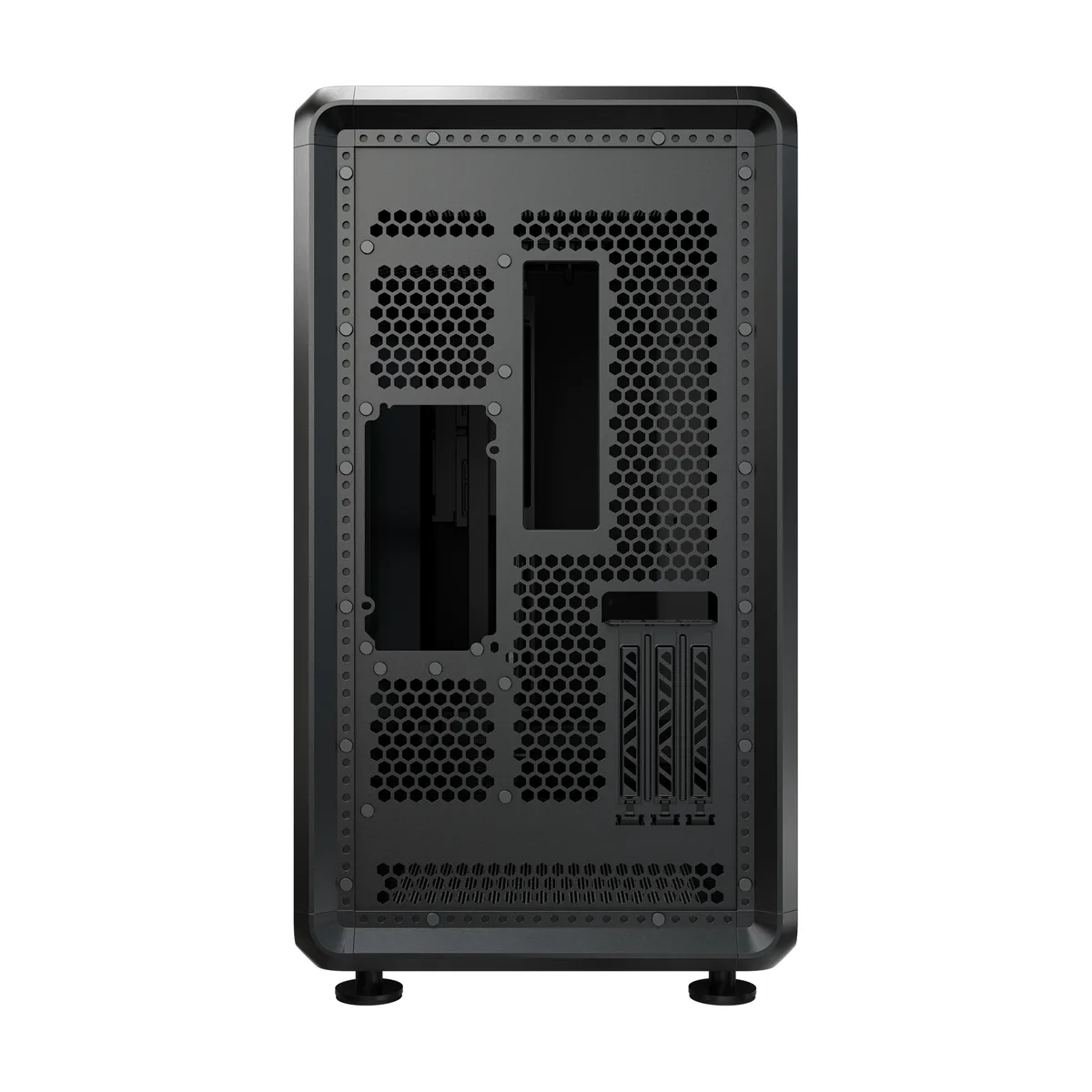

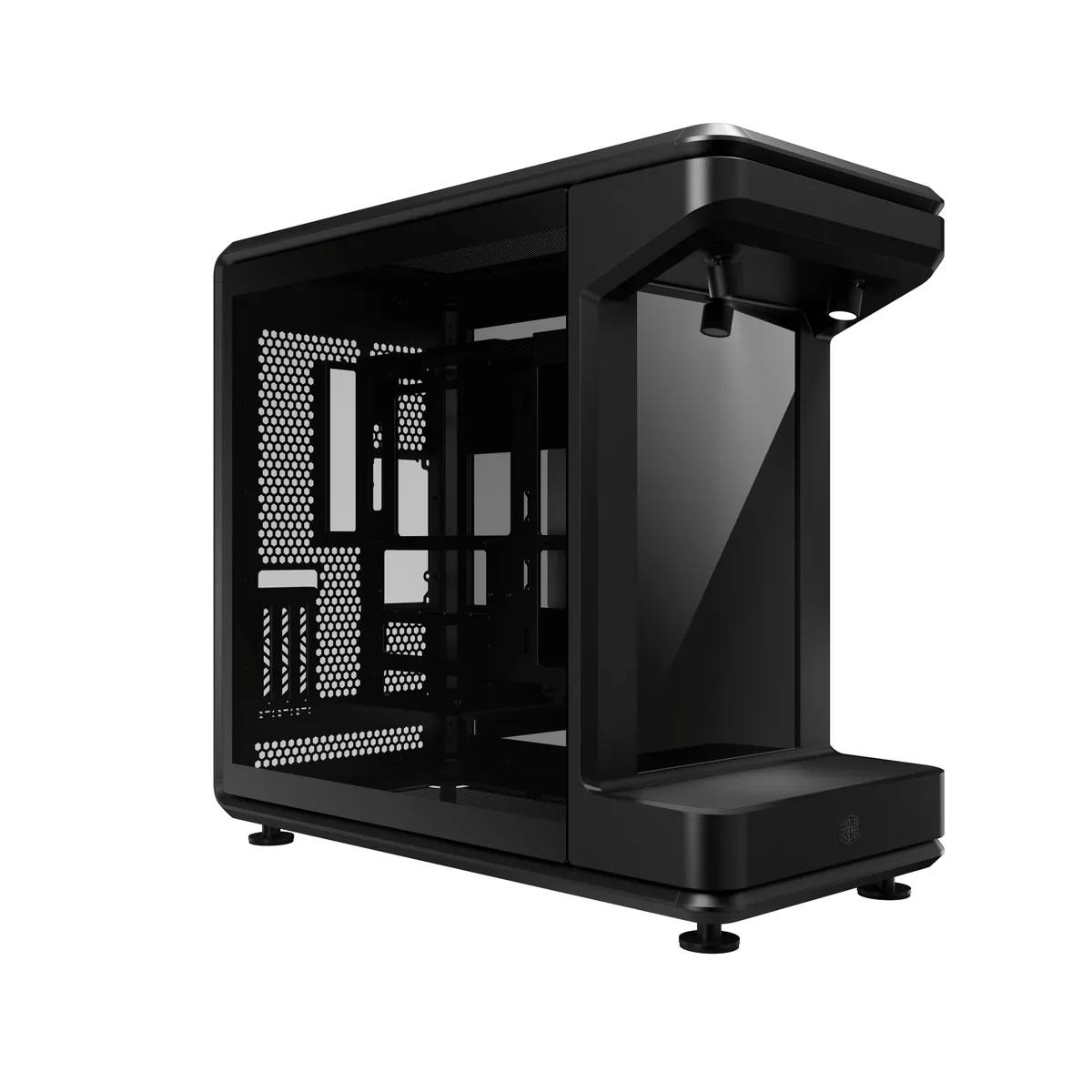

Black open-frame mid-tower with front LCD stage, tempered glass sides, vertical GPU mount

Cooler Master

Cooler Master MF360-KHNN-S02 MasterFrame 360 Stage LCD ATX Mid-Tower PC Case

SKU CH-QTNJ-K55HK MPN MF360-KHNN-S02

Mid-tower ATX case with integrated front LCD display, supports 430 mm GPUs, 360 mm radiators and up to twelve 120 mm fans

  • ColorBlack
  • Case MaterialExterior: SGCC Side Panel (Left / Right): TG / TG
  • Motherboard CompatibilityMini-ITX, Micro-ATX, ATX, BTF (ATX)
  • Dust FiltersMesh Only
  • Internal 3.5" Drive Bays1
  • Internal 2.5" Drive Bays2

Option Stage LCD

  • Integrated LCD screen works as a secondary monitor or plays custom JPG/MP4 content via MicroSD
  • Supports up to twelve 120mm fans and radiators up to 360mm on both top and bottom panels
  • Open-frame stage design gives unrestricted visibility for components and themed showcase builds
  • Fits ATX, BTF, Micro-ATX and Mini-ITX motherboards with GPUs up to 430mm and PSUs up to 210mm
  • PCIe 5.0 riser cable included for vertical GPU mounting with next-gen performance out of the box

Showcase Stage LCD ATX Mid-Tower

The Cooler Master MasterFrame 360 Stage LCD is an ATX mid-tower built around a front-facing STAGE LCD display. The integrated screen works as a true secondary monitor in Extended Display Mode or plays custom JPG and MP4 content from a MicroSD card. It suits creators, modders and showcase builders who want unrestricted component visibility.

Open-frame build flexibility

An open-frame design removes traditional panels and provides 110mm of cable routing clearance for a clean interior. The chassis accepts Mini-ITX, Micro-ATX, ATX and ATX BTF motherboards, GPUs up to 430mm, CPU coolers up to 145mm and PSUs up to 210mm. Top and bottom mounts support up to twelve 120mm fans, plus 140mm, 180mm and 200mm sizes, with radiator support up to 360mm in both locations. A PCIe 5.0 riser cable is included for vertical GPU mounting.

Front I/O and target users

Front I/O includes one USB 4.0 Gen 2x2 Type-C 20G port, two USB 3.2 Gen 1 Type-A 5G ports and a 3.5mm headset jack. The case weighs 13.72kg and measures 549 x 291 x 581mm. It fits builders planning extensive air or liquid cooling with a visual centrepiece. Buyers needing traditional dust filtration, more than 3.5 expansion slots or a fully enclosed chassis should consider other models.

Highlights

  • Integrated LCD screen works as a secondary monitor or plays custom JPG/MP4 content via MicroSD
  • Supports up to twelve 120mm fans and radiators up to 360mm on both top and bottom panels
  • Open-frame stage design gives unrestricted visibility for components and themed showcase builds
  • Fits ATX, BTF, Micro-ATX and Mini-ITX motherboards with GPUs up to 430mm and PSUs up to 210mm
  • PCIe 5.0 riser cable included for vertical GPU mounting with next-gen performance out of the box

Specifications

BrandCooler Master
SeriesMASTERFRAME Series
ModelMF360-KHNN-S02
ColorBlack
Case MaterialExterior: SGCC
Side Panel (Left / Right): TG / TG
Motherboard CompatibilityMini-ITX, Micro-ATX, ATX, BTF (ATX)
Dust FiltersMesh Only
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays2
Expansion SlotsPCI Expansion Slots: 3.5
Front Ports2x USB 3.2 Gen 1 Type-A 5G
1x USB 4.0 Gen 2x2 Type-C 20G
1x 3.5mm Headset Jack (Audio+Mic)
Fan OptionsTop: 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Bottom: 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Radiator OptionsBottom - Up to 120mm / Bottom - Up to 140mm / Bottom - Up to 240mm / Bottom - Up to 280mm / Bottom - Up to 360mm / Top - Up to 120mm / Top - Up to 140mm / Top - Up to 240mm / Top - Up to 280mm / Top - Up to 360mm
Max GPU Length430 mm
Max CPU Cooler Height145 mm
Max PSU Length210 mm
Dimensions549 x 291 x 581 mm
Weight13.72kg
Shipping weight17.74 kg
Package size716 × 648 × 432 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How long a graphics card can I fit before it hits the front panel?

The chassis accepts GPUs up to 430 mm long, so most triple-fan models will clear the Stage LCD bezel without modification.

What happens to thermals and noise when the system runs flat-out all day?

With room for twelve 120 mm fans and dual 360 mm radiators top and bottom, you can move high airflow at low RPM, keeping temperatures steady and acoustic output low during extended loads.

Which motherboard form factors and special layouts are natively supported?

Mini-ITX, Micro-ATX, standard ATX and ATX BTF back-connect boards all mount directly, giving full access to the 3.5 PCI expansion slots and 110 mm cable-routing depth.
