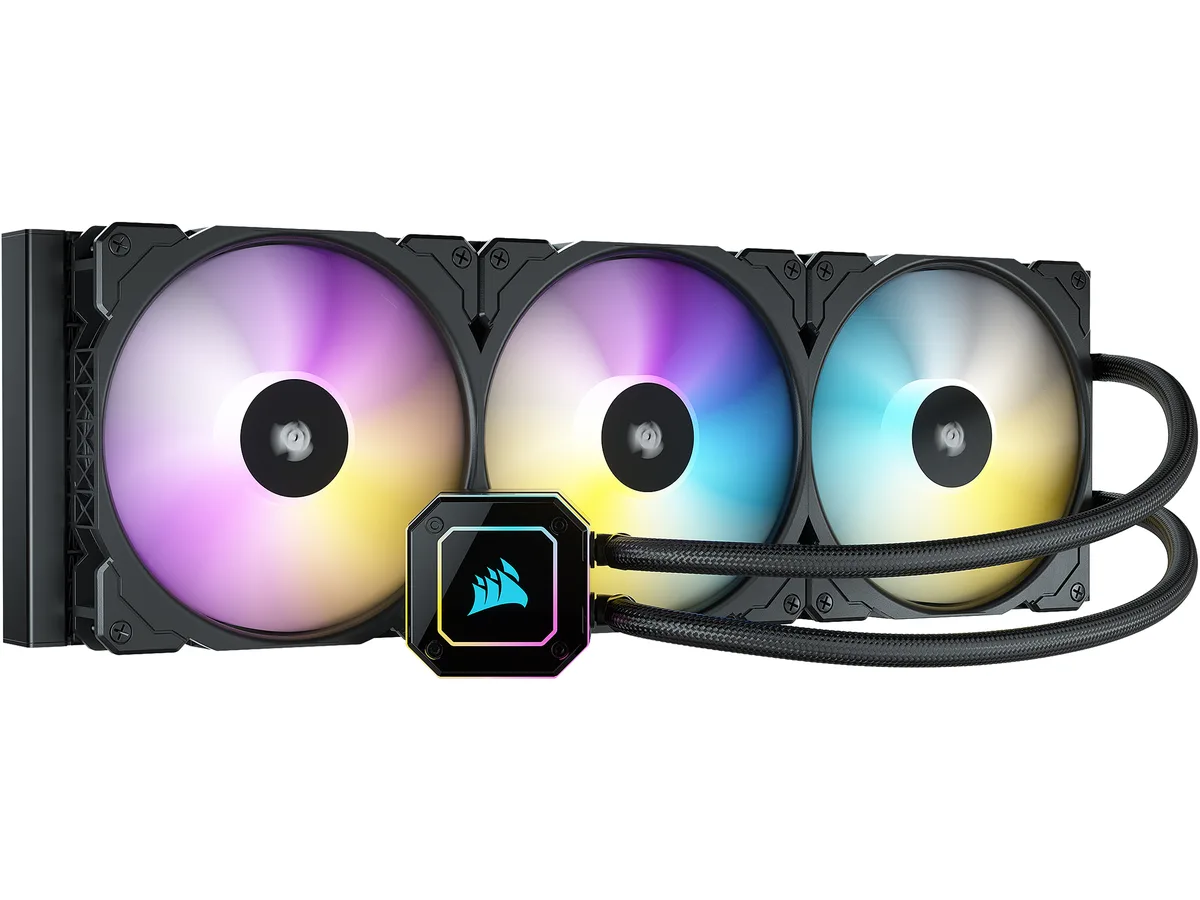

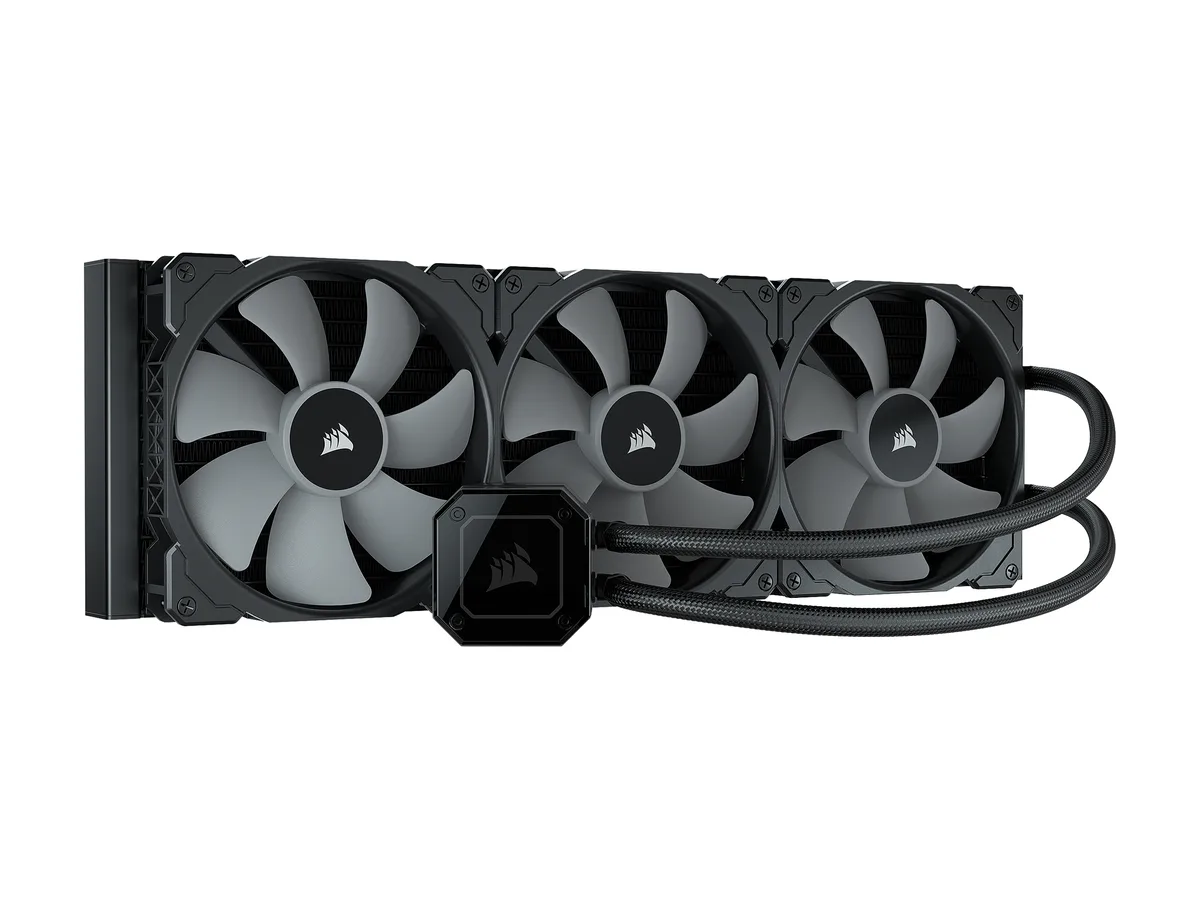

Rectangular black aluminium radiator 420mm long with three 140mm RGB fans and a square copper pump head lit by 33 LEDs

Corsair

Corsair CW-9060055-WW iCUE H170i Elite Capellix liquid cooler 420mm radiator 140mm fans 33 RGB LEDs

SKU CH-VGRM-WXQ1R MPN CW-9060055-WW

A 420mm liquid CPU cooler with three 140mm magnetic-levitation PWM fans, 33 CAPELLIX RGB LEDs on the pump head and an included Commander Core controller for up to six RGB PWM fans

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1200 / 1156 / 1155 /
  • Block MaterialCopper
  • Radiator Size450.00 x 140.00 x 27.00 mm
  • Radiator MaterialAluminum
  • Fan Size3 Fan Slots (140 mm)

Fan Size 3 Fan Slots (140mm)

Model Elite Capellix Series

LED Color RGB Pump + Fans

  • 33 CAPELLIX RGB LEDs on the pump head deliver vibrant, customisable lighting
  • 420 mm radiator provides maximum surface area for extreme CPU cooling
  • Three 140 mm magnetic levitation PWM fans push 97 CFM at up to 2000 RPM
  • Commander Core controller enables precise fan and RGB control for up to six fans
  • Zero RPM mode stops fans completely at low temperatures for silent operation

420mm radiator liquid CPU cooler

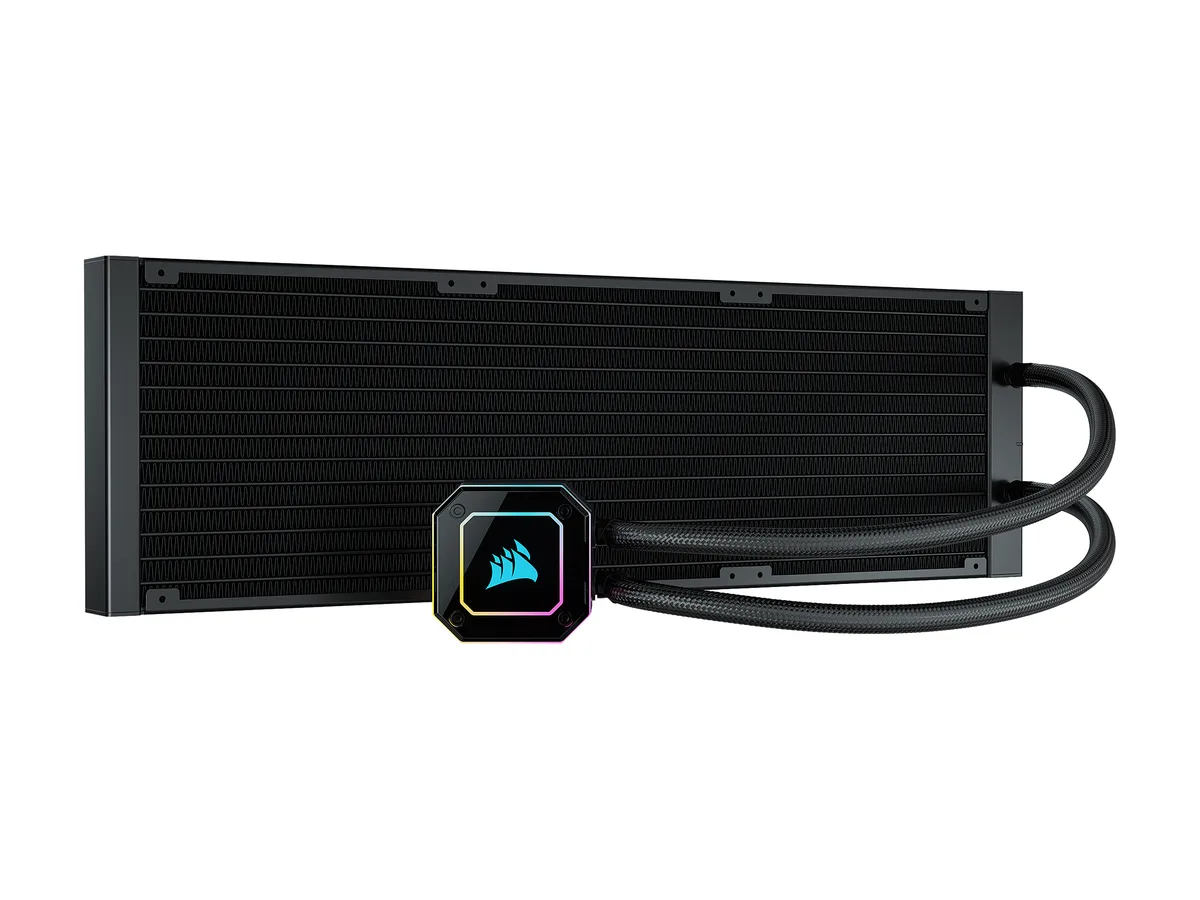

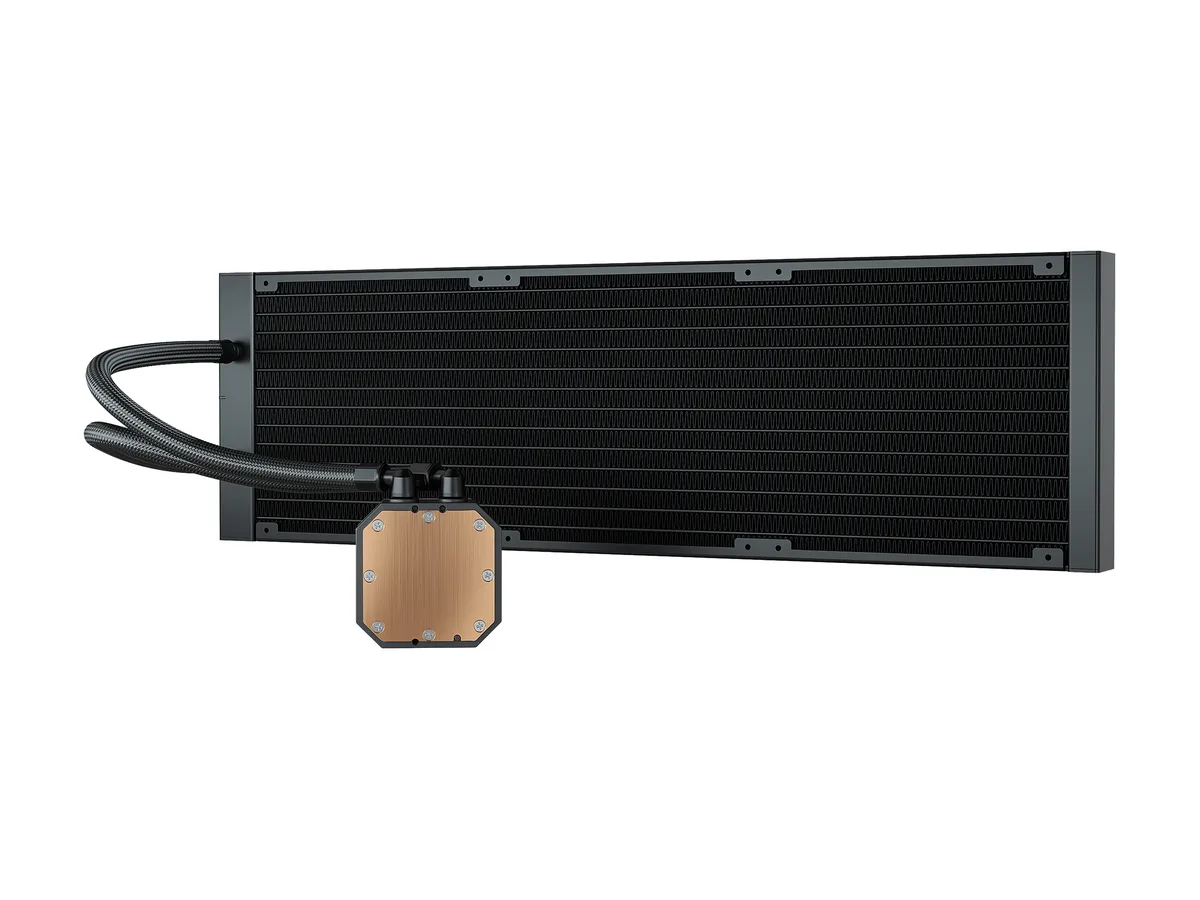

The Corsair iCUE H170i Elite Capellix is a closed-loop liquid cooler built around a 420mm aluminium radiator and three 140mm magnetic-levitation PWM fans. The pump head carries 33 Capellix RGB LEDs and a copper cold plate. A Commander Core controller is included for managing up to six RGB PWM fans and lighting channels through iCUE software.

Suits high-heat CPUs in cases

Builders who need maximum all-in-one cooling surface for overclocked Intel LGA 1700, 1200, 115x or 2066 processors and AMD AM4 or sTRX4 chips will benefit from the 97 CFM airflow range and 10–36 dB(A) noise envelope. Systems limited to dual-fan radiator locations or single-120mm mounts cannot accommodate the 450mm radiator length and three 140mm fan slots.

420mm radiator length decides fit

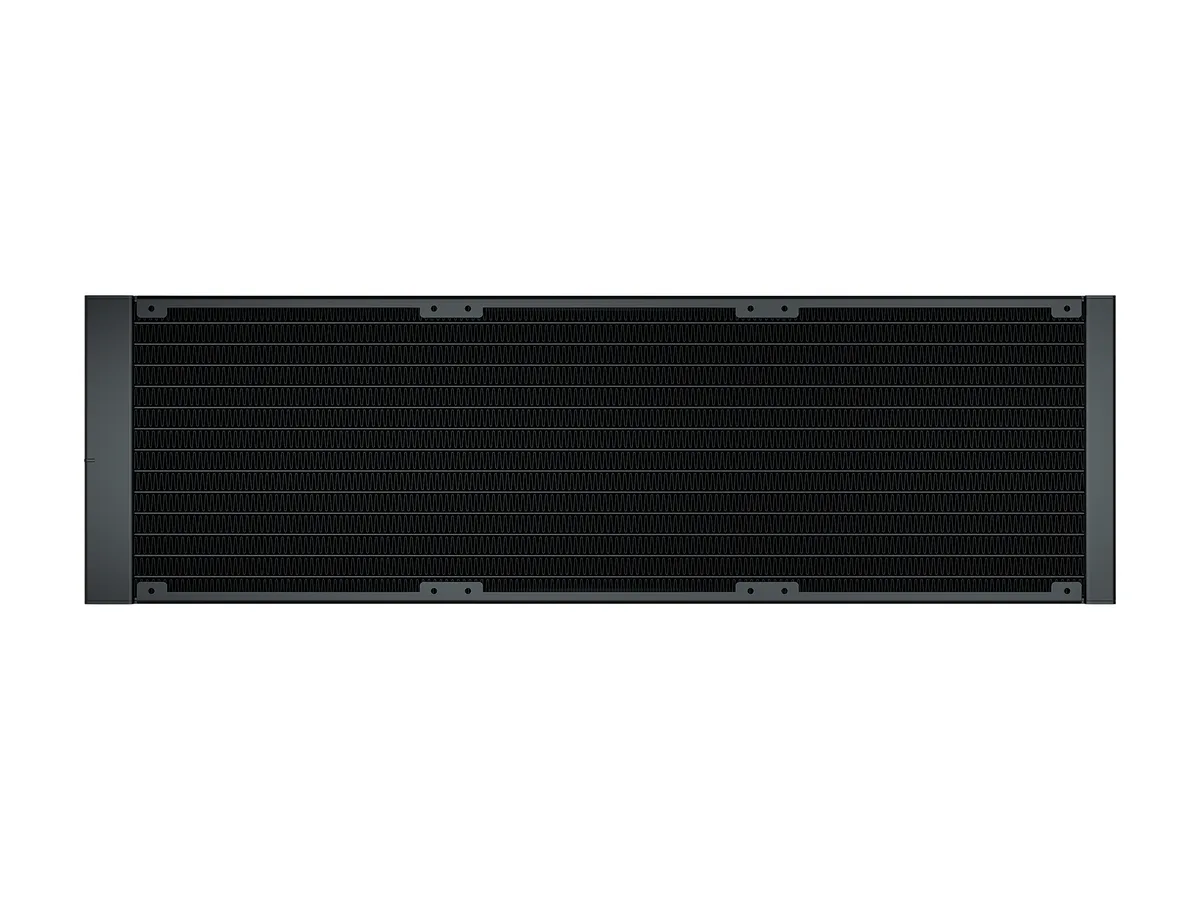

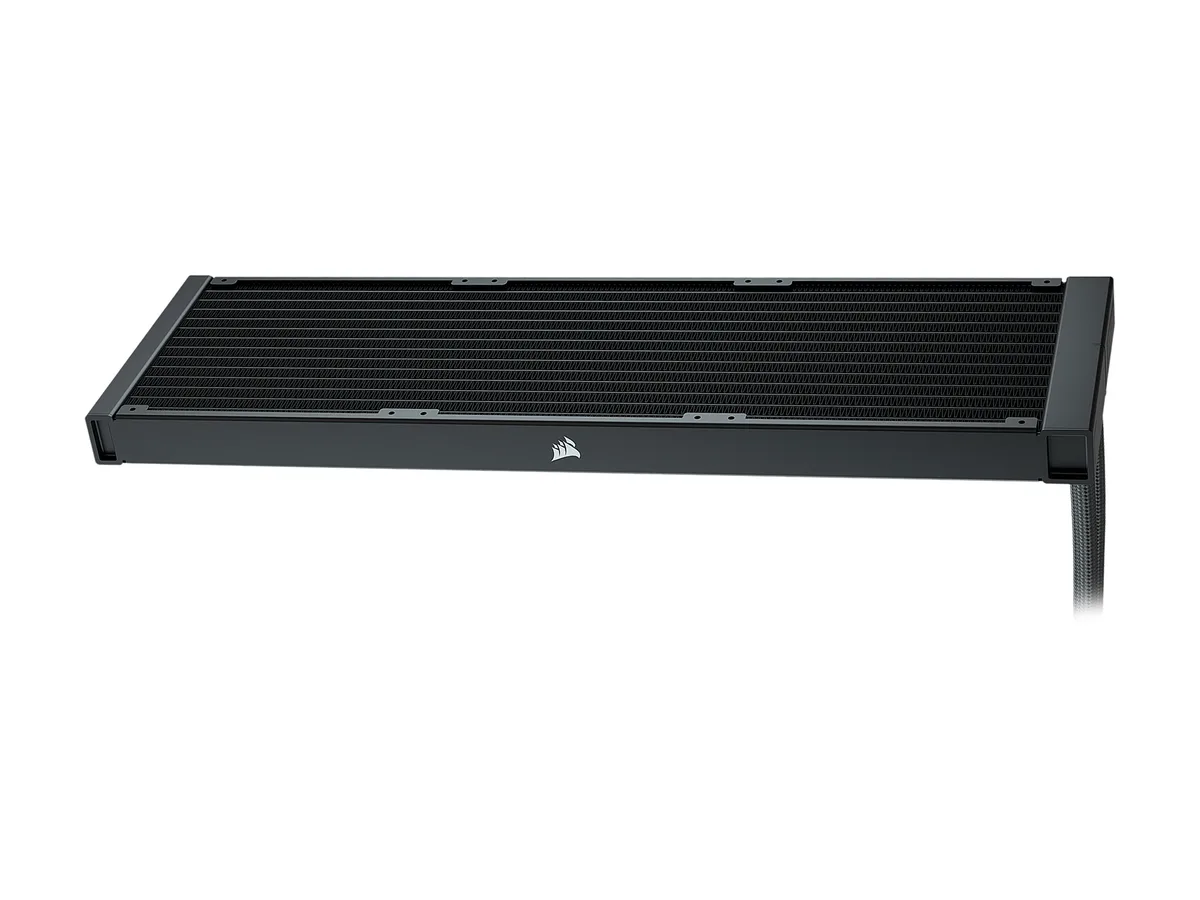

The radiator measures 450mm long, 140mm wide and 27mm thick, requiring a case with a matching triple-140mm mounting area and enough clearance for 25mm-thick fans plus tubing. If the chassis cannot accept a 450mm radiator, the cooler cannot be installed.

Highlights

  • 33 CAPELLIX RGB LEDs on the pump head deliver vibrant, customisable lighting
  • 420 mm radiator provides maximum surface area for extreme CPU cooling
  • Three 140 mm magnetic levitation PWM fans push 97 CFM at up to 2000 RPM
  • Commander Core controller enables precise fan and RGB control for up to six fans
  • Zero RPM mode stops fans completely at low temperatures for silent operation

Specifications

BrandCORSAIR
ModelCW-9060055-WW
TypeLiquid Cooling System
Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1200 / 1156 / 1155 / 1154 / 1151 / 1150
AMD AM4 / sTRX4
Block MaterialCopper
Radiator Size450.00 x 140.00 x 27.00 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (140 mm)
Fan Dim.140.00 x 140.00 x 25.00 mm
Fan RPM400 - 2000 RPM
Fan Air Flow97 CFM
Fan Noise10 - 36 dB(A)
LED ColorRGB via iCUE
Tube Dim.450mm Length
Tube MaterialBlack Sleeved, Low-Permeation Rubber
FeaturesHigh-Performance RGB Pump Head: Powerful, low-noise cooling for your CPU, lit by 33 ultra-bright CAPELLIX RGB LEDs.
CORSAIR's Largest All-In-One Radiator: A massive 420mm radiator provides maximum surface area for extreme cooling.
CORSAIR iCUE COMMANDER CORE Included: A smart RGB lighting and fan speed controller gives you precise speed and lighting control for up to six RGB PWM fans.
Magnetic Levitation RGB Fans: Three 140mm CORSAIR ML RGB Magnetic Levitation PWM fans deliver immense airflow to cool the most powerful systems with the latest high-performance components, with eight RG
Package ContentsCORSAIR iCUE H170i ELITE CAPELLIX Liquid CPU Cooler
CORSAIR Commander CoreMounting kit for all modern CPU sockets
Three ML RGB Series PWM 140mm fansFan and radiator mounting screws
Thermal compound (pre-applied)
Alternative Pump Cap
Cap Removal Tool
Quick Start Guide
Shipping weight2.93 kg
Package size503 × 185 × 160 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 420 mm radiator and three 140 mm fans fit in the same case that currently holds my older AIO?

The radiator measures 450 mm long, 140 mm wide and 27 mm thick, and the fans are 140 mm square by 25 mm deep. Check your case clearance against those dimensions before installing.

How can I confirm the pump head and the 33 CAPELLIX RGB LEDs are operating correctly after setup?

Open CORSAIR iCUE software; the pump head and all 33 CAPELLIX LEDs should appear as controllable devices, and the fan RPM readout should move between 400 and 2000 RPM under load.

What comes in the box and what must be purchased separately?

The package includes the H170i Elite Capellix cooler, a Commander Core controller, three ML RGB 140 mm PWM fans, mounting hardware for Intel LGA 1700, 1200, 1150, 1151, 1155, 1156, 2011, 2011-3 and 2066 plus AMD AM4 and sTRX4, pre-applied thermal compound and mounting screws. No extra parts are required for the listed sockets.
