Black 240 mm radiator with two 120 mm RGB fans and a copper pump block lit by 33 CAPELLIX LEDs

Corsair

Corsair iCUE H100i ELITE CAPELLIX CW-9060046-WW liquid cooler

SKU CH-BQ5P-7WBEK MPN CW-9060046-WW

A 240 mm liquid CPU cooler with two 120 mm magnetic-levitation PWM fans, a copper cold plate, 33 CAPELLIX RGB LEDs on the pump head and an included Commander CORE controller for up to six RGB fans

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 2066 / 2011 / 1700 / 1366 / 1200 / 1156 / 1155 / 1
  • Block MaterialCopper
  • Radiator Size277.00 x 120.00 x 27.00 mm
  • Radiator MaterialAluminum
  • Fan Size2 Fan Slots (120 mm)

Fan Size 2 Fan Slots (120mm)

Model Elite Capellix Series

LED Color RGB Pump + Fans

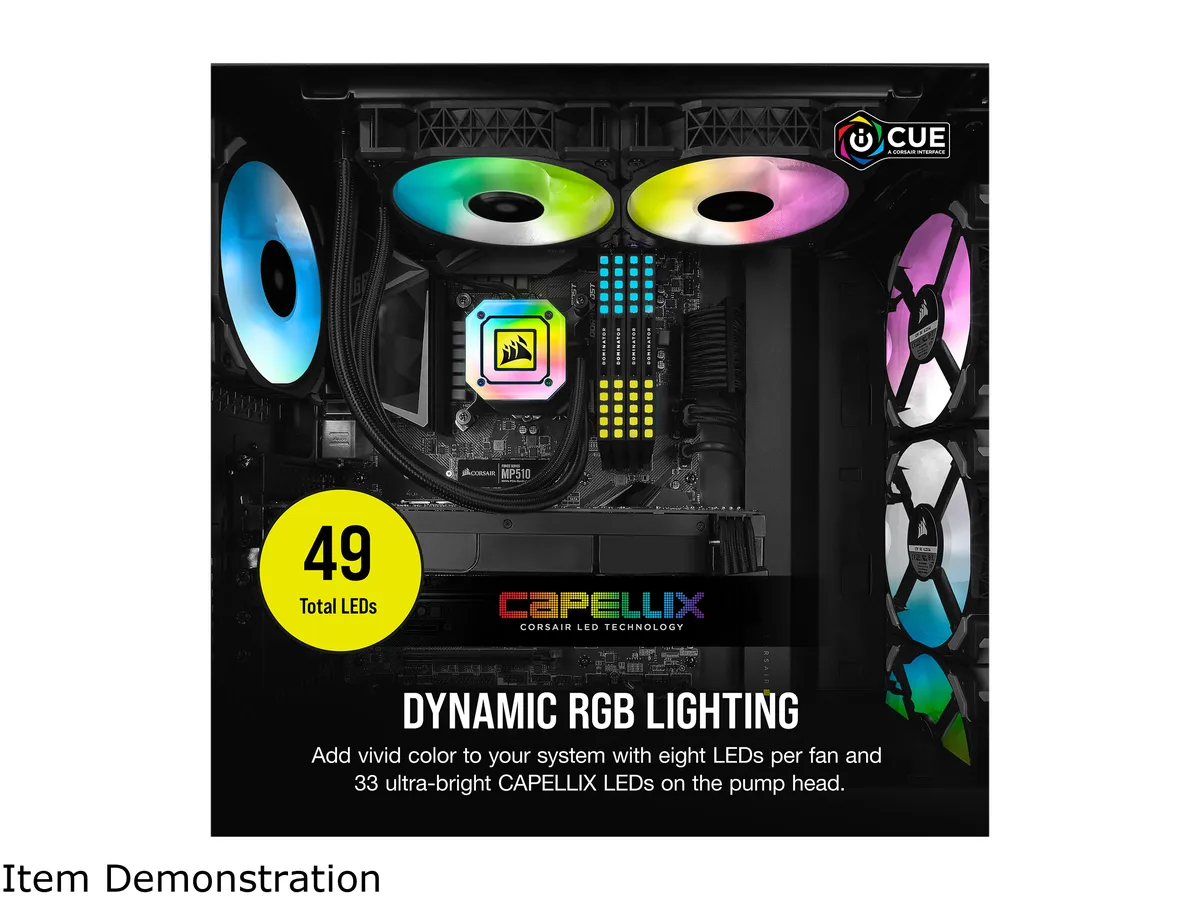

  • 33 ultra-bright CAPELLIX RGB LEDs illuminate the pump head for vivid lighting
  • Magnetic levitation fans reach 2400 RPM and 75 CFM for strong airflow
  • Commander CORE controls up to six RGB fans with precise PWM speed curves
  • Zero RPM profiles stop fans completely below 400 RPM for silent operation

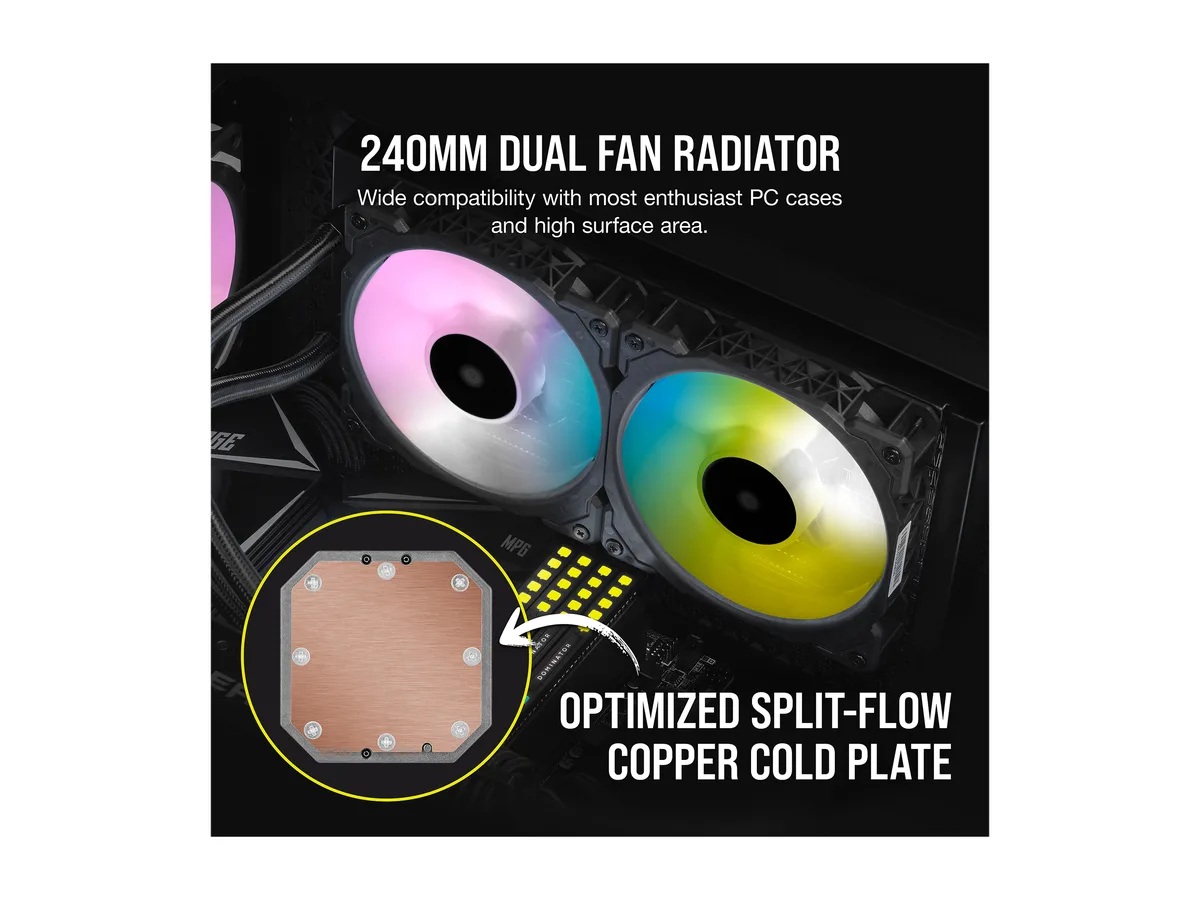

  • Copper cold plate and aluminum 240 mm radiator cool CPUs on Intel LGA 1700 and AMD AM4

240 mm RGB liquid CPU cooler

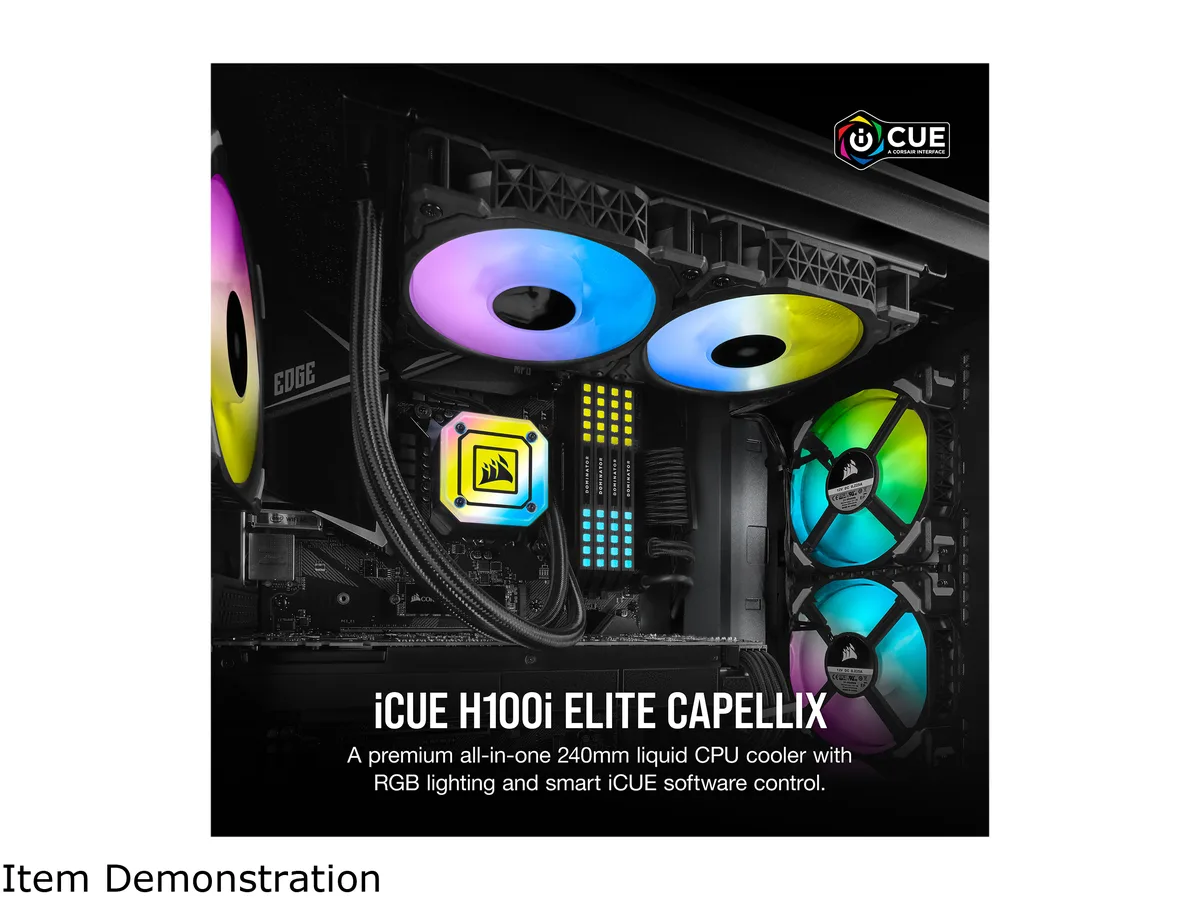

The Corsair iCUE H100i ELITE CAPELLIX is a closed-loop liquid cooler with a 277 mm aluminium radiator, two 120 mm magnetic-levitation PWM fans and a copper cold plate lit by 33 CAPELLIX RGB LEDs. A bundled Commander CORE controller manages fan speeds from 400 to 2,400 RPM and synchronises lighting across up to six RGB fans through iCUE software. It fits current Intel LGA sockets from 1150 to 2066 plus LGA 1700, and AMD platforms from AM2 through sTRX4.

Enthusiasts who want software-controlled RGB

The pump head and fans provide addressable RGB lighting and PWM control for builders who tune cooling curves and light shows in iCUE. Zero-RPM fan profiles let the fans stop completely at low load, keeping noise at the 10 dB(A) floor. Buyers who need more than six RGB fan headers or a larger radiator surface should consider other options. Systems without a spare USB 2.0 header cannot use the Commander CORE.

380 mm tubing length decides case fit

The low-permeation rubber tubes measure 380 mm from block to radiator, which determines whether the cooler reaches mounting points in your chassis. Measure the distance from your CPU socket to the planned radiator location before purchase. If the routing path exceeds this length, the cooler cannot be installed without modification.

Highlights

  • 33 ultra-bright CAPELLIX RGB LEDs illuminate the pump head for vivid lighting
  • Magnetic levitation fans reach 2400 RPM and 75 CFM for strong airflow
  • Commander CORE controls up to six RGB fans with precise PWM speed curves
  • Zero RPM profiles stop fans completely below 400 RPM for silent operation
  • Copper cold plate and aluminum 240 mm radiator cool CPUs on Intel LGA 1700 and AMD AM4

Specifications

BrandCORSAIR
SeriesiCUE H100i ELITE CAPELLIX
ModelCW-9060046-WW
TypeLiquid Cooling System
Block CompatibilityIntel LGA 2066 / 2011 / 1700 / 1366 / 1200 / 1156 / 1155 / 1151 / 1150
AMD AM4 / AM3 / AM2 / sTR4 / sTRX4
Block MaterialCopper
Radiator Size277.00 x 120.00 x 27.00 mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (120 mm)
Fan Dim.120.00 x 120.00 x 25.00 mm
Fan RPM2400 RPM (Max)
Fan Air Flow75 CFM (Max)
Fan Noise10 - 37 dB(A)
ColorBlack
LED ColorRGB
Tube Dim.Tubing Length: 380mm
Tube MaterialLow-Permeation Rubber
FeaturesHigh-Performance RGB Pump Head: Powerful, low-noise cooling for your CPU, lit by 33 ultra-bright CAPELLIX RGB LEDs.
CORSAIR iCUE Commander CORE Included: A smart RGB lighting and fan speed controller gives you precise speed and lighting control over up to six RGB fans.

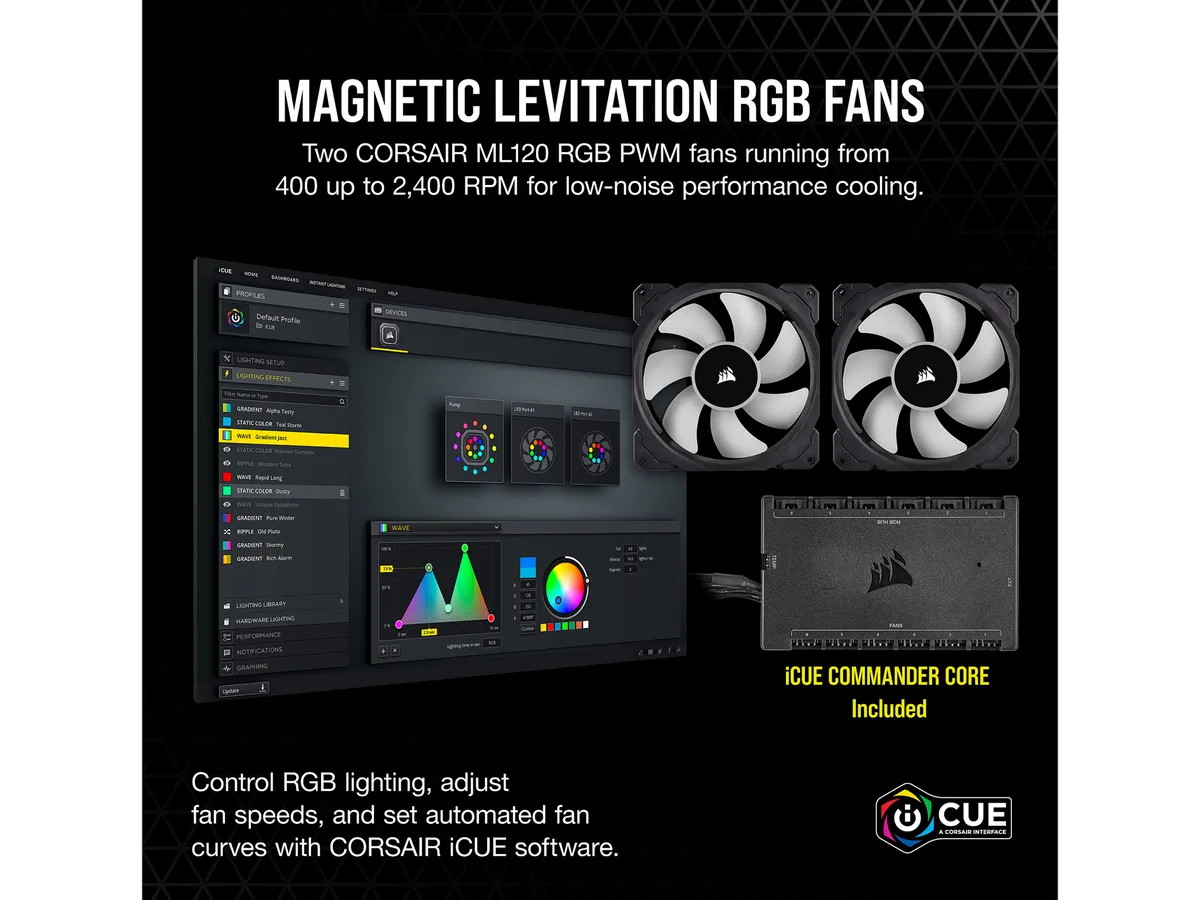

Magnetic Levitation RGB Fans: Two 120mm CORSAIR ML RGB Series PWM fans deliver powerful airflow for extreme CPU cooling performance, with eight RGB LEDs per fan.
Extreme CPU Cooling: Incredible cooling fan performance controllable via PWM, from 400 to 2,400 RPM while in operation.
Zero RPM Mode: Zero RPM cooling profil
Package ContentsCORSAIR iCUE H100i ELITE CAPPELIX Liquid CPU Cooler
CORSAIR Commander CORE

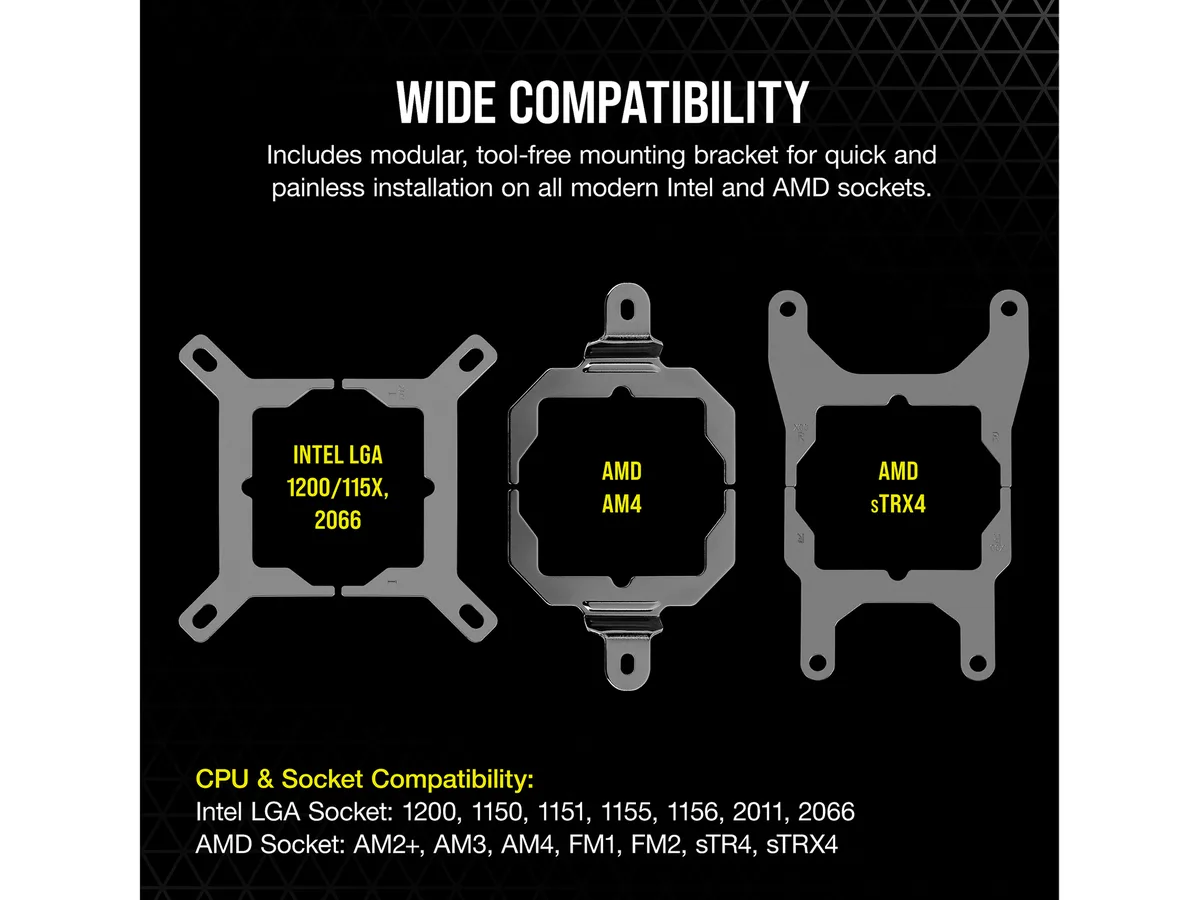

Mounting kit for all modern CPU sockets
Two ML RGB Series PWM 120mm fans
Fan and radiator mounting screws
Thermal compound (pre-applied)
Alternative Pump Cap
Cap Removal Tool
Quick Start Guide
Shipping weight2.10 kg
Package size310 × 223 × 148 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 240 mm radiator or a larger size for my build?

This model only comes with a 240 mm radiator measuring 277 x 120 x 27 mm, so there is no larger version to choose.

What does the 2400 RPM maximum fan speed mean for everyday cooling?

The two ML120 RGB PWM fans can spin up to 2400 RPM, delivering up to 75 CFM each when the CPU load demands it.

How does the PWM interface limit fan control in practice?

PWM lets the iCUE software adjust each fan precisely between 400 and 2400 RPM, and Zero RPM profiles can stop the fans completely at low temperatures.
