White 240mm liquid cooler with RGB pump head, two white 120mm fans and sleeved tubes

Corsair

Corsair iCUE H100i ELITE CAPELLIX WHITE 240mm liquid cooler CW-9060050-WW

SKU CH-K1S7-Y3R11 MPN CW-9060050-WW

240mm liquid CPU cooler with copper cold plate, 33 CAPELLIX RGB LEDs and two 120mm magnetic-levitation fans reaching 2400 RPM and 75 CFM

  • TypeLiquid Cooling System
  • Block CompatibilityIntel: 1700 / 1150 / 1151 / 1154 / 1155 / 1156 / 1200 / 2066
  • Block MaterialCopper
  • Radiator Size277.00 x 120.00 x 27.00 mm
  • Radiator MaterialAluminum
  • Fan Size2 Fan Slots (120 mm)

Fan Size 2 Fan Slots (120mm)

Model Elite Capellix Series

LED Color RGB Pump + Fans White

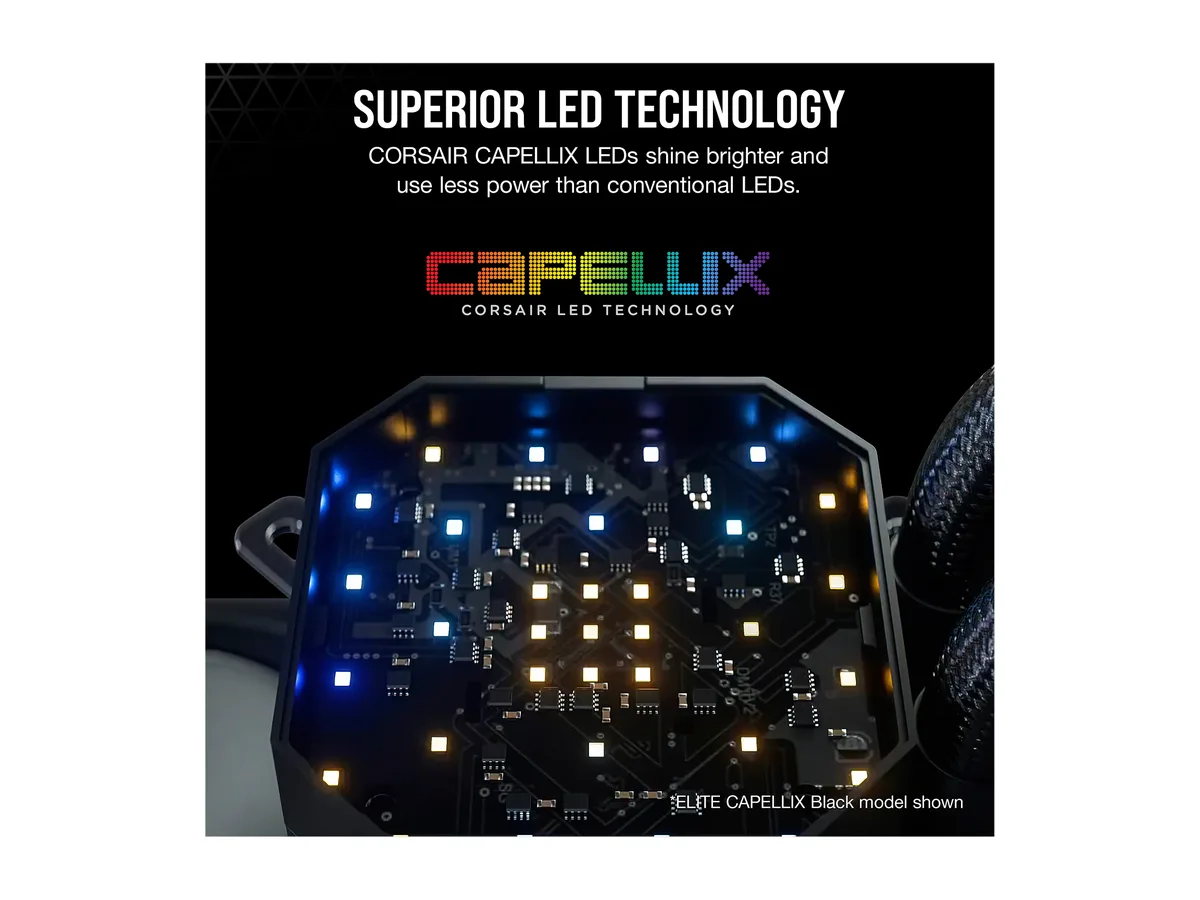

  • Low-noise CPU cooling powered by 33 ultra-bright CAPELLIX RGB LEDs
  • Precise control of up to six RGB fans via included Commander CORE controller
  • Quiet high-airflow operation from magnetic levitation fans reaching 75 CFM
  • Broad socket support across Intel 1700, 1200, 2066 and AMD AM4, sTRX4 platforms
  • Clean white aesthetic with 380 mm tubing for flexible routing

240mm White Liquid CPU Cooler

The Corsair iCUE H100i ELITE CAPELLIX WHITE is a 240mm all-in-one liquid cooler designed for builders who want high thermal capacity and coordinated RGB lighting in a white-themed build. It fits a wide range of modern Intel and AMD sockets using the included mounting hardware.

Thermals, Noise and Power Draw

Two 120mm magnetic levitation fans spin up to 2400 RPM and move 75 CFM of airflow across the 277mm aluminium radiator. Acoustic output ranges from 10 to 36 dB(A) depending on load, while a zero-RPM mode stops the fans entirely at low temperatures.

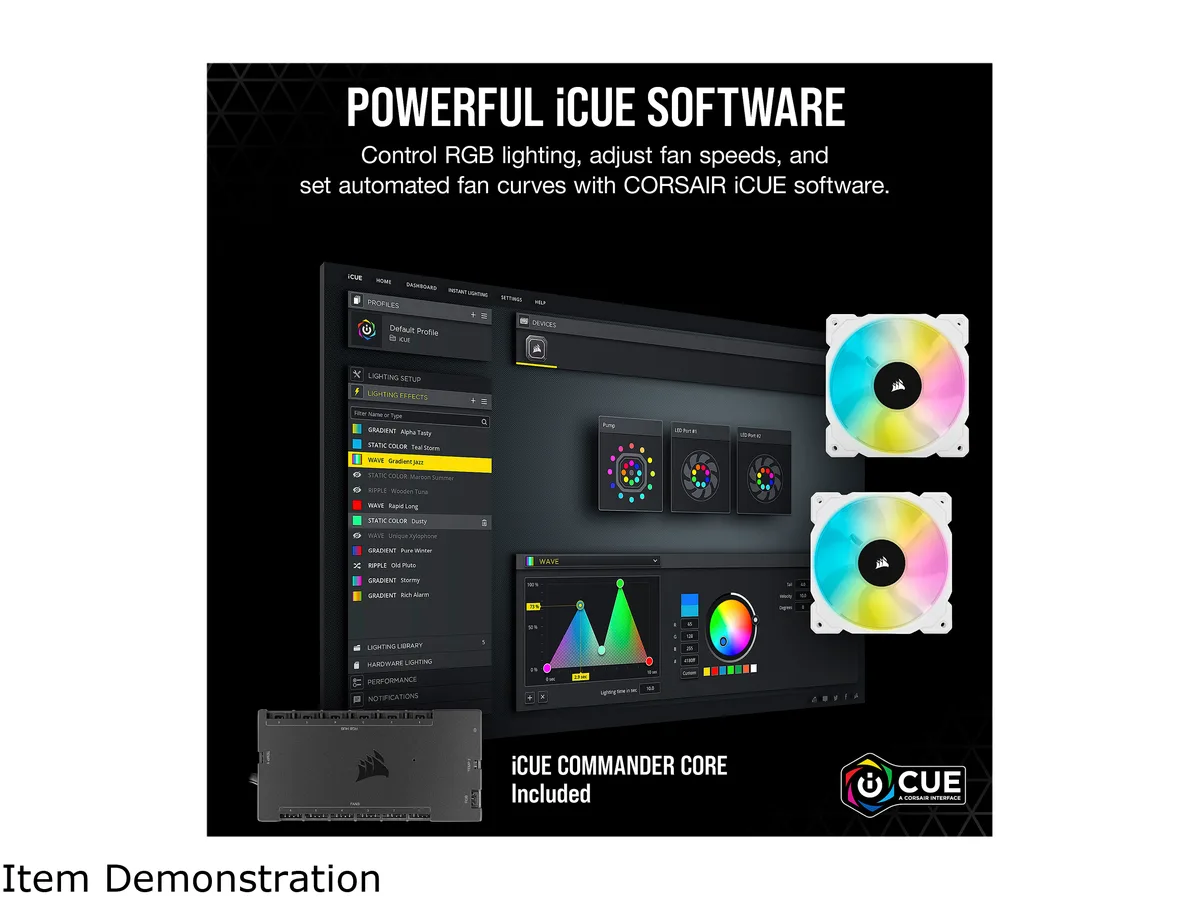

Commander Core and Lighting Control

The bundled Commander Core controller manages up to six RGB fans and connects to the pump head and fans via a single USB header. iCUE software then synchronises the 33 CAPELLIX LEDs on the pump and eight LEDs per fan, enabling per-LED effects and precise fan curves without extra hubs.

Highlights

  • Low-noise CPU cooling powered by 33 ultra-bright CAPELLIX RGB LEDs
  • Precise control of up to six RGB fans via included Commander CORE controller
  • Quiet high-airflow operation from magnetic levitation fans reaching 75 CFM
  • Broad socket support across Intel 1700, 1200, 2066 and AMD AM4, sTRX4 platforms
  • Clean white aesthetic with 380 mm tubing for flexible routing

Specifications

BrandCORSAIR
SeriesiCUE H100i ELITE CAPELLIX WHITE
ModelCW-9060050-WW
TypeLiquid Cooling System

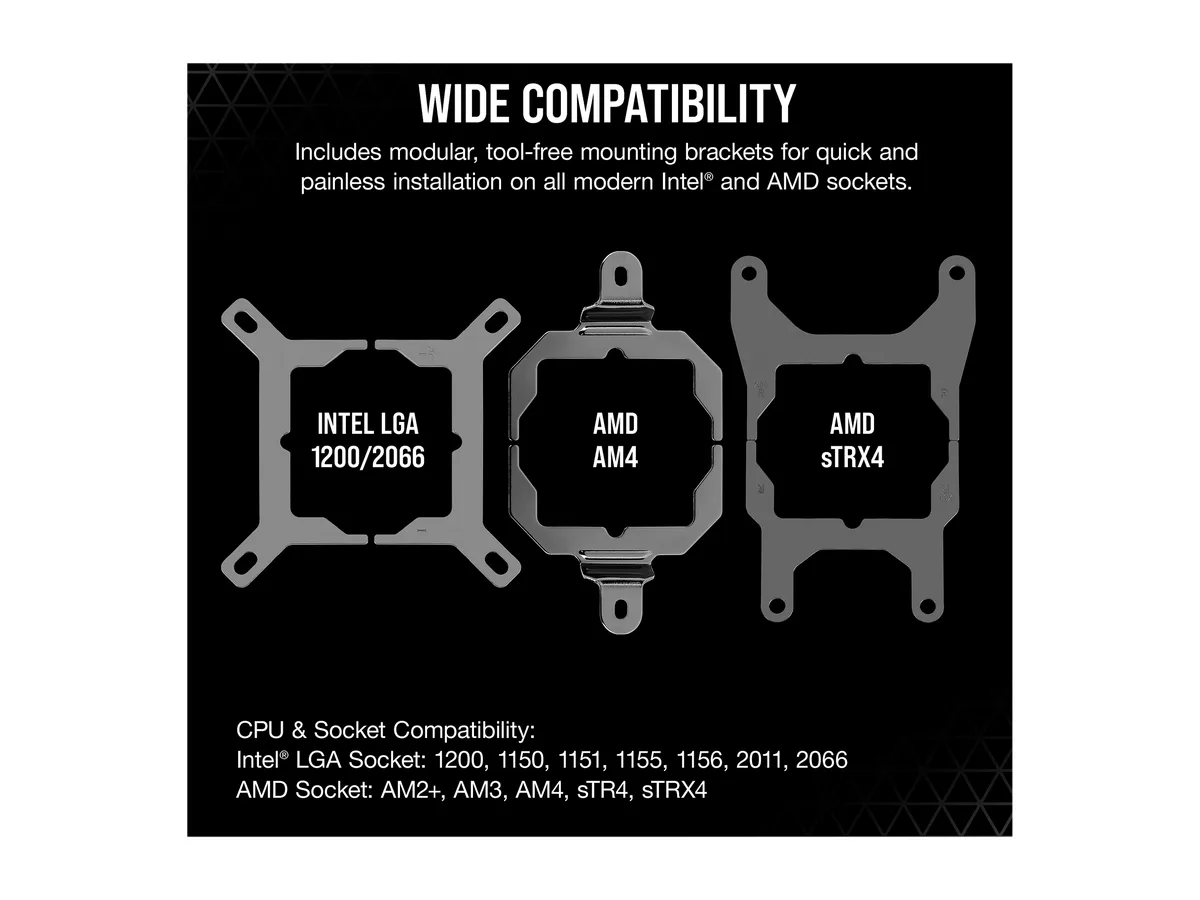

Block CompatibilityIntel: 1700 / 1150 / 1151 / 1154 / 1155 / 1156 / 1200 / 2066 / 2011-3 / 2011
AMD: sTRX4 / sTR4 / AM4 / AM3 / FM2 / FM1
Block MaterialCopper

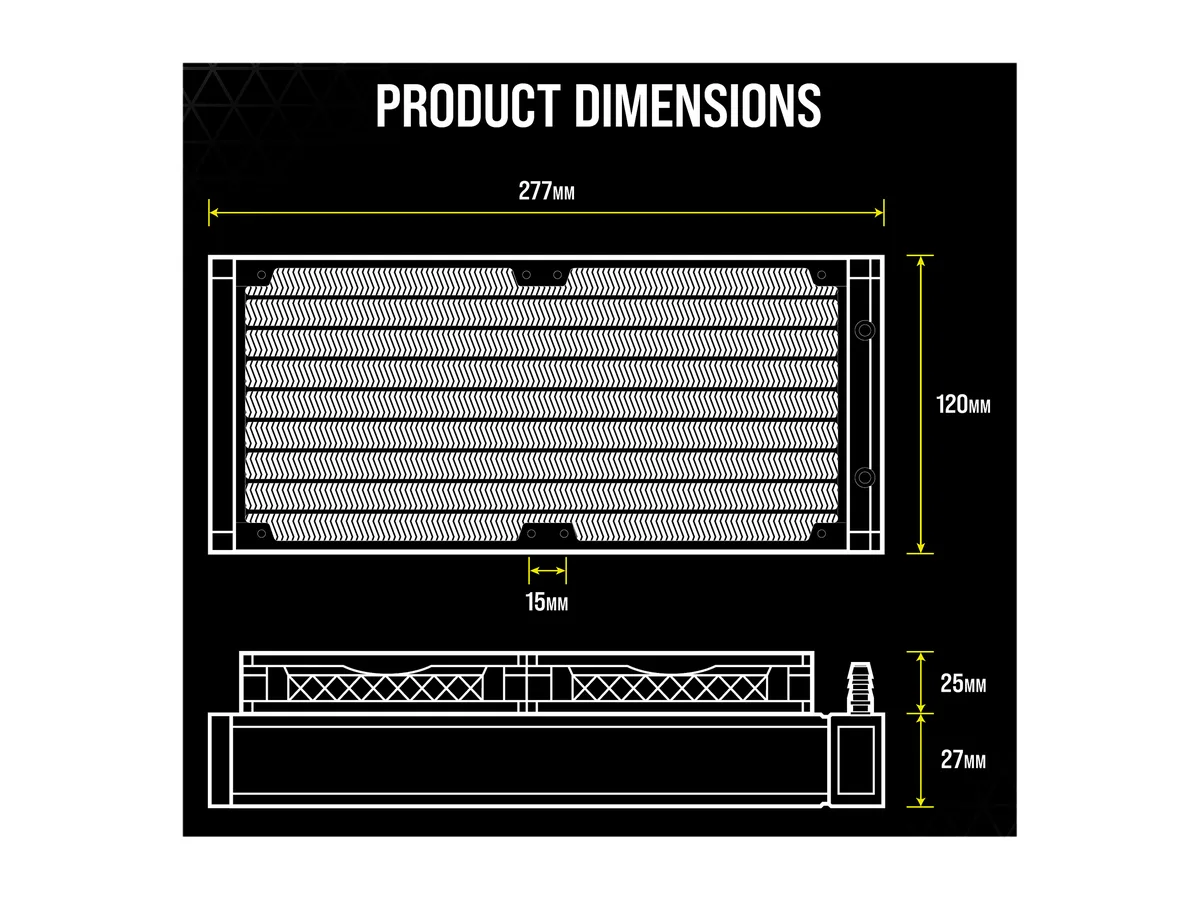

Radiator Size277.00 x 120.00 x 27.00 mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (120 mm)
Fan Dim.120.00 x 120.00 x 25.00 mm
Bearing TypeMagnetic Levitation
Fan RPM2400 RPM (Max.)
Fan Air Flow75 CFM
Fan Noise10 - 36 dB(A)
ColorWhite
LED ColorRGB
Tube Dim.380mm Length
FeaturesHigh-Performance RGB Pump Head: Powerful, low-noise cooling for your CPU, lit by 33 ultra-bright CAPELLIX RGB LEDs.
CORSAIR iCUE Commander CORE Included: A smart RGB lighting and fan speed controller gives you precise speed and lighting control over up to six RGB fans.

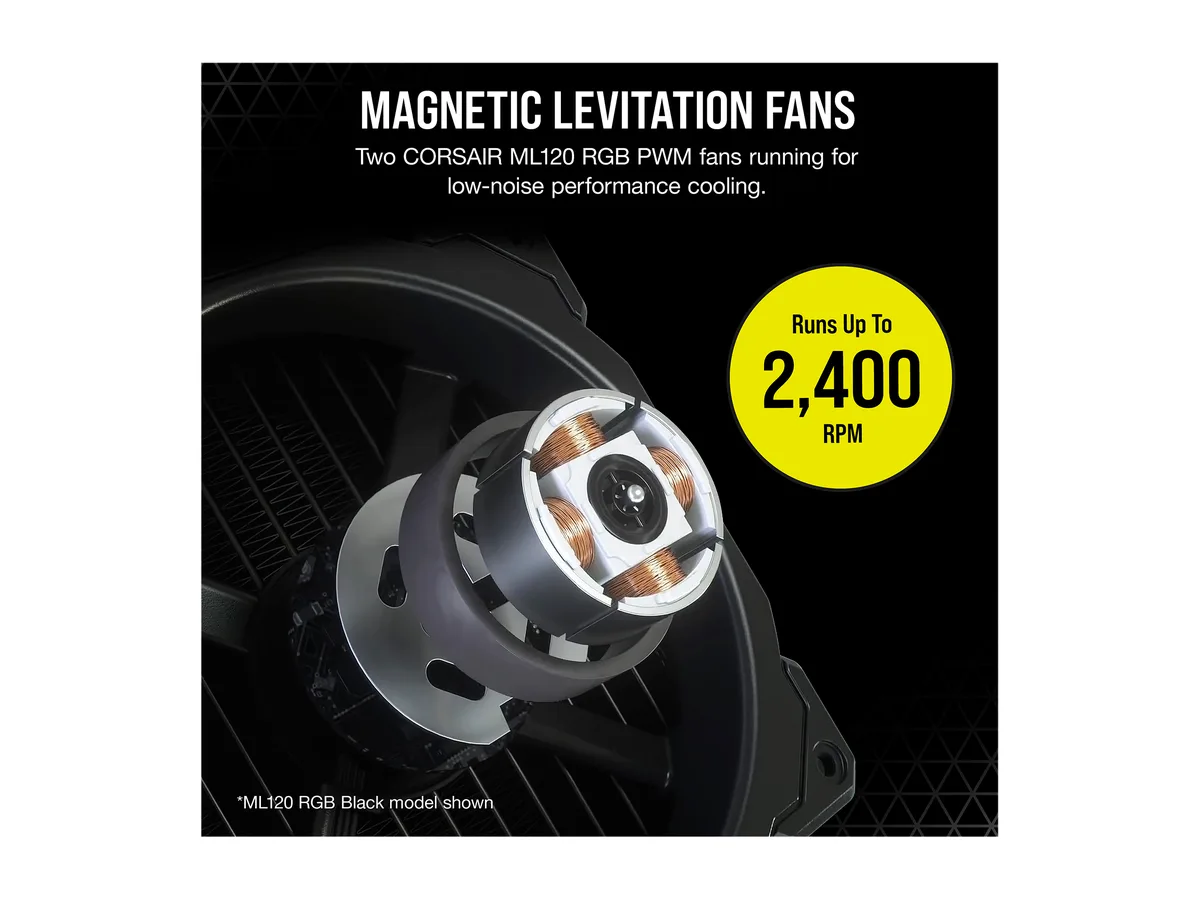

Magnetic Levitation RGB Fans: Two 120mm CORSAIR ML RGB Series PWM fans deliver powerful airflow for extreme CPU cooling performance, with eight RGB LEDs per fan.
Extreme CPU Cooling: Incredible cooling fan performance controllable via PWM, from 400 to 2,400 RPM while in operation.
Brilliant White Finish: A white pump c
Package ContentsCORSAIR H100i ELITE CAPELLIX WHITE Liquid CPU Cooler
CORSAIR Commander Core
Mounting kit for all modern CPU sockets
Two ML RGB WHITE Series PWM 120mm fans
Fan and radiator mounting screws
Thermal compound (pre-applied)
Alternative Pump Cap
Cap Removal Tool
Quick Start Guide
Shipping weight2.10 kg
Package size310 × 223 × 148 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the 240mm radiator and what step is often missed?

Mount the two 120mm ML RGB fans to the 277mm radiator using the supplied screws, then secure the radiator to the case. The step often missed is connecting the pump head USB cable to the Commander CORE and the Commander CORE to a motherboard USB 2.0 header so iCUE can control the 33 CAPELLIX LEDs and fan curves.

What maintenance or replacement will the cooler need later?

The loop is sealed and not user-serviceable; no coolant top-up is required. The two ML RGB fans use magnetic levitation bearings rated for long life, and the pre-applied thermal compound on the copper cold plate should be replaced with fresh paste whenever the block is removed for a CPU upgrade.

What limit appears first under sustained load?

The fans reach their maximum 2400 RPM and 75 CFM airflow before the pump hits its ceiling, so fan speed and the resulting 36 dB(A) noise level become the first bottleneck during extended heavy workloads.
