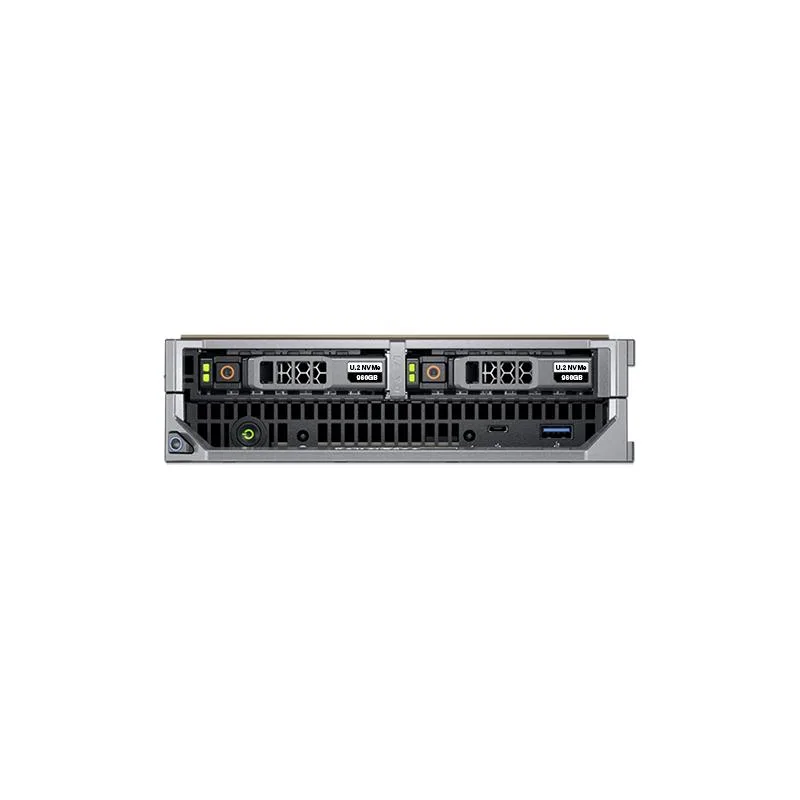

Half-height blade server, matte black finish, front drive bays visible

DELL

DELL PowerEdge M640 Blade 2x Xeon 8160 24C 2.1GHz 64GB DDR4 2x 1.92TB SATA 57810S-K iDRAC9 Enterprise

SKU CH-SE4V-Y0FBP

Half-height blade server with dual 24-core Xeon 8160 CPUs, 64GB DDR4, two 1.92TB SATA SSDs and 10Gb dual-port networking

  • TypeBlade
  • Rack HeightBlade
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores24-Core Processor

Installed Memory Size 64GB

SSD (Installed) 2 x 1.92TB SATA SSD

  • Dual Xeon Platinum 8160 CPUs provide 24 cores each at 2.1 GHz base
  • 64 GB DDR4 registered ECC memory across four slots for virtualization density
  • Two 1.92 TB SATA SSDs on PERC S140 controller with RAID 0/1/5/10
  • Broadcom 57810S-K dual-port 10 Gb blade network daughter card included
  • iDRAC9 Enterprise enables full remote management and automation

Dual Xeon Platinum 8160 blade

The Dell PowerEdge M640 is a half-height blade server built for dense compute workloads such as virtualization, private cloud and high-performance computing. It fits into PowerEdge MX or M1000e chassis and ships with iDRAC9 Enterprise for remote management. Two 24-core processors run at 2.1 GHz with 3.7 GHz turbo to handle demanding multi-threaded applications.

64 GB DDR4 installed with 2 TB ceiling

The system arrives with 64 GB of registered ECC DDR4-2666 memory across four DIMMs and offers 16 slots supporting up to 2 TB total. This capacity ceiling is the single figure that determines whether the blade can hold your working set or if a memory expansion is required before deployment.

Dual 1.92 TB SATA SSDs and 10 Gb networking

Storage is provided by two 1.92 TB SATA 6 Gb/s drives behind a PERC S140 controller supporting RAID 0, 1, 5 and 10. A Broadcom 57810S-K dual-port 10 Gb daughter card handles network connectivity. The blade requires a compatible MX or M1000e enclosure for power, cooling and I/O aggregation, and no operating system is pre-installed.

Highlights

  • Dual Xeon Platinum 8160 CPUs provide 24 cores each at 2.1 GHz base
  • 64 GB DDR4 registered ECC memory across four slots for virtualization density
  • Two 1.92 TB SATA SSDs on PERC S140 controller with RAID 0/1/5/10
  • Broadcom 57810S-K dual-port 10 Gb blade network daughter card included
  • iDRAC9 Enterprise enables full remote management and automation

Specifications

BrandDELL
SeriesPowerEdge M640
TypeBlade
Rack HeightBlade
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores24-Core Processor
# of Processors Installed2
MAX Processors2
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity2TB
Number of Memory Slots16
Storage ControllerDell Perc S140 Controller
HDD InterfaceSATA/SAS
SSD (Installed)2 x 1.92TB SATA SSD
Raid LevelRAID 0/1/5/10
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Broadcom 57810S-K 10Gb Dual Port Blade Network Daughter Card
Management PortRJ 45
Operating SystemNo
