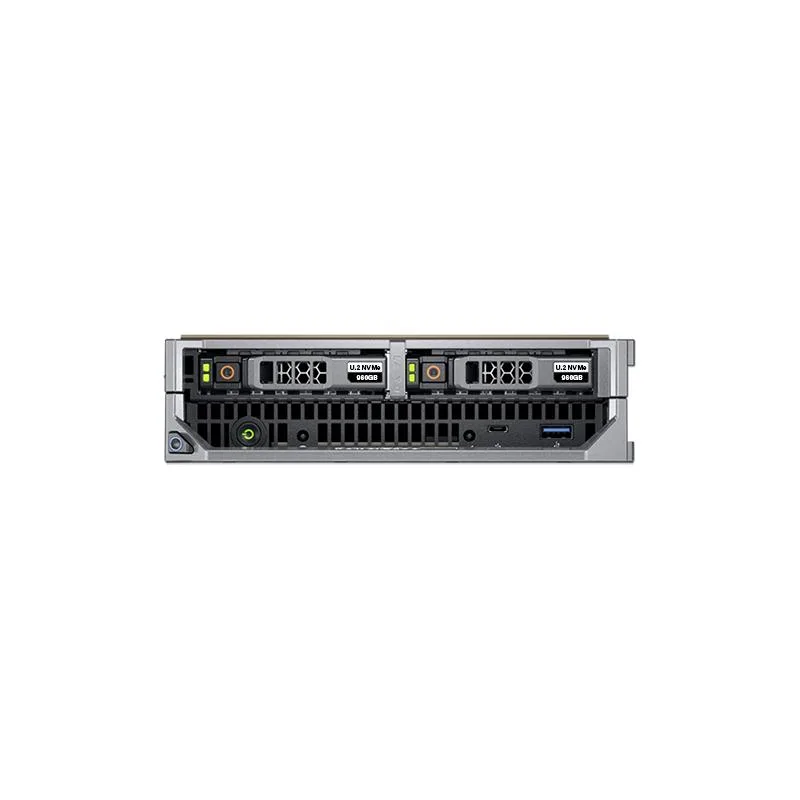

Half-height blade server, silver metal chassis, two drive bays visible

DELL

DELL PowerEdge M640 Blade Server 2x Xeon Platinum 8260 2.4GHz 24-Core 128GB DDR4 2x 960GB SSD

SKU CH-2MGV-BBF9S

Half-height blade server with dual 24-core Xeon Platinum 8260 CPUs, 128GB DDR4, S140 controller, and two 960GB SSDs

  • TypeBlade
  • Rack HeightBlade
  • CPU TypeIntel Xeon
  • CPU Speed2.40 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores24-Core Processor

Installed Memory Size 128GB

SSD (Installed) 2 x 960GB SATA SSD

  • Dual 24-core Xeon Platinum 8260 CPUs at 2.4 GHz with 3.9 GHz turbo for heavy compute
  • 128 GB DDR4 2933 MHz ECC memory across 16 slots, expandable to 1.5 TB
  • Two 960 GB SATA SSDs with PERC S140 controller supporting RAID 0/1/5/10
  • Broadcom 57810S-K dual-port 10 Gb blade network card for high-speed connectivity
  • iDRAC9 Enterprise remote management built in for full out-of-band control

Dual 24-core Xeon blade server

This Dell PowerEdge M640 is a half-height blade server equipped with two Intel Xeon Platinum 8260 processors, each running at 2.4 GHz with a 3.9 GHz turbo frequency. It includes 128 GB of DDR4 registered ECC memory across eight 16 GB modules and two 960 GB SATA solid-state drives managed by a PERC S140 controller supporting RAID 0, 1, 5, and 10. The unit is new and designed for installation in PowerEdge MX or M1000e chassis.

Suited for virtualisation and compute density.

The server targets environments that need high core counts and memory capacity in a compact blade form factor, such as virtualisation clusters, private cloud nodes, and high-performance computing tasks. A Matrox G200 graphics controller with 8 MB video memory provides basic console output only, so buyers requiring GPU acceleration for rendering, AI inference, or VDI graphics should look at alternative platforms.

Dual-socket LGA 3647 with 16 DDR4 slots

The system board uses two LGA 3647 sockets populated with the Platinum 8260 CPUs and offers 16 DIMM slots supporting up to 1.5 TB of DDR4 memory. This CPU and memory configuration determines whether the blade matches the performance and capacity requirements of the intended workload.

Highlights

  • Dual 24-core Xeon Platinum 8260 CPUs at 2.4 GHz with 3.9 GHz turbo for heavy compute
  • 128 GB DDR4 2933 MHz ECC memory across 16 slots, expandable to 1.5 TB
  • Two 960 GB SATA SSDs with PERC S140 controller supporting RAID 0/1/5/10
  • Broadcom 57810S-K dual-port 10 Gb blade network card for high-speed connectivity
  • iDRAC9 Enterprise remote management built in for full out-of-band control

Specifications

BrandDELL
SeriesPowerEdge M640
TypeBlade
Rack HeightBlade
CPU TypeIntel Xeon
CPU Speed2.40 GHz
CPU SocketLGA 3647
Number of CPU Cores24-Core Processor
# of Processors Installed2
MAX Processors2
Installed Memory Size128GB
Memory TypeDDR4
Max Memory Capacity2TB
Number of Memory Slots16
Storage ControllerDell Perc S140 Controller
HDD InterfaceSATA/SAS
SSD (Installed)2 x 960GB SATA SSD
Raid LevelRAID 0/1/5/10
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Broadcom 57810S-K 10Gb Dual Port Blade Network Daughter Card
Management PortRJ 45
Operating SystemNo
